Lead Acid Battery

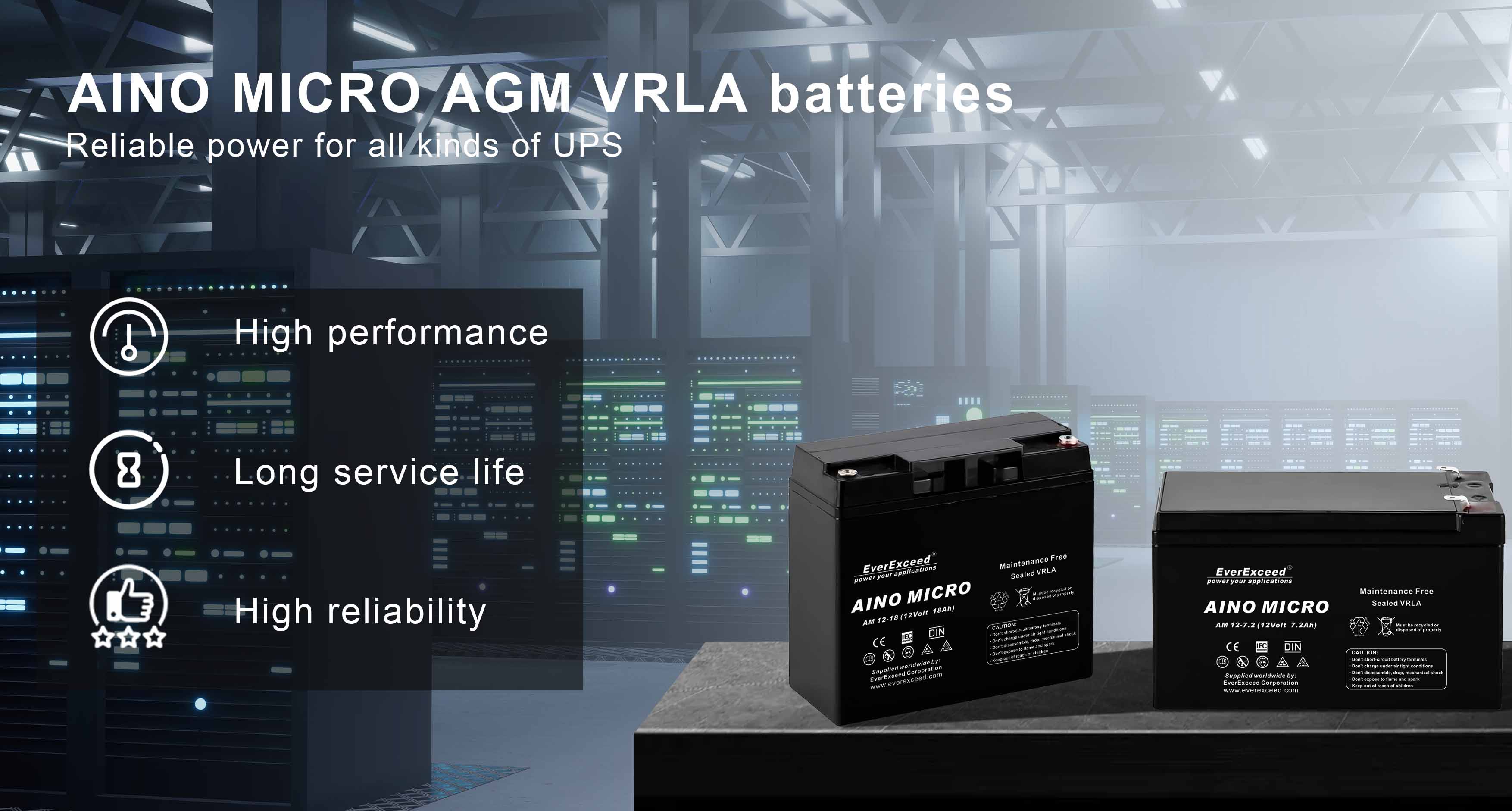

AINO MICRO Range VRLA Battery

EverExceed AINO MICRO Range VRLA use of special sealing epoxies, groove case and cover construction, and long-sealing paths for posts and connectors, assures that the VRLA battery will offer exceptional leak resistance, and allows them to be used in any position.


  • brand:

    EverExceed
  • Model:

    AM Series
  • Rated voltage(V):

    4V/6V/12V
  • Rated capacity(Ah):

    4.5AH-70AH
  • OEM/ODM Service:

    Yes, customized
  • Certificates:

    UL1989; IEC61427;IEC60896; CE
  • Usage:

    Uninterrupted power supplies;Security & fire alarm systems;Laboratory & test equipment;Monitoring equipment;Telecom equipment;Emergency lighting;Power tools;Medical equipment ;Consumer electronics;Portable equipment;Toys and hobbies; Marine instruments
  • Features
  • TECHNICAL DATA

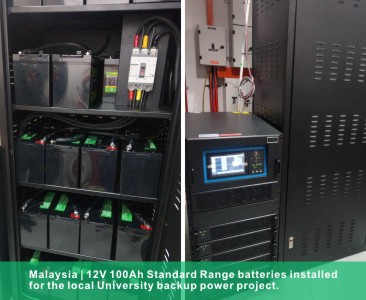

  • SUCCESSFUL CASES
  • Download



Technical features:











Industry leading

High reliability

Highly compatible with UPS
AM 12-9 have maximum 36Watt @15mins , AM 12-12 & AM 12-18 have 55Watt @ 15mins & 88Watt @ 15mins power output respectively.
Using special high tin alloys having lowest calcium levels and highest tin levels in the industry-minimizing grid growth, reducing gassing & extending battery life.

Specially designed & manufactured to save installtion space while providing full & reliable power for all kinds of UPS










Low self-discharge rate

Complete protection

Long service life
Less than 3% per month discharge at 20°C (68°F)

No matter what the situation, a trustworthy UPS battery guarantees your devices stay powered through anything.

5~8 years design life @ 20°C(68°F) ambient temperature










Wide operating temperature range

Long warranty

Advanced technology
Long lasting high performance in high and low temperatures {-40°C(-40°F) ~ 70°C (-158°F )}

2 years warranty time which is 2 times higher than the other batteries in market.

AGM technology for up to 99% efficient gas recombination and freedom from electrolyte maintenance.






Internal structure:


① Plates: Calcium / tin  lead alloy,optimized for high corrosion resistance;

② Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance;

③ Standard housing: Reinforced ABS container and cover;

④ Terminals: Faston no.187&250, silver plated copper female insert, lead/silver plated copper flag terminal;

⑤ Valve: Release gas in case of excess pressure and protects the cell against atmosphere.

Applications

• Uninterrupted power supplies;• Security & fire alarm systems;• Laboratory & test equipment;• Monitoring equipment;

• Telecom equipment;• Emergency lighting;• Power tools;• Medical equipment; • Consumer electronics;• Portable equipment;• Toys and hobbies;• Marine instruments




Factory



Model No. Nominal Voltage (V) Rated Capacity 20hr Rate (Ah) Outline Dimensions  Terminal Type
Length(mm/inch) Width(mm/inch) Height(mm/inch) Total Height(mm/inch) Weight(kg/lbs)
AM 4-4.5 4 4.5 48/1.89 48/1.89 102/4.02 108/4.26 0.55/1.21 Faston Tab No. 187
AM 4-9.5 4 9.5 101/3.98 44/1.73 95/3.74 102/4.02 1.0/2.2 Faston Tab No. 187
AM 6-1.3 6 1.3 97/3.82 24/0.95 51/2.01 56/2.21 0.30/0.66 Faston Tab No. 187
AM 6-2.8 6 2.8 66/2.60 33/1.30 98/3.86 103/4.06 0.57/1.26 Faston Tab No. 187
AM 6-3.2 6 3.2 134/5.28 34/1.34 60/2.36 65/2.56 0.60/1.32 Faston Tab No. 187
AM 6-4.0 6 4 70/2.76 47/1.85 102/4.02 108/4.26 0.72/1.59 Faston Tab No. 187
AM 6-4.5 6 4.5 70/2.76 47/1.85 102/4.02 108/4.26 0.75/1.65 Faston Tab No. 187
AM 6-7.2 6 7.2 151/5.95 34/1.34 94/3.70 98/3.86 1.10/2.42 Faston Tab No. 187
AM 6-8 6 8 98/3.86 56/2.21 118/4.65 118/4.65 1.20/2.64 Faston Tab No. 187
AM 6-10 6 10 151/5.95 51/2.01 94/3.70 98/3.86 1.75/3.85 Faston Tab No. 187
AM 6-12 6 12 151/5.95 51/2.01 94/3.70 98/3.86 1.85/4.07 Faston Tab No. 187
AM 6-14 6 14 108/4.25 71/2.80 140/5.51 144/5.67 2.15/4.73 Faston Tab No. 187
AM 12-0.8 12 0.8 96/3.78 25/0.98 62/2.44 62/2.44 0.35/0.77 Wire Leads & Plug
AM 12-1.3 12 1.3 97/3.82 42/1.65 52/2.05 57/2.26 0.56/1.23 Faston Tab No. 187
AM 12-2.2 12 2.2 178/7.01 34/1.34 60/2.36 66/2.60 0.88/1.94 Faston Tab No. 187
AM 12-2.8 12 2.8 70/2.76 70/2.76 98/3.86 98/3.86 1.15/2.53 Faston Tab No. 187
AM 12-3.3 12 3.3 134/5.28 67/2.64 60/2.36 66/2.60 1.22/2.68 Faston Tab No. 187
AM 12-4.0 12 4 90/3.55 70/2.76 102/4.02 107/4.22 1.40/3.08 Faston Tab No. 187
AM 12-4.5 12 4.5 90/3.55 70/2.76 102/4.02 107/4.22 1.55/3.41 Faston Tab No. 187
AM 12-5 12 5 90/3.55 70/2.76 102/4.02 107/4.22 1.65/3.63 Faston Tab No. 187
AM 12-7 12 7 151/5.95 65/2.56 94/3.70 98/3.86 2.10/4.62 Faston Tab No. 187
AM 12-7.2 12 7.2 151/5.95 65/2.56 94/3.70 98/3.86 2.20/4.84 Faston Tab No. 187
AM 12-7.2hr 12 7.2hr 151/5.95 65/2.56 94/3.70 98/3.86 2.25/4.96 Faston Tab No. 250
AM 12-8 12 8 151/5.95 65/2.56 94/3.70 98/3.86 2.50/5.51 Faston Tab No. 250
AM 12-9 12 9 151/5.95 65/2.56 94/3.70 98/3.86 2.65/5.84 Faston Tab No. 250
AM 12-9.5 12 9.5 151/5.95 65/2.56 94/3.70 98/3.86 2.70/5.95 Faston Tab No. 250
AM 12-12 12 12 151/5.95 98/3.86 94/3.70 100/3.94 3.50/7.70 Faston Tab No. 250
AM12-12hr 12 12hr 151/5.95 98/3.86 94/3.70 100/3.94 3.60/7.92 Faston Tab No. 250
AM 12-14 12 14 151/5.95 98/3.86 94/3.70 100/3.94 4.00/8.80 Faston Tab No. 250
AM 12-15 12 15 151/5.95 98/3.86 94/3.70 100/3.94 4.15/9.13 Faston Tab No. 250
AM 12-18 12 18 181/7.13 76/2.99 167/6.58 167/6.58 5.20/11.4 F-M5
AM12-18hr 12 18hr 181/7.13 76/2.99 167/6.58 167/6.58 5.25/11.5 F-M5
AM 12-20 12 20 181/7.13 76/2.99 167/6.58 167/6.58 5.90/13.0 F-M5
AM 12-22 12 22 181/7.13 76/2.99 167/6.58 167/6.58 6.15/13.5 F-M5
AM 12-26 12 26 166/6.54 175/6.90 126/4.96 126/4.96 8.0/17.6 F-M5
AM 12-28 12 28 166/6.54 175/6.90 126/4.96 126/4.96 8.2/18.0 F-M5
AM 12-40 12 40 197/7.76 165/6.50 172/6.78 172/6.78 13.2/29.4 F-M6
AM 12-45 12 45 197/7.76 165/6.50 172/6.78 172/6.78 13.6/30.0 F-M6
AM 12-50 12 50 197/7.76 165/6.50 172/6.78 172/6.78 14.0/30.8 F-M6
AM 12-65 12 65 350/13.79 168 / 6.62 178 / 7.01 178 / 7.01 19.5 / 42.9 F-M6
AM 12-70 12 70 350 / 13.79 168 / 6.62 178 / 7.01 178 / 7.01 21.0 / 46.2 F-M6







If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed AINO MICRO Range VRLA_V1.2_2020.03.09.pdf
