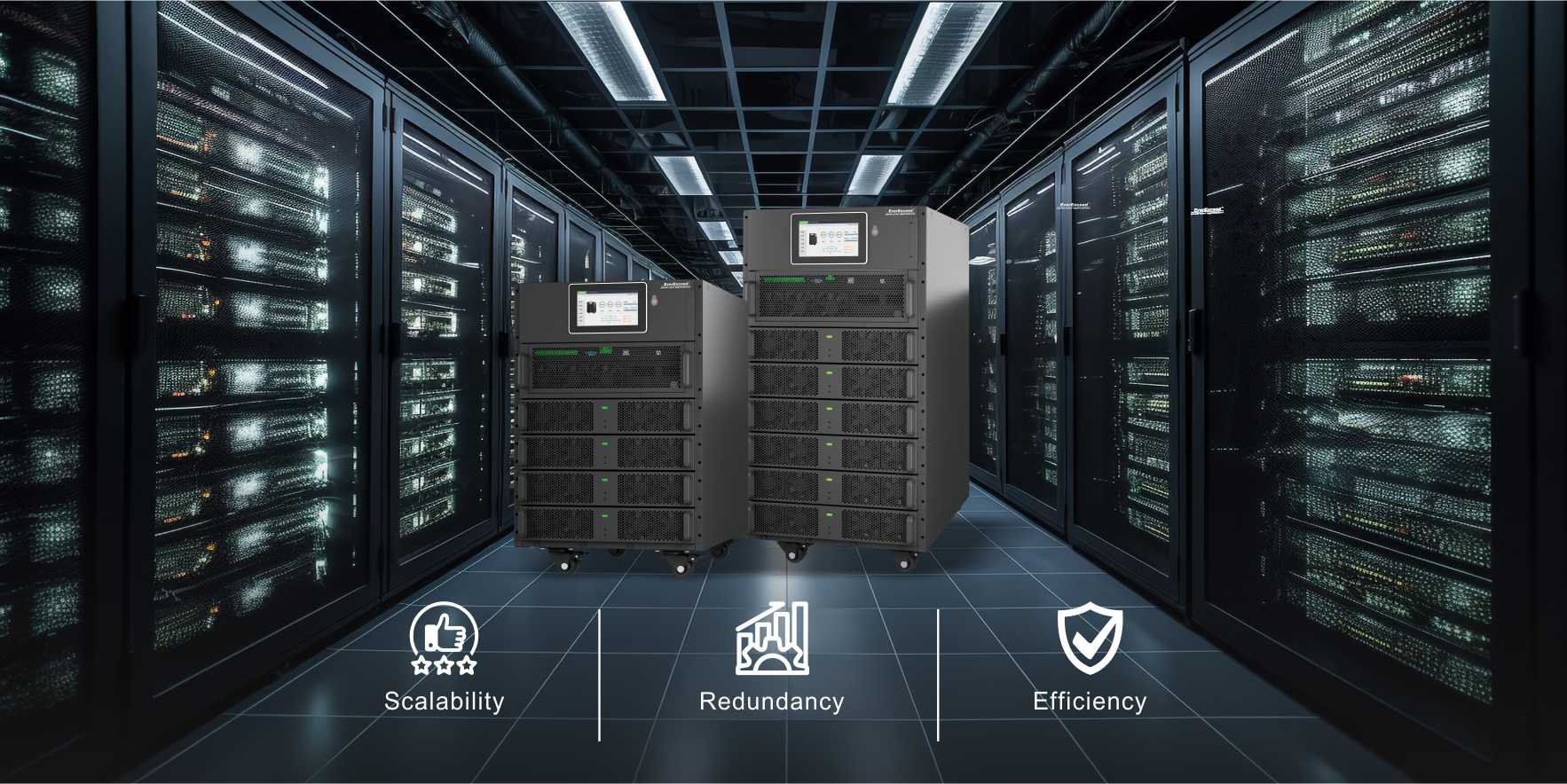

EverExceed PRM Plus Series Modular UPS is crafted for superior efficiency and scalability. This advanced solution provides reliable power protection through a flexible architecture, allowing for straightforward expansion as your needs evolve. With its high-performance capabilities, it ensures uninterrupted operation, making it an ideal choice for data centers and critical applications.
brand:
EverExceedModel:
PRM PLUSRated frequency:
50/60 HzEfficiency:
95.5%Applications:
Government, Finance, IT, Education,Transportation, Broadcasting, Medical, Energy, etc.Certificate:
CE/TLC
Technical features
 |

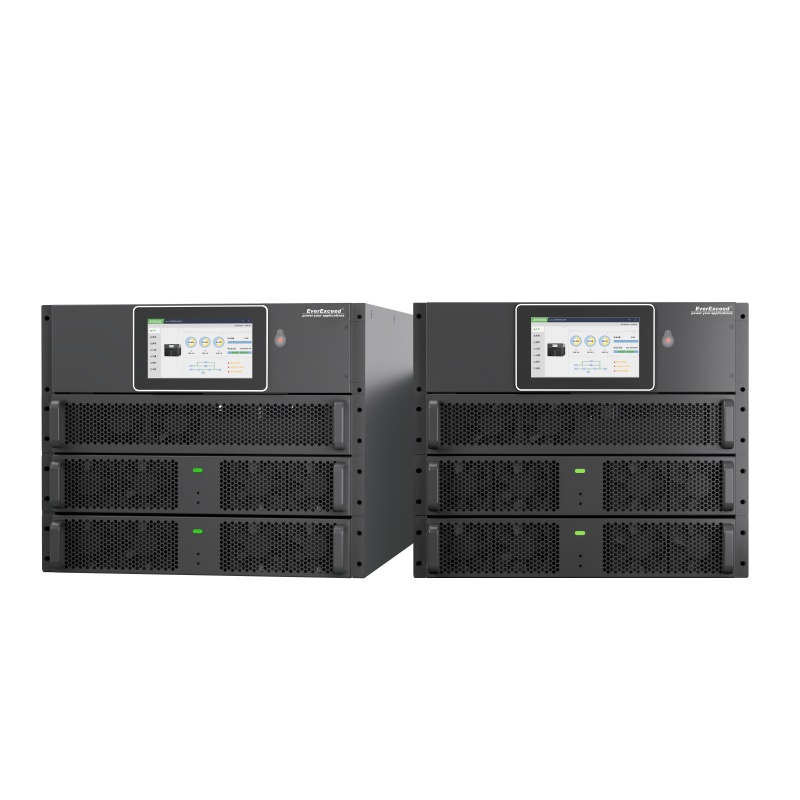

Mounted in 19 inch rack, orstand alone. |  |
Option of 30A charger module for long backup applications. | |
 |
7 inch touch LCD, with loT functions. |  |
Extreme high power density,20kw in 2U friendly forspace and maintenance. | |
 |
High reliability and environment adaptability with protection of components level. |
| Model | PRM PLUS | PRM PLUS | PRM PLUS | |||||||
| 20/10 | 30/15 | 40/20 | 40/10 | 60/15 | 80/20 | 60/10 | 90/15 | 120/20 | ||
| Rate Power | 20kVA | 30kVA | 40kVA | 40kVA | 60kVA | 80kVA | 60kVA | 90kVA | 120kVA | |
| Main input | Input | 3P5W (3P+N+PE) | ||||||||
| Rate Voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | |||||||||
| Rate Freq. | 50/60Hz | |||||||||
| Input PF | >0.99 | |||||||||
| Current distortion | THDi<3%(100% Linear load) | |||||||||
| Voltage range | 304 478VAC(L-L)full load 304 228VAC (L-L) power derate from 100% to 75% | |||||||||
| Freq. range | 40-70Hz | |||||||||
| Battery | Rate voltage | ±240VDC | ||||||||
| Charging capacity | 20%*Pout | |||||||||
| Charging accuracy | ±1% | |||||||||
| Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | ||||||||
| Voltage range | Range: -40%- +25% , Settable, default -20% +15%; | |||||||||
| Overload |
110%, long time operation；110%< load<125%, 5 mins；
125%<load<150%,1 min；>150%,1 second
|
|||||||||
| Inverter | Rate voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | ||||||||
| Rate Freq. | 50/60Hz | |||||||||
| Output PF | 1 | |||||||||
| Voltage accuracy | ±1.0% | |||||||||
| Load response | <5% (20% - 80% -20% step load) | |||||||||
| Recovery time | < 20ms (0% - 100% -0% step load) | |||||||||
| Output THDu | <1%(linear load),<5% (non-linear load according to IEC 62040-3) | |||||||||
| Overload | 110%,1 hour 125%,10 mins 150%,1 min >150%,200ms | |||||||||
| Frequency accuracy | 0.1% | |||||||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | |||||||||
| Slew rate | Settable 0.5Hz/S-3Hz/S default 0.5Hz/S | |||||||||
| Phase Accuracy | 120°±0.5° | |||||||||
| System | Efficiency | Normal Mode up to 95.5%; Battery Mode up to 95.5% | ||||||||
| Display | LED + 7 inch touch LCD | |||||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | |||||||||
| Certification- EMS | IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) | |||||||||
| IP degree | IP20 | |||||||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start | |||||||||
| Option | SNMP card, AS400 card, Parallel kit, LBS, Air filter, Bottom entry kit | |||||||||
| Environment | 0-40 (operation) -25 ~70 (storage) 0-95% (Humidity, non-condensing) | |||||||||
| Noise(dB)(1 meter) | 65dB @ 100% load, 62dB @ 45% load | |||||||||

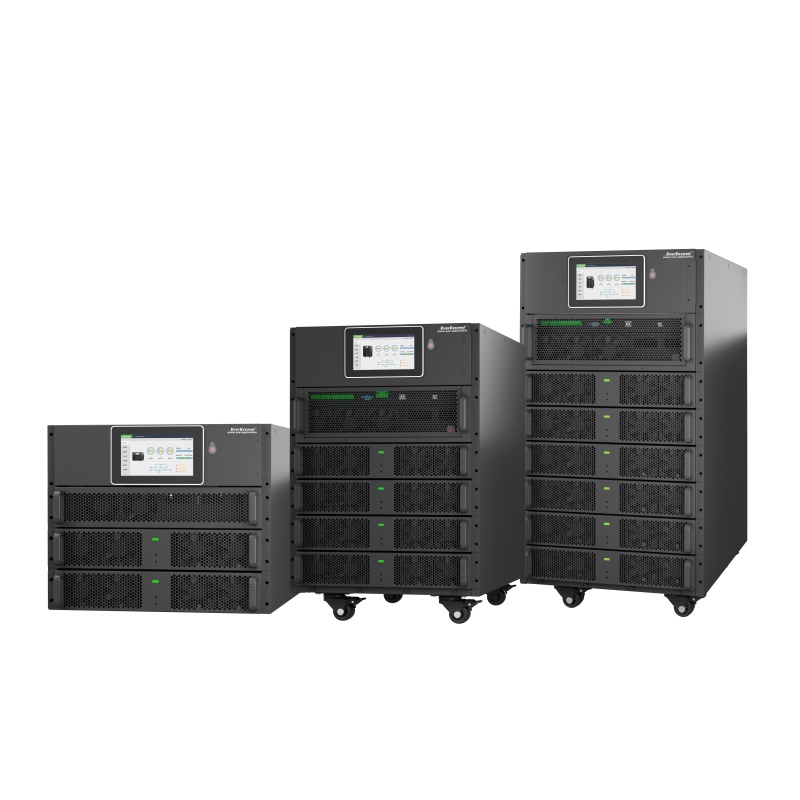

| Dimention | cabinet(W*D*H)mm | 482*700*396 (9U wheels not included) | 482*700*662(15U wheels not included) | 482*700*840(19U wheels not included) | ||||||
| module(W*D*H)mm | 440*555*85 (2U) | |||||||||
| Weight(kg) | Cabinet | 55 | 92 | 94 | ||||||
| module | 17 | |||||||||
| Power Module rated capacity | 10KW | 15KW | 20KW | 10KW | 15KW | 20KW | 10KW | 15KW | 20KW | |
 |
 |
 |
