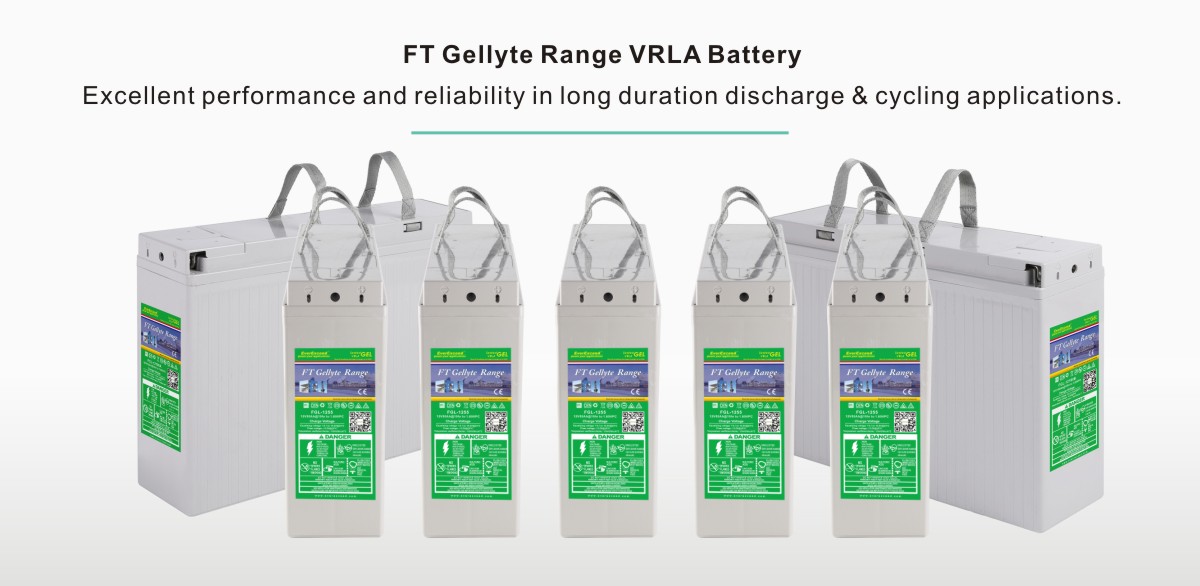

FT Gellyte Range VRLA Battery

EverExceed FT Gellyte Range VRLA provides excellent performance and reliability in long duration discharge & cycling applications. Our development team combines the market's demand with design optimization, precision component selection and state of the art manufacturing process to produce the most cost effective battery solution for today's applications.
  • brand:

    EverExceed
  • Certificates:

    ISO / CE/ IEC
  • Features
  • Technical datas

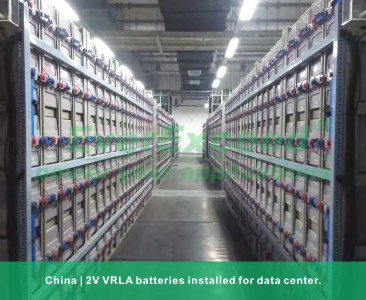

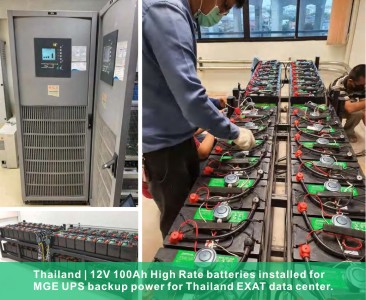

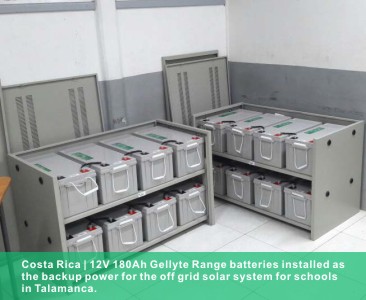

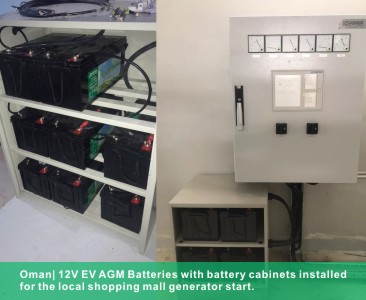

  • Successful case
  • Download




• Plates: Pb-Ca-Tin-Al lead alloy, optimized for high corrosion resistance.
• Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the
• electrolyte and for electrical separation.
• Standard Housing: Reinforced ABS (UL 94HB) container and cover.
• Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%.
• Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.

Technical Features:




• Special design comply with telecom 19''/ 23'' cabinet for space limitation;
• Highly porous glass micro-fibre seperator with GEL electrolyte;
• Virgin Pure Lead Tin and thick positive plate technology design for maximum service float life - 12 years design life @ 20°C(68°F);
• Thick positive plate plus optimized plate alloy to anti-corrosion;
• Designed in accordance with IEC 60896-21/-22;
• Spill-proof and leak-proof;
• Maintenance-free (no topping up) during the whole service life due to EverExceed Gellyte technology;
• Flame-arresting one-way pressure-relief vent for safe and long life;
• Electrolyte in solid gel form will not stratify-no equalization charge required;
• Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery;
• Increased durability and deep cycle ability for heavy-duty applications;
• Fully tank formed grid Lead Calcium Tin plate ensures voltage matching between cells;
• Shelf life up to 2 years at 20°C (68°F), very low gassing due to internal gas recombination;
• Unique performance against high temperature;
• Can be used in any orientation. Upright, side or end mounting recommended;
• Reinforced ABS case and cover – flame retardant material on request.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.



Applications:


• Telecommunication
• UPS
• Remote Monitoring
• Lighting
• Cathodic Protection
• Solar
• Wind Generation
• RV/Marine
• Golf Cart





Battery Model Nominal Voltage (V) Capacity C10 1.80VPC Capacity C20 1.75VPC 15 min. WPC 1.67VPC Short Circuit current Amps Internal Resistance mili-ohom Female Terminal Type Battery Weight   Outline Dimensions
Length Width Height
Kg lbs mm inch mm inch mm inch
FGL-6200 6 200 216 617 3500 1.85 F-M6 35 77 363 14.3 125 4.92 250 9.84
FG-1255 12 55 60 140 1580 6.85 F-M6 18 39.6 280 11 105 4.13 225 8.86
FGL-1275 12 75 80 250 2250 5.45 F-M6 27 59.4 560 22 115 4.53 185 7.28
FGL-1280 12 80 86 262 2380 5.2 F-M8 29 63.8 395 15.6 110 4.33 285 11.2
FGL-12100 12 100 109 314 2650 5.09 F-M8 34.5 75.9 395 15.6 110 4.33 285 11.2
FGL-12110 12 110 119 349 2880 4.85 F-M8 33 72.6 510 20.1 110 4.33 225 8.86
FGL-12120 12 120 130 386 3200 4.58 F-M8 36 79.2 550 21.7 110 4.33 240 9.45
FGL-12130 12 130 142 401 3400 4.4 F-M8 36.5 80.3 550 21.7 110 4.33 240 9.45
FGL-12155 12 155 168 493 3660 4.12 F-M8 50 110 550 21.7 110 4.33 285 11.2
FGL-12170 12 170 185 520 4080 3.6 F-M8 52 114 560 22 125 4.92 316 12.4
FGL-12180 12 180 198 570 4235 3.45 F-M8 59.5 131 560 22 125 4.92 316 12.4
FGL-12190 12 190 210 595 4680 3.32 F-M8 60 132 560 22 125 4.92 316 12.4
FGL-12200 12 200 220 630 4890 3.26 F-M8 62 136 560 22 125 4.92 316 12.4


If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed FT Gellyte Range VRLA V3.2.pdf
