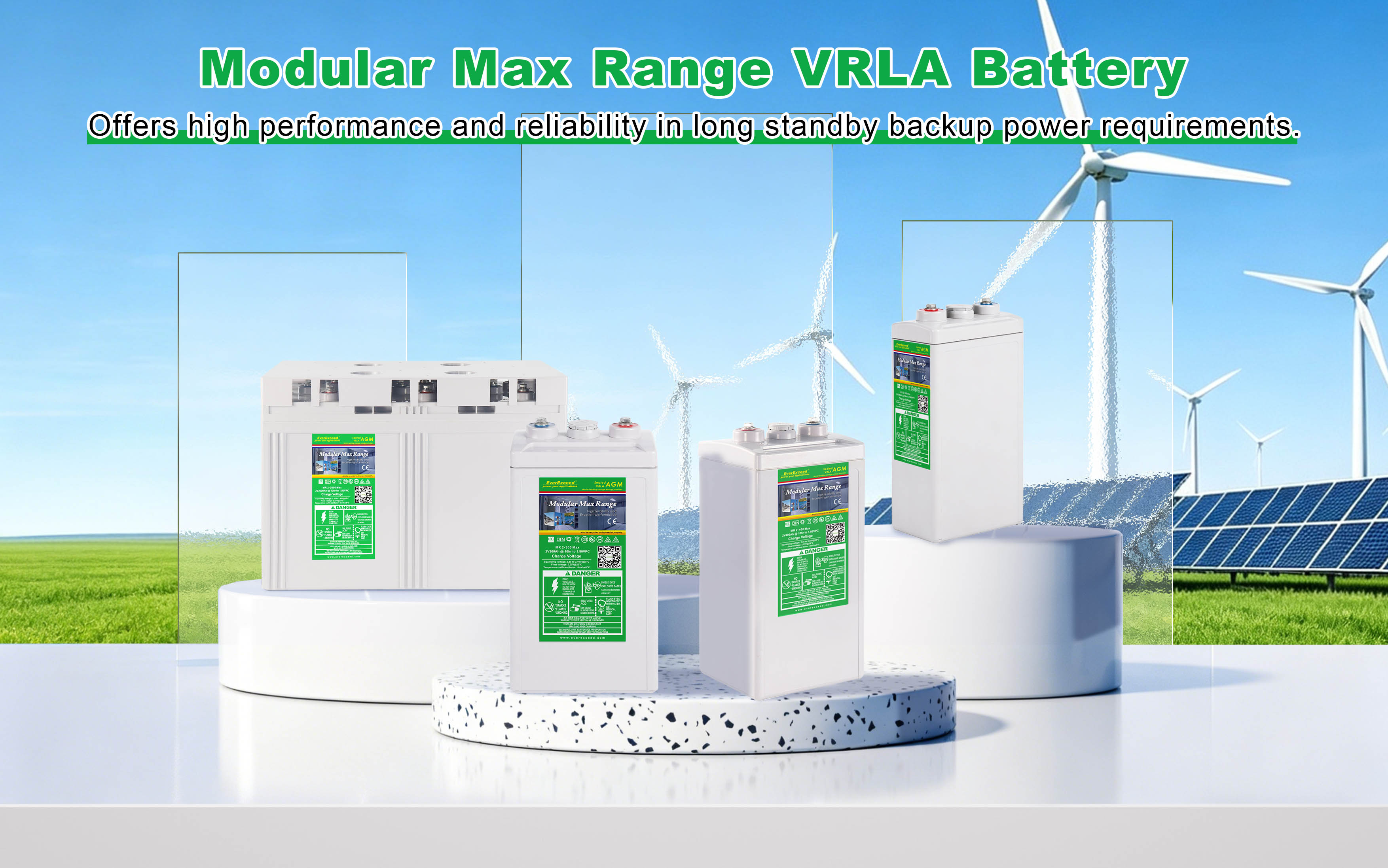

Modular Max Range VRLA Battery

EverExceed Modular Max Range Valve Regulated Lead Acid (V.R.L.A.) batteries are designed for the long standby back-up power requirements of wireless / PCS telecommunications, MTSOs, central offices, utilities, switchgear and control applications. Our advanced AGM absorbed electrolyte technology coupled with thick positive plates and a welded / epoxy, dual post seal ensures reliable performance, safety, outstanding battery life and value.

  • brand:

    EverExceed
  • Features
  • Technical datas
  • Successful case
  • Download



 Positive plate - Thick 0.245″(6.2mm) lead-calcium-tin grids minimize corrosion and prolong life.
 Negative plate - Balanced lead-calcium grids optimize recombination efficiency.
 AGM separator - Mechanically strong, low electrical resistance, micro porous glass fiber which completely absorbs the electrolyte into its structure.
 Container/Cover - Standard: Reinforced ABS (UL 94HB) container and cover.
Optional: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%.
 Thermally welded case-to-cover bond to eliminate leakage.
 Containers are single-piece construction.
 Electrolyte - Diluted sulfuric acid.
 Terminal post - Lead casting terminal. Threaded copper insert, with large surface area, to provide maximum conductivity.
 Terminal seal - Ring burn with secondary epoxy resin seal is 100% water bath tested in the factory and proven in service.
 Relief valve - Operates at 2-3 psi and is complete with integral flame arrestor.





Technical Features:




•    20 years design life in float service @20°C;

•    Thick plate design for extra long deep cycle life;

•    Fully tank formed plates;

•    High-Compression Absorbent Glass Mat (AGM) Technology ensures greater than 99% recombination efficiency.

•   Advanced high Tin low Calcium alloy plate, have excellent anti-corrosion performance and promotes long service life.

•   6.2mm thickness positive plate, heavy duty grid and special active material ensure batteries have excellent performance and very long service life.

•   Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation.

•   Suitable for both vertical or horizontal position;

•   Wide operating temperature range: -40°C (-40°F) to +70°C (+158°F).

•   Spill-proof and leak-proof;

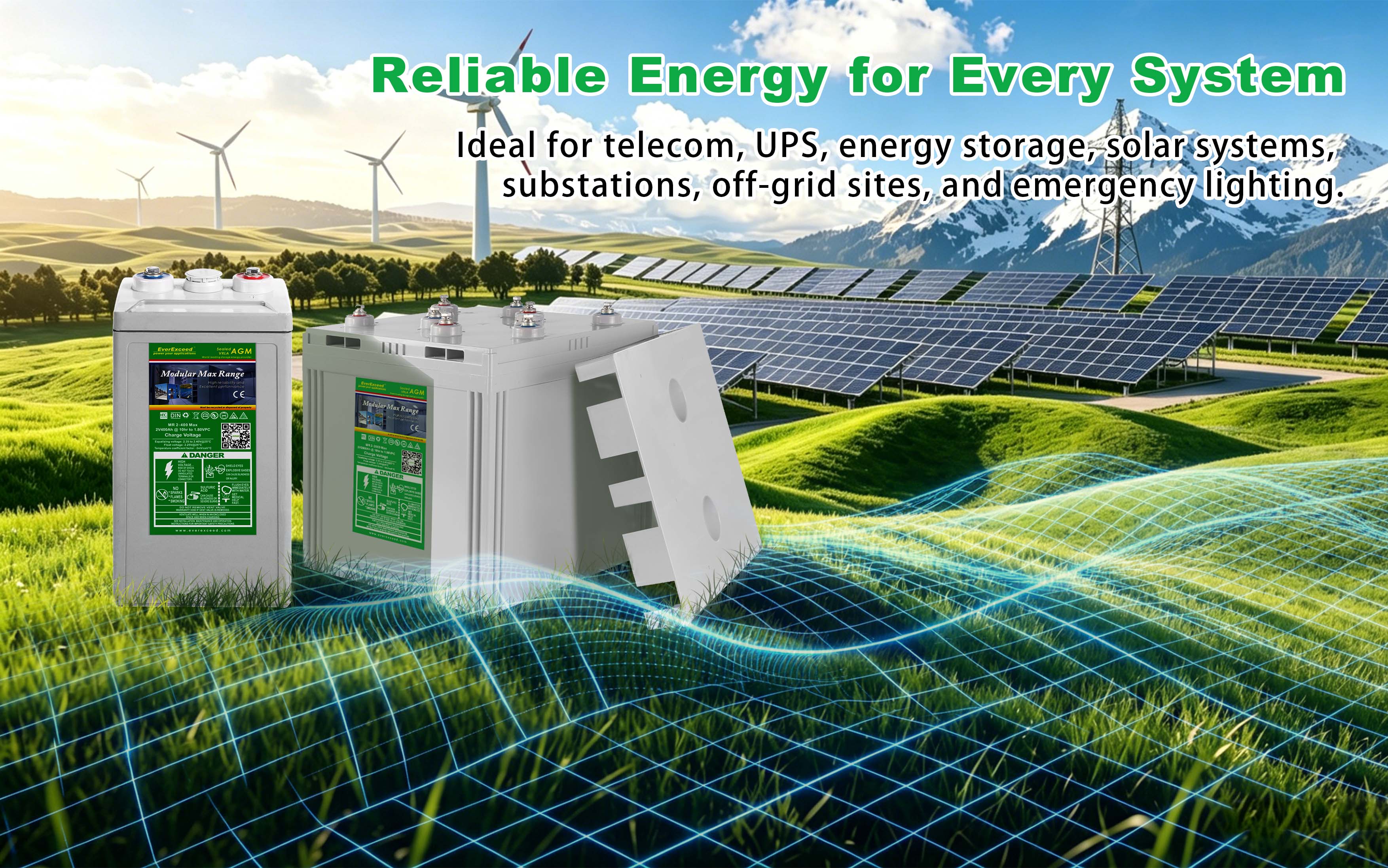

Applications:




•  Telecommunications
•  Emergency Lighting
•  Navigation Aids
•  UPS system
•  Switchgear


•  Communications
•  Cellular Radio
•  Control Systems
•  Standby Power Supply
•  Solar  Remote/Hybrid Sites










Model No. Nominal Voltage  (V) Nominal Ah Cap. @10hr to 1.80VPC Outline dimensions (mm/inch) Weight  Terminal Type No. of Terminal Internal Resistance mOhms Max. Charge Current     (A) Short Circuit Current   (A)
Length Width Height Total Height
mm inch mm inch mm inch mm inch kg lbs
MR 2-200 Max 2 200 90 3.54 181 7.13 346 13.6 365 14.4 13 28.6 F-M8 2 0.65 40 1620
MR 2-300 Max 2 300 124 4.88 181 7.13 346 13.6 365 14.4 18 39.6 F-M8 2 0.5 60 2410
MR 2-400 Max 2 400 158 6.22 181 7.13 346 13.6 365 14.4 24 52.8 F-M8 2 0.4 80 3220
MR 2-500 Max 2 500 191 7.52 181 7.13 346 13.6 365 14.4 29 63.8 F-M8 2 0.35 100 4100
MR 2-600 Max 2 600 225 8.86 181 7.13 346 13.6 365 14.4 34.5 75.9 F-M8 2 0.3 120 4860
MR 2-800 Max 2 800 303 11.9 181 7.13 346 13.6 365 14.4 48 106 F-M8 4 0.29 160 6400
MR 2-1000 Max 2 1000 370 14.6 181 7.13 346 13.6 365 14.4 58 127 F-M8 4 0.26 200 7900
MR 2-1200 Max 2 1200 465 18.3 181 7.13 365 14.4 380 14.9 70 154 F-M8 4 0.23 240 9500
MR 2-1500 Max 2 1500 318 12.5 363 14.3 369 14.5 388 15.3 92 202 F-M8 8 0.2 300 12500
MR 2-1600 Max 2 1600 318 12.5 363 14.3 369 14.5 388 15.3 95 209 F-M8 8 0.18 320 13200
MR 2-2000 Max 2 2000 385 15.2 363 14.3 369 14.5 388 15.3 115 253 F-M8 8 0.15 400 16200
MR 2-2500 Max 2 2500 568 22.4 363 14.3 369 14.5 388 15.3 160 352 F-M8 12 0.15 500 20200
MR 2-3000 Max 2 3000 568 22.4 363 14.3 369 14.5 388 15.3 175 385 F-M8 12 0.12 600 24200

Project name: Telecom project

Country: Ukraine



EverExceed provided modular max range VRLA batteries for telecom project in Ukraine. Our team successfully installed model MR 2-200 Max (2V 200Ah) battery to provide high performance backup power service in telecom operation. The project is running successfully.



If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed Modular Max AGM Range VRLA_V2.2.pdf
