Lead Acid Battery

2V LC range- Lead Carbon Battery

EverExceed LC series of lead-carbon batteries adopt the world's most latest and advanced lead-carbon technology, add unique high capacitance and highly conductive carbon materials into the negative electrode, making LC series battery is a perfect combination, which contains the advantages of high energy capacity and density from lead-acid battery. as well as high power rate, fast charging and long cyclic lifespan from ultra capacitor.



  • brand:

    EverExceed
  • Model:

    LC Series
  • Rated voltage(V):

    2V
  • Certificates:

    UL1989; IEC61427;IEC60896; CE
  • Usage:

    Alarm and security; Hospitals ; Power Generation Plants; Emergency 911 Response Centers;Uninterruptible Power Supply (UPS) ; Data Center ; Network Operations Centers; Banks & Financial Markets
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ




Why do you need EverExceed Lead Carbon Battery?









Why choose our Lead-carbon batteries?










EverExceed-Lead carbon battery expert



EverExceed LC series of lead-carbon batteries adopt the world's most latest and advanced lead-carbon technology, add unique high capacitance and highly conductive carbon materials into the negative electrode, making LC series battery is a perfect combination, which contains the advantages of high energy capacity and density from lead-acid battery. as well as high power rate, fast charging and long cyclic lifespan from ultra capacitor.





Negative electrode: Add highly conductive carbon material



Special active materials formula with Nano-Carbon,which can effectively prevent the growth of lead sulfate, prevent negative vulcanization, and improve the ability of charging acceptance,extend the battery life; Enhance antivulcanization ability by changing active materials component.




Special positive plate grid design



With new special alloy and reasonable structure design. it has good corrosion resistance, reasonable current distribution,tight combination with active substances high current performance and strong charging acceptance.

Special positive and negative lead paste formula and curing process



Unique formulations and optimized curing processes are used.

Positive active substance has strong softening resistance good deep cycle life and high utilization rate of active substance.
The negative lead paste has strong vulcanization resistance andlow capacity decay rate.


  Special electrolyte

Innovative new electrolyte, enhance hydrogen evolution over potential inhibits water loss from the battery, intensified the battery life.



The advantages of Lead-carbon batteries vs lead-acid batteries



Special advantages

Conventional lead acid battery

New generation lead-carbon battery

Charging and discharging ability



Discharging ability
Regular The life of lead-carbon battery is 2~3 times higher than that of conventional lead-acid battery when it works with frequent instantaneous high current charge and discharge.
The carbon material with capacitive characteristics releases or receives the current, inhibits the sulfation of the negative electrode of the battery, and effectively prolongs the service life of the battery.



Charging efficiency
Regular The lead-carbon battery is more efficient at high rate charging, and the charging time can be reduced by 20%.



Cycle life



Cycle life @ 50% DOD
2200 cycles 3500 cycles



PSoC cycle life
Regular The cycle life of lead-carbon battery is 4~5 times longer than that of ordinary lead-acid battery when PSoC is partially charged.



Application:

● Solar energy storage system

● Wind energy storage system

● Frequency regulation and load following service
● Distributed energy storage system

● Smart power grids and micro-grids system
● Peak shifting of electrical power system
● UPS
● Data Center

● Generator and battery hybrid energy system
● Telecommunications
● Power plant and substation
● Emergency lighting system



Model No. Nominal Voltage Nominal Cap. @10hr to 1.80VPC Dimension Weight Terminal Type No. of Terminal Internal Resist
Max. Charge Current Short Circuit Current
Length Width Height Total Height
mm inch mm inch mm inch mm inch kg lbs
LC 2-200 2 200 90 3.54 181 7.13 346 13.6 365 14.4 12.5 27.5 F-M8 2 0.60 40 1620
LC 2-300 2 300 124 4.88 181 7.13 346 13.6 365 14.4 17.5 38.5 F-M8 2 0.49 60 2410
LC 2-400 2 400 158 6.22 181 7.13 346 13.6 365 14.4 23.0 50.6 F-M8 2 0.39 80 3220
LC 2-500 2 500 191 7.52 181 7.13 346 13.6 365 14.4 28.0 61.6 F-M8 2 0.35 100 4100
LC 2-600 2 600 225 8.86 181 7.13 346 13.6 365 14.4 33.0 72.6 F-M8 2 0.31 120 4860
LC 2-800 2 800 303 11.9 181 7.13 346 13.6 365 14.4 45.0 99.0 F-M8 4 0.30 160 6400
LC 2-1000 2 1000 370 14.6 181 7.13 346 13.6 365 14.4 55.0 121 F-M8 4 0.27 200 7900
LC 2-1500 2 1500 551 21.7 181 7.13 369 14.5 388 15.3 85.5 188 F-M8 6 0.20 300 12375
LC 2-2000 2 2000 385 15.2 363 14.3 369 14.5 388 15.3 114 250 F-M8 8 0.18 400 16200
LC 2-3000 2 3000 568 22.4 363 14.3 369 14.5 388 15.3 172 378 F-M8 12 0.13 600 24200


If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed 2V LC Range VRLA_V1.3_2020.4.28.pdf
Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
r
EverExceed | Empower, Energize, Exceed the Energy you Expect forever;
12V Lead Carbon deep cycle  solar battery

12V LC range- Lead Carbon Battery

EverExceed LC series of lead-carbon batteries using the world's most latest and advanced lead-carbon technology, add unique high capacitance and highly conductive carbon materials into the negative electrode, making LC series battery combine the advantages of a lead acid battery and super capacitors. LC series battery provide not only high energy density, but also, fast charge, rapid discharge and longest deep cycle life performance which is the best choice for solar and wind renewable energy storage systems and hybrid energy systems.
half cut solar module

EverExceed 720W Solar Panels N-Type i-TOPCon Bifacial Dual Glass

EverExceed 720W Solar Panels deliver outstanding value at every module level, helping reduce LCOE and BOS costs through high-power string design. Built with advanced N-type i-TOPCon cell technology, the module achieves up to 23.2% efficiency, maximizing energy yield and long-term system performance. Featuring a bifacial dual-glass structure and multi-busbar technology, it enhances light trapping, reduces series resistance, and delivers up to 30% additional rear-side power gain. Designed for harsh environments, the module ensures long-term reliability with: Non-destructive cell cutting technology PID resistance Mechanical load ratings up to 5,400 Pa (front) / 2,400 Pa (rear)
10-1200kVA UPS

10-1200kVA PowerChampion series Industrial UPS

PowerChampion Series Low Frequency Industrial UPS is a configurable uninterruptible power supply (UPS) system that offers true industrial modular architecture and maximized power performance. It combines conservative design (SCR) with battery management system and proven digital control to ensure the utmost reliability in any electrical and environmental conditions. The system consists of rectifier/ charger, inverter, static bypass, maintenance bypass, rectifier isolation transformer, inverter isolation transformer, bypass line isolation transformer, automatic line stabilizer, DC distribution, AC distribution, controls and monitoring. The AC output of the inverter is connected to the critical load, the storage battery is connected between the inverter input and rectifier/ charger output through a battery isolation MCB. The normal AC input power is connected to the rectifier; the bypass circuit also takes power from the same power source to provide power for the critical load during bypass operation when the system is in maintenance mode.
 512V100Ah lithium battery

High-Voltage 25.6kWh 128V All-in-One LiFePO4 Lithium-Ion Battery Cabinet for Substation Energy Storage

EverExceed's lithium battery solutions for power applications utilize TOP5 factory brand-new Grade A prismatic high-safety LiFePO4 cells. The master-slave series high-voltage solution is employed, making it compatible with industrial chargers, DC panels, and other energy storage backup applications. EverExceed's high-voltage solution supports multi-cluster parallel connections and high-rate discharge, covering a full range of long-term and short-term backup power applications, delivering reliable and continuous electrical energy.
50-600kVA

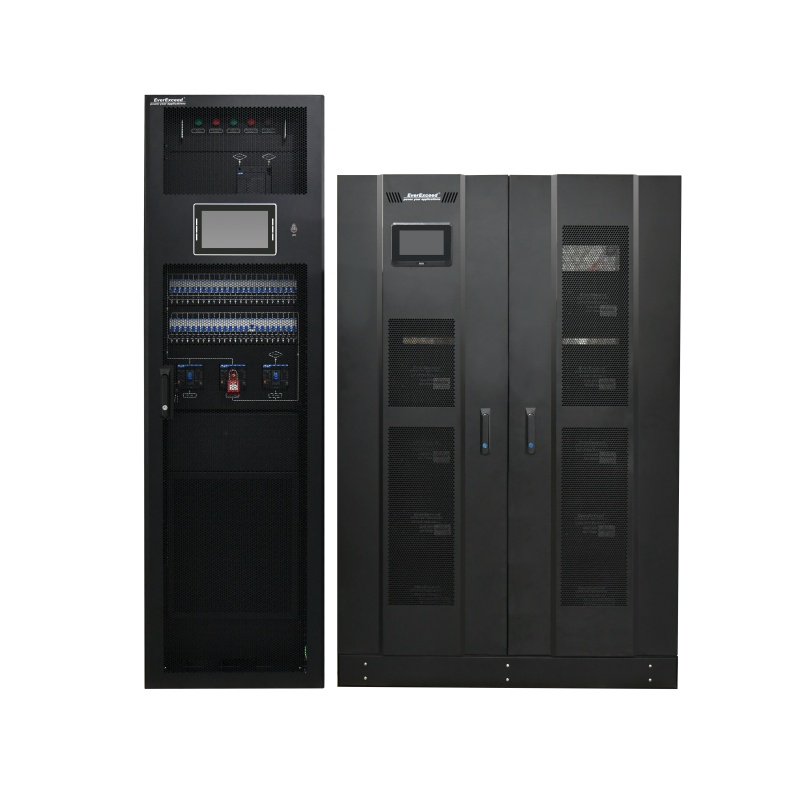

50-600kVA PRM plus series Modular UPS
