Lead Acid Battery

12V LC range- Lead Carbon Battery

EverExceed LC series of lead-carbon batteries using the world's most latest and advanced lead-carbon technology, add unique high capacitance and highly conductive carbon materials into the negative electrode, making LC series battery combine the advantages of a lead acid battery and super capacitors. LC series battery provide not only high energy density, but also, fast charge, rapid discharge and longest deep cycle life performance which is the best choice for solar and wind renewable energy storage systems and hybrid energy systems.


  • brand:

    EverExceed
  • Model:

    LC-12V series
  • Rated voltage(V):

    12V
  • Rated capacity(Ah):

    65Ah-250Ah
  • OEM/ODM Service:

    Yes, customized
  • Certificates:

    UL1989; IEC61427;IEC60896; CE
  • Usage:

    Solar energy storage system; Wind energy storage system; Frequency regulation and load following service; Distributed energy storage system; Smart power grids and micro-grids system; Peak shifting of electrical power system; UPS; Data Center
  • Features
  • TECHNICAL DATA

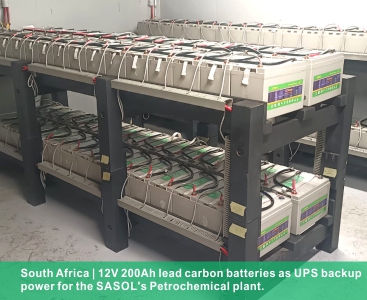

  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ



Why do you need EverExceed Lead Carbon Battery?





Why choose our Lead-carbon batteries?





EverExceed-Lead carbon battery expert

EverExceed LC series of lead-carbon batteries adopt the world's most latest and advanced lead-carbon technology, add unique high capacitance and highly conductive carbon materials into the negative electrode, making LC series battery is a perfect combination, which contains the advantages of high energy capacity and density from lead-acid battery. as well as high power rate, fast charging and long cyclic lifespan from ultra capacitor.



Technical advantages:











Long service life

Improved cyclic performance

Fast charging
20+ years design life with more than 1000 cycles @80% DOD @25ºC

Activated carbon & Graphene added to negative electrode to ensure excellent PSoC cycle performance  & superior deep cycle ability

Excellent quick charge performance, reduce charging time by 30%-50%.










Assured quality

Low self discharge rate

Wide operating temperature range
Complies with IEC60896, IEC61427 standards

Less than 3% per month

40°C to +80°C










Eco-friendly

High reliability

Cost efficient
Manufactured with 95% recycled materials and are fully recyclable at the end of service

Optimized high-compression AGM materials significantly enhance performance and reliability.Negative electrode with highly conductive carbon material, reduced sulfation of negative plate

Lifetime maintenance free,saves installation area & annual operating cost






Application:

● Solar energy storage system

● Wind energy storage system

● Frequency regulation and load following service
● Distributed energy storage system

● Smart power grids and micro-grids system
● Peak shifting of electrical power system
● UPS
● Data Center

● Generator and battery hybrid energy system
● Telecommunications
● Power plant and substation
● Emergency lighting system



Factory:


Model No. Nominal Voltage Nominal Cap. @10hr to 1.80VPC Dimension Weight Terminal Type No. of Terminal
Internal Resist
Max. Charge Current Short Circuit Current
Length Width Height
mm mm mm kg
LC 12-65 12 65 350 166 180 23.5 F-M6 2 6.0 13 936
LC 12-85 12 85 330 173 220 28.5 F-M6 2 4.6 17 1224
LC 12-100 12 100 330 173 220 31.0 F-M6 2 4.3 20 1440
LC 12-120 12 120 406 173 236 36.0 F-M6 2 4.2 24 1728
LC 12-150 12 150 485 172 240 44.5 F-M8 2 3.3 30 2160
LC 12-200 12 200 522 238 223 62.0 F-M8 2 2.9 40 2880
LC 12-250 12 250 522 269 223 73.0 F-M8 2 2.2 50 3600





If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed 12V LC Range VRLA_V1.4 2022.04.12.pdf
