CRITICAL POWER

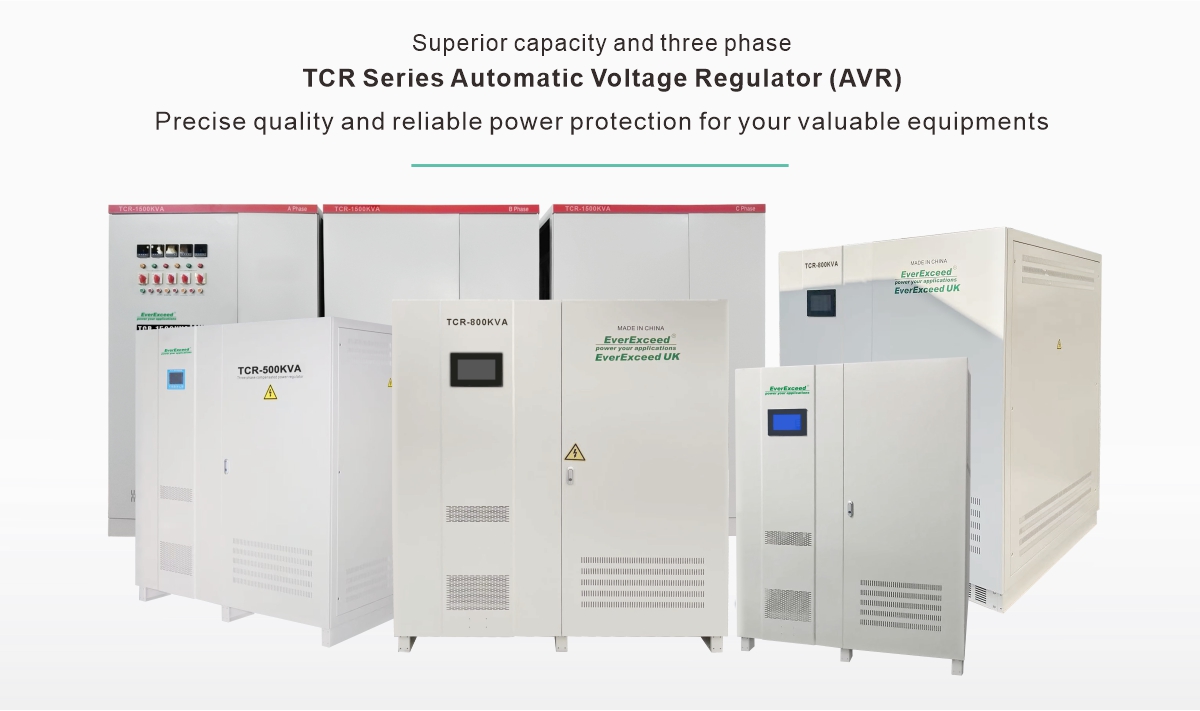

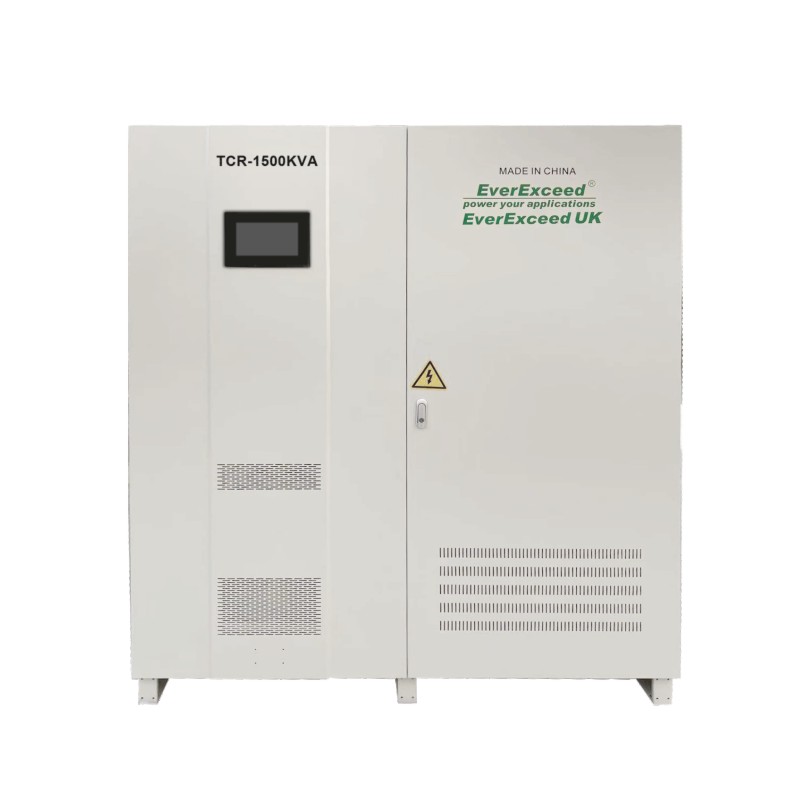

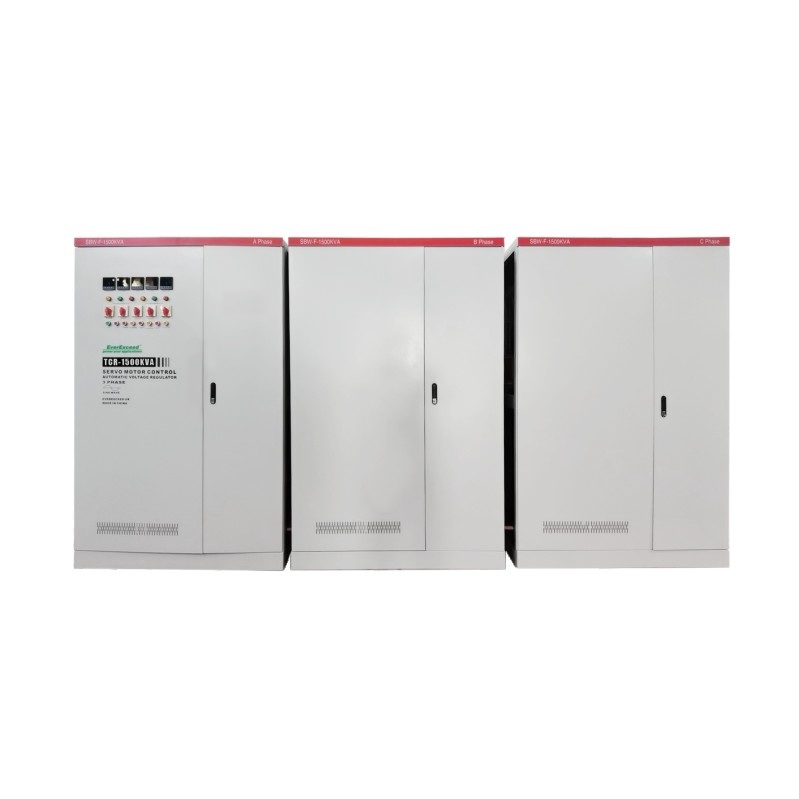

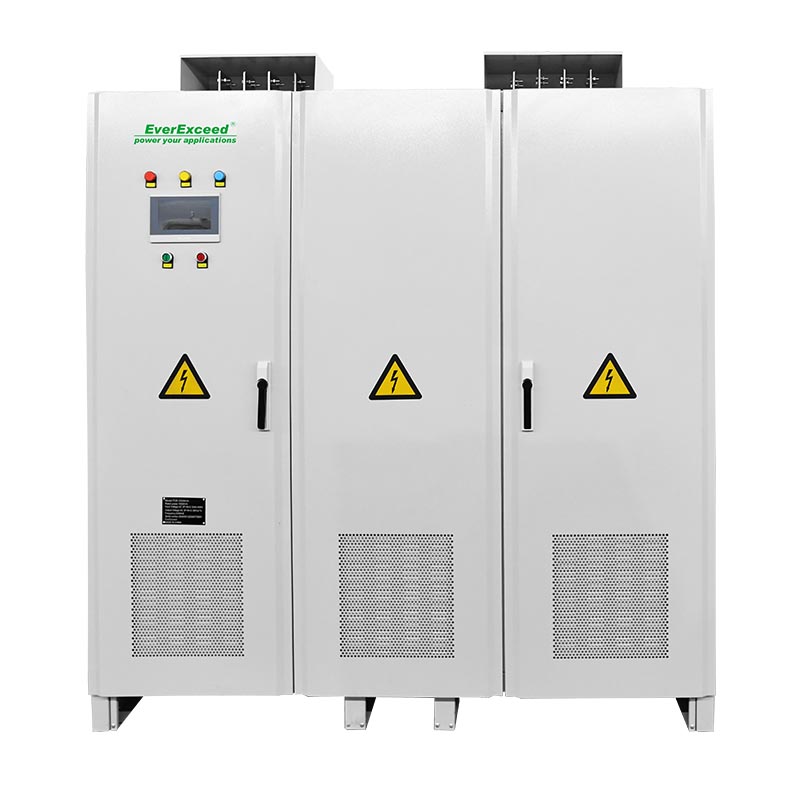

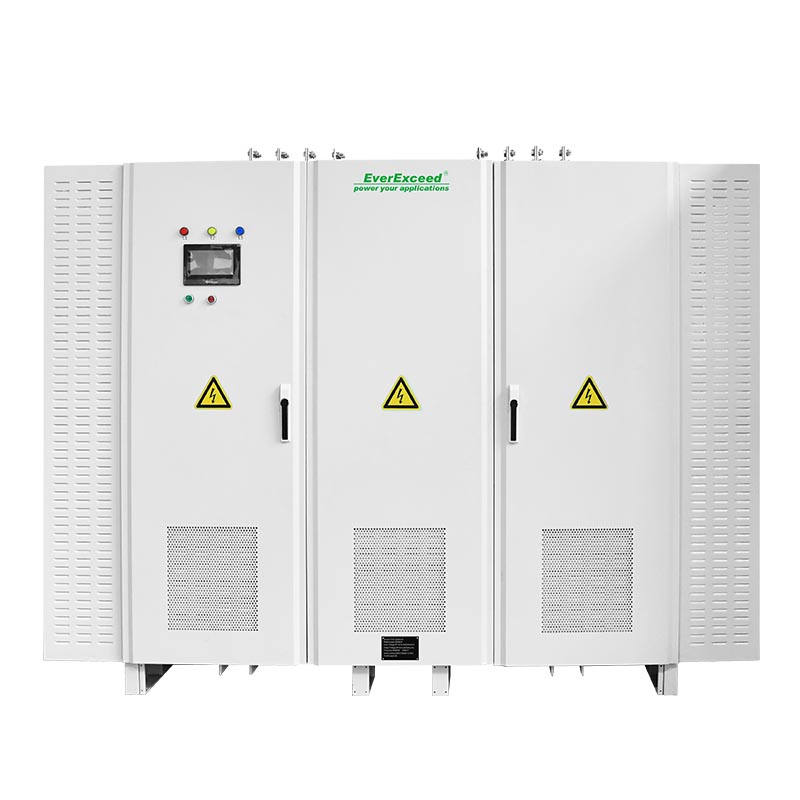

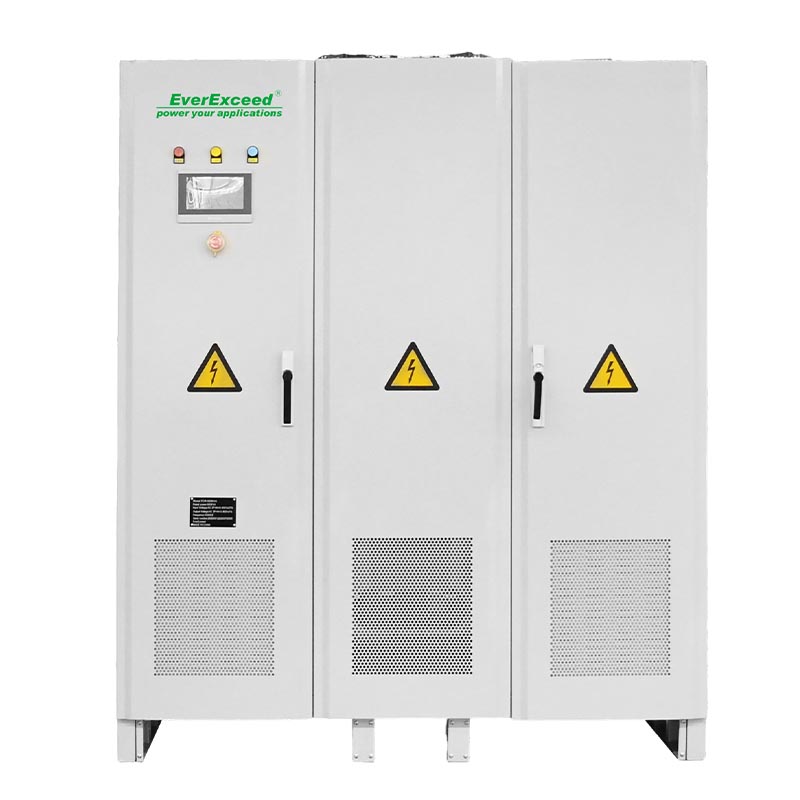

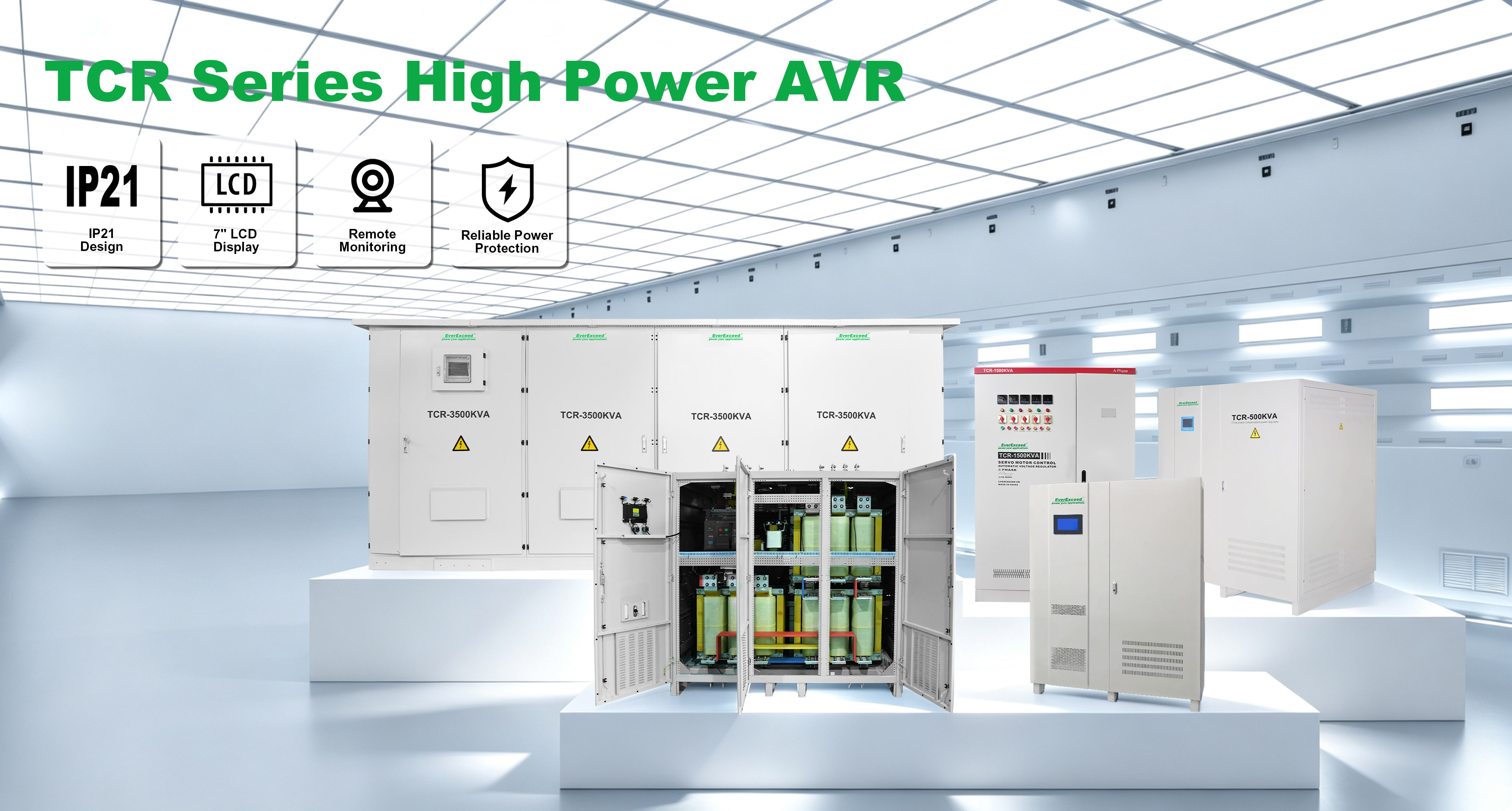

TCR Series Three Phase High Power Regulator

The TCR series of three-phase fully automatic compensating power regulators are designed to stabilize AC voltage by introducing Western European cash technology. When the external power supply network voltage fluctuates or the load changes cause voltage fluctuations, it can automatically maintain the output voltage stablility. Compared with other types of voltage stabilizers, this series of products have the advantages of large capacity, high efficiency, no waveform distortion and stable voltage adjustment. It is suitable for a wide range of loads, can withstand instantaneous overload and can work continuously for a long time. Manual/automatic switching at will, with overvoltage, overcurrent, phase loss, phase sequence protection and automatic mechanical failure protection, as well as the advantages of small size, light weight, convenient use and installation, and reliable operation.

  • brand:

    EverExceed
  • Model:

    TCR
  • Rated frequency:

    50Hz / 60Hz
  • Efficiency:

    Up to 98%(AC-AC)
  • Applications:

    The product is widely used in industrial, transportation, telecommunications, defense, railway, and research sectors, where high precision and stable voltage are required for electrical equipment
  • Certificate:

    IEC 62321 /EN / EPA
  • Rated capacity:

    80KVA-2000KVA
  • Output Voltage:

    208/220/380/400/415/440/480VAC ± 2%
  • Input Voltage:

    208/220/380/400/415/440/480VAC ± 20%
  • Features
  • TECHNICAL DATA

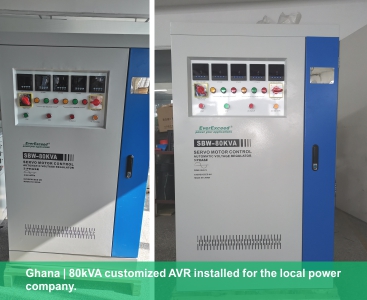

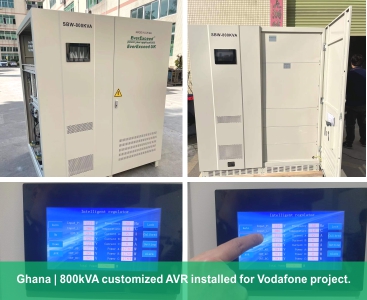

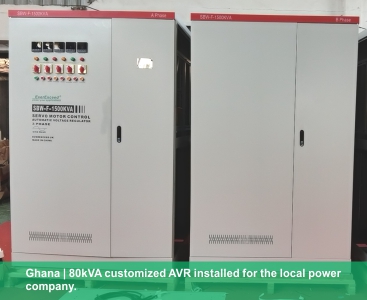

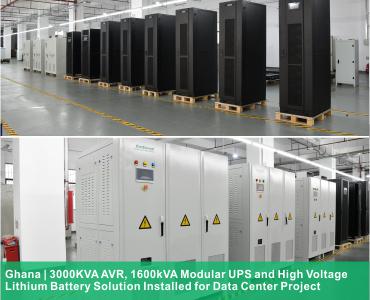

  • SUCCESSFUL CASES
  • Download

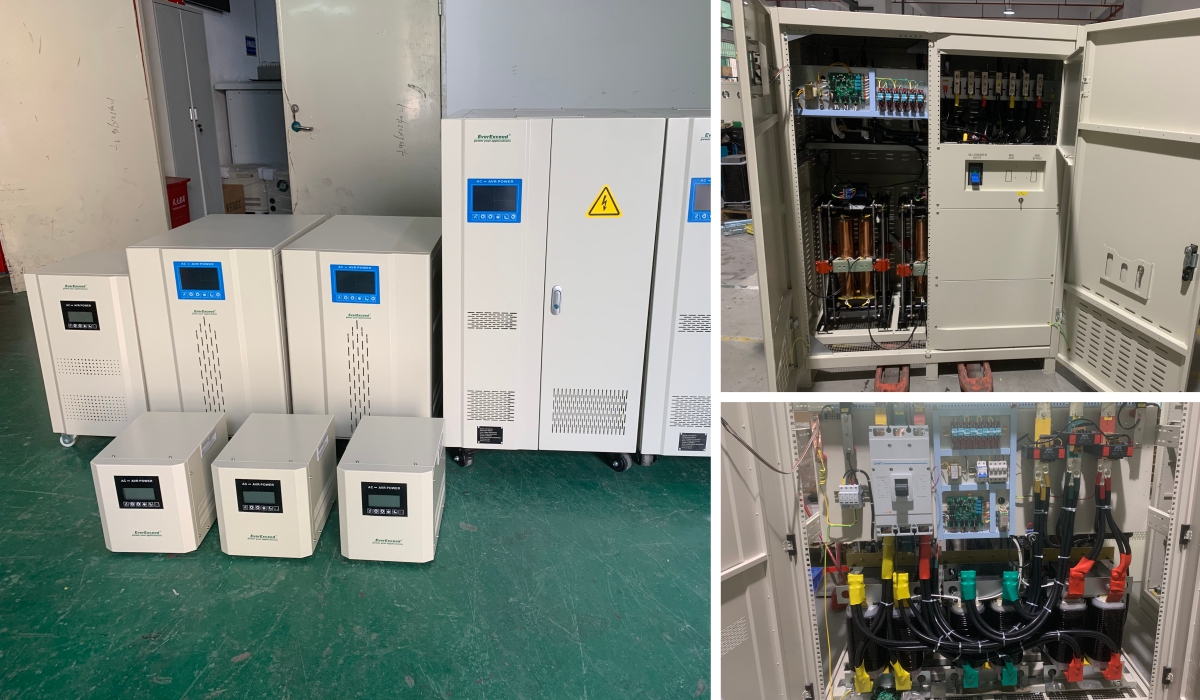

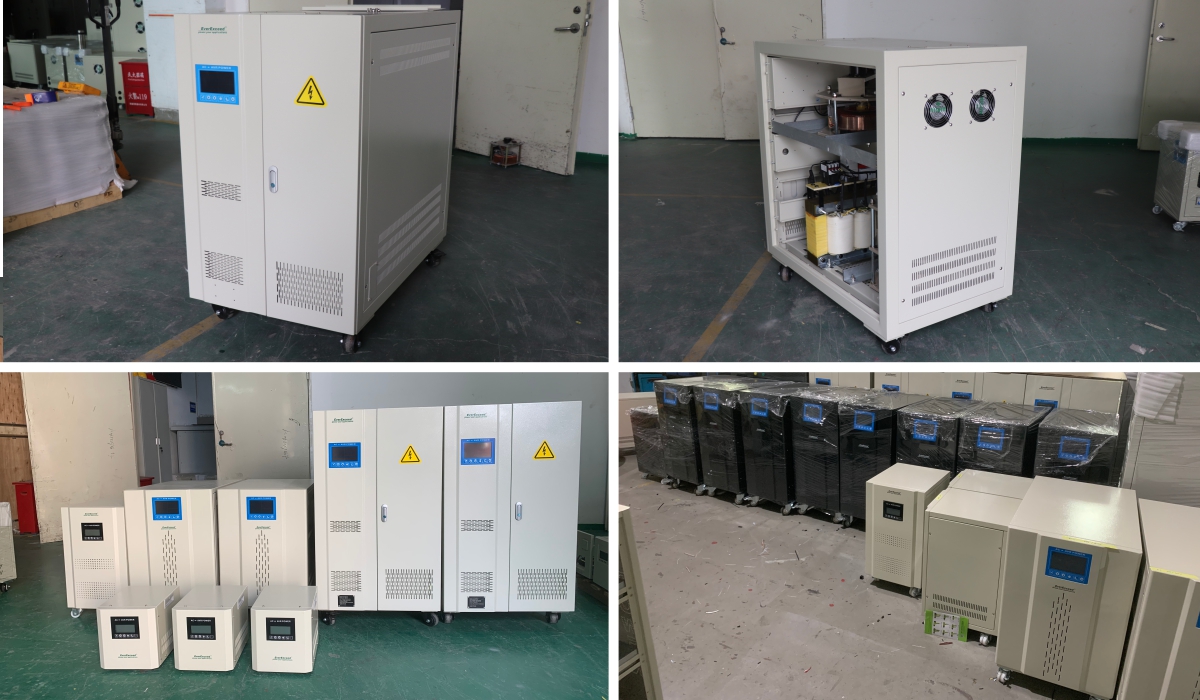

  • Factory
  • Video
  • FAQ



Technical features:



High reliability   High stability   High safety
Wide input voltage range,automatic recovery function when mains restored;   Stable performance to  protect precise and critical equipments;   Prevent  the risks of power-related accidents during overloadsand short circuits;


Flexible customization   Alarm system    Friendly color LCD display
Flexible selection of manual and automatic bypass; customized service is also available;
Fault warning display and alarm; supports remote detection function;

  Outpout voltage and stabilizing accuracy can be adjusted;





Product Details:




Comprehensive Protection:









Application:

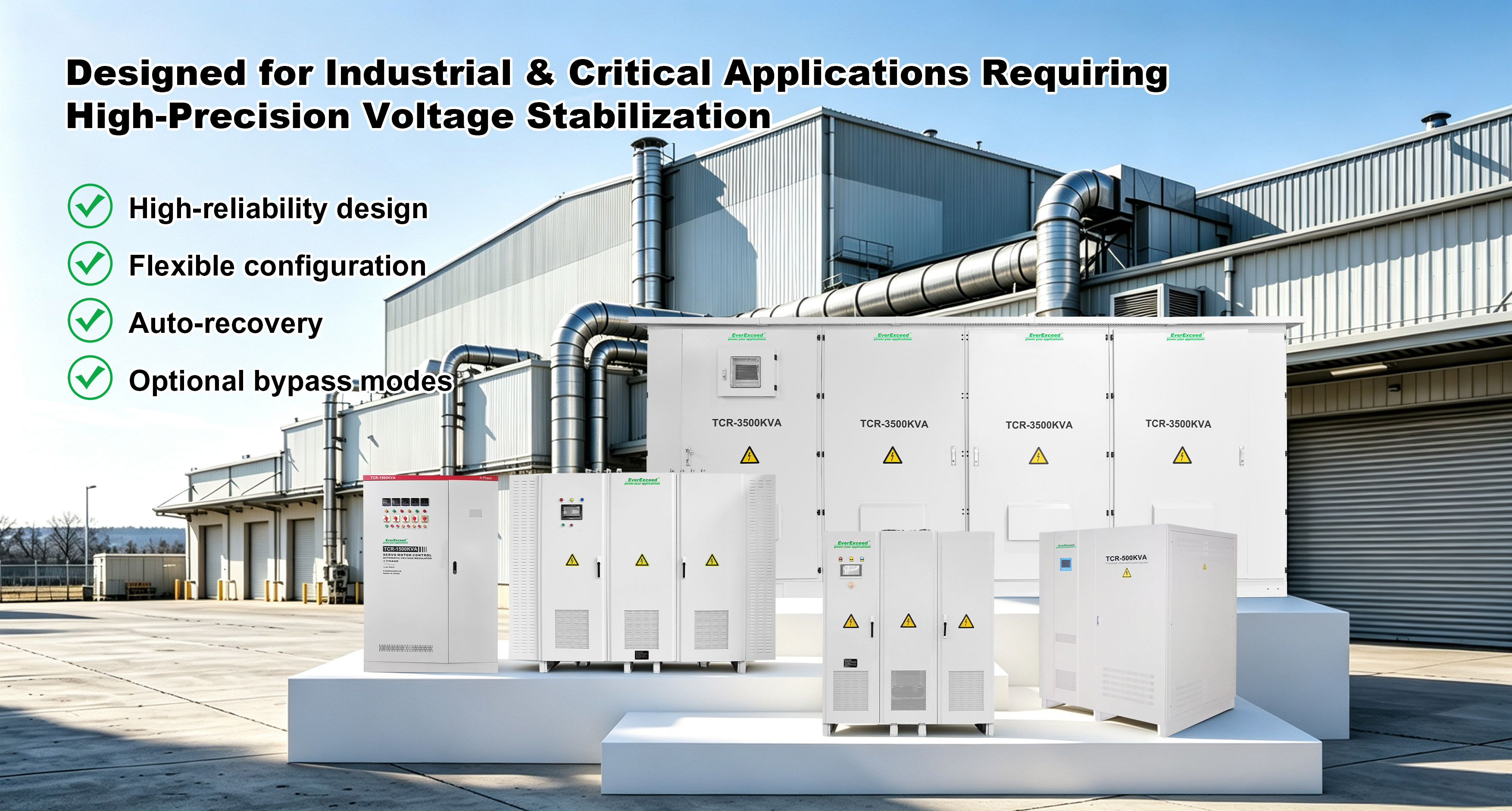

The product is widely used as a part of the large electromechanical equipment in industry, transportation, post and telecommunication, national defense, railway and scientific research, which require the electrical equipment of high precision and stable voltage.







Specification TCR-80KVA TCR-100KVA TCR-150KVA TCR-200KVA TCR-250KVA TCR-300KVA TCR-400VA TCR-500KVA TCR-600KVA TCR-800KVA TCR-1000KVA TCR-1500KVA TCR-2000KVA
Input Phase Three phase
Voltage 304V-456V
Frequency 50Hz / 60Hz
Output Voltage accuracy 380V(1-5%V,Can be set, the factory default is 2%)
Frequency 50Hz / 60Hz
Protection Low Volt. 318V±7V
Over Volt. 426V±7V
ByPass Yes (AUTO/MANUAL OPTIONAL)
Protective function
With overvoltage, undervoltage, overcurrent, short circuit,
phase sequence protection and other functions;
Efficiency AC-AC 98%
Noise Noise Level ≤50dB
Environmental Temperature -5℃~45℃ Degree
Humidity 15% to 90%
Parameter Information Load work 80% continuous load
Protection degree   standard IP21(outdoor Customizable IP rating)
Type of cooling  Fan cooling
Total Harmonic
Distortion
No additional waveform distortion
Insulation class Class B
Insulation withstand voltage 2500VAC/min(No breakdown)
Altitude  <1500M
Output type Unified output adjustment, output adjustment for each phase
Self-starting
function
When the power fails and then resumes, it will automatically start, no need to manually
Responds Time to voltage variation The response time is 10 ms, and the adjustment speed is 15V/s
Accessories
Random accessories: 1 voltage stabilizer main board, 1 voltage stabilizer display screen,
2 cooling fans, 2 intermediate relays, 1 power supply transformer,
Install
No severe vibration or turbulence; no gas, vapor, chemically deposited dust, dirt and other explosive
 and corrosive media that seriously affect the insulation of the voltage stabilizer;
Packaging Shipping Wt.(KG) 268KG 355KG 520KG 780KG 960KG 1160KG 1460KG 1590KG 1890KG 2100KG 2430KG 3890KG 4360KG
Dimensions
(D*W*H mm)
800*520*1200 800*520*1200 1200*800*1700 1200*800*1700 1350*1100*1700 1350*1100*1700 1350*1100*1700 1350*1100*1700 1450*1200*1700 1450*1200*1700 1600*1450*1900 2000*1800*2000 2000*1800*2000
