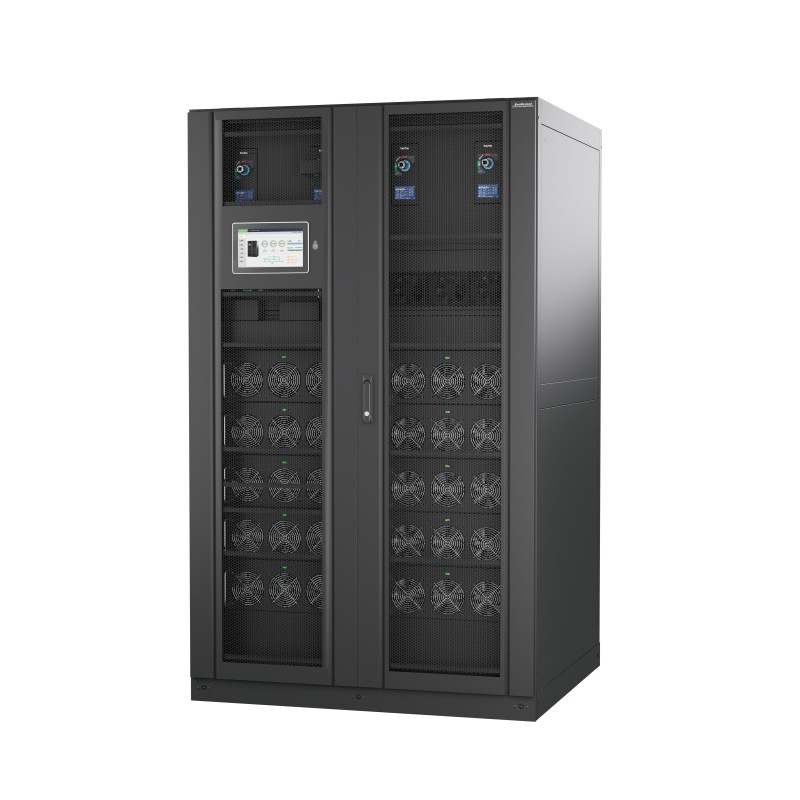

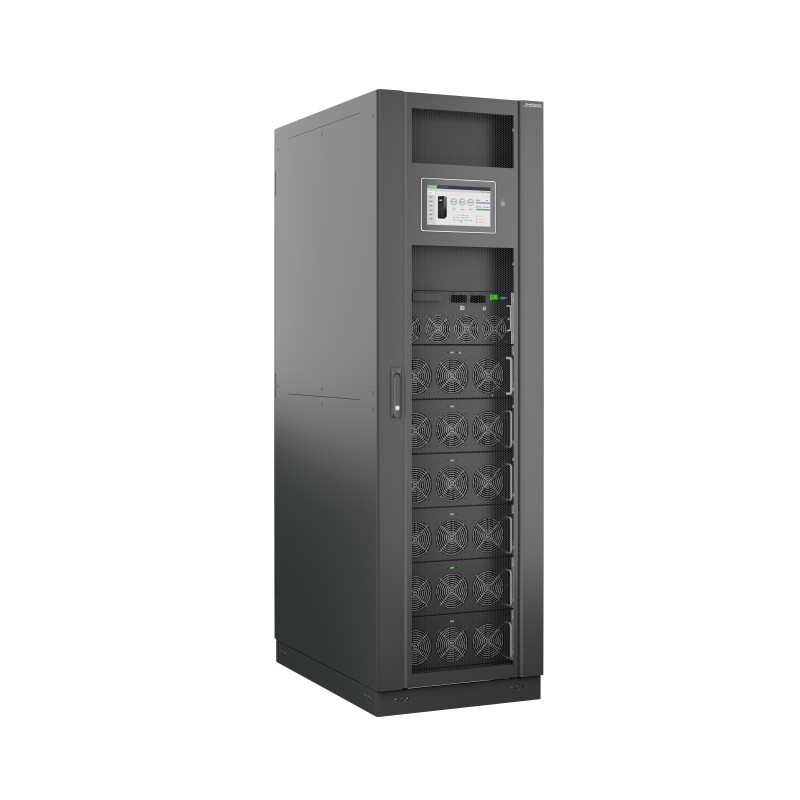

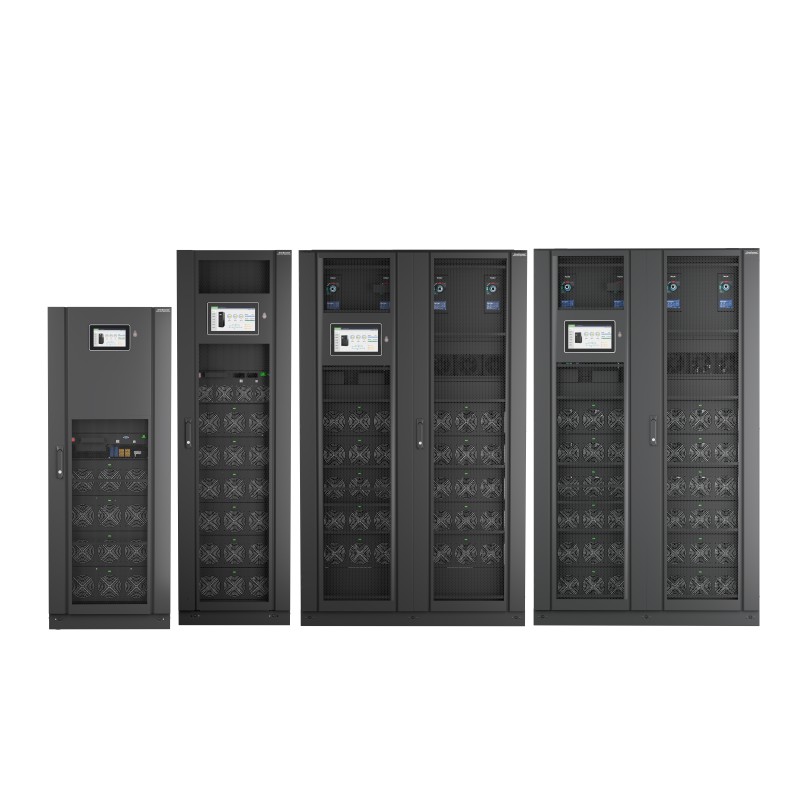

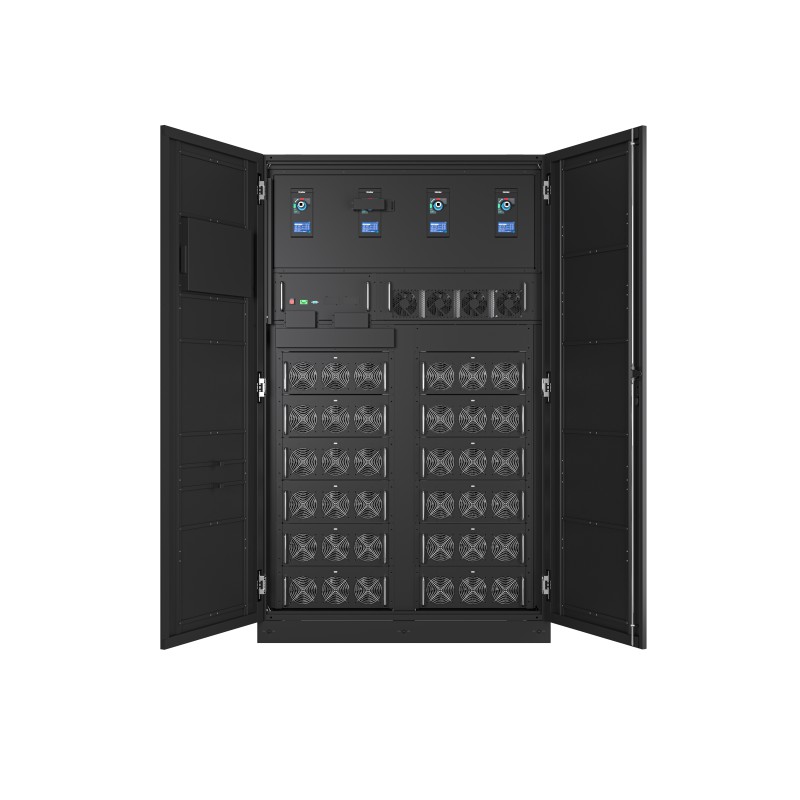

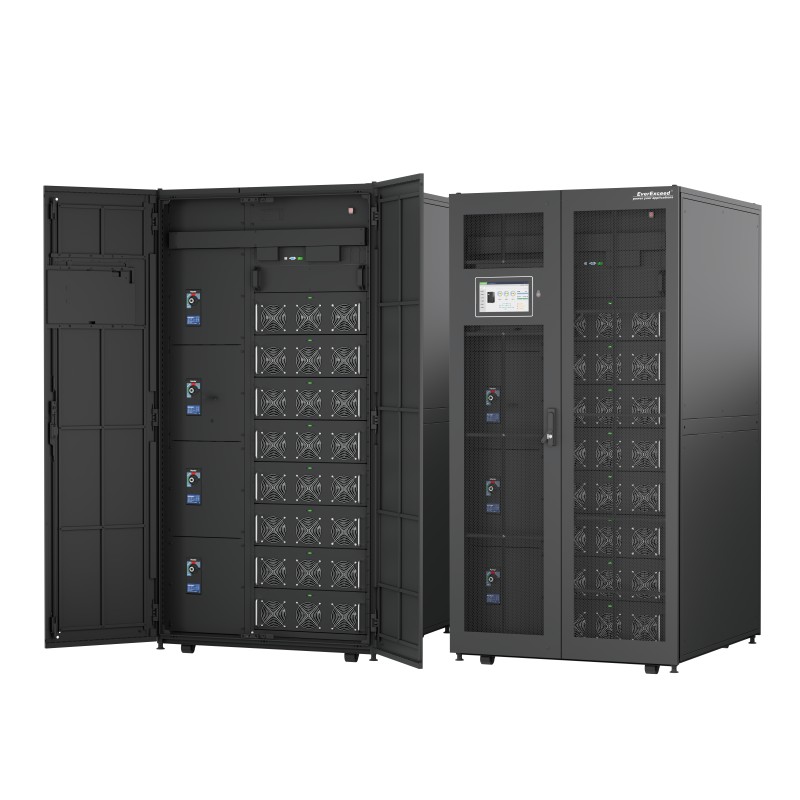

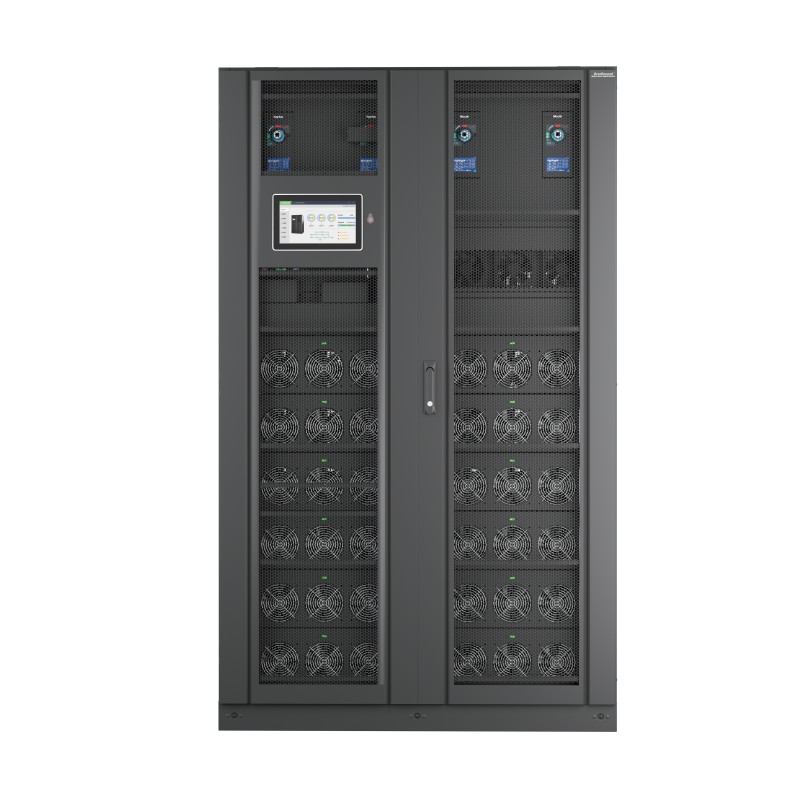

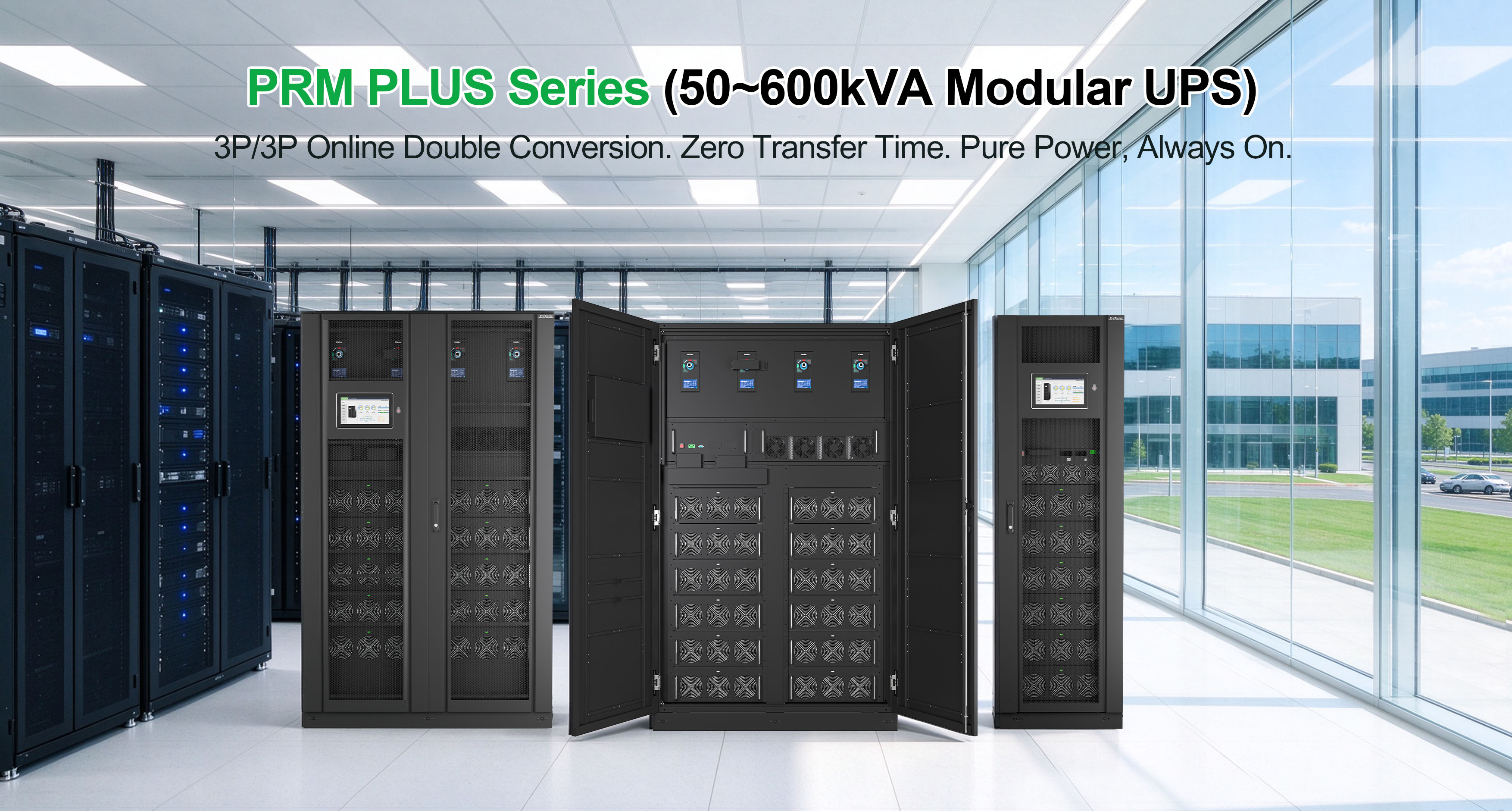

EverExceed PRM plus series Modular UPS designed for maximum efficiency and scalability. This innovative solution provides reliable power protection with a flexible architecture, allowing easy expansion as your needs grow. Its high-performance features ensure uninterrupted operation, making it ideal for data centers and critical applications.
brand:
EverExceedModel:
PRM PLUSRated frequency:
50/60HzEfficiency:
up to 96%Applications:
Government, Finance, IT, Education,Transportation, Broadcasting, Medical, Energy, etc.Certificate:
CE/TLC
Technical features
 |
Fully digital control, flexible and robust. |
 |
Maximum system capacity up to 1.8MVA the best solution for mega data center. |
 |
7 &10 inch touch LCD, with loT functions. |
 |
High reliability and environment adaptability with protection of components level. |
 |
Intelligentsystem self-diagnosis, rich fault recording, large capacity of history record storage space. |
| Model | PRM PLUS | ||||||||
| 200/50 | 240/60 | 300/50 | 360/60 | 400/50 | 480/60 | 600/50 | 600/60 | ||
| Rate Power | 200kVA | 240kVA | 300kVA | 360kVA | 400kVA | 480kVA | 600kVA | 600kVA | |
| Main input | Input | 3P5W (3P+N+PE) | |||||||
| Rate Voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | ||||||||
| Rate Freq. | 50/60Hz | ||||||||
| Input PF | >0.99 | ||||||||
| Current distortion | THDi<3%(100% Linear load) | ||||||||
| Voltage range | 304 478VAC(L-L)full load 304 228VAC (L-L) power derate from 100% to 75% | ||||||||
| Freq. range | 40-70Hz | ||||||||
| Battery | Rate voltage | ±240VDC | |||||||
| Charging capacity | 20%*Pout | ||||||||
| Charging accuracy | ±1% | ||||||||
| Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||||
| Voltage range | Range: -40%- +25% , Settable, default -20% +15%; | ||||||||
| Overload |
125%, long time operation；125%< load<130%, 10 mins；
130%<load<150%,1 min>150%,300ms
|
110%, long time operation；110%< load<125%, 5 mins；
125%<load<150%,1 min；>150%,1 second
|
|||||||
| Inverter | Rate voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | |||||||
| Rate Freq. | 50/60Hz | ||||||||
| Output PF | 1 | ||||||||
| Voltage accuracy | ±1.0% | ||||||||
| Load response | <5% (20% - 80% -20% step load) | ||||||||
| Recovery time | < 20ms (0% - 100% -0% step load) | ||||||||
| Output THDu | <1%(linear load),<5% (non-linear load according to IEC 62040-3) | ||||||||
| Overload | 110%,1 hour 125%,10 mins 150%,1 min >150%,200ms | ||||||||
| Frequency accuracy | 0.1% | ||||||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | ||||||||
| Slew rate | Settable 0.5Hz/S-3Hz/S default 0.5Hz/S | ||||||||
| Phase Accuracy | 120°±0.5° | ||||||||
| System | Efficiency | Normal Mode up to 96%; Battery Mode up to 96% | |||||||
| Display | LED + 7 inch touch LCD | LED + 10 inch touch LCD | |||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | ||||||||
| Certification- EMS | IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) | ||||||||
| IP degree | IP20 | ||||||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start,Air filter | ||||||||
| Option | SNMP card, AS400 card, Parallel kit, LBS, SPD | ||||||||
| Environment | 0-40 (operation) -25 ~70 (storage) 0-95% (Humidity, non-condensing) | ||||||||
| Noise(dB)(1 meter) | 72dB @ 100% load, 69dB @ 45% load | ||||||||
| Dimention | cabinet(W*D*H)mm | 600*1000*1600 | 600*1000*2000 | 1200*1000*2000 | 1200*1100*2000 | ||||
| module(W*D*H)mm | 442*659*174 | ||||||||
| Weight(kg) | Cabinet | 185 | 248 | 350 | 578 | ||||
| module | 41 | ||||||||
| Power Module rated capacity | 50KW | 60KW | 50KW | 60KW | 50KW | 60KW | 50KW | 60KW | |
 |
 |
 |
