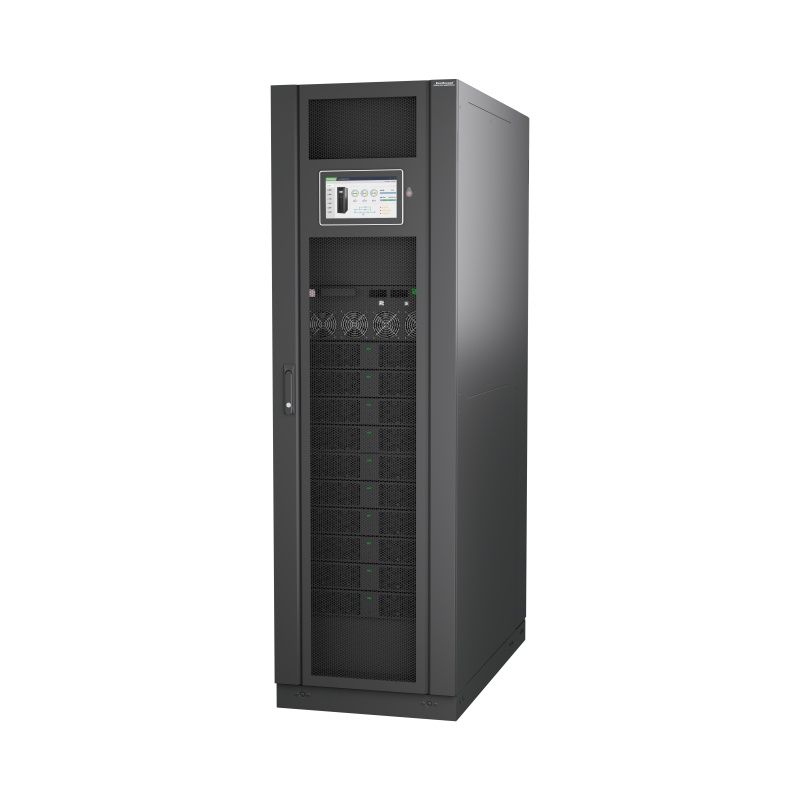

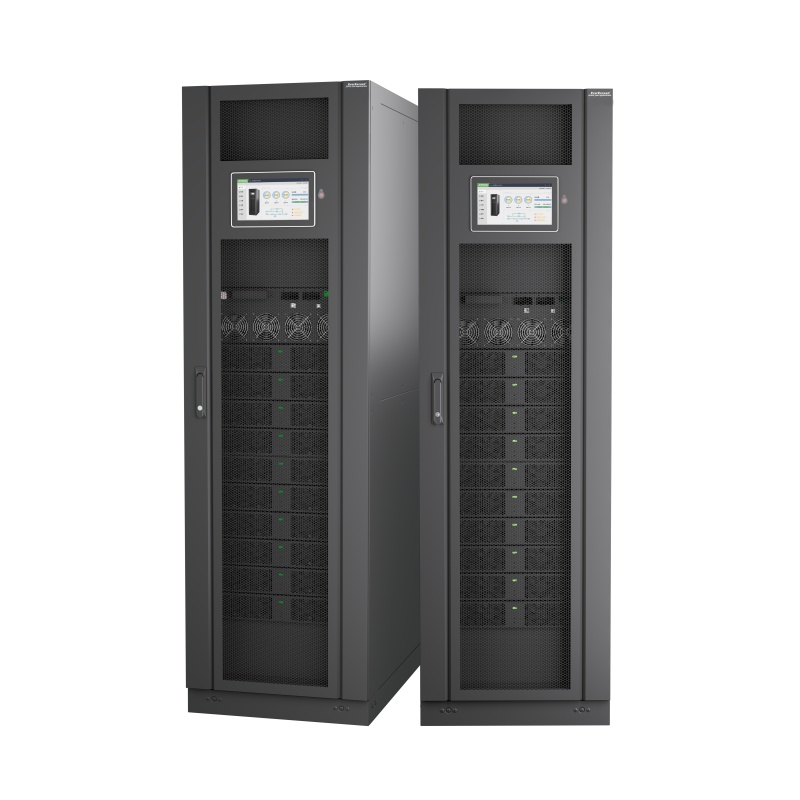

EverExceed PRM Plus Series Modular UPS is engineered for optimal efficiency and scalability. This cutting-edge solution delivers dependable power protection through its flexible architecture, enabling seamless expansion as your requirements evolve. With its high-performance capabilities, it ensures uninterrupted operation, making it perfect for data centers and mission-critical applications.
brand:
EverExceedModel:
PRM PLUSRated frequency:
50/60HzEfficiency:
up to 95.5%Applications:
Government, Finance, IT, Education,Transportation, Broadcasting, Medical, Energy, etc.Certificate:
CE,TLC
Technical features
 |
Fully digital control, flexible and robust. |
 |
10 inch touch LCD, with loT functions. |
 |
High reliability and environment adaptability, with protection of components level. |
 |
Extreme high power density, 30kW in 2U, friendly for space and maintenance. |
 |
Option of 30A charger module for long backup applications. |
| Model | PRM PLUS250/25 | PRM PLUS300/30 | |||||||||
| Rate Power | 250kVA/250kW | 300kVA/300kW | |||||||||
| Main input | Input | 3P5W (3P+N+PE) | |||||||||
| Rate Voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | ||||||||||
| Rate Freq. | 50/60Hz | ||||||||||
| Input PF | >0.99 | ||||||||||
| Current distortion | THDi<3%(100% Linear load) | ||||||||||
| Voltage range | 304 478VAC(L-L)full load 304 228VAC (L-L) power derate from 100% to 75% | ||||||||||
| Freq. range | 40-70Hz | ||||||||||
| Battery | Rate voltage | ±240VDC | |||||||||
| Charging capacity | 20%*Pout | ||||||||||
| Charging accuracy | ±1% | ||||||||||
| Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | |||||||||
| Voltage range | Range: -40%- +25% , Settable, default -20% +15%; | ||||||||||
| Overload |
110%, long time operation；110%< load<125%, 5 mins；
125%<load<150%,1 min；>150%,1 second
|
||||||||||
| Inverter | Rate voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | |||||||||
| Rate Freq. | 50/60Hz | ||||||||||
| Output PF | 1 | ||||||||||
| Voltage accuracy | ±1.0% | ||||||||||
| Load response | <5% (20% - 80% -20% step load) | ||||||||||
| Recovery time | < 20ms (0% - 100% -0% step load) | ||||||||||
| Output THDu | <1%(linear load),<5% (non-linear load according to IEC 62040-3) | ||||||||||
| Overload | 110%,1 hour 125%,10 mins 150%,1 min >150%,200ms | ||||||||||
| Frequency accuracy | 0.1% | ||||||||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | ||||||||||
| Slew rate | Settable 0.5Hz/S-3Hz/S default 0.5Hz/S | ||||||||||
| Phase Accuracy | 120°±0.5° | ||||||||||
| System | Efficiency | Normal Mode up to 95.5%; Battery Mode up to 95.5% | |||||||||
| Display | LED + 7 inch touch LCD | ||||||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | ||||||||||
| Certification- EMS | IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) | ||||||||||
| IP degree | IP20 | ||||||||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start,Air filter | ||||||||||
| Option | SNMP card, AS400 card, Parallel kit, LBS, LBS | ||||||||||
| Environment | 0-40 (operation) -25 ~70 (storage) 0-95% (Humidity, non-condensing) | ||||||||||
| Noise(dB)(1 meter) | 65dB @ 100% load, 62dB @ 45% load | ||||||||||
| Dimention | cabinet(W*D*H)mm | 600*1000*2000 | |||||||||
| module(W*D*H)mm | 440*678*85 (2U) | ||||||||||
| Weight(kg) | Cabinet | 113 | 132 | ||||||||
| module | 23 | ||||||||||
| Power Module rated capacity | 25KW | 30KW | |||||||||
 |
 |
 |
