All-in-one Smart Commercial Energy Storage System

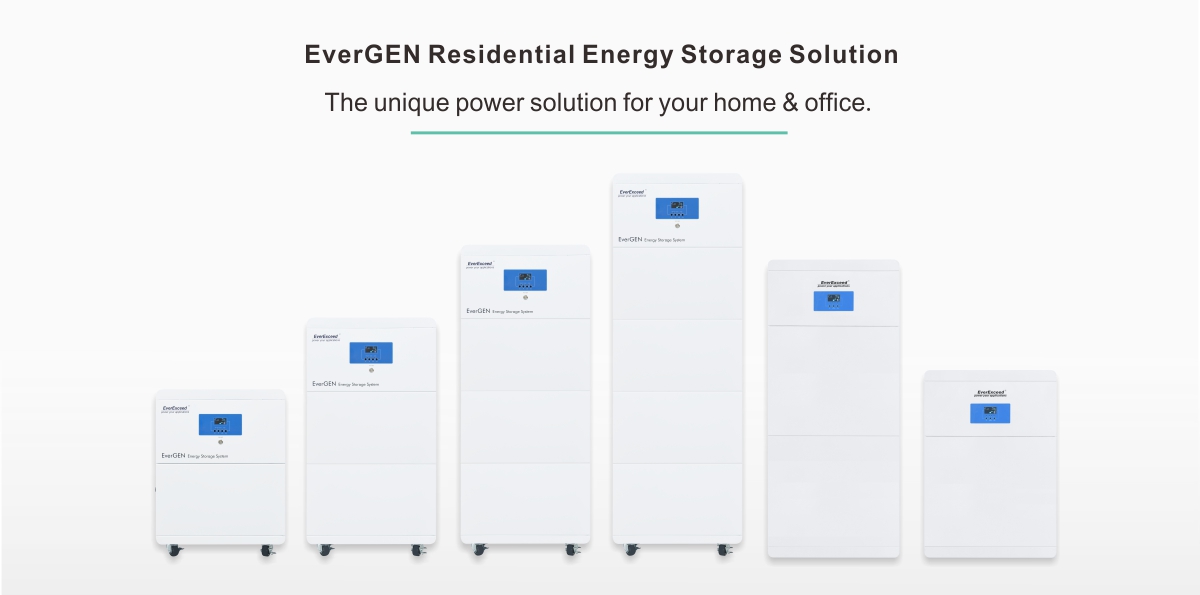

EverGen Residential Energy Storage System

If you are looking for a backup power solution for your apartment, home, small office, clinic, restaurant etc. applications, where the grid connection is not stable and reliable, then EverExceed EverGen Series has the best Backup energy storage solution to solve all of your problems. It is a perfect replacement for your portable generator to eradicate the fuel cost, noise pollution and environment pollution with smoke and bad smell effectively.


  • brand:

    EverExceed
  • Model:

    EG
  • Inverter Power:

    24/48VDC
  • Battery Energy:

    25.6V/51.2V
  • Application:

    Home, apartment or villa; Shops and groceries for small business; School or baby care center; Small office or enterprise; Bank, ATM or financial institute; Clinic, health care or medical centers;
  • Certificates:

    UN 38.3; IEC62133; RoHS; CE
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ



Technical Features:















Fast charging

Long backup time with minimum switching time

High quality transformer inverter

Green energy
This solution is consist of High quality EverExceed LDP Series Lithium battery which can be charged fully 3-5 times faster than the traditional lead acid batteries (within 4 hours), so whenever the grid comes back it gets ready to support you for the next blackout immediately.

This solution can provide you with long backup time, can be discharged up to 100% capacity without damaging the battery. The less than 15ms switching time ensures uninterruptible operation of your computer, TV or any other appliance.


This solution is consist of high quality transformer inverter, ensuring the complete reliability even in worst grid performance. Best solution for places with regular hurricane, storm affected weather, and poor grid connection where cheap inverter will fail easily.

This solution has absolutely no effect on the environment, completely green energy. No loud noises, no smoke or fume, no fuel smell, no toxic gas release, no acid splash. The outlook is beautiful and clean. The system is small and mobile, can be customized as per the requirement of customer.



EverExceed LDP Series Lithium Battery:


•  Super long cycle life, >3000cycle @80%DOD, 5-10 times more than lead acid battery;
  Fast charging technology, can be fully charged within 4 hours, 4-5 times faster than lead acid battery;
•  Smart battery, support optional EverExceed Bluetooth Monitoring, all battery parameters can be checked by the smart APP;
•  98% round trip efficiency, 20% high  than  lead acid battery, save your energy cost a lot.
•  Super safe, using EverExceed special enhanced lithium iron phosphate technology and flame retardant technology, there is no safety risk, no possibility of fire and explosion;
•  Super high quality, LDP series battery with CE, UL1642 and UL2054 certification.


High quality transformer inverter:

•  High quality copper wire transformer.
•  Confirms reliability with supreme switching time of less than 15ms, absolutely no interruption in your computer, tv, refrigerator etc. application
•  Provides precise service during the most disturbing grid performance.
•  Not available in cheap energy storage system.




Application:

Home, apartment or villa;   Shops and groceries for small business;   School or baby care center;

Small office or enterprise;   Bank, ATM or financial institute;    Clinic, health care or medical centers;


Model EG3K-5E Pro EG5K-10E Pro EG6K-10E Pro EG8K-15E Pro EG10K-20E Pro
System Specification
Rated AC Output Power 3000W 5000W 6000W 8000W 10000W
Surge AC Output Power 6000W 10000W 12000W 16000W 20000W
Output Overload Protection Load120%(60 seconds), Load150%(1 seconds)
Energy Capacity Range 5.12kWh 10.24kWh 10.24kWh 15.36kWh 20.48kWh
Battery Type LiFePO4 Battery
Operating Temperature
Charge: 0 to 50
Discharge: -20 to 60
Storage Temperature -30 to 70
Humidity 0~95%(no condensation)
Altitude 0~2000m
Noise 50dB
IP Protection IP21
Dimensions W 650mm 650mm 650mm 650mm  650mm
D 400mm 400mm 400mm 500mm 500mm
H 950mm 950mm 950mm 1500mm 1500mm
Certification and Standards
Certificates: CE, RoHS, UN38.3
Standards: IEC62619, EN 61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3
Inverter Specification
Rated AC Output Power 3000W 5000W 6000W 8000W 10000W
DC Input Voltage 24VDC 48VDC 48VDC 48VDC 48VDC
AC Input Voltage 155Vac~275Vac
AC Output Voltage 220/230/240Vac
Rated Frequency 50/60Hz
Max. Charging Current 50A 45A 50A 70A 85A
Power Factor 1.0
Output Wave Form Pure Sine Wave
Transfer Time 15ms
Battery Specification
Model EP-48100 EP-48100 EP-48100 EP-48100 EP-48100
Quantity 1 2 2 3 4
Capacity 100Ah 100Ah 100Ah 100Ah 100Ah
Voltage 51.2V 51.2V 51.2V 51.2V 51.2V
Cycle Life 6000 cycles@80% DOD









If you need to download files, you need to register as our member first ! log in / registered

  • EverGEN Series Energy Storage Solution V1.5-20221118.pdf
1. Can you also please confirm that this would be possible to own the brand (and remove all other logos) and that the software is the Solarman software you sent before and that it uses the software protocol that you sent me previously? Who makes the Solarman software?
--The system can be used as a customer logo, and only the customer's logo is displayed on the system. In addition, the monitoring system of SmartESS is developed by a third-party monitoring software company.
Of course, customers can also develop their monitoring platform based on the communication protocol of previously sent inverters.


2. Is this an internal unit only? Do you make this in an IP55 version that we could store externally?

-- At present, the conventional model is for indoor installation, but if the quantity is required, it can be made into an outdoor system, IP55 outdoor system (the entire cabinet is equipped with insulation cotton and two high-speed temperature-controlled fans to ensure that the cabinet temperature is maintained in good condition).


3. If a customer purchases this and then wants to expand their battery capacity are we able to add more battery modules (assuming that’s the part on the bottom of the above image) to increase this?

-- The battery module can be added, and the maximum battery capacity of a single energy storage system can be increased to 50kWh.


4. Are there any other software applications available that we can use instead of this?

-- The EverGEN Solar series uses SmartESS monitoring software.

5. How do you control the unit to charge the batteries from the grid at set times?
-- The inverter cannot be charged for multiple periods. Solar priority power supply, municipal priority power supply, and hybrid power supply modes can be set without software control and can be set on the LCD screen.

6. Can this take 3 phase power input? Can it output 3-phase power?
-- The EGS series energy storage system can have three sets of energy storage systems connected in parallel to form a 3-phase output or can be connected to a 3-phase input power supply. However, one set of energy storage systems needs to be connected to each phase because the generator cannot output unbalanced three-phase output.

7. Can we limit the AC input current?
-- You can set a limit on the AC input current.

8. When there is good PV production from the sun and the battery is full the excess will feed the load of the house? Even in the presence of the grid?
-- Yes, after the solar cells are fully charged, the solar power will be sent to the load. Even if connected to mains power, it will not be used because the inverter prioritizes the use of solar power.

9. Provide the warranty time and Battery Cycles.
-- 5-year warranty with 6000 cycles.


10. The batteries used are (16S) ; it can be done with 15(S) ?
-- The battery can be made for 16S and 15S.

11. Does it get installed in residential applications e.g. after the meter and before the distribution board, or is it connected to the distribution board?
-- The EverGEN Solar is installed after the meter and before the distribution board. This connection method can not affect the metering of electricity by the meter, and can also use batteries for backup use.

12. Do you have a program (soft) with which batteries are configured?
-- The battery itself comes with a BMS intelligent battery management system.

13. Can the EGS energy storage system connect to the generator?
-- Yes, if it is a three-phase generator, it is necessary to ensure that the inverter power of the energy storage system connected to each phase of the generator is the same.

14. Can the EGS5K-5E Pro and EGS5K-10E Pro energy storage systems be used in parallel?
-- Yes, it can, but in this case, if solely powered by the battery, the EGS5K-5E Pro will shut down due to running out of battery power first. If the load is greater than 5kW, the EGS5K-10E Pro will give an overload alarm.

15. Will there be a signal interruption in the parallel connection of the EGS energy storage system? Is this reason normal?
-- Parallel communication involves the continuous transmission of data from two inverters, just like home WiFi. Sometimes, there may be signal interference and data transmission interruption, which is uncontrollable.

16. What is the maximum input power of the solar panel for the inverter? Which solar panel is recommended and how to connect in series and parallel?
-- The maximum solar input power of a single inverter is 5500W, and the maximum input voltage is 500VDC. It is recommended to have 9pcs 540W photovoltaic modules connected in series.

17. Can the inverter output American standard voltage?
-- The inverter of the EGS Pro series energy storage system can only output European standard voltage. If you need to output American standard voltage, you can choose the EGS-LV Pro series energy storage system, but it cannot be connected in parallel.

18. Can the inverter supply power to the air conditioner?
-- Yes, a 5kW inverter for an EGS Pro energy storage system can come with a 4-horsepower air conditioner.

19. How are the goods shipped?
-- The inverter compartment and battery compartment are each packed in wooden boxes for shipment, and the power distribution is mainly placed in the inverter compartment.

20. Is the battery randomly paired instead of fixed? For example, can the battery of EGS5K-10E Pro be used in EGS5K-15E Pro?
-- Yes, a 5kW inverter for an EGS Pro energy storage system can come with a 4-horsepower air conditioner.
