All-in-one Smart Commercial Energy Storage System

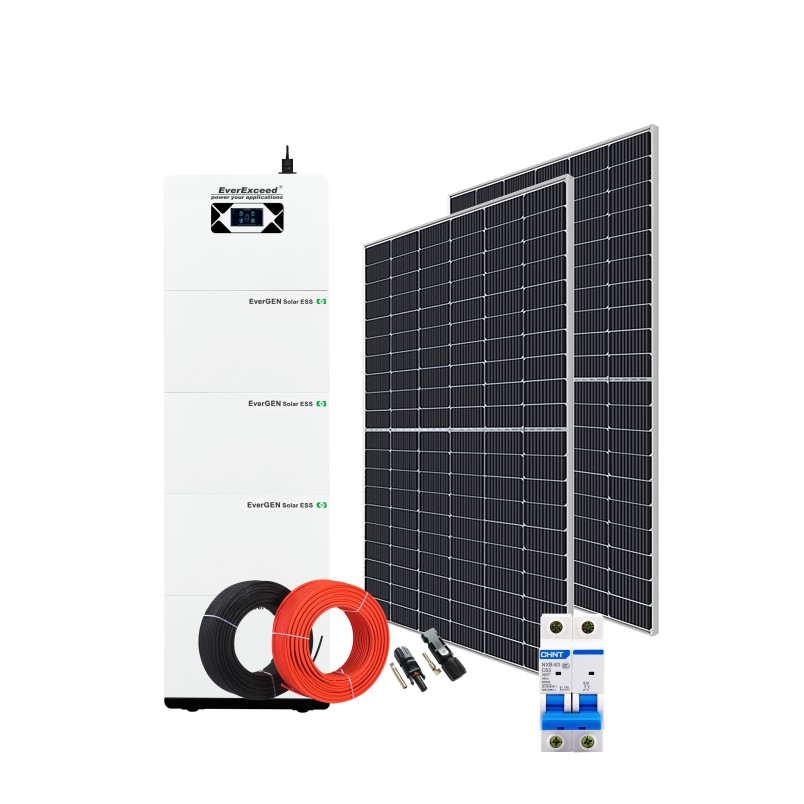

Complete Kit 20kWh Hybrid Solar Energy Storage System

The system is mainly composed of solar panel, all in one solar energy storage system and accessories. In the daytime, when there is sunlight, the solar panel can convert the solar energy into electric energy and store it in the battery and supply power to the load at the same time. The battery supply power for the load at night or in rainy days or cloudy conditions, provide long time power backup.

  • brand:

    EverExceed
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ



What's Included?

Lifepo4 Battery (built in)

-6000 cycles work life
-Built-in battery management system
-Wide compatible with inverters
-Support parallel connection up to 10 pcs
-Faster charging, Can fully charge within 2-3 hours
-Battery module certified with IEC62619, CE, RoHS, UN38.3
-LFP provides 100% of usable energy, can discharge the battery entirely




Solar Panel

-high convension efficiency

-Half-cut cell technology, 144 cells Mono type
-Pass the authoritative test and stand the test of harsh environment
-excellent mechanical load resistance

Peak Power Watts: 540W

Dimensions:2279x1134x35mm Weight:28.5 kg

Hybrid Inverter

-Integrated MPPT charge controller

-Work with battery or without battery
-Maximum PV input voltage up to 450VDC
-Configurable grid or solar input priority
-Support parallel operation for capacity expansion up to 30kW
-Optional WIFI/ GPRS remote monitoring





DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.


Single line diagram

Iterm Model Specifications QTY Unit
Main part
Solar Panel EMS-540MH Half-cut Mono cell 540W 41.62Vmp 12.98A 9 pcs
All-in-one Energy Storage System EGS5K-20E Pro 5KW AC power output,5KWH battery ESS 1 pcs
Mounting Bracket ER-9-ESM540MH-1R9C Q235 hot-dip galvanized steel bracket 1 set
Accessories
Solar Cable PV Cable 4mm² PV cable 1 kit
Connector MC4 MC4 connector
AC cable RV 4mm² AC cable
Terminal lug VE4012 Terminal lug
MCB NXBLE-63 Miniature circuit breaker

If you need to download files, you need to register as our member first ! log in / registered

  • PV5K-EGS5K-20E Solar Energy Storage System Kit V1.1-20230703.pdf
