All-in-one Smart Commercial Energy Storage System

Rechargeable Lithium Battery Pack 51.2V 200ah LiFePO4 Battery for Solar Energy Storage

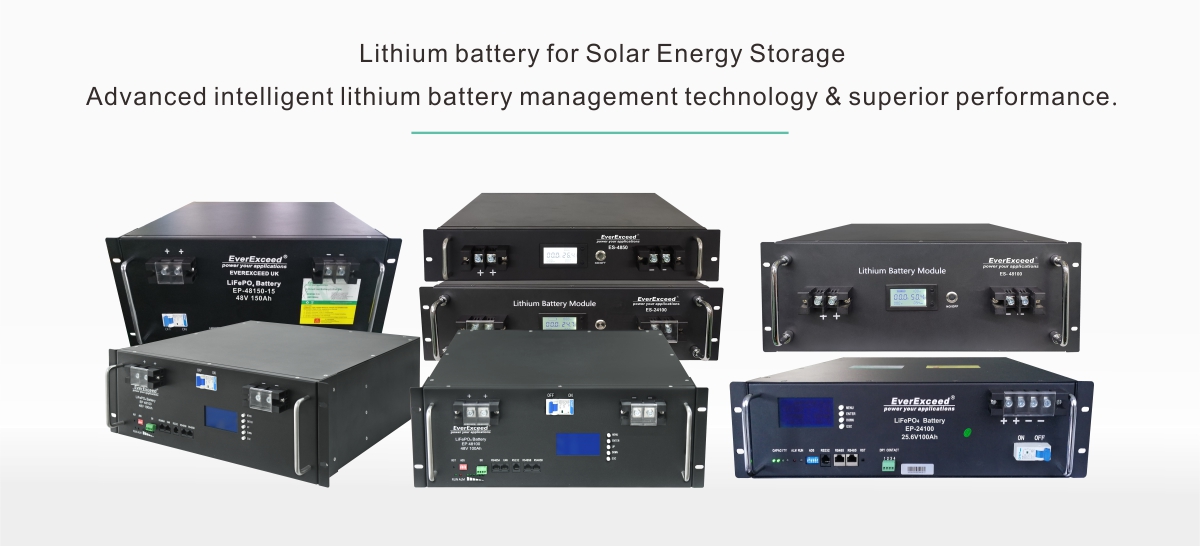

EverExceed solar LiFePO4 battery system is specially optimized for PV application, mainly used for the energy storage battery of Photovoltaic system; its advance intelligent lithium battery management technology to ensure the intelligent automatic management. With "Energy transfer" balanced patented technology, EverExceed lithium iron phosphate provide high efficiency balanced and prolong system operate life. Based on its own technical features as high capacity, high voltage and free of pollution, the lithium iron battery is widely concerned by people with a rapid development stance. It will be the first choice for the high requirement energy storage battery solution.

  • brand:

  • Features
  • Download
  • Related documents
  • Video
  • FAQ

Rechargeable Lithium  Battery Pack 51.2V 200ah LiFePO4 Battery for Solar Energy Storage

Key Features

High cycle life and deep cycle ability
High reliability

High cycle times and longer service life of >6000 cycles @80% DOD ;
Superior DOD (100% over lead acid bateres;

Excellent high temperature performance, ultra low life decay rate in operating when harsh environment;
Ultra low self discharge rate <1.5%/month;

More usable capacity
User friendly bms

LFP provides 100% of usable energy, so that you can discharge the battery entirely without causing downtime of your solar site,
saving cost of diesel generator fuel.

User friendly BMS monitors and communicates regarding the SOC, SOH, protects the system from short-circuit, high and low
discharging and charging, high temperature etc.

Faster charging
Easy installation

Charges much faster than sealed lead acid batteries, giving you access to reliable power quicker to continue your operation.
Can fully charge within 2-3 hours which is impossible for VRLA.

EverExceed LFP batteries are designed to be drop-in replacement for sealed lead acid batteries without additional labor cost.

High discharge rate
Superior deep cycle ability

Ability to deeply discharge the battery at a high rate of discharge
while maintaining a high energy capacity.

Excellent PSOC (partial state of charge) cycle life, which is the best ideal choice for solar energy storage;
Optimized for photovoltaic applications, using high temperature and high cycle life active materials;


>Solar energy storage / Wind energy storage;

Factory Tour

Adopts electric car-grade battery cells and production technology

Nominal Characteristics
Battery Model EP-48200 (16S)
Nominal Voltage 51.2V
Nominal Capacity 200 Ah
Nominal Energy 10240 Wh
Electrical Characteristics
Recommended Charging Voltage 57.6-58.4 V
Floating Charging Voltage 55-55.5 V
Recommended Charging Current 50A-100A
Maximum Disharging Current 100 A
Discharging Cut-off Voltage 43.2 V
Working Voltage Range 43.2-58.4 V
Operating Conditions
Cycle Life ≥6000 Cycles@80% DOD@25℃
Roundtrip Efficiency ≥98%
Operating Charge Temperature 0℃ to +50℃
Operating Discharge Temperature -20℃ to +60℃
Storage Temperature -20℃ to +60℃
Mechanical Characteristics
Length x Width x Height 483 x 680x 225 mm
Weight 76 Kg
Terminal M6

If you need to download files, you need to register as our member first ! log in / registered

  • EP-48200(16S).pdf
