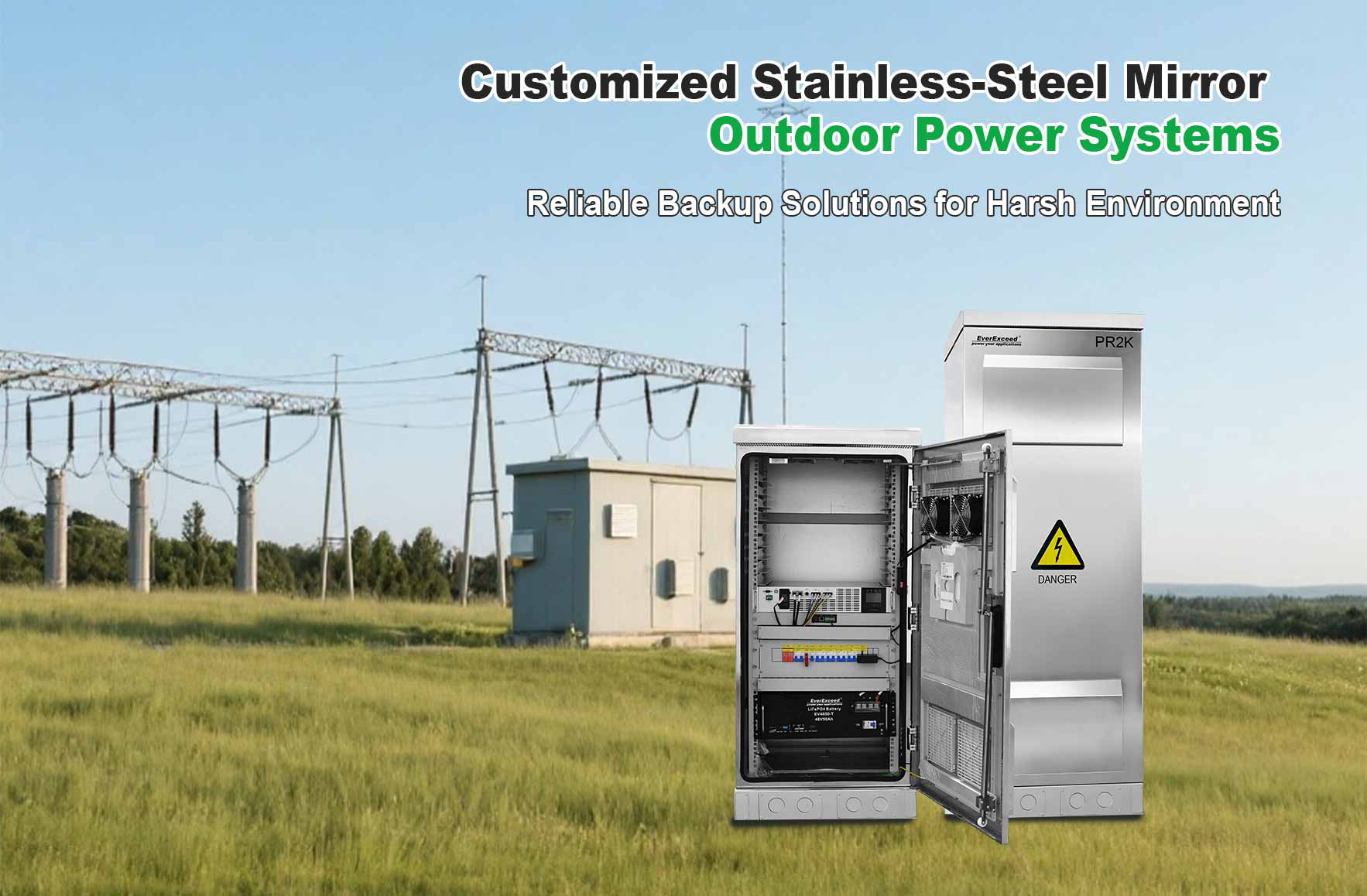

Customized 1kVA &2kVA Stainless-Steel Mirror Outdoor Power Systems

EverExceed proudly introduces its IP65 Outdoor Power Systems, purpose-built to deliver reliable backup power in harsh oil & gas environments. With a 316L stainless steel mirror-finish enclosure, the system offers exceptional resistance to corrosion, water, dust, and salt spray—ensuring stable and dependable operation even under extreme outdoor conditions.

brand:
EverExceed
Model:
Power outdoor 1 & 2kVA
Rated voltage:
230VAC (Customized)
Rated frequency:
50Hz
Applications:
Oil & Gas
Certificate:
ISO/ CE
Rated capacity:
Fan/Air conditioning (optional)

inquiry now

Technical advantages

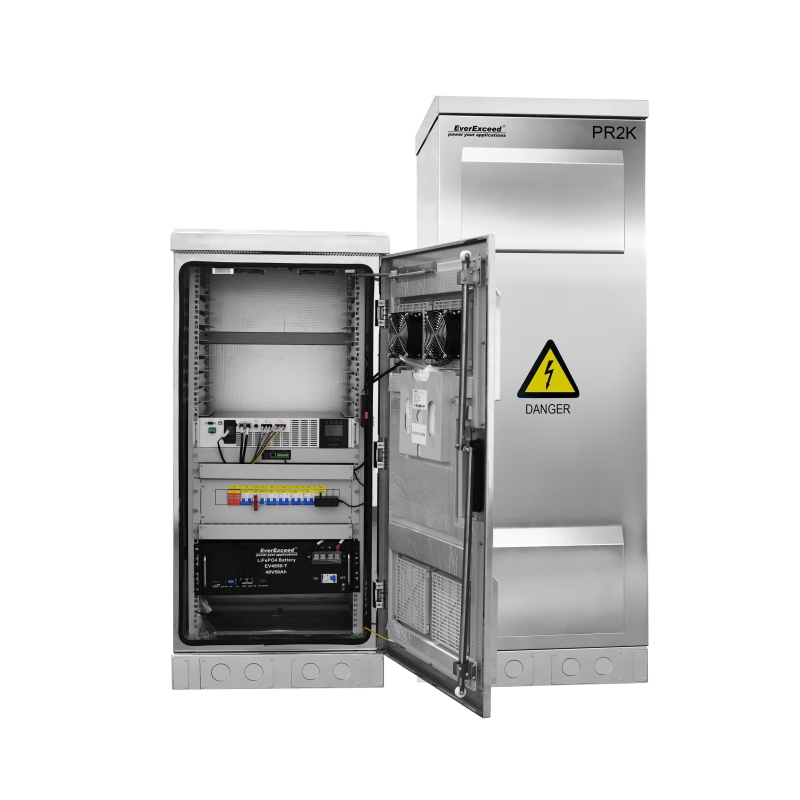

IP65 Protection	Built-in Battery Compartment	Wide Input Range
316L stainless steel cabinets with mirror finish resist dust, water, and harsh coastal conditions.	Built-in EverExceed LiFePO4 battery, with optional lead-acid battery configuration to meet different project requirements.	Operates smoothly with -45% to +35% rated voltage and ±10% frequency variation, ensuring stable performance under unstable grids.


Smart Monitoring	High Safety	Efficient Cooling System
Seamless integration with Power & Environment Monitoring Systems enables unattended remote management, RS485 and dry-contact communication, intelligent control, and enhanced protection.	Powerful and comprehensive protection function;Energy saving and environmental protection.	Active fan cooling design ensures reliable heat dissipation and stable performance under high-temperature outdoor conditions.

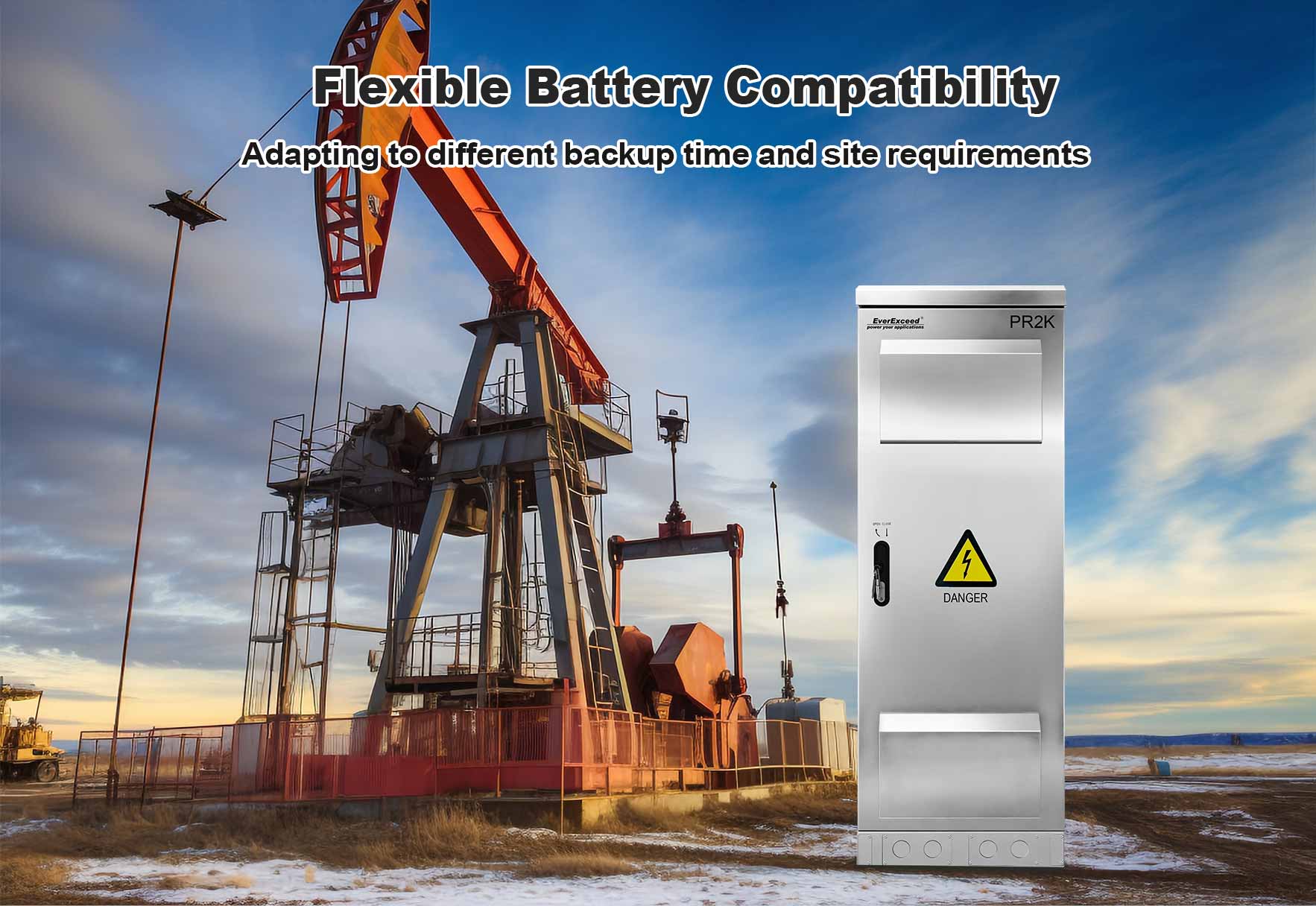

Supports EverExceed LiFePO₄ battery; lead-acid option available for flexible project requirements.

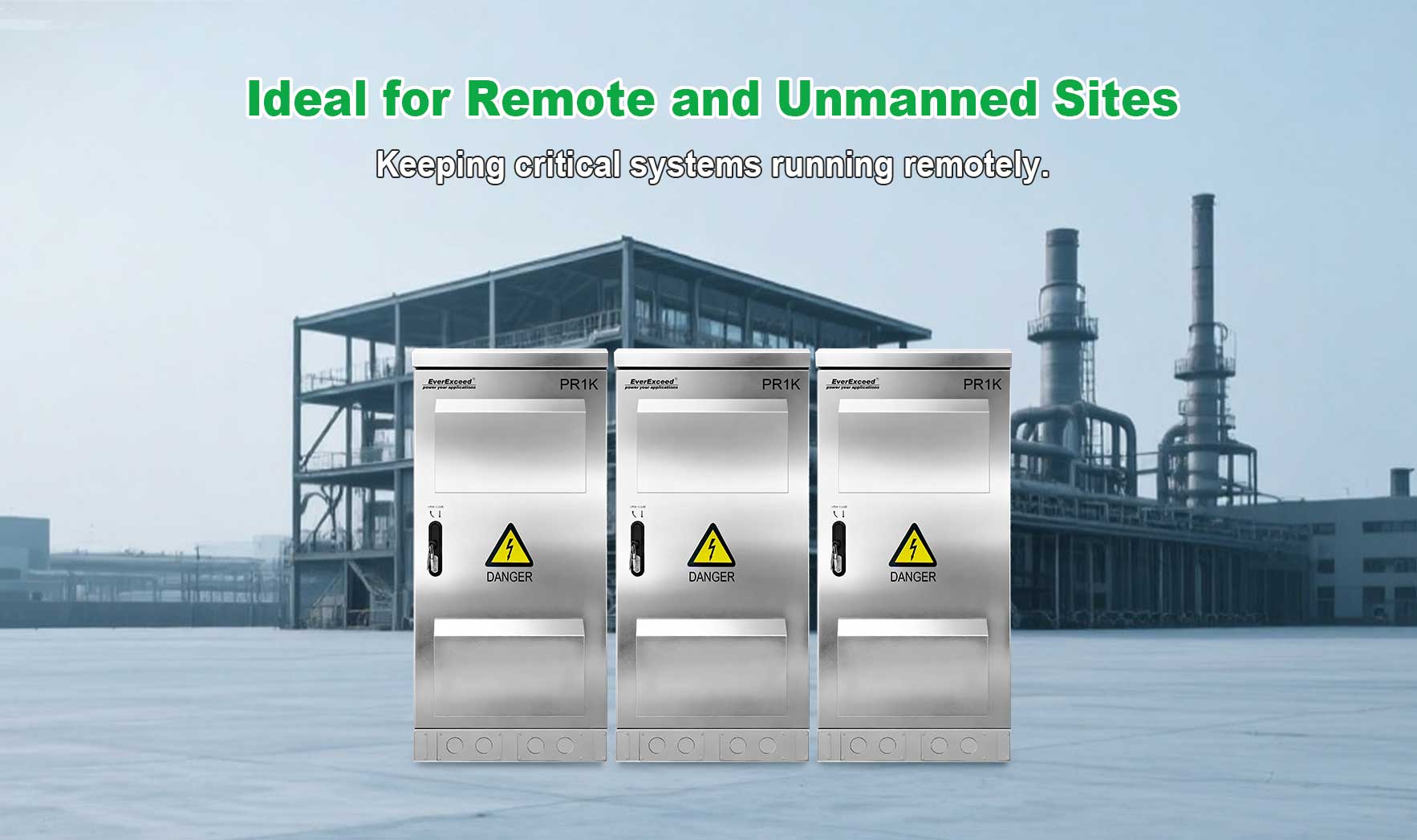

Enables remote, unattended management and intelligent control, ideal for oil & gas field applications.

Item	Specification
Model	1 kVA & 2 kVA outdoor UPS
Input/Output	230VAC
Frequency	50Hz
Battery	48V50A LiFePO4
Output Power Factor	PF0.9
Communication Interface	RS232 port, SNMP card
IP Class	IP65
Standard Distribution	Standard Distribution
Communication Interface	RS485 port, Dry node
Input Protection	SPD included
Charging Current	12A
Cable Entry	Bottom entry/exit

If you need to download files, you need to register as our member first ! log in / registered

Datasheet

1. What are the main features?
Durable stainless steel, weather-resistant, supports solar, battery, or hybrid power.

2. Suitable environments?
Extreme weather, coastal areas, industrial sites, telecom or outdoor facilities.

3. Can it be customized?
Yes, size, capacity, power type, and integration options are customizable.

4. Maintenance requirements?
Minimal; clean exterior and inspect internal components periodically.

5. Power capacity options?
Flexible, depending on customer needs and system configuration.

6. Safety and reliability?
Built-in protection for overcurrent, overvoltage, temperature; durable enclosure.

7. Can it handle harsh weather?
Yes, designed for rain, snow, dust, high UV, and temperature extremes.
