CRITICAL POWER

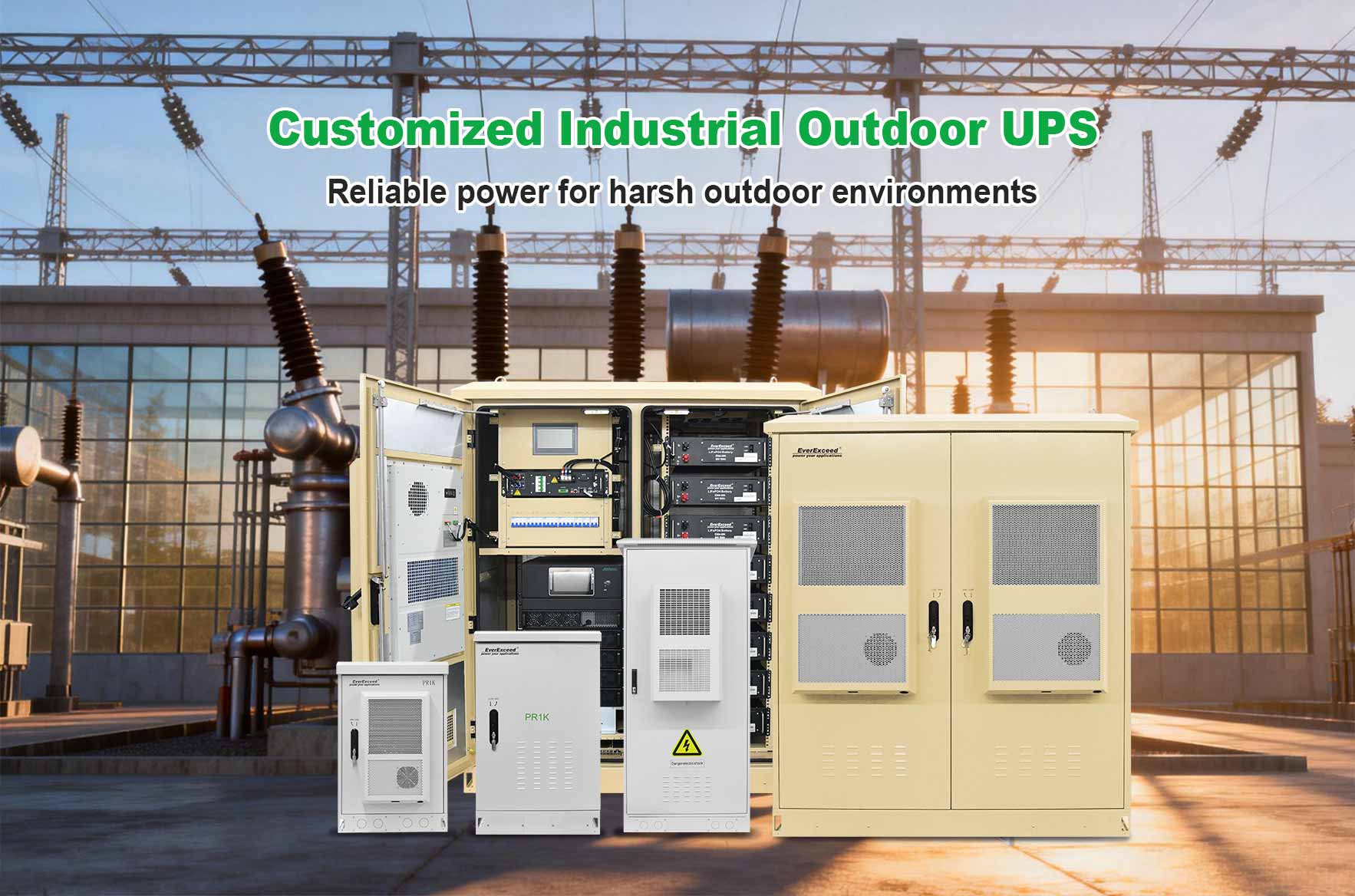

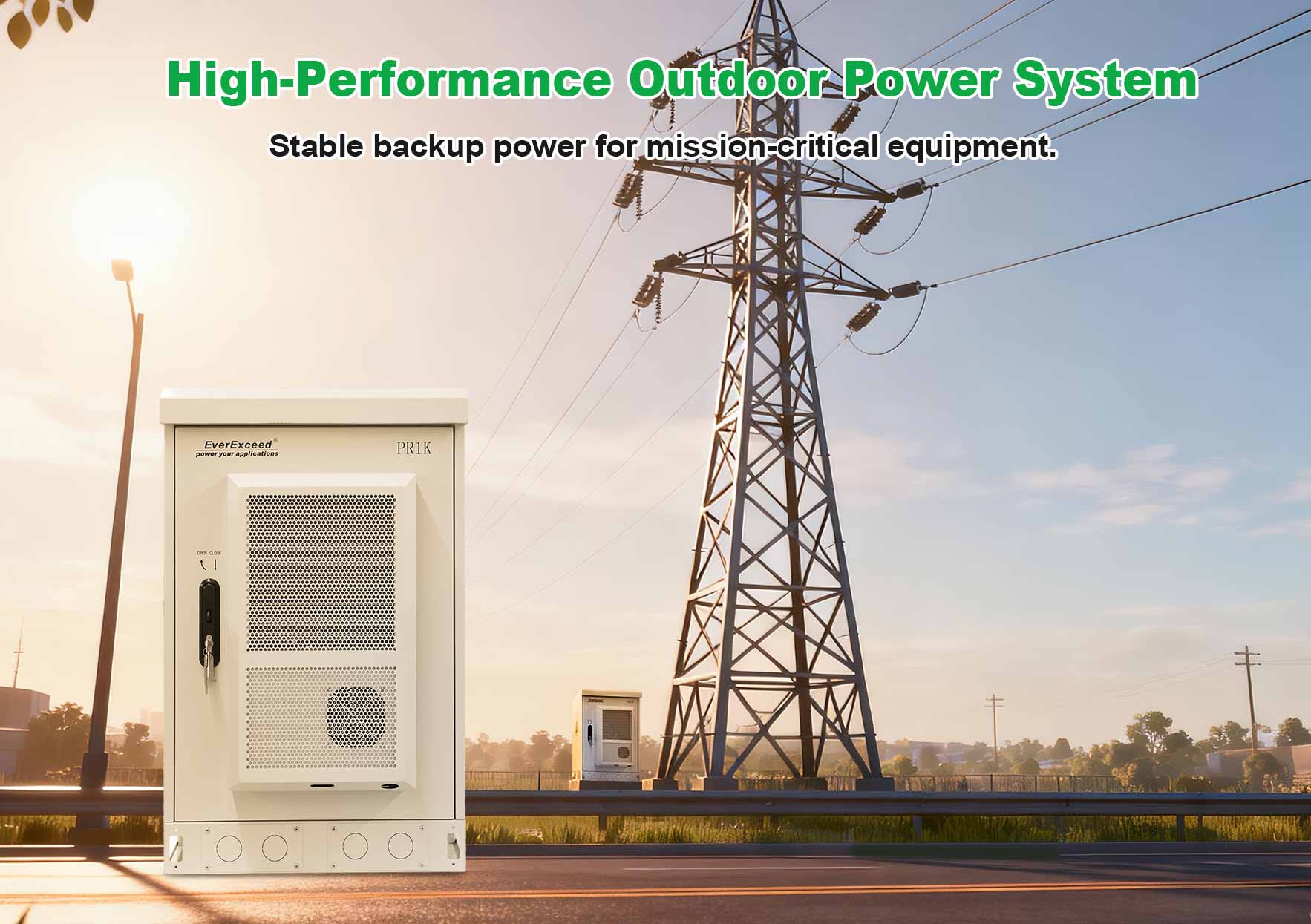

1~10kVA PowerOutdoor Series Customized Outdoor UPS

1-10kVA Power Outdoor Series UPS (Can be customized to 200kVA)

220/230/240VAC, 1:1 (Customizable: 110/120/127VAC)

PowerOutdoor series UPS is specially designed for outdoor communication & networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area. High temperature resistance, frost resistance, corrosion resistant, dust prevention, and water resistance are based. With advanced functions like wide range of input voltage and frequency, high reliability, energy saving, environmental protection, anti-thunder, remote control, remote detection, our UPS can guarantee stable power supplying to communication, networking, traffic control and other device.  It is a type of ideal helpmate for running these important outdoor devices.


  • brand:

    EverExceed
  • Model:

    PowerRT 1-10kVA(Customized)
  • Type:

    True online double conversion
  • Rated capacity:

    1-10kVA
  • Rated voltage:

    220/230/240VAC (Customized)
  • Rated frequency:

    50Hz/60Hz
  • Applications:

    Outdoor communication equipments
  • Certificate:

    ISO/ CE
  • Heat dissipation:

    Fan/Air conditioning (optional)
  • Features
  • TECHNICAL DATA

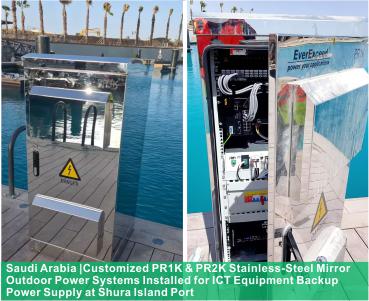

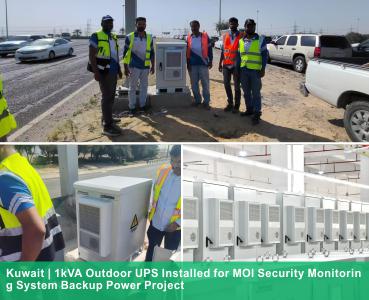

  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ


Technical advantages







Wide input voltage

High reliability

Strong adaptability
It has the widest input voltage range and input frequency window (-45% to + 35% of rated voltage and ±10 % rated frequency) and has passed the harsh power grid test in remote areas of many countries;

The input terminal is equipped with dual isolation and voltage stabilization function;

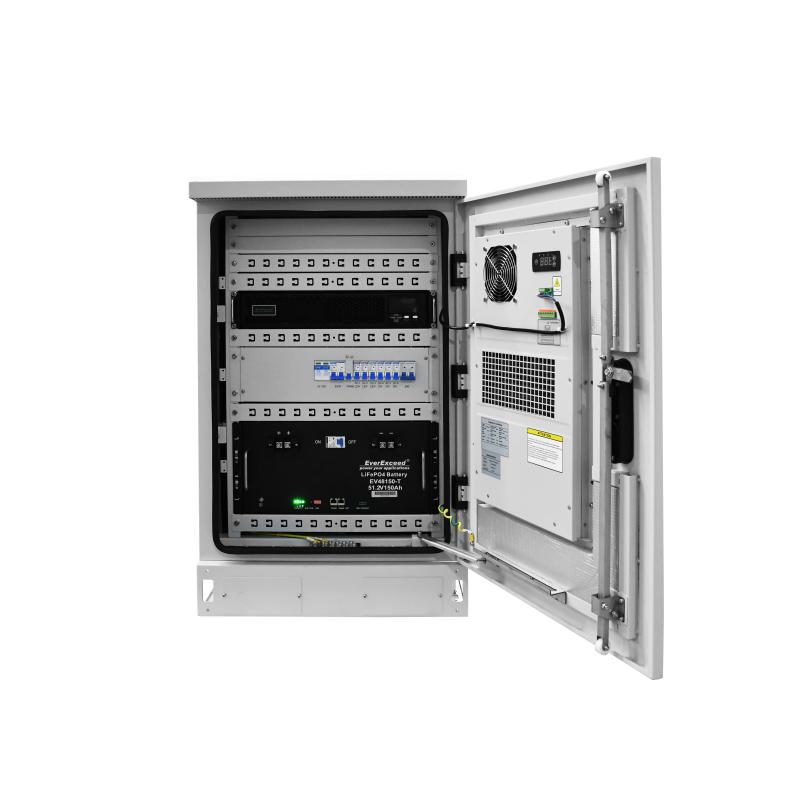

Internal battery warehouse;


Strong environmental adaptability;

The input and output voltage can be 1:1, 3:1, 3:3;

Wide adaptability to the power grid;











Flexible customization

High safety

Smart & energy saving

Cabinet space can be designed according to battery capacity;

The charging part can be customized;

The UPS host part can be designed according to the technical requirement of high frequency and industrial frequency;


The protection level can reach IP55;

Powerful and comprehensive protection function;

Energy saving and environmental protection;


Unattended and intelligent monitoring (optional);

Air conditioner and fan for heat dissipation (optional);

Energy saving;


Factory




Applications:


Specially designed for outdoor communication& networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area.




Technical data
MODEL PR1K PR2K PR3K PR6K PR10K
Capacity 1KVA/0.8KW 2KVA/1.6KW 3KVA/2.4KW 6KVA/4.8KW 10KVA/8KW
NPUT
Voltage Range 115295VAC 176-297VAC
Frequency Range 50HZ(46~54Hz)/60HZ (56-64HZ)
Soft Start 0~100%, 5 sec
Power Factor 0.98
OUTPUT
Voltage 220/230/240VAC (customizable: 110/120/127VAC)
Voltage Precision ±2%
Frequency Precision 50/60Hz±0.05Hz
Power Factor 0.8
Wave Distortion Linear load3% ; Non-linear load6%
Overload Capability
110%150%,for 30 seconds later, transfer to bypass;
150%, for 200ms later, transfer to bypass;
When load is normal, it can automatically transfer to normal mode;
Crest Factor 3:01
Transfer Time 0ms (line to inverter)
BATTERY
DC Voltage 48VDC 48VDC 48VDC 192VDC 192VDC
Charge Current 4A/8A (optional)
Battery Capacity Optional (battery type and capacity choose by customer)
SYSTEM
Display LCD+LED
Interface RS232, SNMP card (optional), Dry contact (optional)
IP class IP55
Noise(1m away) 50dB (away)1m
Temperature -25℃~55℃(operation,heater optional)
Humidity 0~95% (Non-condensing)
Altitude <1500m. Within 1500m to 2000m, power derate 1% for every 100m rise
Weight (KG) 85 125 125 125 155
Dimension(W*D*H) (mm) 613*640*954 650*753*1227 940*940*1770








If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed PowerRT Series UPS (1-10KVA) V2.0 - 20240123.pdf
