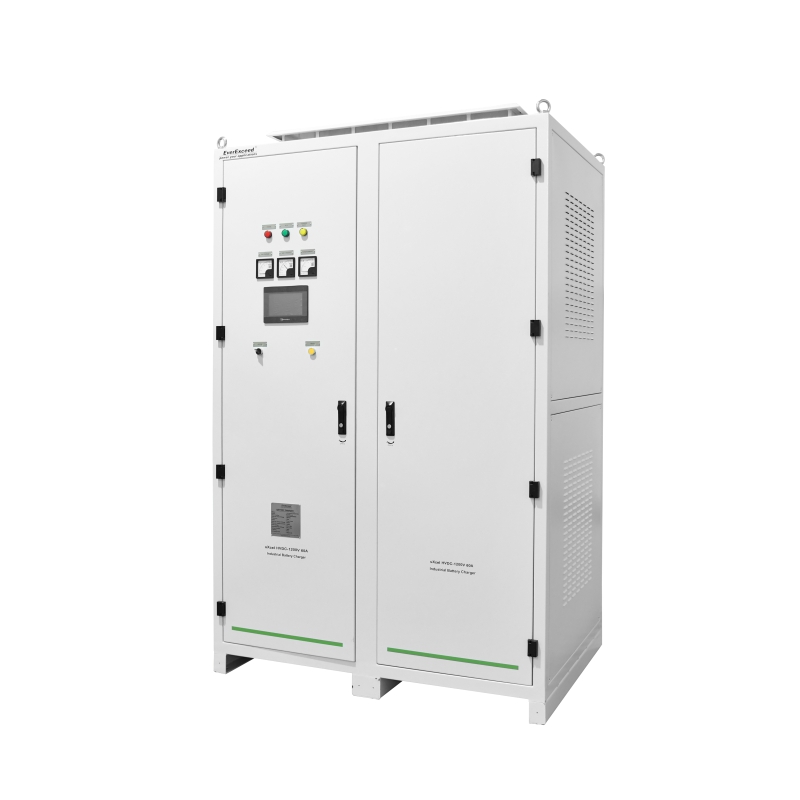

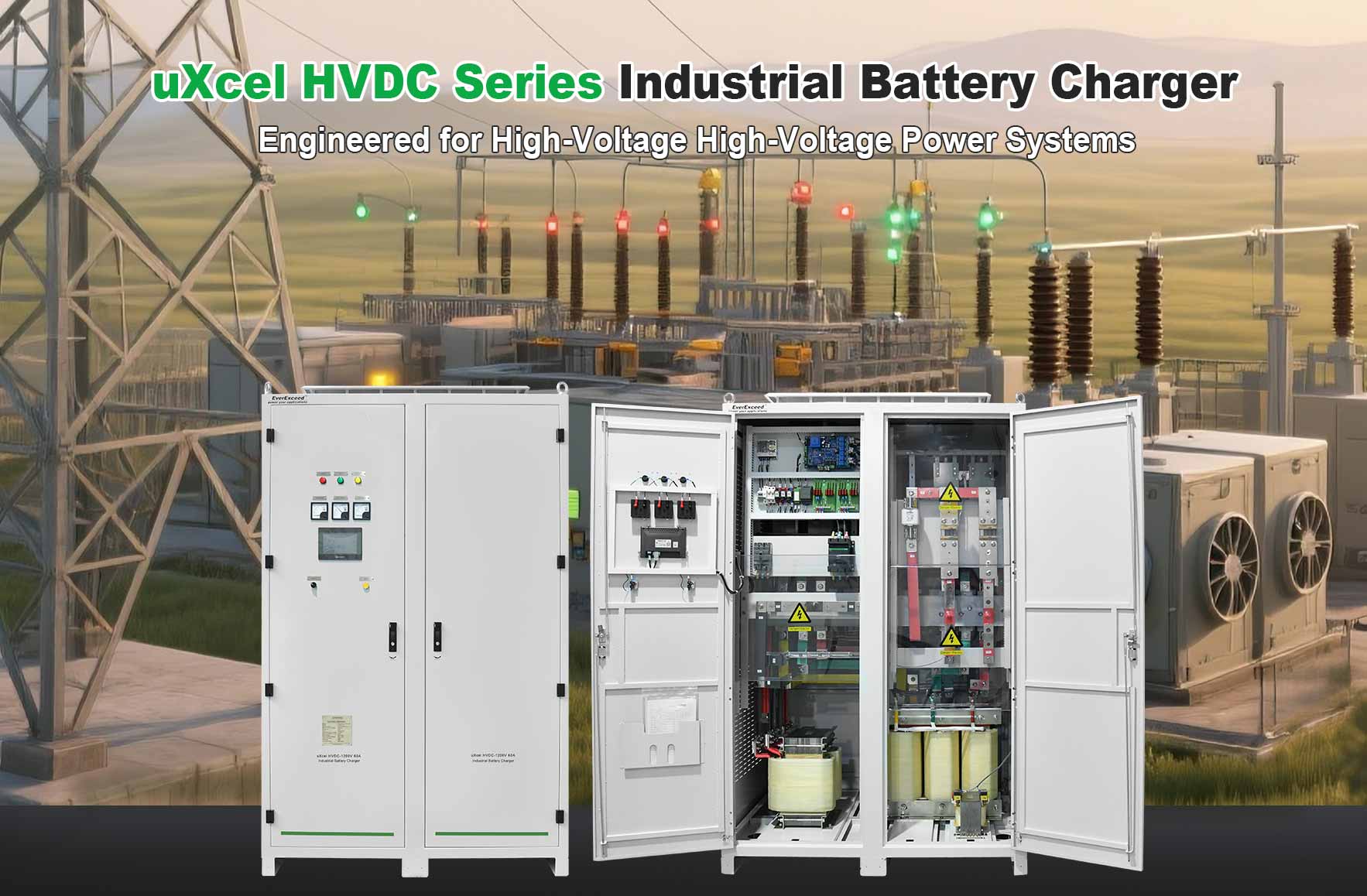

uXcel HVDC Series Industrial Battery Charger

Designed for a wide range of industrial applications, the uXcel HVDC series supports flexible system configurations and reliable operation in demanding environments.

Technical features

Wide Voltage Compatibility	Long MTBF	Long Service Life
Supports flexible charging modes with adjustable output from 800–1500V, ensuring precise matching with various high-voltage battery systems including lead-acid, Ni-Cd, and LiFePO₄.	Engineered for full-load continuous operation at 40°C with an MTBF exceeding 23000 hours, ensuring stable long-term performance.	Designed for 20+ years of operational life with proper maintenance..
Thyristor-Based Core Architecture	Industrial-Grade Build Quality	Rugged Industrial Protection

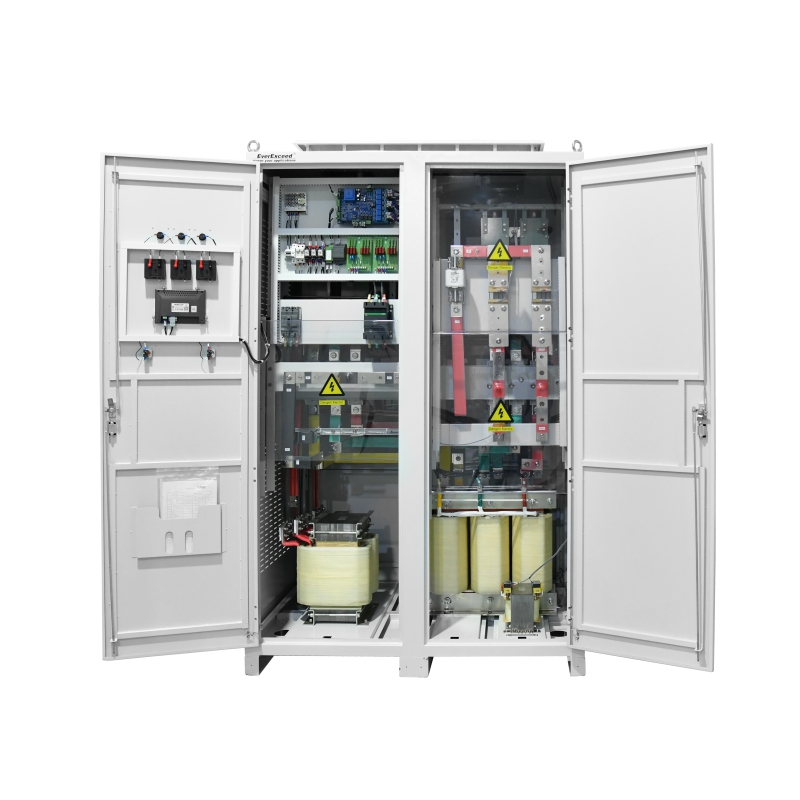

Adopts 6-pulse / 12-pulse SCR rectification with an embedded microcontroller to deliver accurate CC/CV charging modes.	Constructed with industrial-grade components—including a stable SCR rectifier bridge and H-class insulated isolation transformer—paired with an intelligent controller and HMI touchscreen for enhanced protection and maintainability.	Cold-rolled steel enclosure with epoxy coating and IP55 protection, operable in –20°C to 55°C and 0–95% humidity, resistant to extreme temperature, humidity, dust, and vibration for harsh environments such as mining and public transportation.
Comprehensive Safety Protection		Intelligent Digital Management
Built-in safeguards against overvoltage, overcurrent, short circuit, and overtemperature, with visual alarm indicators for early fault prevention.		Equipped with a large LCD touchscreen and RS232/RS485 Modbus plus TCP/IP Ethernet communication for remote monitoring, data logging, and unmanned operation.

With high operational efficiency and long service life, the uXcel HVDC series helps reduce maintenance requirements and overall operating costs.

Our industrial partners since 2002

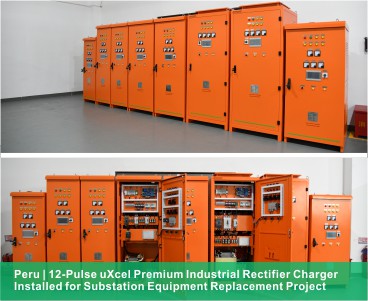

Electricticy application

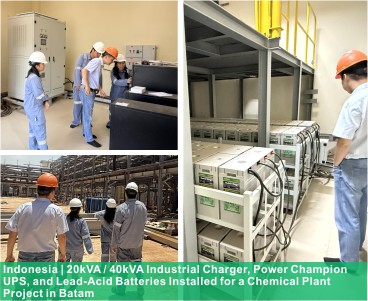

Oil&Gas application

1. What safety features are included in EverExceed chargers?

Over-voltage, over-temperature, and short-circuit protection

Smart monitoring to prevent battery overcharging or deep discharge.

2.Can EverExceed chargers be used with different battery types

Yes. Our chargers supportlead-acid (VRLA, AGM, Gel, flooded) and nickel cadmiumbatteries, with selectable charging profiles

3.How do I choose the right industrial battery charger for my application?

Consider battery type, capacity, operating environment, and required backup time. Contact our team for a tailored recommendation.

4. Why is equalization charging necessary?

Batteries consist of multiple cells in series, and over time, capacity variations develop. Equalization charging helps balance all cells by temporarily raising the voltage, ensuring weaker cells receive sufficient charge.This prevents premature battery failure and maintains performance.

5. What is fast charging, and how does it work?

Fast charging compensates for internal resistanceby increasing the charger’s voltage, enabling the battery to absorb maximum current longer. This speeds up charging while minimizing energy loss due to heat.

6. How do I determine the correct charging voltage?

Always follow thebattery manufacturer’s recommendationsfor float and equalize/boost voltages. Incorrect settings can lead to undercharging (reducing capacity) or overcharging (shortening lifespan).

7. When should the charger switch between float and equalize modes?

Different control methods are available:

• Manual switch:Simple but high risk of forgetting to return to float mode.
• Timer-based (manual or automatic):Useful but may not match actual battery needs.
• Battery-based automatic control:The best method, as it adjusts charge termination based on battery conditions.
