NiCd Battery

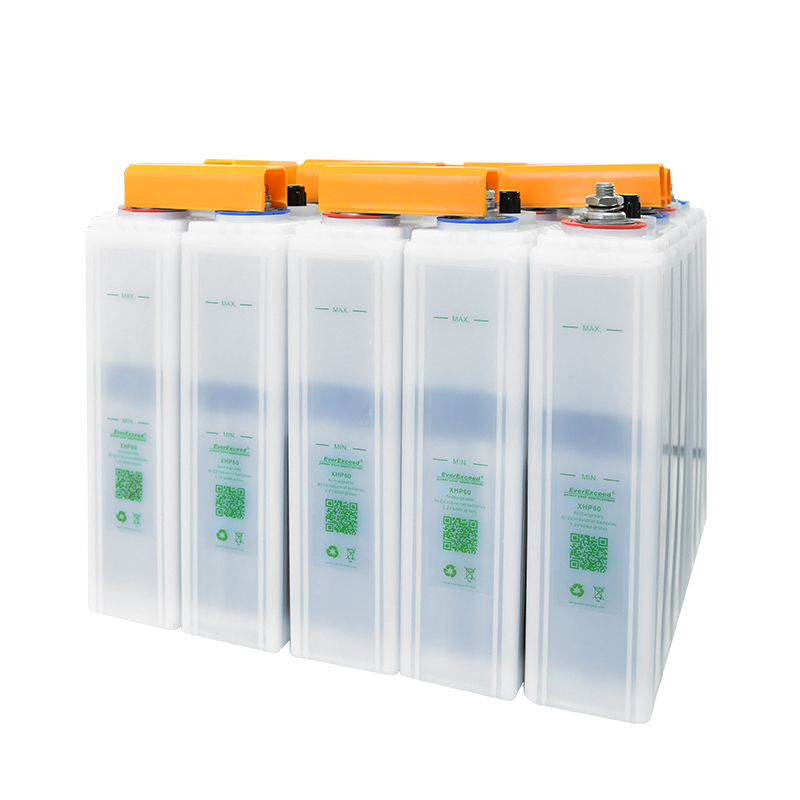

XHP Sintered Plate Range NiCd Battery

EverExceed XHP Series nickel cadmium batteries depending on the full set of sintered plate production line and technology imported from VARTA Germany , have ultra high discharge rate ability and are widely used for the engine starting power of diesel locomotives, railway, UPS systems, AGV, light truck trains, DC cabinet, distribution cabinet, civil aviation and aircrafts.
  • brand:

    EverExceed
  • Certificates:

    ISO / TUV/CE/ IEC
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download


①Large electrolyte reserve with visible level


②Sintered positive electrode


③Separator


④Plastic bonded negative electrode


⑤Container



Technical Features:

• Excellent 10+C high rate discharge performance;
• Wide operating temperature range: -40℃~70℃;
• High reliability without sudden death;
• Lower weight and reduced volume;
• Excellent resistance performance of electric misoperation (over-charge and over-discharge);
• Resistance to mechanical and electrical abuse;
• Lower maintenance cost and replacement cost;
• High mechanical strength;
• Light weight, compact volume;


Our advantages:

• GB/T19001-2016 / ISO 9001:2015 quality management system certificate;
• GB/T24001:2016/ ISO 14001:2015 environment management certificate;
• GB/T28001:2011/ OHSAS 18001:2007, IDT occupational health and safety management system certificate;
• TUV Rheinland IEC60623: 2001 product type approval certificate;
• EverExceed battery is the qualified manufacturer approved by Huawei Technologies Co., Ltd.


Model
Nominal Voltage (V)
Capacity (C5 Ah)
Dimensions (mm/inch)  Max. Weight (kg/lb.) Terminal Volume of Electrolyte
Cell Case Material
Length Width Height
mm inch mm inch mm inch kg lb.
XHP10 1.2 10 25 1 80 3.1 165 6.5 0.62 1.4 M8 0.05 ABS
XHP10-(2) 1.2 10 35 1.4 80 3.1 245 9.6 1.1 2.4 M10 0.13 ABS
XHP20 1.2 20 35 1.4 80 3.1 245 9.6 1.25 2.8 M10 0.12 ABS
XHP20-(2)
1.2
20
60
2.4
138
5.4
265
10.4
2.8
6.2
M10
0.5
pp
XHP20-(3) 1.2 20 43 1.7 80 3.1 265 10.4 1.7 3.7 M10 0.2 PP
XHP30 1.2 30 43 1.7 80 3.1 265 10.4 1.75 3.9 M10 0.2 PP
XHP30-(2) 1.2 30 60 2.4 138 5.4 265 10.4 3 6.6 M10 0.5 PP
XHP40 1.2 40 43 1.7 80 3.1 265 10.4 1.85 4.1 M10 0.2 PP
XHP40-(3) 1.2 40 60 2.4 138 5.4 265 10.4 3.3 7.3 M10 0.5 PP
XHP40-(4) 1.2 40 85 3.3 100 3.9 138 5.4 1.6 3.5 M10 0.2 ABS
XHP50 1.2 50 50 2 80 3.1 265 10.4 2.14 4.7 M10 0.25 ABS
XHP50-(2) 1.2 50 60 2.4 138 5.4 265 10.4 3.5 7.7 M16 0.5 PP
XHP60 1.2 60 50 2 80 3.1 265 10.4 2.2 4.8 M10 0.24 ABS
XHP60-(2) 1.2 60 60 2.4 138 5.4 265 10.4 3.8 8.4 M16 0.5 PP
XHP70 1.2 70 60 2.4 138 5.4 265 10.4 4 8.8 M16 0.4 PP
XHP80 1.2 80 60 2.4 138 5.4 265 10.4 4.2 9.2 M16 0.4 PP
XHP80-(2) 1.2 80 85 3.3 85 3.3 305 12 3.8 8.4 M10 0.6 PP
XHP90 1.2 90 60 2.4 138 5.4 265 10.4 4.3 9.5 M16 0.4 PP
XHP100 1.2 100 60 2.4 138 5.4 265 10.4 4.4 9.7 M16 0.4 PP
XHP100-(2) 1.2 100 80 3.1 148 5.8 195 7.7 4.3 9.5 M16 0.25 ABS
XHP100-(3) 1.2 100 80 3.1 138 5.4 295 11.6 5.5 12.1 M16 1.4 ABS
XHP110 1.2 110 60 2.4 138 5.4 265 10.4 4.5 9.9 M16 0.4 PP
XHP110-(2) 1.2 110 80 3.1 138 5.4 295 11.6 5.5 12.1 M16 1.4 ABS
XHP120 1.2 120 60 2.4 138 5.4 265 10.4 4.6 10.1 M16 0.35 PP
XHP120-(2) 1.2 120 80 3.1 138 5.4 295 11.6 5.6 12.3 M16 1.4 ABS
XHP130 1.2 130 80 3.1 138 5.4 295 11.6 5.7 12.5 M16 1.4 ABS
XHP140 1.2 140 105 4.1 165 6.5 345 13.6 9.5 20.9 M20 1.9 PP
XHP140-(2) 1.2 140 80 3.1 138 5.4 360 14.2 9 19.8 M16 1.7 PP
XHP140-(3) 1.2 140 80 3.1 138 5.4 295 11.6 6 13.2 M16 1.3 ABS
XHP150 1.2 150 105 4.1 165 6.5 345 13.6 9.6 21.1 M20 1.8 PP
XHP150-(2) 1.2 150 80 3.1 138 5.4 360 14.2 9.3 20.5 M16 1.6 PP
XHP150-(3) 1.2 150 80 3.1 138 5.4 295 11.6 6.1 13.4 M16 1.2 ABS
XHP160 1.2 160 105 4.1 165 6.5 345 13.6 9.7 21.3 M20 1.75 PP
XHP160-(2) 1.2 160 80 3.1 138 5.4 360 14.2 9.4 20.7 M16 1.6 PP
XHP160-(3) 1.2 160 80 3.1 138 5.4 295 11.6 6.5 14.3 M16 1.5 ABS
XHP170 1.2 170 105 4.1 165 6.5 345 13.6 9.7 21.3 M20 1.7 PP
XHP170-(2) 1.2 170 80 3.1 138 5.4 360 14.2 9.5 20.9 M16 1.6 PP
XHP170-(3) 1.2 170 80 3.1 138 5.4 295 11.6 6.7 14.7 M16 1.5 ABS
XHP180 1.2 180 105 4.1 165 6.5 345 13.6 9.5 20.9 M20 1.8 PP
XHP190 1.2 190 105 4.1 165 6.5 345 13.6 10 22 M20 1.7 PP
XHP200 1.2 200 105 4.1 165 6.5 345 13.6 10.5 23.1 M20 1.6 PP
XHP210 1.2 210 105 4.1 165 6.5 345 13.6 10.8 23.8 M20 1.6 PP
XHP220 1.2 220 105 4.1 165 6.5 345 13.6 11 24.2 M20 1.5 PP
XHP230 1.2 230 165 6.5 168 6.6 345 13.6 13 28.6 M16 2.8 PP
XHP230-(2) 1.2 230 128 5 145 5.7 365 14.4 10 22 M20 3 ABS
XHP240 1.2 250 165 6.5 168 6.6 345 13.6 12.5 27.5 M16 2.7 ABS
XHP250 1.2 250 165 6.5 168 6.6 345 13.6 13.1 28.8 M16 2.6 ABS
XHP250-(2) 1.2 250 128 5 145 5.7 365 14.4 10.1 22.2 M20 2.9 ABS
XHP300 1.2 300 165 6.5 168 6.6 345 13.6 14.5 31.9 M16 3 ABS

Project name: Telecom project

Country: Taiwan

Year: 2014

In February 2014, EverExceed successfully signed a big project with Huawei company to supply them more than 20,000 cells of XHP60 series (1.2V/60Ah) sintered plate range nickel cadmium batteries for Huawei’s Saudi Arabia Telecom project in Middle East to speed up the local communication base development.

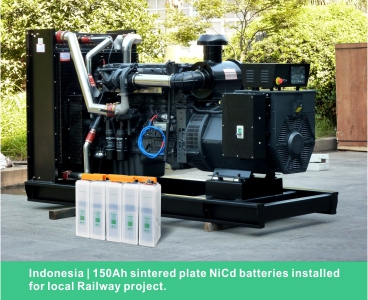

Project name: Railway project

Country: Indonesia

Year: 2008

In August 2008, EverExceed XHP sintered plate range batteries won the bid for Indonesia railway project to supply 1066 cells of  (1.2V/ 150Ah), XHP 150 series nickel cadmium batteries. With the help of EverExceed team customers successfully finished the installation project.


Project name: Metro project

Country: Iran

Year: 2007

In 2007, EverExceed effectively supplied sintered plate NiCd battery XHP60: 200PCS ; XHP100: 500PCS; XHP150: 500PCS respectively for Iran metro to deliver reliable power for locomotive engine starting.

If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed NiCd Sintered Plate Range XHP 5-300Ah_V4.2 2020.5.18.pdf
