Lead Acid Battery

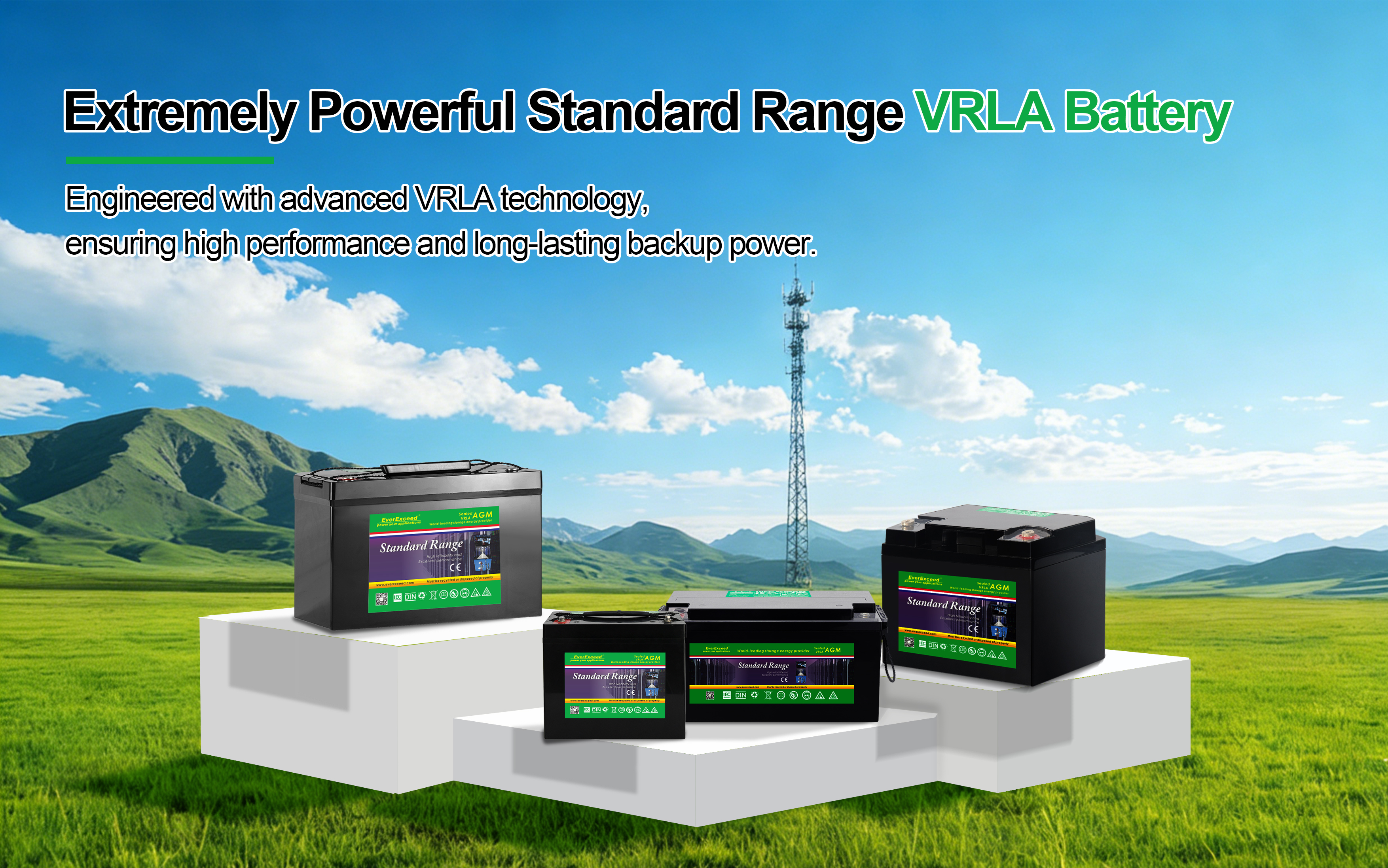

Standard Range VRLA Battery

EverExceed top terminal Standard Range provides high performance and reliability in long duration discharge applications. Our development team combines the market's demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost effective battery solution for today's applications.

  • brand:

    EverExceed
  • Certificates:

    ISO / CE/ IEC
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download


Construction:




① Plates: Calcium / tin lead alloy, optimized for high corrosion resistance.


② Separator:Highly porous glass micro-fibre separator, optimized for low internal resistance;


③ Standard housing: reinforced ABS(UL94HB) container and cover;

     Optional housing: flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 20%;


④ Terminals:Silver plated copper female insert for easy and safe assembly & maintenance free connection with excellent conductivity;


⑤ Valve:Release gas in case of excess pressure & protects the cell against atmosphere.




Technical features:



• Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F).
• Valve regulated lead acid battery (VRLA).
• High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.
• Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for

consistent cell-to-cell performance, higher capacity and uniform grid protection.
• Nano-Carbon enhanced active material to maximize cycle performance and PSoC operation;.
• Heavy duty insert copper terminals for ease of assembly, reduced maintenance and increased safety.
• Advanced high-tin and low-calcium lead alloy, reduces grid corrosion and promotes long battery life.
• Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss.
• Flame arresting, safety one-way fireproof release venting system for individual cells, recognized per U.L. 924.
• Multicell design for ease of installation and maintenance.
• Very low self-discharge rate <3% / month.





Applications:



•  Telecommunications
•  Distributed Power
•  UPS
•  Data Center
•  Microwave
•  Broadband

•  Electric Utility
•  Switchgear Control Power
•  Power Plant
•  Railroad
•  Substation



Battery Model Nom. Voltage (V) Capacity C10 1.80VPC @ 20°C Capacity C20 1.75VPC @ 20°C Short Circuit Current Amps Internal Resistance Milliohms Female Terminal Type Battery Weight(kg/lb) Outline Dimensions (mm/inch)
Length Width Height
ST-1218 12 18 20.2 810 14.5 F-M5 5.3 11.7 181 7.13 76 2.99 167 6.58
ST-1226 12 26 29.3 1180 12 F-M5 8.5 18 175 6.89 165 6.5 125 4.92
ST-1228 12 28 30.4 1200 12 F-M5 8.7 19.2 165 6.5 125.5 4.93 175 6.89
ST-1233 12 33 37.2 1500 10 F-M6 10.5 23.1 195 7.68 130 5.12 155 6.1
ST-1240 12 40 45.2 1700 9.2 F-M6 13.2 29 197 7.76 165 6.5 172 6.78
ST-1245 12 45 50.8 1800 8.8 F-M6 13.8 30.3 197 7.76 165 6.5 172 6.78
ST-1255 12 55 62.2 1900 7.4 F-M6 17 37.4 228 8.98 137 5.39 213 8.39
ST-1265 12 65 73.4 2000 7..2 F-M6 21.5 47.3 350 13.8 167 6.57 178 7.01
ST-1270 12 70 79 2100 6.5 F-M6 22 48.4 259 10.2 168 6.62 215 8.5
ST-1280 12 80 90.4 2400 6 F-M6 23.5 51.7 259 10.2 168 6.62 215 8.5
ST-1290 12 90 102 2650 5.2 F-M6 26 57.2 305 12 168 6.62 215 8.5
ST-12100 12 100 113 2900 5 F-M6 28.5 62.7 305 12 168 6.62 215 8.5
ST-12110 12 110 124 3000 4.6 F-M8 31.5 69.3 332 13.1 174 6.86 220 8.67
ST-12120 12 120 135 3300 4.2 F-M8 35.5 78.1 408 16.1 175 6.9 235 8.27
ST-12135 12 135 153 3750 4 F-M8 40 88 340 13.4 173 6.81 285 11.3
ST-12150 12 150 169 4200 3.5 F-M8 43.5 95.7 480 18.9 170 6.7 240 9.45
ST-12160 12 160 180 4700 3.5 F-M8 45 99 480 18.9 170 6.7 240 9.45
ST-12180 12 180 202 4900 3.4 F-M8 56 123 520 20.5 238 9.37 220 8.67
ST-12200 12 200 226 5400 3.3 F-M8 61 134 520 20.5 238 9.37 220 8.67
ST-12230 12 230 261 5900 3 F-M8 65 143 520 20.5 269 10.6 210 8.27
ST-12240 12 240 276 6150 2.7 F-M8 67 147 520 20.5 269 10.6 210 8.27
ST-12250 12 250 284 6200 2.5 F-M8 74 162 520 20.5 269 10.6 225 8.86
ST-660 6 60 68.1 1800 6.5 F-M6 11.3 24.8 185 7.3 112 4.39 205 8.06
ST-6100 6 100 112 2800 4.5 F-M6 16 35.2 195 7.68 170 6.69 210 8.27
ST-6150 6 150 169 4500 3 F-M8 24 52.8 260 10.2 180 7.09 252 9.92
ST-6180 6 180 202 4800 2.8 F-M8 28 61.6 306 12 168 6.61 225 8.86
ST-6200 6 200 226 5000 2.1 F-M8 30 66 323 12.7 178 7.01 230 9.06
ST-6230 6 230 261 5600 2 F-M8 31.5 69.3 323 12.7 178 7.01 230 9.06


Project name:UPS backup project

Country: Malaysia

Year:2020

EverExceed's dedicated engineering service team successfully installed the VRLA series ST12-100 battery for the UPS application of the Malaysian customer. The thick grid structure of the battery can ensure long life, long power backup service and large capacity power retention. They are very satisfied with the performance of the battery.




Project name:Home energy storage system

Country: Ukraine

EverExceed delivered ST-12200 (12V 200Ah) Standard range VRLA batteries in Ukraine. This project was for installing backup power for home energy storage system. The battery has been installed successfully.




Project name:Backup power for Bank

Country: Ukraine

EverExceed delivered Standard range VRLA batteries to national bank in Ukraine. Our team installed ST-12100 (12V 100Ah) battery to provide stable backup power service for smooth operation of the bank. The project is running successfully.




Project name: Bangkok Bio-diesel project

Country: Thailand

EverExceed delivered Standard range VRLA batteries to national bank in Ukraine. Our team installed ST-12100 (12V 100Ah) battery to provide stable backup power service for smooth operation of the bank. The project is running successfully.




Project name: UPS backup project

Country: Malaysia

EverExceed team successfully finished installation of ST-660 (6V 60Ah)Standard range VRLA batteries in Malaysia for UPS backup project.




Project name: UPS backup project

Country: Malaysia

EverExceed team successfully finished another installation of Standard range VRLA batteries in Malaysia for UPS backup project. We delivered model ST-1218 (12V 18Ah) for this project.
