NiCd Battery

SEBH Sealed low Maintenance Pocket Plate Range NiCd Battery

EverExceed pocket type nickel cadmium battery has been supplied stable and reliable battery solution for many industrial power applications. Our block batteries function in a wide range of temperatures, resist electrical abuse, shock and vibrations and need only basic maintenance. This ensures a low total cost of ownership (TCO) over a life cycle that can last 20 years or more.

  • brand:

    EverExceed
  • Certificates:

    ISO / TUV/CE/ IEC
  • Features
  • TECHNICAL DATA

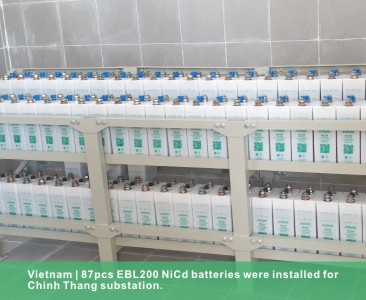

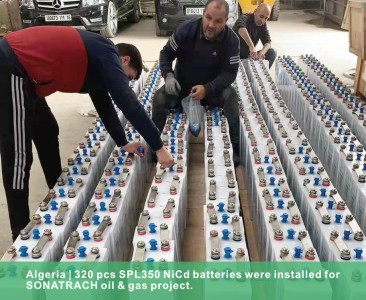

  • SUCCESSFUL CASES
  • Download



①Protective cover
To prevent external short-circuits;

In line with EN50272-2(safety) with ip2 level;


②Plate groups bus
Connects the plate tabs with the terminal post;

Plate tabs and terminal post are projection-welded to the plate groups bus;


③Plate

Horizontal pockets of double-perforated steel stirps;


④Cell container

Material:translucent transparent polypropylene;


⑤Flame-arresting vents

Material: polypropylene;


⑥Plate tab

Spot-welded both to the plate side-frames and to the upper edge of the pocket plate;


⑦Separating grids
These separate the plates and insulate the plate rames from each other;

The grids allow free circulation of electrolyte between the plates;


⑧Plate frame
Seals the plate pockets and serves as a current collector.





Technical Features:


• Excellent high rate discharge performance;
• Wide operating temperature range;
• Resistance to mechanical and electrical abuse;
• Low internal resistance;
• Absolute reliability;
• 20 years design life;
• With the low discharge rate at 3.5ItA~7ItA;
• The discharge time for less than 0.5 h;
• Designed for applications demanding :
- a relatively high current over short periods - usually less than 30 min duration
- applications can have frequent or infrequent discharges




Our advantages:


• ISO 9001:2015/ GB/T19001-2016  quality management system certificate;
• ISO 14001:2015/ GB/T24001:2016  environment management certificate;
• OHSAS 18001:2007/ GB/T28001:2011 , IDT occupational health and safety management system certificate;
• TUV Rheinland IEC60623: 2001 product type approval certificate;
• EverExceed battery is the qualified manufacturer approved by Huawei Technologies Co., Ltd.





Applications:


• Diesel generator starting, utilities, power plant, substation, oil and gas, industrial Medical, airports, military, railway emergency back-up and start-up power supply.




Cell Type
Nominal
Voltage
(V)
Capacity
(C5 Ah)
Dimensions (mm/inch)  Weight (kg/lb.) Terminal
Cell Case
Material
Length Width Height Without Electrolyte With Electrolyte
SEBH10 1.2 10 55 2.2 134 5.3 270 10.6 1.2 2.6 2.2 4.8 M10 PP
SEBH20 1.2 20 55 2.2 134 5.3 270 10.6 1.7 3.7 2.6 5.7 M10 PP
SEBH30 1.2 30 70 2.8 140 5.5 295 11.6 2.8 6.2 4.3 9.5 M16 PP
SEBH40 1.2 40 80 3.1 140 5.5 365 14.4 4.2 9.3 6 13.2 M16 PP
SEBH50 1.2 50 80 3.1 140 5.5 365 14.4 4.5 9.9 6.2 13.7 M16 PP
SEBH60 1.2 60 80 3.1 140 5.5 365 14.4 4.8 10.6 6.5 14.3 M16 PP
SEBH70 1.2 70 105 4.1 165 6.5 345 13.6 6.8 15 9.2 20.3 M20 PP
SEBH80 1.2 80 105 4.1 165 6.5 345 13.6 7.2 15.9 9.6 21.2 M20 PP
SEBH90 1.2 90 105 4.1 165 6.5 345 13.6 7.8 17.2 10 22 M20 PP
SEBH100 1.2 100 165 6.5 167 6.6 345 13.6 9.2 20.3 13.5 29.8 M20 PP
SEBH120 1.2 120 165 6.5 167 6.6 345 13.6 9.8 21.6 14 30.9 M20 PP
SEBH150 1.2 150 165 6.5 167 6.6 345 13.6 11 24.2 16 35.3 M20 PP
SEBH200 1.2 200 170 6.7 285 11.2 350 13.8 18.5 40.8 26 57.3 2 x M20 ABS
SEBH250 1.2 250 170 6.7 285 11.2 350 13.8 20 44.1 27.5 60.6 2 x M20 ABS
SEBH300 1.2 300 175 6.9 290 11.4 500 19.7 25 55.1 36 79.3 2 x M20 ABS
SEBH350 1.2 350 175 6.9 290 11.4 500 19.7 26 57.3 37 81.5 2 x M20 ABS
SEBH400 1.2 400 186 7.3 398 15.7 565 22.2 41 90.4 55 121 3 x M20 ABS
SEBH500 1.2 500 186 7.3 398 15.7 565 22.2 43 94.8 57 126 3 x M20 ABS

If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed Sealed Low Maintenance NiCd SEBH Pocket Plate Range 10-500Ah V4.0.pdf
