EBM Pocket Plate Range NiCd Battery

EverExceed pocket type nickel cadmium battery has been supplied stable and reliable battery solution for many industrial power applications. Our block batteries function in a wide range of temperatures, resist electrical abuse, shock and vibrations and need only basic maintenance. This ensures a low total cost of ownership (TCO) over a life cycle that can last 20 years or more.

  • brand:

    EverExceed
  • Model:

    EBM Series
  • Rated Voltage(V):

    1.2V
  • Rated Capacity(Ah):

    10Ah-1100Ah
  • OEM/ODM Service:

    Yes, customized
  • Certificates:

    TUV;IEC;ROHS;DEKRA
  • Usage:

    Telecommunication, back-up power, railway lighting power and other emergency back-up power supplies
  • Features
  • TECHNICAL DATA

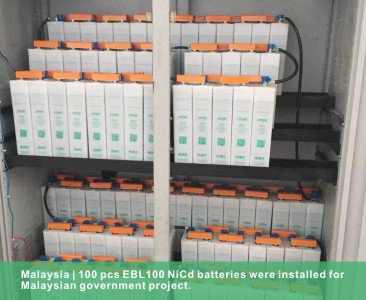

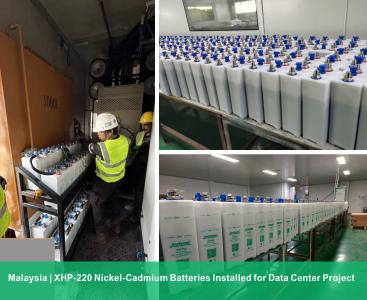

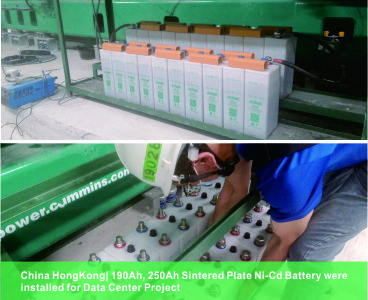

  • SUCCESSFUL CASES
  • Download


Technical features:











Easy storage & installation

Low maintenance

Deep cycle ability
Nickel-cadmium block batteries are quick and easy to install as original equipment and may be stored for many years in a discharged state under correct conditions. On installation a simple bolted connector enables the battery to be rapidly commissioned

High tolerance to electrical abuses such as overcharge and over discharge.High tolerance to rough handling and mechanical abuse due to strong components and robust construction

Battery's unique electrochemistry enables it to regularly withstand any depth of discharge.Tolerates deep discharges and can be deep cycled










Wide operating temperature range
Superior reliability
Excellent fast charging ability

Extraordinary temperature advantage and wide operating temperature range (-40°C to +70°C)


Most cost effective solution with minimal maintenance ,no replacement cost & no downtime

Designed to recharge very quickly and economically, using standard single or two-level charging equipment










Long service life

Assured quality

Prolonged warranty
Up to 20+ years completely faithful service. No replacement cost & no downtime

Authorative TUV, CE certificates and IEC60623,IEC62259 test reports

5 years long warranty






①Protective cover
To prevent external short-circuits;

In line with EN50272-2(safety) with ip2 level;


②Plate groups bus
Connects the plate tabs with the terminal post;

Plate tabs and terminal post are projection-welded to the plate groups bus;


③Plate

Horizontal pockets of double-perforated steel stirps;


④Cell container

Material:translucent transparent polypropylene;


⑤Flame-arresting vents

Material: polypropylene;


⑥Plate tab

Spot-welded both to the plate side-frames and to the upper edge of the pocket plate;


⑦Separating grids
These separate the plates and insulate the plate rames from each other;

The grids allow free circulation of electrolyte between the plates;


⑧Plate frame
Seals the plate pockets and serves as a current collector.



Applications:


• Telecommunication, back-up power, railway lighting power and other emergency back-up power supplies



Factory:


Cell Type Nominal Voltage (V)
Capacity
 (C5 Ah)
Dimensions (mm/inch) Weight (kg/lb.) Terminal Cell Case Material
Length Width Height Without Electrolyte With Electrolyte
EBM10 1.2 10 43 1.7 85 3.3 260 10.2 0.75 1.7 1.2 2.6 M10 PP
EBM20 1.2 20 55 2.2 134 5.3 270 10.6 1.1 2.4 1.9 4.2 M10 PP
EBM30 1.2 30 55 2.2 134 5.3 270 10.6 1.6 3.5 2.4 5.3 M10 PP
EBM40 1.2 40 60 2.4 140 5.5 270 10.6 2.5 5.5 3.6 7.9 M10 PP
EBM50 1.2 50 70 2.8 140 5.5 295 11.6 3 6.6 4.2 9.3 M10 PP
EBM60 1.2 60 70 2.8 140 5.5 295 11.6 3.2 7.1 4.4 9.7 M10 PP
EBM70 1.2 70 70 2.8 140 5.5 295 11.6 3.4 7.5 4.6 10.1 M10 PP
EBM80 1.2 80 80 3.1 140 5.5 365 14.4 4.8 10.6 6.5 14.3 M10 PP
EBM90 1.2 90 80 3.1 140 5.5 365 14.4 5.2 11.5 6.7 14.8 M10 PP
EBM100 1.2 100 105 4.1 165 6.5 345 13.6 7 15.4 9.2 20.3 M20 PP
EBM120 1.2 120 105 4.1 165 6.5 345 13.6 7.2 15.9 9.5 20.9 M20 PP
EBM150 1.2 150 165 6.5 167 6.6 345 13.6 9.2 20.3 12.5 27.6 M20 PP
EBM200 1.2 200 165 6.5 167 6.6 345 13.6 10.6 23.4 14 30.9 M20 PP
EBM250 1.2 250 140 5.5 280 11.0 450 17.7 15.8 34.8 21.5 47.4 2 x M20 PP
EBM300 1.2 300 140 5.5 280 11.0 450 17.7 16.5 36.4 22.5 49.6 2 x M20 PP
EBM350 1.2 350 140 5.5 280 11.0 490 19.3 19.5 43.0 25.5 56.2 2 x M20 PP
EBM400 1.2 400 140 5.5 280 11.0 490 19.3 20.8 45.8 27 59.5 2 x M20 PP
EBM500 1.2 500 175 6.9 285 11.2 500 19.7 27.5 60.6 38 83.8 2 x M20 ABS
EBM600 1.2 600 175 6.9 285 11.2 500 19.7 30 66.1 40 88.2 2 x M20 ABS
EBM700 1.2 700 186 7.3 398 15.7 565 22.2 41 90.4 55 121 3 x M20 ABS
EBM800 1.2 800 186 7.3 398 15.7 565 22.2 43 94.8 58 128 3 x M20 ABS
EBM900 1.2 900 186 7.3 398 15.7 565 22.2 46 101 61 134 3 x M20 ABS
EBM1000 1.2 1000 186 7.3 398 15.7 565 22.2 48 106 64 141 3 x M20 ABS
EBM1100 1.2 1100 186 7.3 398 15.7 565 22.2 50 110 66 145 3 x M20 ABS










If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed NiCd Pocket Plate Range EBM 10-1100Ah V4.3.pdf
