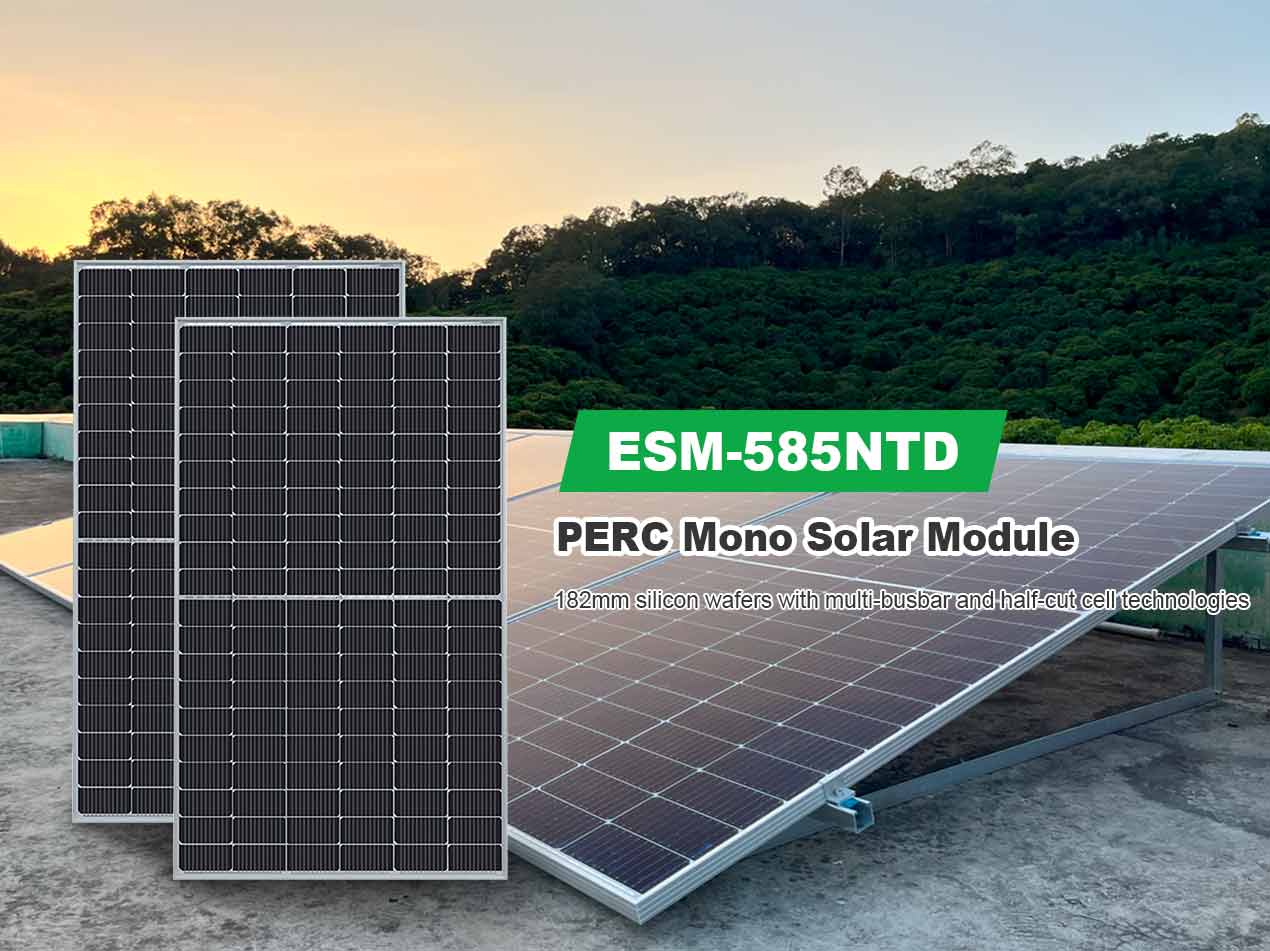

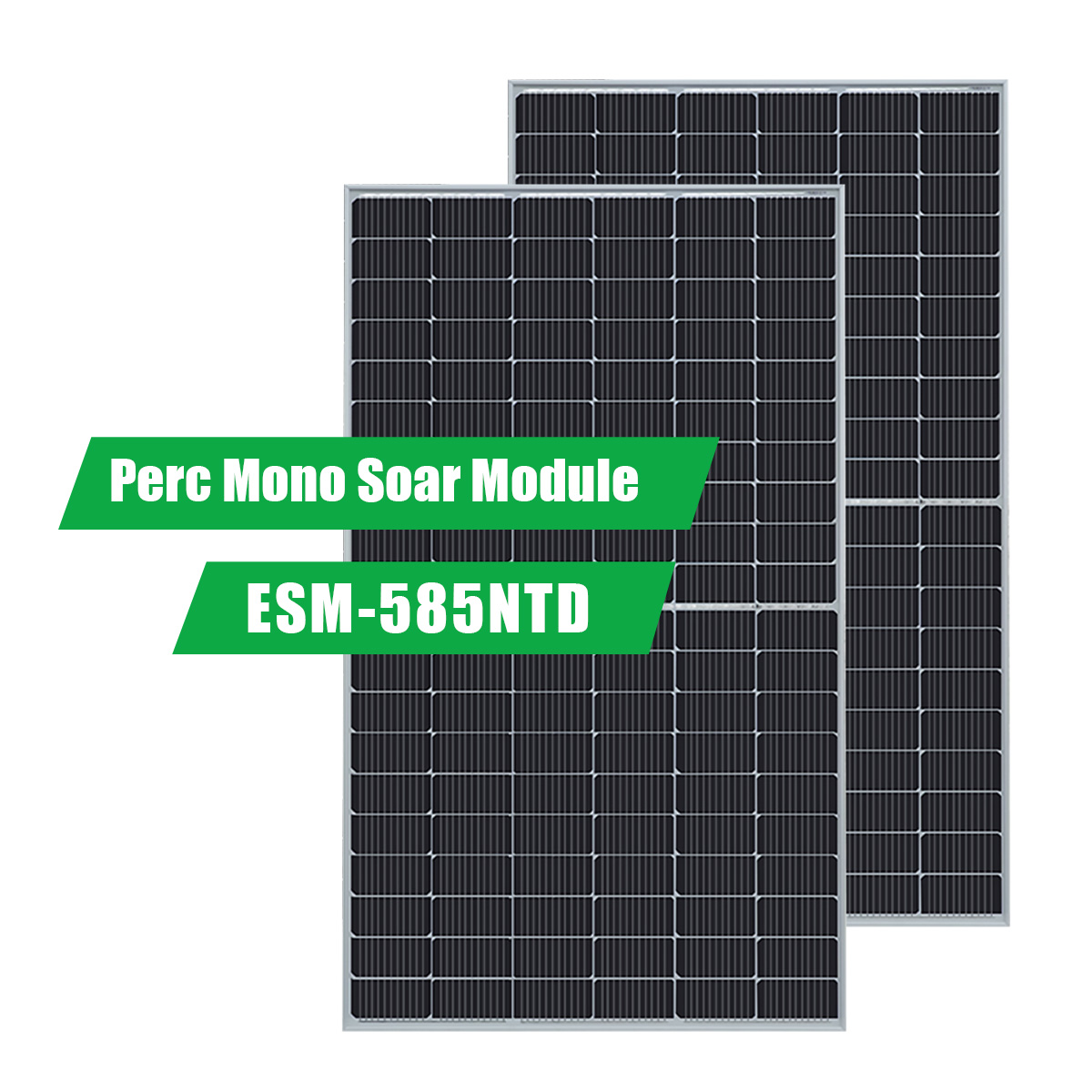

6 in 144cells(585W) PERC half-cut Panel Module

EverExceed 108 cell half-cut solar modules are assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.





  • brand:

    EverExceed
  • Model:

    Monocrystalline
  • Material:

    182x91mm
  • Maximum Voltage:

    1500V
  • Maximum Power:

    575W
  • Weight:

    33Kg
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ







PERC high efficiency 182*182mm solar cells PID resistant function Low resistance loss and improved shade tolerance

Higher performance under low light environment

Insured linear 30-year power output guarantee up to 80%,

15-year product warranty for materials and processing

Multiwire technology for superior reliability and performance



Product Details








② Glass
• CSG brand, high-strength tempered glass;
• Translucency of normal luminance is increased by 2%;
• Module efficiency is increased by 2%;
• Self-cleaning function;
• Wind pressure resistance 2400pa;
• Snow pressure resistance 5400pa;
① Frame
• Strong mechanical load resistance;
• Anodic oxidation layer resist to chemical corrosion;
• Anodized aluminium alloy frames;
• Boost bearing capability and service life;
③ EVA Film
• Imported from Japan BRIDGESTONE material, 0.46-0.5mm thick;
• Light transmitance more than 92%;
• Smail trail prevention treatment;
• UV resistance against ageing;
⑤ Back sheet
• Japanese DNP NIPPON material, 0.3-0.35mm thick, poor quality manufacturers use thin PET material, the cost is 50% lower;
• Low moisture permeability against snail trail defect;
• Outstanding weatherproof performance;
④ Solar Cell
• High efficiency A grade PV Cells;
• The suppliers are first-line brands such as MOTECH, JA SOLAR, QCELL Germany, SUNWAYS Germany, etc;
• Appearance consistency;
• Color sorting ensure consistent appearance on each module;
• Anti -PID;
⑥ Junction box
• Conventional standalone edition and engineering custom edition;
• Quality diodes ensure module's safe operation;
• IP67 protection level;
• TUV Certified;
• Heat dissipation;

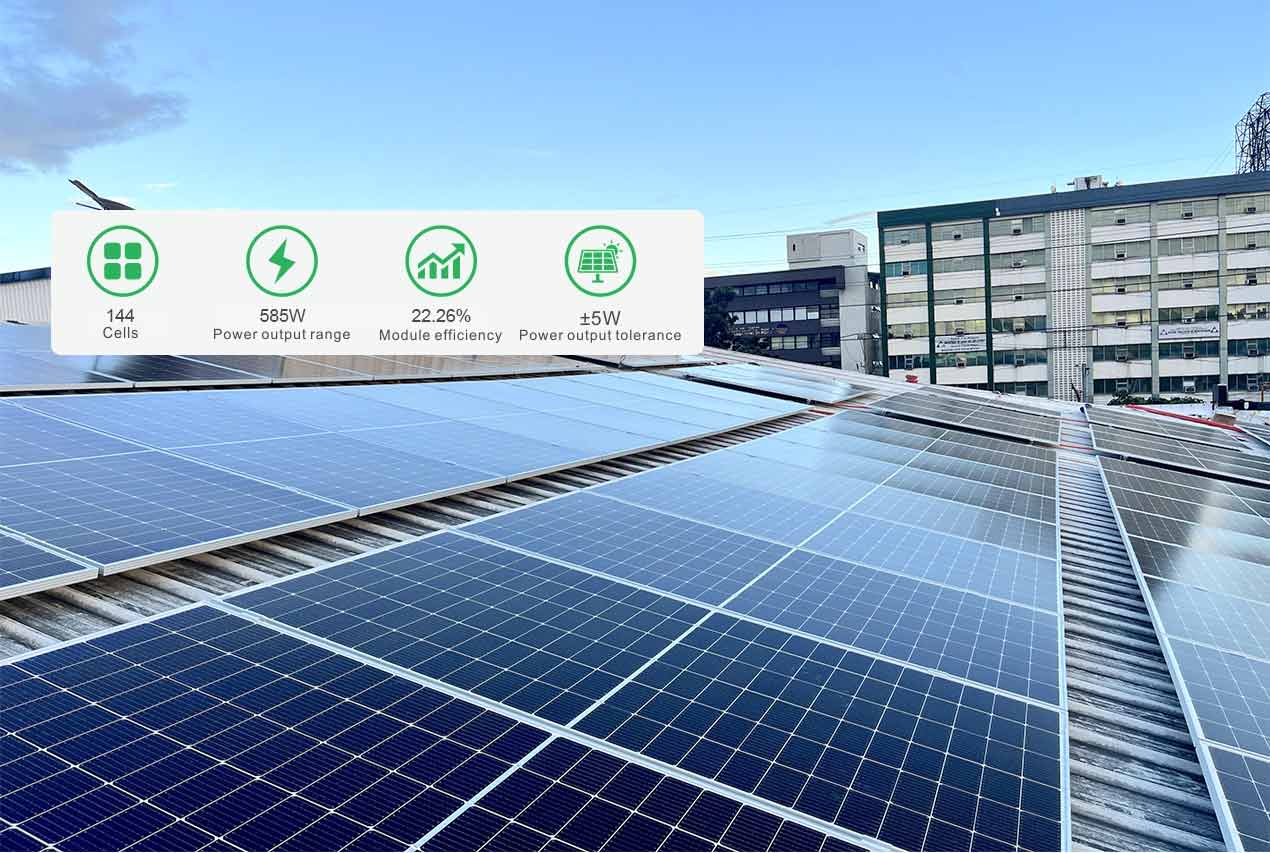

ELECTRICAL CHARACTERISTICS
Power output (Wp) 585W
Max. power voltage (Vmp) 42.77V
Max. power current (Imp) 13.68A
Open circuit voltage (Voc) 51.68V
Short circuit current (Isc) 14.43A
Module efficiency (%) 22.64%
Maximum system voltage (V) 1500V
Maximum series fuse rating (A) 25A
Power output tolerance -5~+5W
FF(%) 78.45%
CONSTRUCTION
Cells 144cells
Cells size 182×91mm
Junction box IP68
Diodes 3 by-pass diodes
Glass 2.0mm/2.0mm(Semi-tempered glass)
Frame Anodized aluminium alloy
Weight 33kg
Dimension 2278mm×1134mm×30mm
OTHER CHARACTERISTICS
Operating temperature -40°C to 85°C
Max. load 5400Pa (front) / 2400 Pa(back)
Fire performance Class A (IEC) Class C (IEC)
Cable length TUV/4mm²/-200mm/+300mm
Connector MC4 compatible
Standard IEC 61701, IEC/EN 61215-1:2016, IEC/EN 61215-1-1:2016, IEC 61215-2:2016, IEC 61730-1:2016, IEC 61730-1:2018 + AC:2018, IEC 61730-2:2018 + AC:2018, IEC 61730-2:2016
TEMPERATURE CHARACTERISTICS
Isc (α) +0.045% / °C
Voc (β) -0.25% / °C
Pmax (γ) -0.290% / °C
Nominal operating cell temperature 45°C (+/- 2°C)
