EverExceed solar LiFePO4 battery system is specially optimized for PV application, home battery backup system is mainly used for the energy storage battery of Photovoltaic system; its advance intelligent lithium battery management technology to ensure the intelligent automatic management. With "Energy transfer" balanced patented technology, EverExceed lithium iron phosphate provide high efficiency balanced and prolong system operate life. Based on its own technical features as high capacity, high voltage and free of pollution, the lithium iron battery is widely concerned by people with a rapid development stance. Battery 15kwh will be the first choice for the high requirement energy storage battery solution.
brand:
EverExceedModel:
EP-48280W / EP-48314WRated voltage(V):
48V/ 51.2VRated capacity(Ah):
280Ah / 314AhCertificates:
UN 38.3; UL1642; IEC62133OEM/ODM Service:
Yes, customizedUsage:
Solar energy storage; Home energy storage16kWh 314Ah 51.2V Stack Rack Battery – Modular Lithium Energy Storage System
Grade A LiFePO4 cells with ≥12,000 cycles and 15-year lifespan, built-in fire extinguisher, certified and eco-friendly.

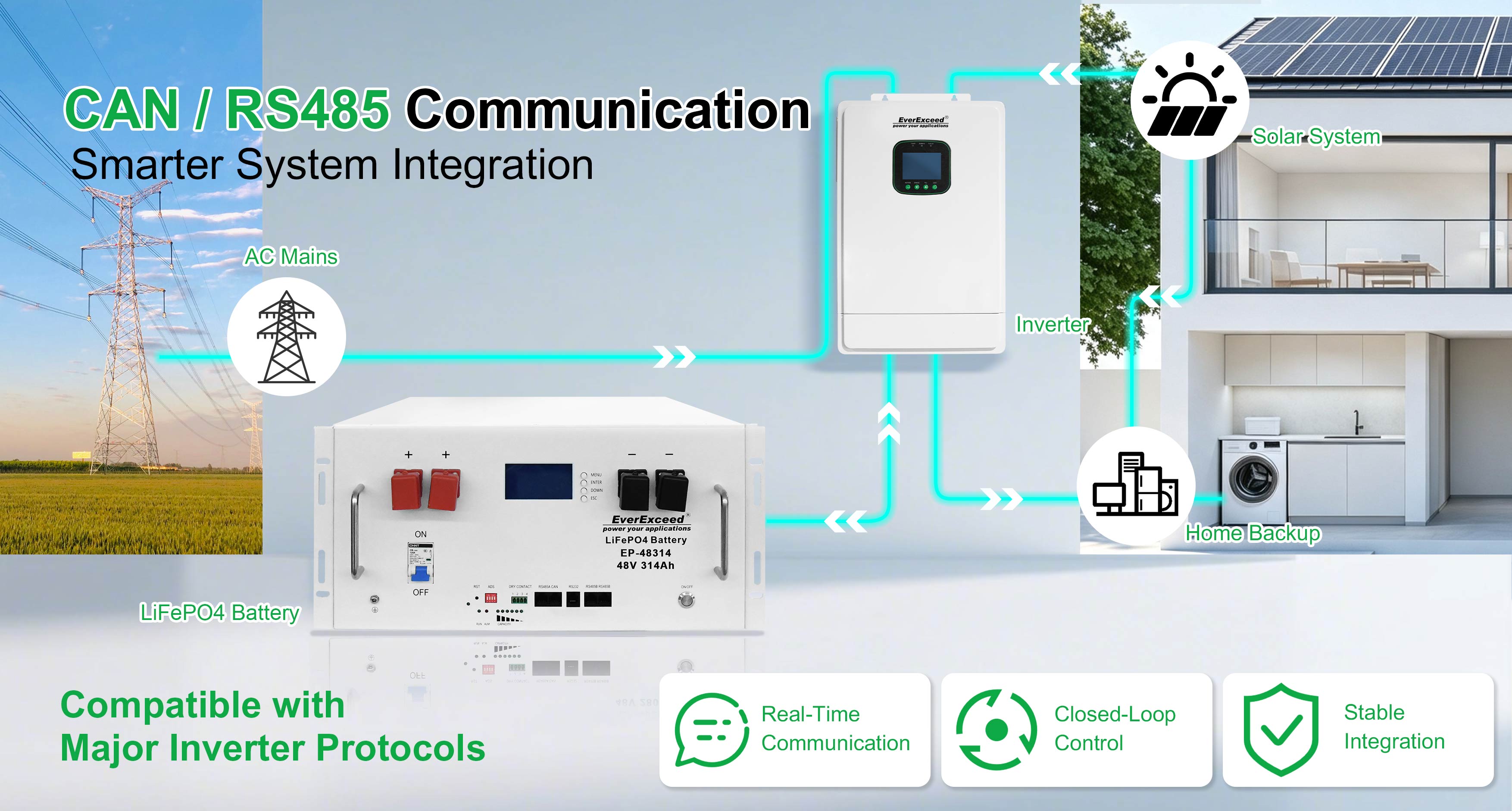

Smart BMS with full protection. Supports RS232, RS485, CAN. Works with most inverter brands.
Compact 19-inch rack or stackable design. Modular and easy to install. Supports up to 15 units in parallel.
>Solar energy storage / Wind energy storage;
| Nominal Characteristics | ||||
| Battery Model | EP-48280 | EP-48314 | ||
| Nominal Voltage | 48V | 51.2 V | 48 V | 51.2 V |
| Nominal Capacity | 280 Ah | 280 Ah | 314 Ah | 314 Ah |
| Nominal Energy | 13440 Wh | 14336 Wh | 15072 Wh | 16076 Wh |
| Electrical Characteristics | ||||
| Recommended Charging Voltage | 54 ± 0.5 V | 57.6 ± 0.5 V | 54 ± 0.5 V | 57.6 ± 0.5 V |
| Recommended Charging Current | 100 A | 100 A | 100 A | 100 A |
| Maximum Discharging Current | 200 A | 200 A | 200 A | 200 A |
| Operating Conditions | ||||
| Cycle Life | ≥10000 Cycles@80% DOD@25℃ | ≥12000 Cycles@80% DOD@25℃ | ||
| Round-trip Efficiency | ≥98% | ≥98% | ||
| Operating Charge Temperature | 0℃ to +50℃ | 0℃ to +50℃ | ||
| Operating Discharge Temperature | -20℃ to +60℃ | -20℃ to +60℃ | ||
| Storage Temperature | -20℃ to +60℃ | -20℃ to +60℃ | ||
| Mechanical Characteristics | ||||
| Length x Width x Height | 483 x 720 x 227 mm | 483 x 720 x 227 mm | ||
| Weight | 105 Kg | 111 Kg | 108 Kg | 114 Kg |
| Terminal | M6 | M6 | ||
| IP Rating | IP20 | IP20 | ||
 |
 |
 |
 |
 |
 |
 |
 |
 |
If you need to download files, you need to register as our member first ! log in / registered
1. What is a photovoltaic lithium battery?
It’s a lithium-ion battery system designed to store energy generated from solar (PV) panels. It allows you to use solar power even when the sun isn't shining, improving energy independence and reducing reliance on the grid.
2. Is it safe for indoor installation?
Absolutely. LiFePO₄ batteries are among the safest lithium battery chemistries. The system includes a built-in Battery Management System (BMS) for protection against overcharge, over-discharge, overheating, and short circuits. Additionally, it features an independent physical aerosol fire extinguisher for enhanced fire safety.
3. Is the system scalable?
Yes. Multiple battery units can be connected in parallel to expand energy storage capacity.
4. What maintenance is required?
Minimal. The system is mostly maintenance-free, with the BMS handling internal safety. Just ensure proper ventilation and keep the system clean and dry.
5. Can this battery work during power outages?
Yes, when paired with a hybrid inverter or off-grid inverter, the system can provide seamless backup power during grid failures.
6. How long does it take to charge fully?
This depends on the charging power. The battery supports a maximum of 150A charging and can be fully charged in 2-3 hours at full power.
7. What certifications does the system have?
Our systems comply with major standards such as CE, UN38.3 and IEC62619, depending on the model and destination market.
