All-in-one Smart Commercial Energy Storage System

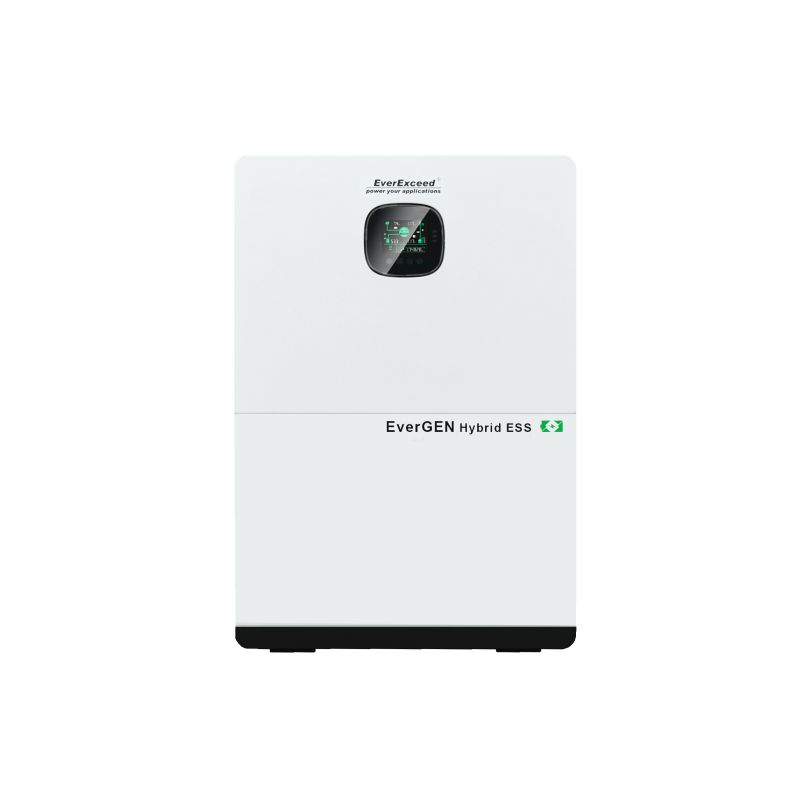

5.12kWh All-in-One Hybrid Inverter Energy Storage System – Residential Photovoltaic Generator

The EverGEN Hybrid series is a 5.12kWh residential energy storage system designed with a fully stackable and modular architecture, allowing homeowners to expand their home battery capacity effortlessly as their energy demands grow. With its flexible hybrid configuration and safe LiFePO₄ solar battery technology, the EverGEN Hybrid system enables reliable backup power, enhanced energy independence, and long-term sustainability for modern home solar applications.

brand:
EverExceed
Model:
EGH5K-5E Pro
Inverter Power:
5000W
Battery module capacity:
100Ah
Application:
Home, apartment or villa; Shops and groceries for small business;, Small office or enterprise; Bank, ATM or financial institute; Clinic, health care or medical centers;School or baby care center
Certificates:
UN 38.3; IEC62133; RoHS; CE

inquiry now

Why EverGEN Hybrid series system is much safer?

1) Fully utilize solar power supply, saving up to 100% of electricity bills; 2) High quality LiFePO4 batteries, 6000 cycle time at 80% DOD; 3) 24/7 uninterrupted power supply;

Why EverGEN Hybrid series system is much smarter?
2) Intelligent remote monitoring, checking system information through Mobile & PC; 2) Intelligent and visualized energy management;

Why EverGEN Hybrid series system is much simpler?

3) Modular and stackable design, easy to install, saving 50% of installation time; 2) Support expansion to 8 battery modules, up to 40.96kWh.

Models		EGH5K-5E Pro
System Specification
Rated AC Output Power		5000W
Energy Capacity Range		5.12kWh
Battery Type		Lithium Ion Battery (LFP, Lithium Iron Phosphate Technology)
Max. AC Charging Current		80A
Max. PV Charging Current		100A
Max. Total Charging Current		100A
Operating Temperature		-20℃ to 50℃
Storage Temperature		-30℃ to 70℃
Remote Monitoring		WiFi & APP
Relative Humidity		0~95%(no condensation)
Operating Altitude		2000m
Ingress Protection(IP) Rating		IP21
System Dimension	Width	600mm
	Deepth	260mm
	Height	860mm
	Weight	71kg
Cooling Method	Fans
PV String Input Specification
Max. PV Input Power		5500W
Max. PV Input Voltage		500VDC
Recommend PV Input Voltage		360VDC
MPPT Voltage Range		60 to 430VDC
Max. PV Charging Current		100A
Number of MPPT		1
Inverter Specification
Rated AC Output Power		5000W
AC Input Voltage		90VAC to 264VAC
AC Output Voltage		230VAC
Rated Frequency		50 / 60Hz
Max. AC Charging Current		80A
Power Factor		1
Norminal Output Wave Form		Pure Sine Wave
Transfer Time		＜15ms
Output THDi		<3%
Max. PV to Load Efficiency		97%
Max. Battery to Load Efficiency		94%
Battery Specification
Norminal Capacity		100Ah
Battery Voltage		51.2VDC
Battery Quantity		1
Energy Capacity		5.12kWh
Cycle Life		≥ 6000 cycles@80% DOD
Protection
Short Circuit Protection		Yes
Overload Protection		Yes
Over Temperature Protection		Yes
Battery Voltage High/Low Protection		Yes
AC Input Voltage High/Low Protection		Yes

If you need to download files, you need to register as our member first ! log in / registered

EverExceed EverGEN Hybrid Energy Storage System V1.3 20250722.pdf

Leave a message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

subject :5.12kWh All-in-One Hybrid Inverter Energy Storage System – Residential Photovoltaic Generator

tags :

next :16.08kWh All-in-One Home Energy Storage System with Built-in Inverter & 314Ah LiFePO4 Battery

Related products

EverExceed | Empower, Energize, Exceed the Energy you Expect forever;

24V 50Ah/100Ah LiFePO4 Battery Pack for Commercial Floor Cleaning Machines | Ultra-Durable & Long-Lasting Power

EverExceed LDP Series Lithium Iron Phosphate (LiFePO4) batteries offer significant advantages for your commercial and professional floor machines, including longer battery life, increased productivity, consistent power, and free maintenance. Improve the efficiency of your work and save you time and money with our lithium batteries.

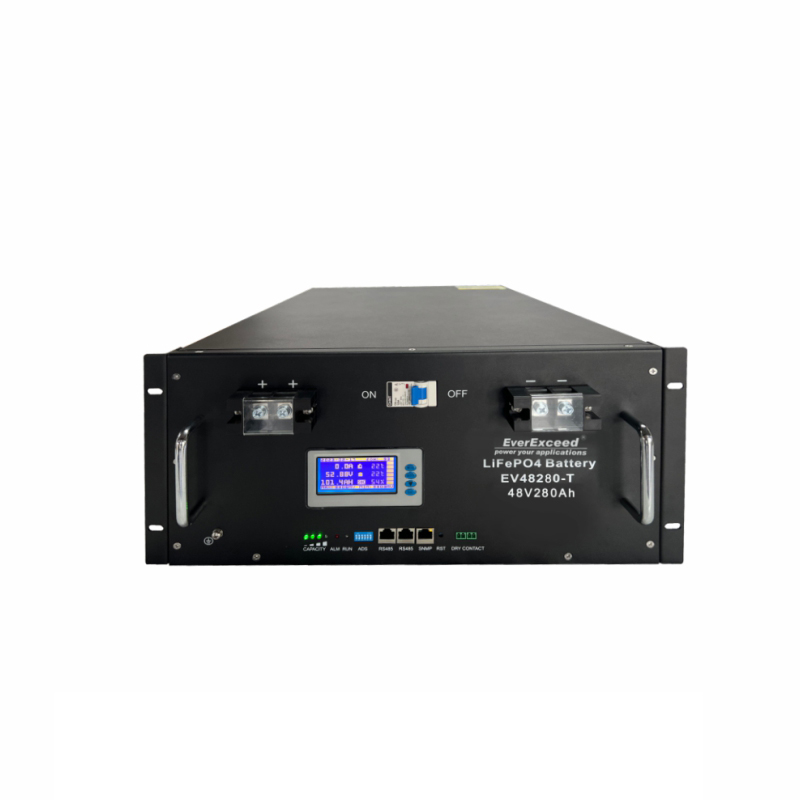

13.44kWh Reliable 48V 280Ah Lithium Battery Solution for Telecommunications

EverExceed LFP lithium battery telecom solution is mainly used for the backup purpose of telecommunication industry; its performance is in compliance with the requirements in the telecommunication standard, with the adoption of LiFePO4 battery structure packing by flexible plastic film or aluminum alloy rigid packaging, it can satisfy the higher and new requirements of the telecom sector for the communication backup batteries.

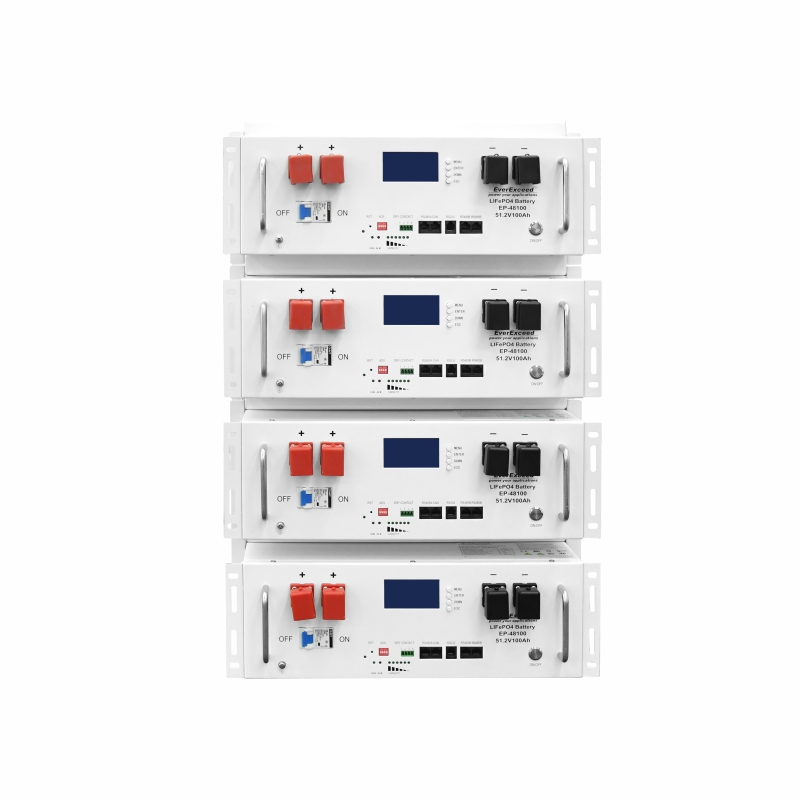

2.56kWh / 5kWh 51.2V 100Ah LiFePO4 Battery for Home Energy Storage System

EverExceed solar lithium iron phosphate (LiFePO₄) batteries are engineered for residential and commercial PV applications, offering high safety, long service life, and intelligent energy management.With advanced BMS, patented energy transfer balancing, and built-in aerosol fire extinguishers, the system ensures superior reliability and multi-level protection. Featuring Grade A cells and flame-retardant construction, EverExceed batteries deliver efficient storage for self-consumption, backup, and peak shaving.

51.2V 15kWh Floor-Mounted Energy Storage Battery with Wheels

EverExceed's EP Series lithium batteries feature a standing design, utilize ultra-high-quality cells, and 15kwh solar battery are constructed from flame-retardant materials. The optimized internal heat dissipation structure enhances both safety and fire resistance, combining superior product safety with aesthetic appeal for a perfect balance of peace of mind and visual attractiveness.

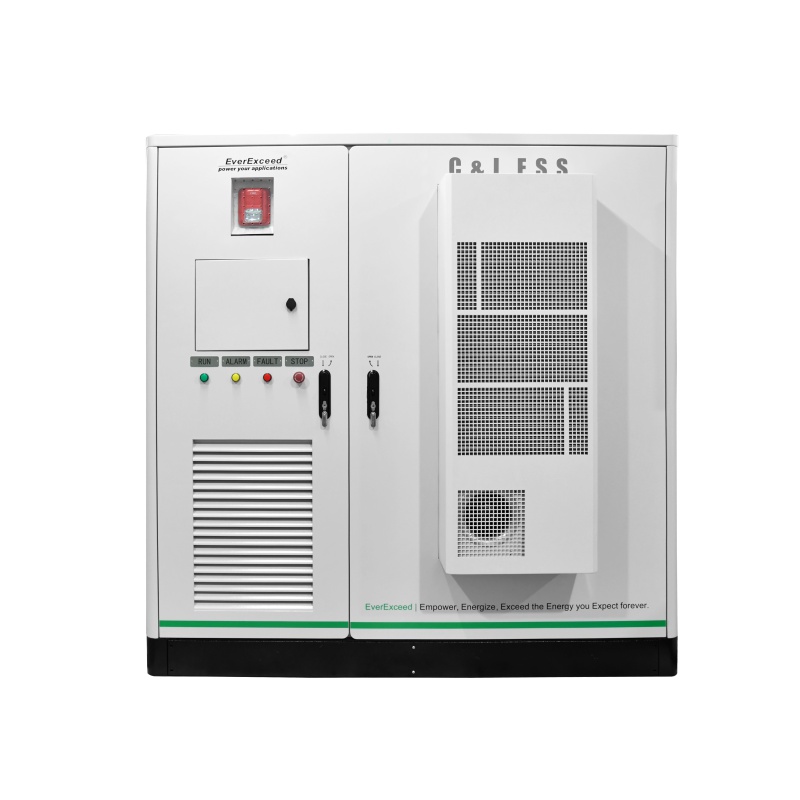

157kWh Commercial & Industrial Energy Storage System with 30kW Power – High Voltage LiFePO₄ for Backup and Peak Shaving
