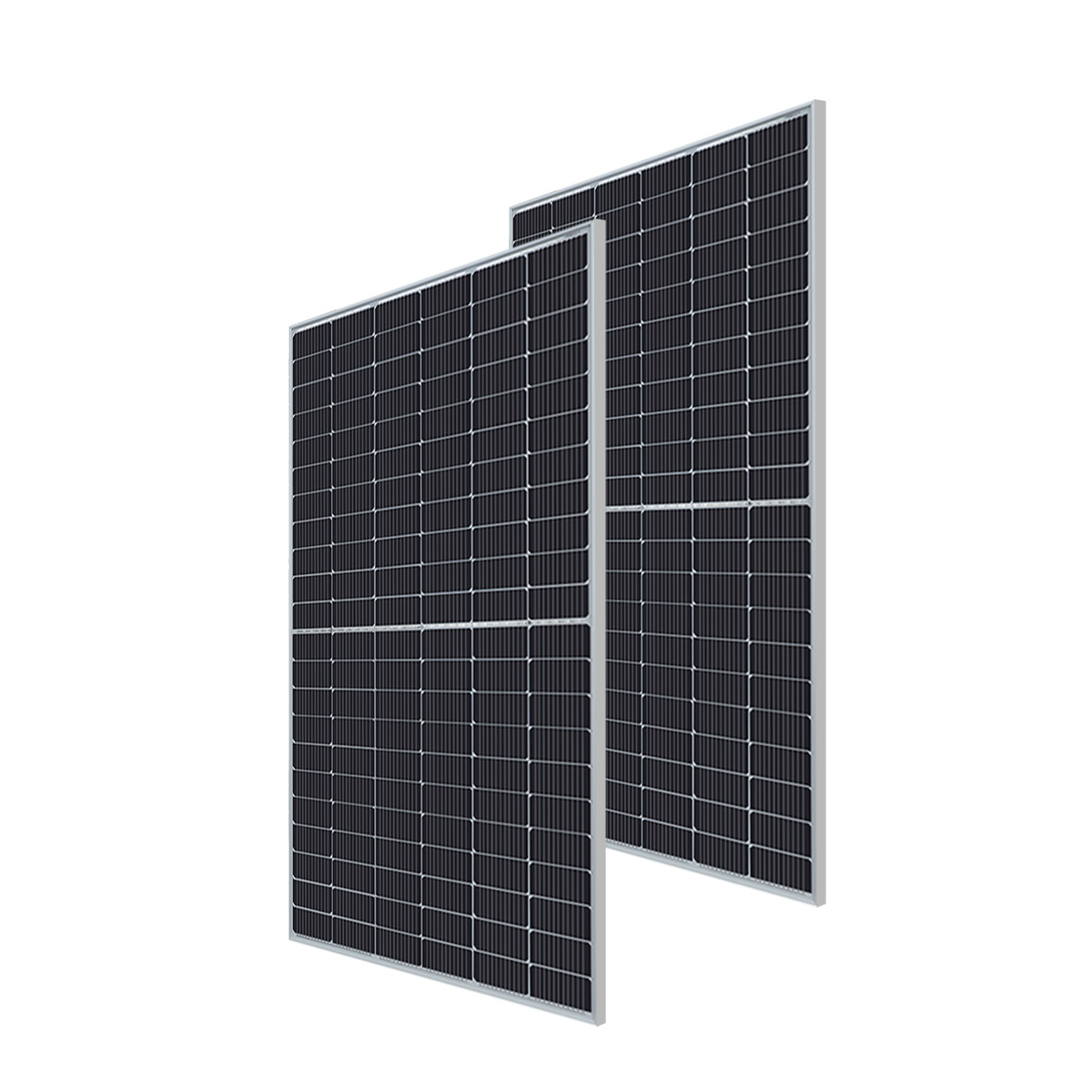

EverExceed 720W Solar Panels N-Type i-TOPCon Bifacial Dual Glass

EverExceed 720W Solar Panels deliver outstanding value at every module level, helping reduce LCOE and BOS costs through high-power string design.

Built with advanced N-type i-TOPCon cell technology, the module achieves up to 23.2% efficiency, maximizing energy yield and long-term system performance.

Featuring a bifacial dual-glass structure and multi-busbar technology, it enhances light trapping, reduces series resistance, and delivers up to 30% additional rear-side power gain.

Designed for harsh environments, the module ensures long-term reliability with:

Non-destructive cell cutting technology
PID resistance
Mechanical load ratings up to 5,400 Pa (front) / 2,400 Pa (rear)

brand:
EverExceed
Model:
ESM-720NTD
Material:
2384*1303*33mm /132(6*22)
Maximum Voltage:
41.91V
Maximum Power:
720W
Weight:
37.1Kg

inquiry now

Product Details

ELECTRICAL CHARACTERISTICS
Power output (Wp)	720W
Max. power voltage (Vmp)	41.91V
Max. power current (Imp)	17.18A
Open circuit voltage (Voc)	49.36V
Short circuit current (Isc)	18.24A
Module efficiency (%)	23.30%
Maximum system voltage (V)	1500V
Maximum series fuse rating (A)	35A
Power output tolerance	0～+5W
FF(%)	0.7889

CONSTRUCTION
Cells	132 pcs
Cells size	210X105mm
Junction box	IP68
Diodes	3 by-pass diodes
Glass	2.0 mm/2.0 mm tempered glass
Frame	Anodized Aluminum Alloy
Weight	37.1kg
Dimension	2384x1303x33mm

OTHER CHARACTERISTICS
Operating temperature	-40~+85 ℃
Max.load	5400Pa (front) / 2400 Pa(back)
Fire performance Class	Class A(IEC)
Cable length	TUV/ 4mm²/ 350mm(+) / 280mm (-)
Connector	MC4 Compatible

TEMPERATURE CHARACTERISTICS
Temperature coefficient lsc	+0.045 %/℃
Temperature coefficient Voc	-0.25 %/℃
Temperature coefficient Pmax	-0.29 %/℃
Nominal operating cell temperature	45±2 ℃

If you need to download files, you need to register as our member first ! log in / registered

ESM-720NTD. V1.0 - 20260602.pdf
