30~150kVA Regenerative Industrial Modular UPS for Elevators

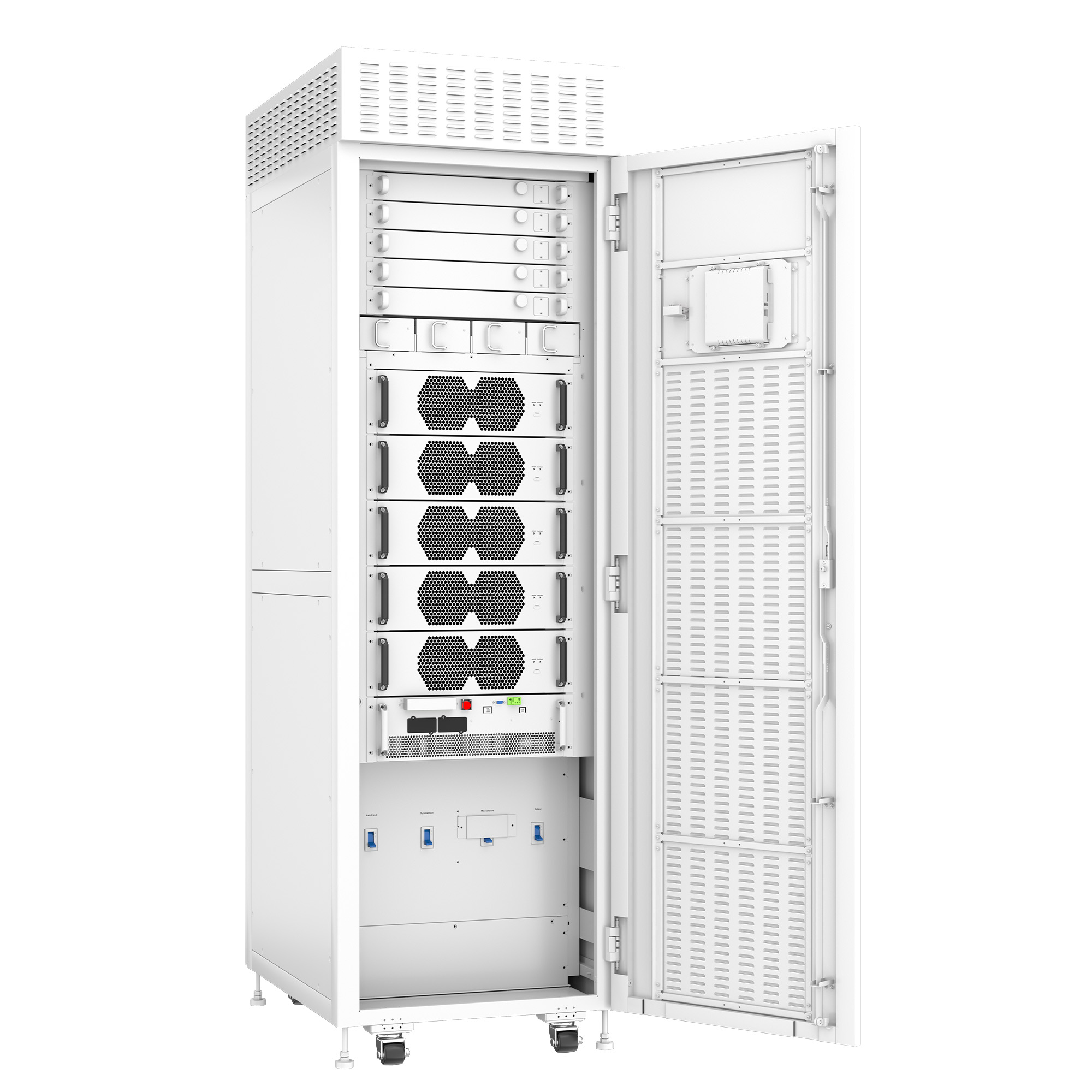

Based on an intelligent modular UPS platform, the PRMPLUS-FB series integrates energy absorption device, hot-swappable power modules, hot-swappable bypass module, hot-swappable fan, input switch, bypass switch, maintenance switch, output switch, and a 10-inch color touch screen into a single system.

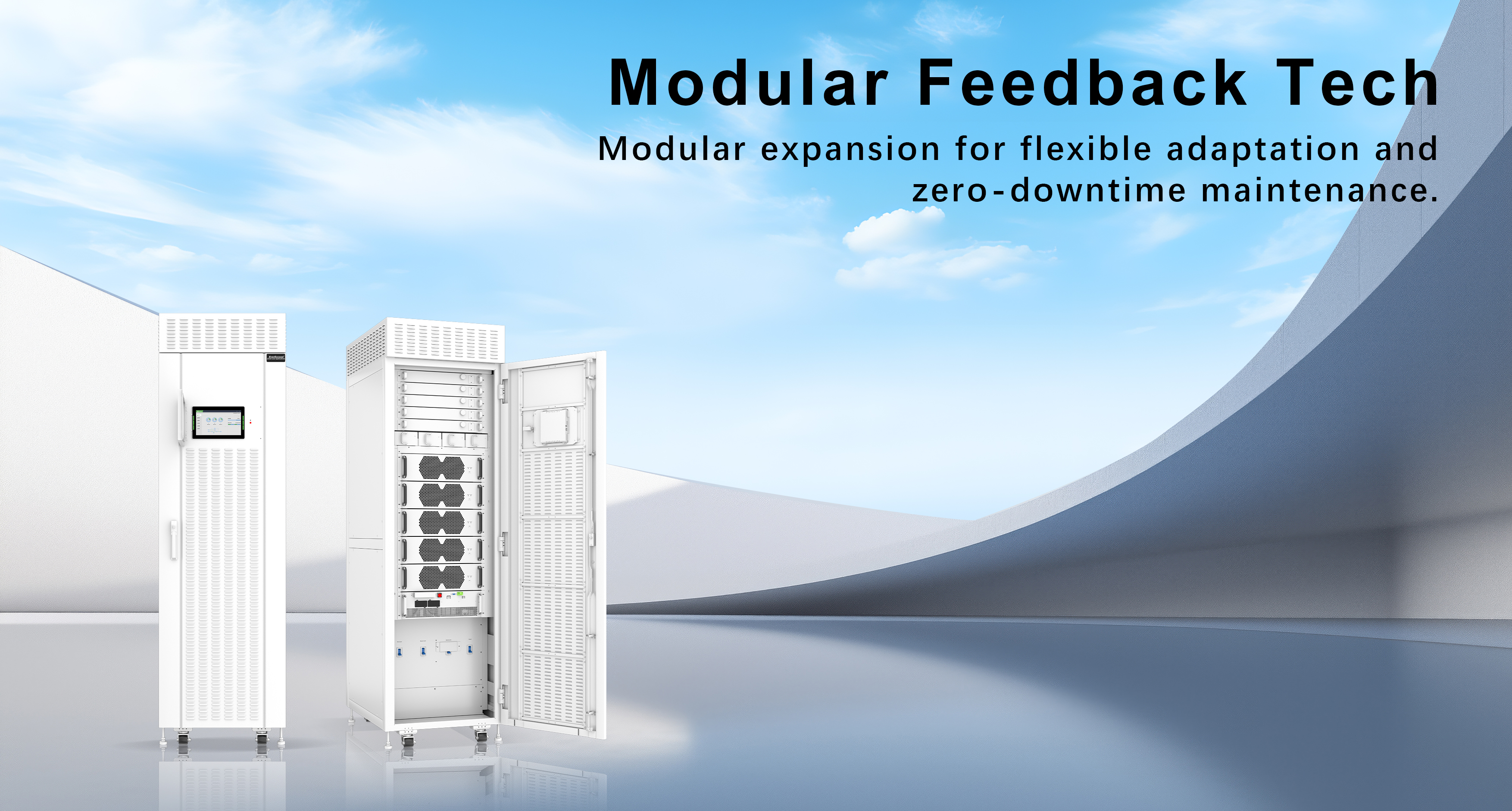

Featuring a multi-mode feedback design, the system enables flexible adaptation to feedback loads without shutdown. Its modular architecture supports capacity expansion and maintenance at module level, allowing online operation without power interruption.

With high protection design and stable operation capability, the PRMPLUS-FB series ensures reliable performance in industrial environments while supporting long-term operation under demanding load conditions.

brand:
EverExceed

inquiry now

Technical features


IP42 Protection & Harsh Environment Reliability	Space-Saving Maintenance Design	Enhanced Component Protection Design
Ensures stable operation of the whole unit in demanding industrial environments.	Full front maintenance and wall-mountable structure for easy installation and reduced footprint.	Fully isolated air duct design combined with three-proof lacquer coated circuit boards for improved durability and corrosion resistance.

Flexible Feedback Load Adaptation	Modular Expansion & Online Maintenance	High Performance & System Flexibility

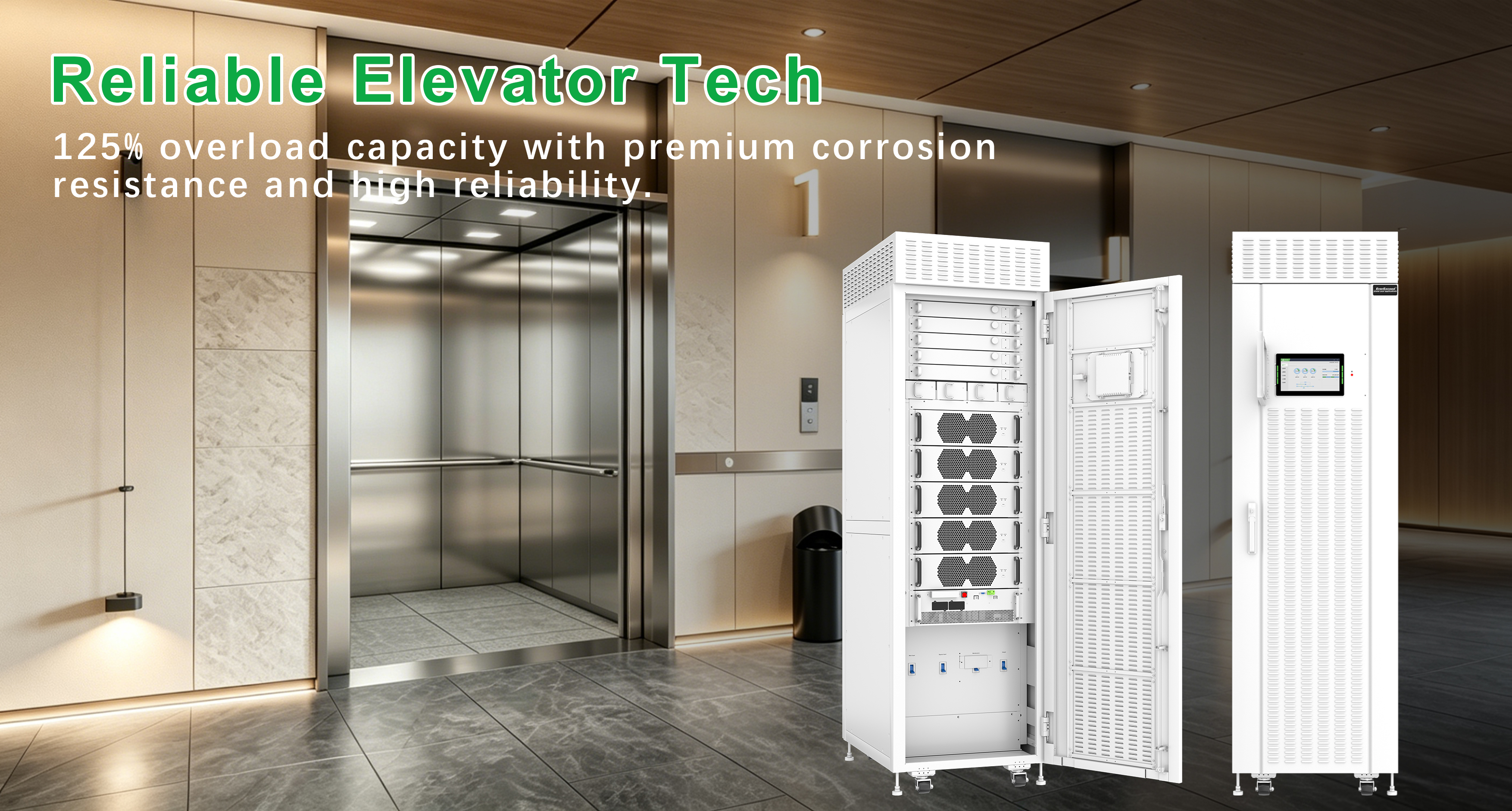

Multi-mode feedback design enables stable operation under feedback loads without shutdown.	Supports module-level capacity expansion and maintenance without power interruption.	Supports long-term 125% overload operation, with optional input/output isolation transformer and three-wire input compatibility.

Model		PRM PLUS-FB-150/30
Capacity		150kVA/150kW
Main Input	Input Wiring	3Ph + N + PE
	Input Voltage	380/400/415/440/480VAC (line voltage)
	Input Frequency	50/60Hz
	Input Voltage Range	304~552VAC (line voltage) at full load; 304~171VAC (line voltage) with linear derating from 100% to 50% load
	Input Frequency Range	40Hz-70Hz
	Current Distortion (THDi)	THDi<2% (at 100% linear load)
	Input Power Factor	>0.99
Battery	Battery Voltage	±180 ~ ±300 VDC (adjustable for 30–50 cells)
Battery	Charging Power	Max. 20% of active power
Bypass	Bypass Voltage	380/400/415/440/480VAC (line voltage)
	Voltage Range	Adjustable; default: -20%~+15%; upper limit: +10%, +15%, +20%, +25%;
	Voltage Range	lower limit: -10%, -15%, -20%, -30%, -40%
	Overload Capability	Load 125%: continuous operation; 125%< load 150%: 30 minutes; load>150%: 1 second
Output	Rated Output Voltage	380/400/415/440/480VAC (line voltage)
	Rated Frequency	50/60Hz
	Output Power Factor	1
	Voltage Accuracy	±1.0%
	Output Total Harmonic Distortion (THDu)	<1% (linear load), <5% (non-linear load)
	Inverter Overload Performance	100%< load 110%: continuous operation; 110%< load 125%: transfer to bypass after 30 minutes; 125%< load 150%: transfer to bypass after 10 minutes; load>150%: transfer to bypass after 200ms
	Frequency Accuracy	0.10%
	Frequency Tracking Range	Adjustable, ±0.5Hz – ±5Hz; default ±3Hz
	Tracking Rate	Adjustable, 0.5Hz/s – 3Hz/s; default 0.5Hz/s
	Three-phase Phase Accuracy	120 ±0.5
System	System Eﬃciency	96%
	Display	LCD + LED + 10-inch Color Touch Screen
	Safety Standards	IEC62040- 1, IEC60950- 1
	EMC Standards	IEC62040-2；IEC61000- 4- 2(ESD)；IEC61000- 4- 3(RS)；IEC61000- 4- 4 (EFT)；
	EMC Standards	IEC61000- 4- 5 (Surge)
	Protection Degree	IP42
	Standard Accessories	USB, RS232, RS485, Dry Contact Card, Battery Cold Start, Dust Filter, Surge Protection Module
	Optional Accessories	SNMP Card, Extended Dry Contact Card, Parallel System Kit, APP/WiFi/Bluetooth
	Operating Environment	-20~50℃ (Operating Temperature); -25~70℃ (Storage Temperature); 0-95% (Non-condensing)
	Noise (dB) @ 1m	60dB @ 100% Load, 55dB @ 45% Load
Main Cabinet Dimensions		6009002200mm
Power Module Dimensions		440475140mm

If you need to download files, you need to register as our member first ! log in / registered

PRM PLUS-FB Series -Feedback Industrial Modular UPS V1.0 20260604.pdf
