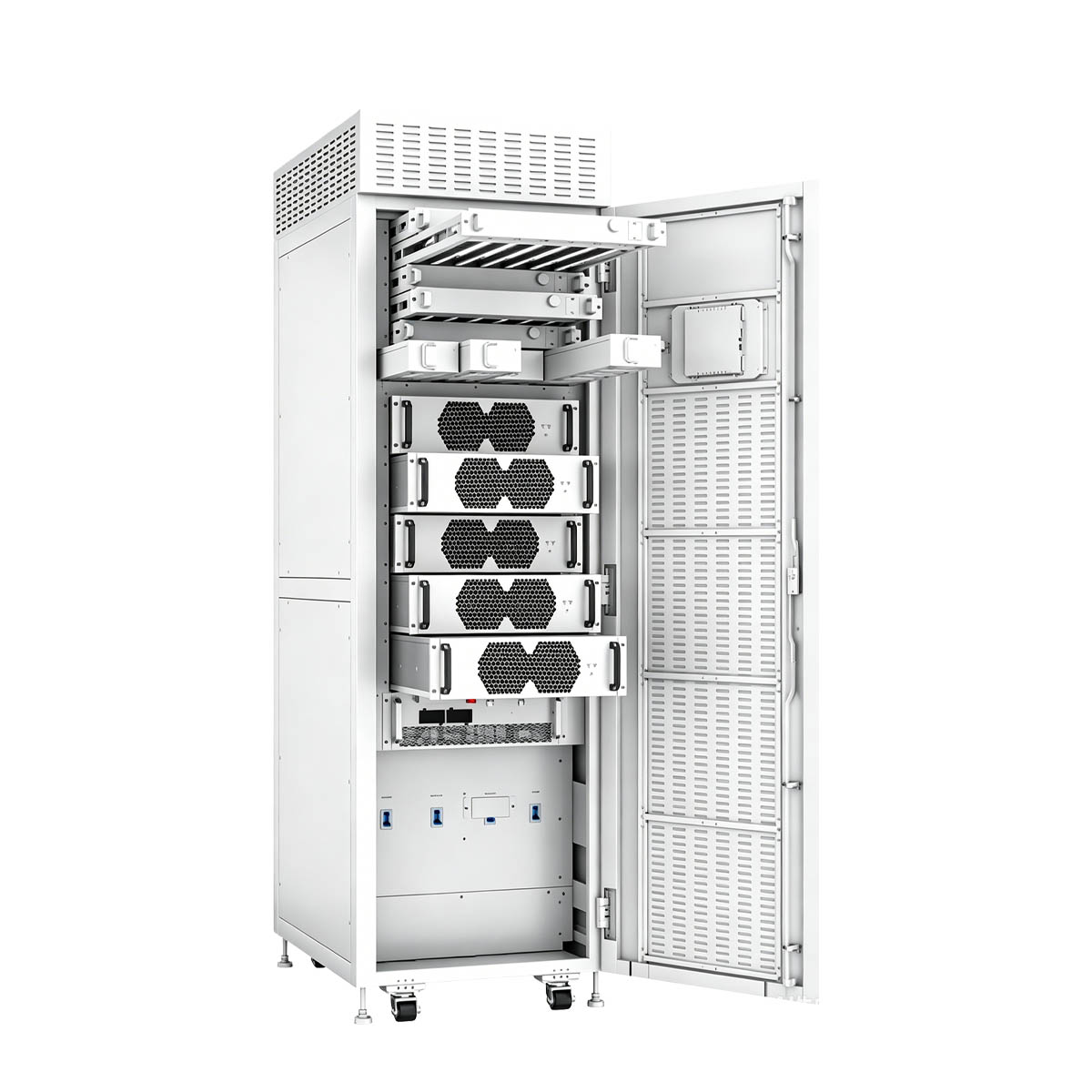

This customized regenerative industrial modular UPS delivers stable and uninterrupted power for industrial applications, ensuring reliable operation of critical loads such as motors, machine tools, and other key equipment.
Based on an intelligent modular UPS platform, it integrates energy absorption technology, hot-swappable modules, and a multi-mode feedback design for flexible adaptation to regenerative loads.
Its modular architecture supports capacity expansion and online maintenance without power interruption, ensuring high reliability and continuous operation in demanding industrial environments.
brand:
EverExceedModel:
PRM PLUS-FB-150/30Type:
Three-phase online UPSRated power:
150 kVA / 150 kWRated voltage:
380 / 400 / 415 / 440 / 480 VACRated frequency:
50 / 60 HzEfficiency:
Up to 96%Applications:
Motors, machine tools, elevators,water pumps, etc.Certificate:
IEC62040-1.IEC60950-1 IEC62040-2 ; IEC61000-4-2(ESD) : IEC61000-4-3(RS) : IEC61000-4-4 (EFT) :IEC61000-4-5(Surge)

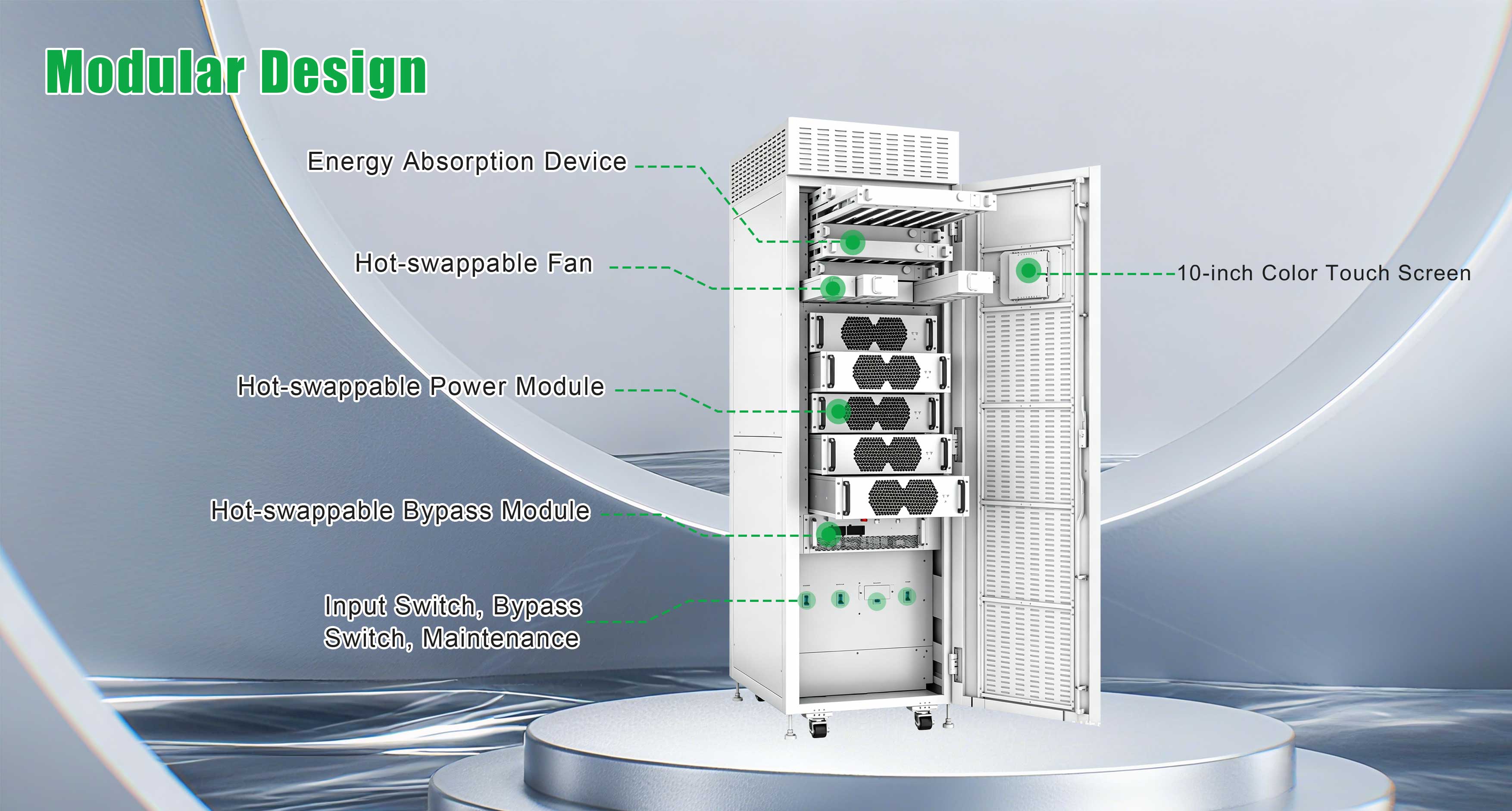

Modular design enables flexible capacity expansion, easy maintenance at module level, and continuous operation without power interruption, ensuring higher system availability and lower downtime.
Wide applications across industrial systems such as motors, machine tools, elevators, water pumps, and other critical load environments.
| Model | PRM PLUS-FB-150/30 | |||
| Capacity | 150kVA/150kW | |||
| Main Input | Input Wiring | 3Ph + N + PE | ||
| Input Voltage | 380/400/415/440/480VAC (line voltage) | |||
| Input Frequency | 50/60Hz | |||
| Input Voltage Range | 304~552VAC (line voltage) at full load; 304~171VAC (line voltage) with linear derating from 100% to 50% load | |||
| Input Frequency Range | 40Hz-70Hz | |||
| Current Distortion (THDi) | THDi<2% (at 100% linear load) | |||
| Input Power Factor | >0.99 | |||
| Battery | Battery Voltage | ±180 ~ ±300 VDC (adjustable for 30–50 cells) | ||
| Charging Power | Max. 20% of active power | |||
| Bypass | Bypass Voltage | 380/400/415/440/480VAC (line voltage) | ||
| Voltage Range | Adjustable; default: -20%~+15%; upper limit: +10%, +15%, +20%, +25%; lower limit: -10%, -15%, -20%, -30%, -40% |
|||
| Overload Capability | Load 125%: continuous operation; 125%< load 150%: 30 minutes; load>150%: 1 second | |||
| Output | Rated Output Voltage | 380/400/415/440/480VAC (line voltage) | ||
| Rated Frequency | 50/60Hz | |||
| Output Power Factor | 1 | |||
| Voltage Accuracy | ±1.0% | |||
| Output Total Harmonic Distortion (THDu) | <1% (linear load), <5% (non-linear load) | |||
| Inverter Overload Performance | 100%< load 110%: continuous operation; 110%< load 125%: transfer to bypass after 30 minutes; 125%< load 150%: transfer to bypass after 10 minutes; load>150%: transfer to bypass after 200ms | |||
| Frequency Accuracy | 0.1% | |||
| Frequency Tracking Range | Adjustable, ±0.5Hz – ±5Hz; default ±3Hz | |||
| Tracking Rate | Adjustable, 0.5Hz/s – 3Hz/s; default 0.5Hz/s | |||
| Three-phase Phase Accuracy | 120 ±0.5 | |||
| System | System Efficiency | 96% | ||
| Display | LCD + LED + 10-inch Color Touch Screen | |||
| Safety Standards | IEC62040- 1, IEC60950- 1 | |||
| EMC Standards | IEC62040-2；IEC61000- 4- 2(ESD)；IEC61000- 4- 3(RS)；IEC61000- 4- 4 (EFT)； IEC61000- 4- 5 (Surge) |
|||
| Protection Degree | IP42 | |||
| Standard Accessories | USB, RS232, RS485, Dry Contact Card, Battery Cold Start, Dust Filter, Surge Protection Module | |||
| Optional Accessories | SNMP Card, Extended Dry Contact Card, Parallel System Kit, APP/WiFi/Bluetooth | |||
| Operating Environment | -20~50℃ (Operating Temperature); -25~70℃ (Storage Temperature); 0-95% (Non-condensing) | |||
| Noise (dB) @ 1m | 60dB @ 100% Load, 55dB @ 45% Load | |||
| Main Cabinet Dimensions | 600*900*2200mm | |||
| Power Module Dimensions | 440*475*140mm | |||
