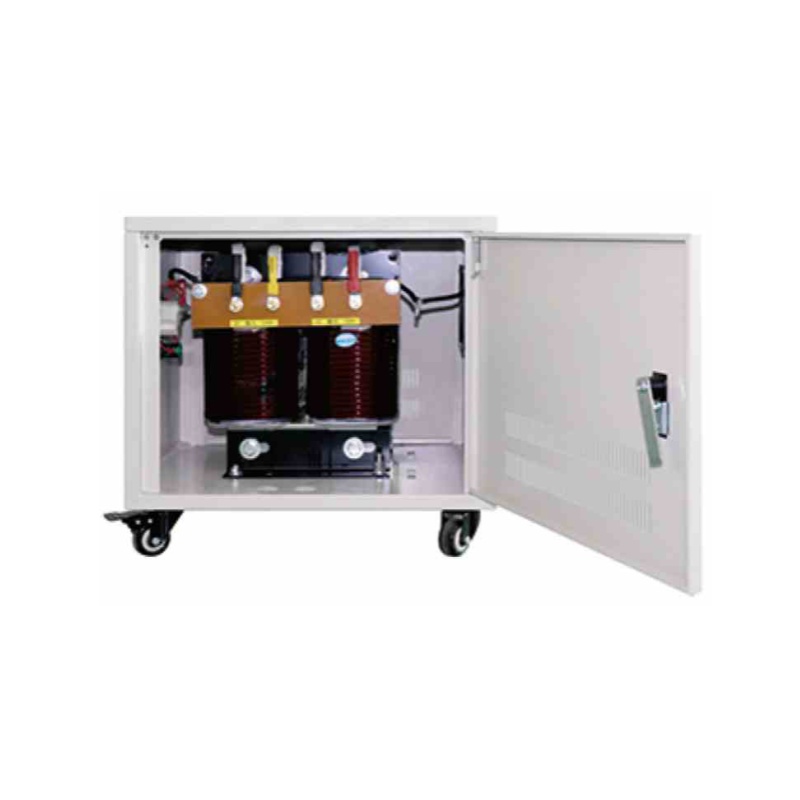

Single Phase Isolation Transformer

A single phase transformer is designed to operate on single phase power systems, commonly used in residential, commercial, and light industrial applications. It provides stable voltage conversion and reliable power distribution for low to medium load equipment.


  • brand:

    EverExceed
  • Rated frequency:

    50Hz / 60Hz
  • Efficiency:

    Up to 98%(on full load)
  • Certificate:

    CE, RoHS
  • Rated capacity:

    1kVA to 200kVA
  • Output Voltage:

    110V/220/230/240V(or customized)
  • Input Voltage:

    110V/220/230/240V(or customized)
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download

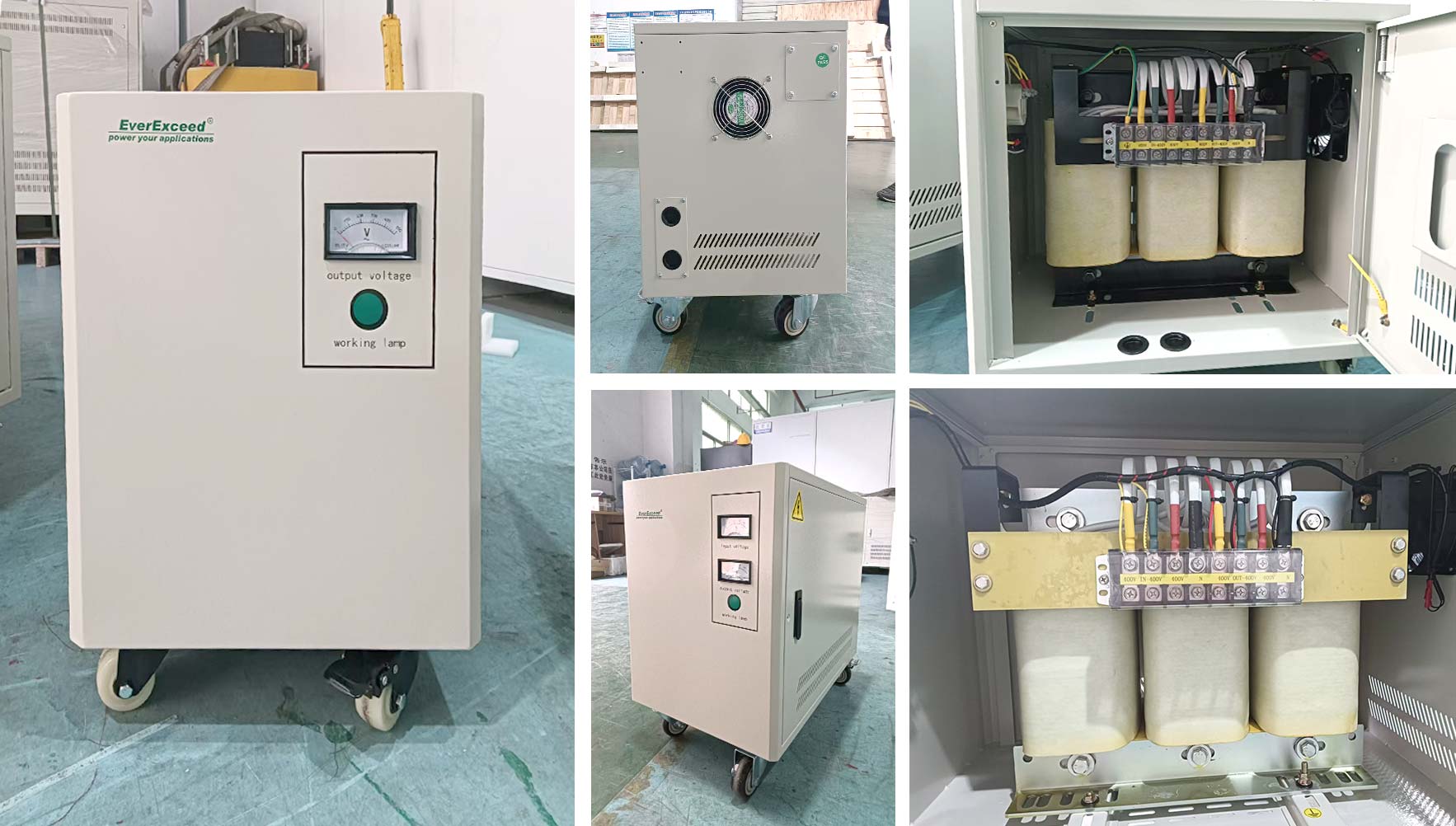

  • Factory
  • Video
  • FAQ



Technical features:

 High Efficiency & Low Loss Design Enhanced Electrical Isolation Reliable Short-Circuit Protection Optimized Thermal Management



Product Details:



Application:


Widely used in the electric supplying of electronic instruments, machinery equipment, lighting, rectifying device etc.





DGG series
Capacity 1kVA to 200kVA
Input voltage 110V/220/230/240V(or customized)
Output voltage 110V/220/230/240V(or customized)
Frequency 50Hz/60Hz
Efficiency ≥98%(on full load)
Standard IEC60076-1,VDE0550,IEC439,JB5555,GB5226 etc
Certificates CE, RoHS
Voltage Resistance 2500VAc/min (does not have the puncture, no break down)
Insulation level Level H
Insulation resistance >100MΩ/DC500V
Overload capacity 300% for 10 seconds,150% for 120 seconds
Noise ≤45dB
THD ≤1%
Power factor 0.8
Temperature rise limit 100K(Actual temperature minus ambient temperature)

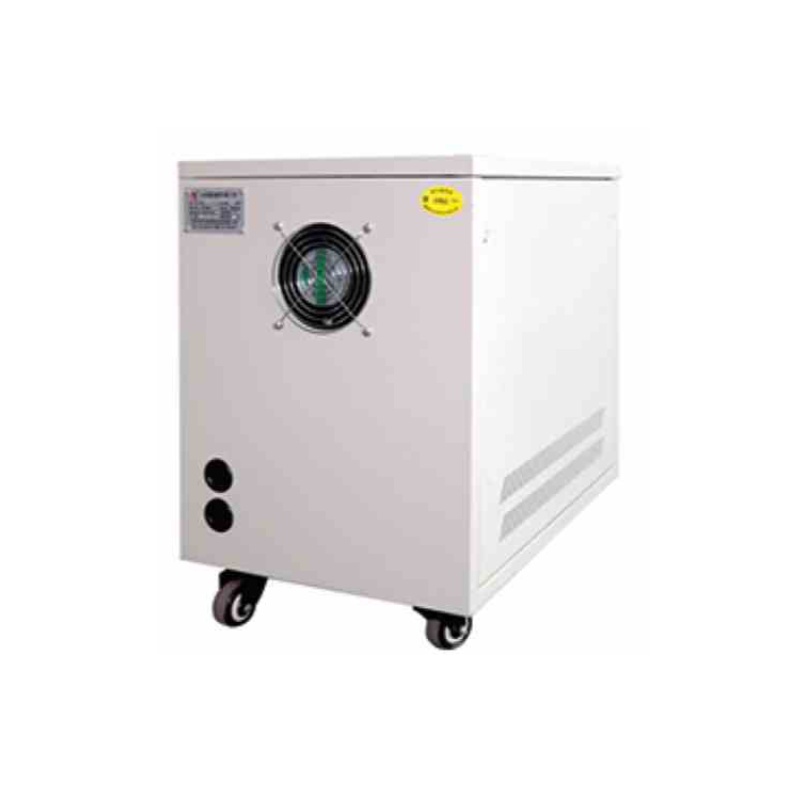

Cooling mode Air cooling/Fan system cooling
Warranty 2 years

If you need to download files, you need to register as our member first ! log in / registered

  • Single phase transformer with chassis-DGG Series.pdf



Datasheet



1. What is the difference between single phase and three phase transformers?
Single phase transformers are used for small or residential loads.
Three phase transformers are designed for industrial and high-power applications.

2.Which transformer should I choose?
Select single phase for low power equipment.
Select three phase for heavy loads, motors, UPS systems, and industrial facilities.

3. What voltage options are available?
Common voltages include 110V, 220V, 230V, 240V
Custom voltage configurations are available.

 4.Are these transformers suitable for industrial use?
Yes. They are designed for power distribution, UPS systems, telecom infrastructure, and manufacturing plants.
