Background

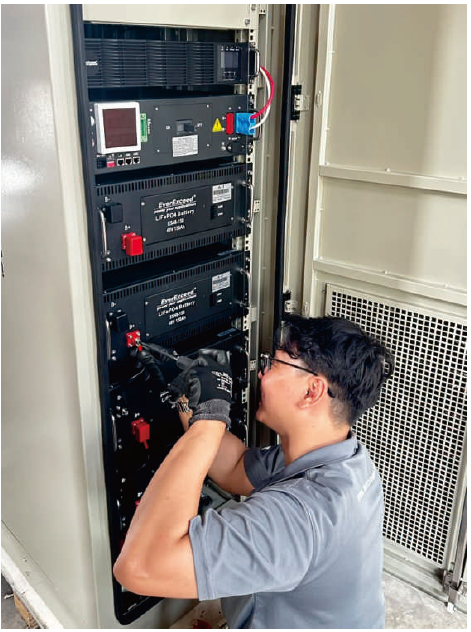

This project involved the installation of an EverExceed PL3 RM6KL Online UPS with a 192VDC high-voltage lithium battery system for PBA / PBAPP's wastewater treatment plant in Malaysia. The system provides uninterrupted power to essential loads, including emergency power and lighting equipment.

Featuring online double-conversion technology, the UPS continuously regulates and filters input power to deliver stable AC power. It provides seamless battery backup during mains failure and automatically switches to bypass mode during overload or inverter faults, helping ensure reliable power supply to critical equipment.

General specification:

Item	Specification
System Configuration	Online UPS +High-Voltage Lithium Battery
Model	PL3 RM6KL
Input	220VAC, 1 Phase + N
Output	220VAC, 1 Phase + N
Frequency	50/60Hz
Output Power Factor	1
Efficiency	95%
CommunicationInterface	SNMP (RJ45), RS232, Dry Contact
IPclass	IP54
Input Protection	Input switch and SPD
Cable Entry	Bottom cable entry
Battery Model	ES192-150H
Battery	192VDC

Custom Design Highlights

● True online dual conversion technology, wide input voltage range, stable power supply, and extended battery life;

● DSP technology and tertiary technology;

● Advanced power factor correction technology, input power factor&99%;

● Cold start;

● Automatic battery charging on/off mode;

● High efficiency: The inverter efficiency is 95%, saving a lot of energy;

● Rack mounted UPS+high-voltage lithium battery integration;
