EverPower Commercial & Industrial Solar+ Energy Storage System

EverExceed All-in-one EverPower Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, EMS, and other accessories. It is a high-power backup power solution serving commercial / industrial I grid-level customers. That high voltage energy storage system enables the highest flexibility both for rack-mounted and cabinet-based constructions. This system is much “Safer, Smarter, Simpler" and suitable to solve the power problems in your substations, outdoor areas, microgrids + energy storage, small factories, shopping malls, solar storage charging stations, etc.


  • brand:

    EverExceed
  • Model:

    EverPower
  • Inverter Power:

    30kW/50kW/100kW/150kW/250kW/500kW
  • Battery Energy:

    64.5kWh to 1053.69kWh
  • Battery module capacity:

    105Ah, 210Ah
  • Application:

    Factory, Building, Mall, Hospitals, Governments, Police Stations, Schools
  • Certificates:

    CE, RoHS, IEC62619, UN38.3 test reports
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ


Technical Features:

Safer

● Adopts Grade A LiFePO4 batteries with 15 years design life & 6000+ cycle life at 80% D.O.D;
● Adopts high-performance PCS to ensure high safety and stability;
● Adopts high-quality IP54 outdoor cabinet;
● Excellent heat insulation and anti-theft three-point locks stem with ergonomic design;
● Multiple alarm systems such as smoke alarms, access control alarms, and fire-fighting devices;
● Equipped with an intelligent air conditioner to achieve automatic temperature control;
● Equipped with an isolation transformer, the highest power is 97.5%;
● Equipped with fire protection for every battery.




Smart

● Equipped with EMS to achieve central monitoring.
● Smart dynamic environment monitoring function;
● Built-in BMS to ensure high safety.

Simpler

● Adopts All-in-one design; Saving space;
● Quick deployment; Easy to use;
● Flexibly expand with modular design;
● Shorter project execution time with remote management.


This energy storage can meet various scenarios:


1. Peak-valley price difference arbitrage / Spot market


2. Load-shifting / Peak-shaving






3. Demand charge Management

4. Frequency Regulation






Application:

>Factory;     >Company;     >Village;     >Island



EverPower Comercial & Industrial Energy Storage System:


Model CO30K-60E CO30K-100E CO50K-100E CO100K-200E CO150K-300E CO250K-500E CO500K-1000E
PCS
Rated AC Output Power 30KW 30KW 50KW 100KW 150KW 250KW 500KW
Max. AC Output Power 33KVA 33KVA 55KVA 110KVA 165KVA 275KVA 550KVA
Battery Input Voltage Range 250~850V 250~850V 320~850V 420~850V 420~850V 420~850V 500~850V
Rated AC Voltage 400VAC, 3W+N+PE
AC Voltage Range 320~460V
Rated Frequency 50Hz/60Hz
Frequency Range 45~55/55~65Hz
Rated AC Output Current 43A 43A 72A 144A 216A 361A 722A
Max. AC Output Current 48A 48A 80A 159A 238A 397A 794A
Max. Efficiency 96.30% 96.30% 96.50% 97.10% 97.10% 97.30% 97.50%
On/Off grid switching Automatic
Cooling Forced air
Operating Temperature -30℃~55℃
THDi <3%
Overload capacity 110% long-term
Power Factor 1lagging-1leading
Relative Humidity 0~95%, non-condensing
Operating Altitude  5000m(>3000m derating)
Battery
Battery Voltage 512V 512V 512V 512V 716.8V 512V 716.8V
Battery Voltage Range 480~576V 480~576V 480~576V 480~576V 560~806.4V 480~576V 560~806.4V
Battery Capacity 210Ah 210Ah 210Ah 420Ah 420Ah 1050Ah 1470Ah
Battery Energy 64.5kWh 107.52kWh 107.52kWh 215.04kWh 301.06kWh 537.60kWh 1053.69kWh
Battery Type LiFePO4 battery
Cycle Life ≥6000 at 80%DOD
General
Remote Monitoring(EMS) Comply
Lighting Comply
Smoke Sensor Comply
Access control sensor Comply
Fire protection system Comply
Air conditioner system Comply
Display LCD touch-screen
Ingress protection IP55


EverPower Comercial & Industrial Solar+ Energy Storage System:


Model CO30K-60E-PV CO30K-100E-PV CO50K-100E-PV CO100K-200E-PV CO150K-300E-PV CO250K-500E-PV CO500K-1000E-PV
PV
Max. PV Input Voltage 1000V
Max. PV Input Power 60/120KW 60/120KW 60/120KW 120/180/240KW 120/180/240KW 300/360KW 600/660/720KW
MPPT Voltage Range 250-850V
MPPT Voltage Range@Full Load 450-850V
PCS
Rated AC Output Power 30KW 30KW 50KW 100KW 150KW 250KW 500KW
Max. AC Output Power 33KVA 33KVA 55KVA 110KVA 165KVA 275KVA 550KVA
Battery Input Voltage Range 250~850V 250~850V 320~850V 420~850V 420~850V 420~850V 500~850V
Rated AC Voltage 400VAC, 3W+N+PE
AC Voltage Range 320~460V
Rated Frequency 50Hz/60Hz
Frequency Range 45~55/55~65Hz
Rated AC Output Current 43A 43A 72A 144A 216A 361A 722A
Max. AC Output Current 48A 48A 80A 159A 238A 397A 794A
Max. Efficiency 96.30% 96.30% 96.50% 97.10% 97.10% 97.30% 97.50%
On/Off grid switching Automatic
Cooling Forced air
Operating Temperature -30℃~55℃
THDi <3%
Overload capacity 110% long-term
Power Factor 1lagging-1leading
Relative Humidity 0~95%, non-condensing
Operating Altitude 5000m(>3000m derating)
Battery
Battery Voltage 512V 512V 512V 512V 716.8V 512V 716.8V
Battery Voltage Range 480~576V 480~576V 480~576V 480~576V 560~806.4V 480~576V 560~806.4V
Battery Capacity 210Ah 210Ah 210Ah 420Ah 420Ah 1050Ah 1470Ah
Battery Energy 64.5kWh 107.52kWh 107.52kWh 215.04kWh 301.06kWh 537.60kWh 1053.69kWh
Battery Type LiFePO4 battery
Cycle Life ≥6000 at 80%DOD
General
Remote Monitoring(EMS) Comply
Lighting Comply
Smoke Sensor Comply
Access control sensor Comply
Fire protection system Comply
Air conditioner system Comply
Display LCD touch-screen
Ingress protection IP55















If you need to download files, you need to register as our member first ! log in / registered

  • Commercial Energy storage system solution V2.1 2023-08-16.pdf
Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
r
EverExceed, as a world-class enterprise,established in 1985, operations on six continents.
power wall home battery

UL Approval 51.2V 100Ah 200Ah Powerall Wall Mounted Energy Storage LiFePO4 Battery for Home

EverExceed Zeus PowerPlus LiFePO4 batteries are perfect choice for your home energy storage system and SME (Small Medium Enterprise). The ultra-modern design brought to you by our highly qualified research and development team provides an ultra long service life and extreme reliability in energy storage. Based on our batteries technical features of excellent performance on higher temperature, higher capacity range, lighter weight and pollution free operation, our LiFePO4 battery is widely popular by users with a rapid development stance. It is the first choice for the high requirement energy storage battery solution.
Energy Storage System

EverPower Commercial & Industrial Solar+ Energy Storage System

EverExceed All-in-one EverPower Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, EMS, and other accessories. It is a high-power backup power solution serving commercial / industrial I grid-level customers. That high voltage energy storage system enables the highest flexibility both for rack-mounted and cabinet-based constructions. This system is much “Safer, Smarter, Simpler" and suitable to solve the power problems in your substations, outdoor areas, microgrids + energy storage, small factories, shopping malls, solar storage charging stations, etc.
Commercial & Industrial ESS

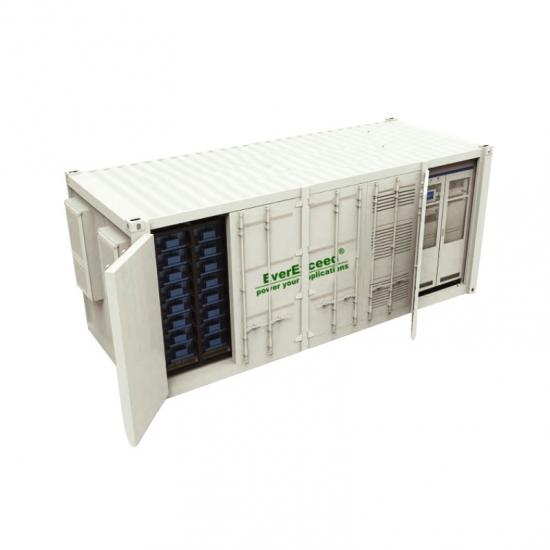

EverPower Container Series Commercial & Industrial ESS
