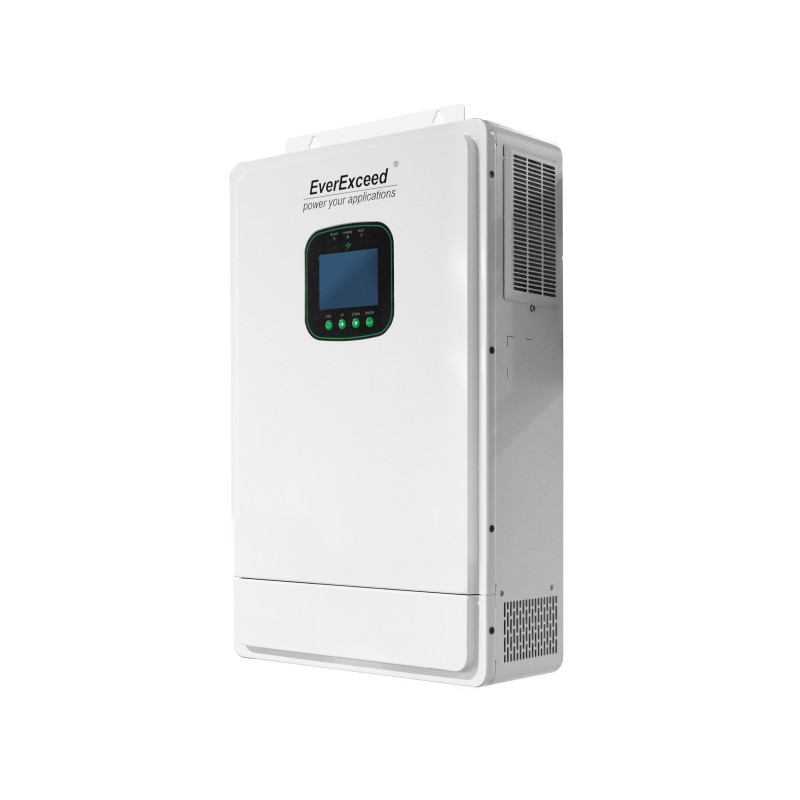

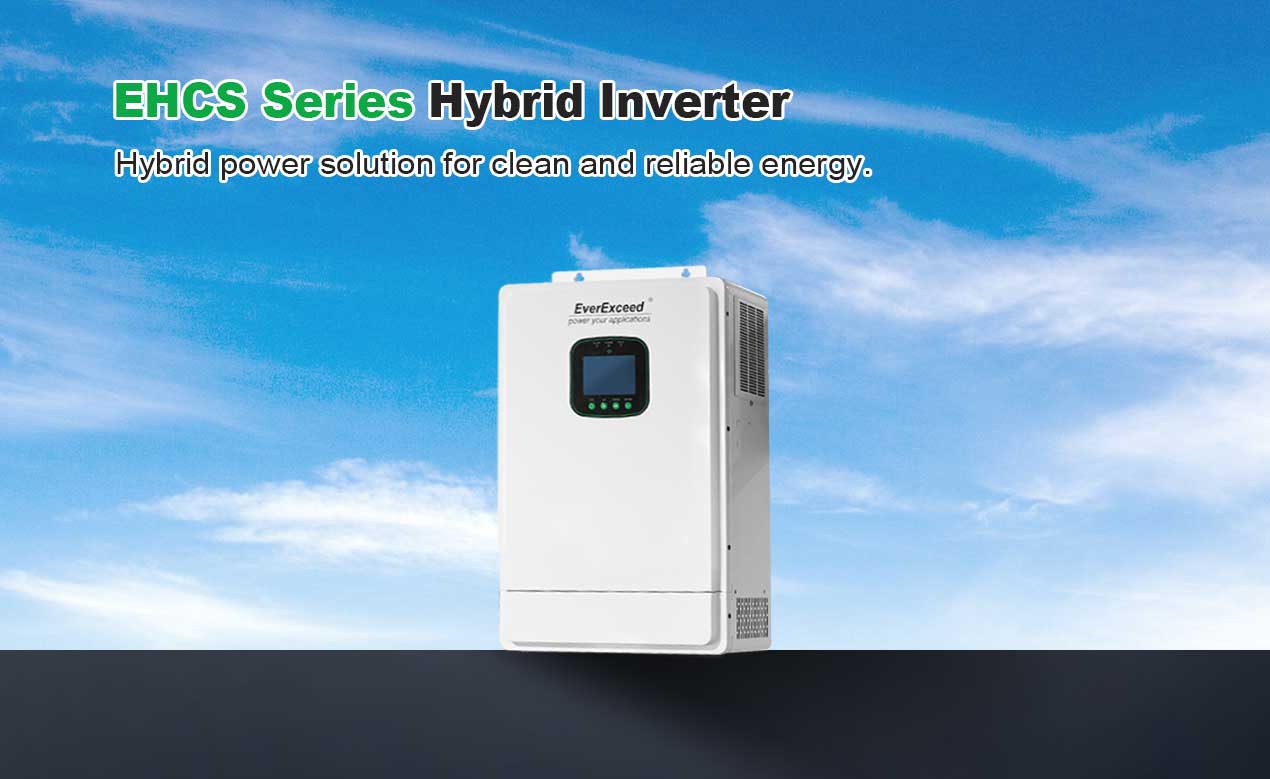

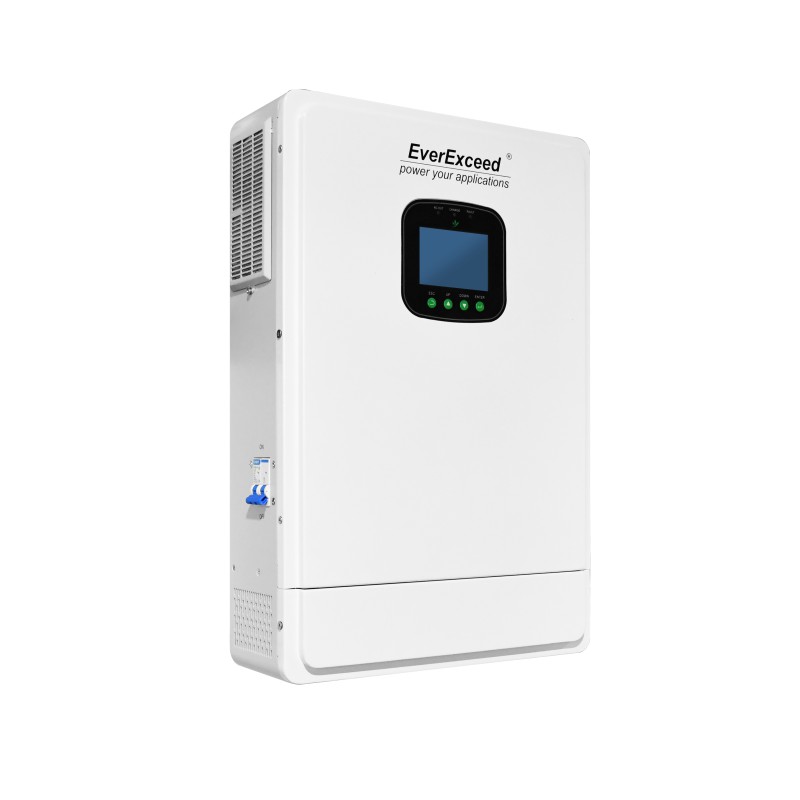

The EHCS series solar hybrid inverter provides reliable and efficient power for homes and small businesses. lt intelligently combines solar energy, battery storage, and the grid to ensure an uninterrupted electricity supply, helping you save money and become less dependent on utility companies.
brand:
EverExceedDC Input voltage:
40~60VRated power:
6200W/ 12000WAC Output Voltage:
220V / 230VFrequency:
50/ 60Hz
EverExceed's hybrid inverter seamlessly integrates with residential solar and battery systems, enabling smart load management and optimal energy use.
Features built-in lithium battery activation and smart BMS communication for seamless compatibility with Lithium, AGM, and GEL batteries.
Full-range protection: over-voltage, short-circuit, reverse current, over-temperature protection, and isolation design.
| Model | EHCS-6.2K Pro | EHCS-8K-pro | EHCS-10K-pro | EHCS-12K-pro |
| Parallel Mode | ||||
| Permitted parallel number | NO/1~6 | |||
| AC mode | ||||
| Rated input voltage | 220/230VAC | 230VAC ±5% | ||
| Input voltage range | (170VAC~280VAC)±2% (UPS Mode) (90VAC~280VAC)±2% (APL Mode) | |||
| Frequency | 50Hz/60Hz (Auto detection) | |||
| Frequency Range |
47±0.3Hz~55±0.3Hz (50Hz);
57±0.3Hz~65±0.3Hz (60Hz);
|
|||
| Overload/short circuit protection | Circuit breaker | |||
| Efficiency | >93% | |||
| Conversion time (bypass and inverter) | 10ms (typical) | |||
| AC reverse protection | Yes | |||
| Maximum bypass overload current | 40A | 60A | ||
| Inverter Mode | ||||
| Output voltage waveform | Pure sine wave | |||
| Rated output power (VA/W) | 6200VA/6200W | 12000VA/12000W | ||
| Power factor | 1 | |||
| Rated output voltage (VAC) | 230VAC | |||
| Output voltage error | ±5% | |||
| Output frequency range (Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |||
| Maximum Efficiency | >94% | |||
| Overload protection | (102% < load <125%) ±10%: report error and turn off the output after 5 minutes; (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds; Load >150% ±10%: report error and turn off the output after 5 seconds; | |||
| Peak power | 12000VA | 24000VA | ||
| Loaded motor capability | 4HP | 8HP | ||
| Output short circuit protection | 200ms Protection | |||
| Bypass circuit breaker specification | 40A | 63A | ||
| Rated battery input voltage | 51.2V (Minimum starting voltage 44V) | |||
| Battery voltage range | 40.0VDC~60VDC±0.6VDC (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen) | |||
| Power saving mode self-consumption | Load ≤ 50W Enters power-saving mode | |||
| AC Charging | ||||
| Battery type | Lead acid or lithium battery | |||
| Maximum charge current(can be set) | 80A | 150A | ||
| Charge current error | ±5ADC | |||
| Charge voltage range | 40~60VDC | |||
| Short circuit protection | Circuit breaker | |||
| Circuit breaker specifications | 40A | 63A | ||
| PV Charging | ||||
| MPPT way | 1 | 2 | ||
| Maximum PV open circuit voltage | 500VDC | |||
| PV operating voltage range | 120VDC~500VDC | |||
| MPPT voltage range | 90VDC~450VDC | |||
| Battery voltage range | 40-60VDC | |||
| Maximum PV input power | 6000W | 9000W+9000W | ||
| Maximum PV input current | 27A | 27A+27A | ||
| PV charging current range(can be set) | 0-100A | 0-150A | ||
| Charging short circuit protection Blown fuse | ||||
| Wiring protection | Reverse polarity protection | |||
| Hybrid Max Charing Current Specifications (AC +PV ) | ||||
| Max charging current(can be set) | 0-100A | 0-150A | ||
| Certified Specifications | ||||
| Certification | CE(IEC62109-1,2)， | |||
| EMC certification level | EN61000, C2 | |||
| Operating temperature range | -10°C to 55°C(>45°C Reduced operation) | |||
| Storage temperature range | -25°C ~60°C | |||
| Humidity range | 5% to 95%（Conformal coating protection） | |||
| Noise | ≤60dB | |||
| Heat dissipation | Forced air cooling, variable speed of fan | |||
| Communication interface | USB/RS485(/WiFi/GPRS)/ Dry node control | |||
| Product Size/Packaging Size (L*W*D) | 428x280x120mm | 540x350x130mm | ||
| Net weight/Packaging weight(kg) | 8.4 | 19.7 | ||
