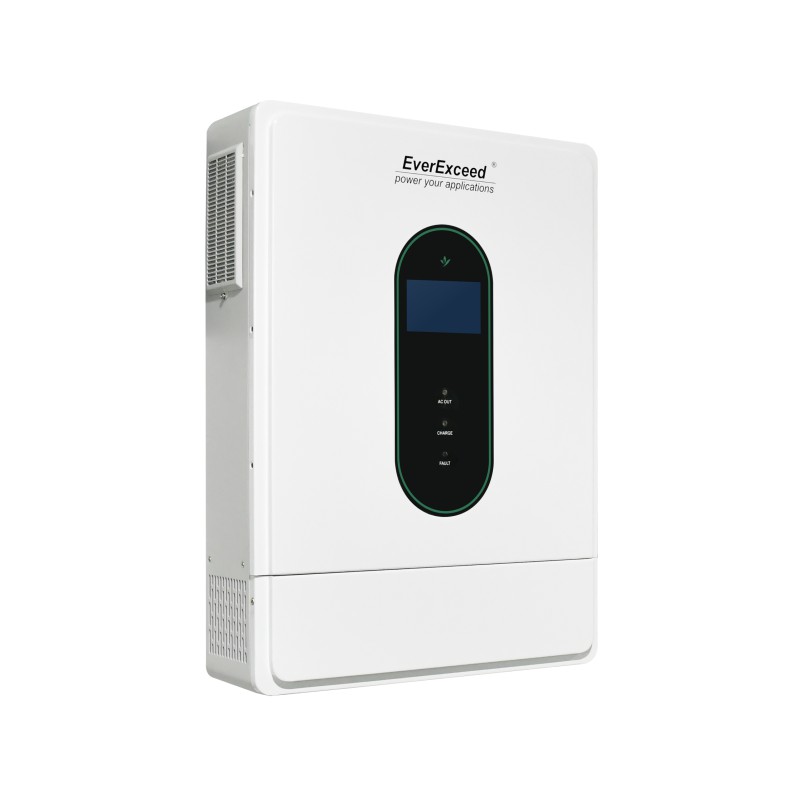

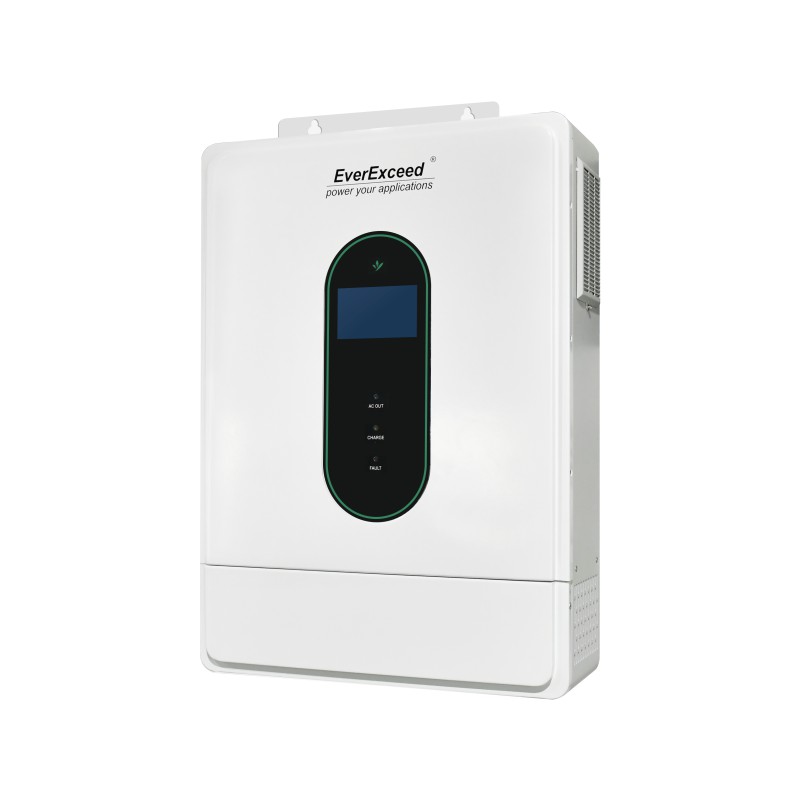

The EHCS series solar hybrid inverter provides reliable and efficient power for homes and small businesses. lt intelligently combines solar energy, battery storage, and the grid to ensure an uninterrupted electricity supply, helping you save money and become less dependent on utility companies.
brand:
EverExceedDC Input voltage:
40~60VRated power:
3600W/ 6500WAC Output Voltage:
120VFrequency:
50/ 60Hz
Hybrid inverter technology that smartly balances solar, battery, and grid power for maximum efficiency.
Features built-in lithium battery activation and smart BMS communication for seamless compatibility with Lithium, AGM, and GEL batteries.

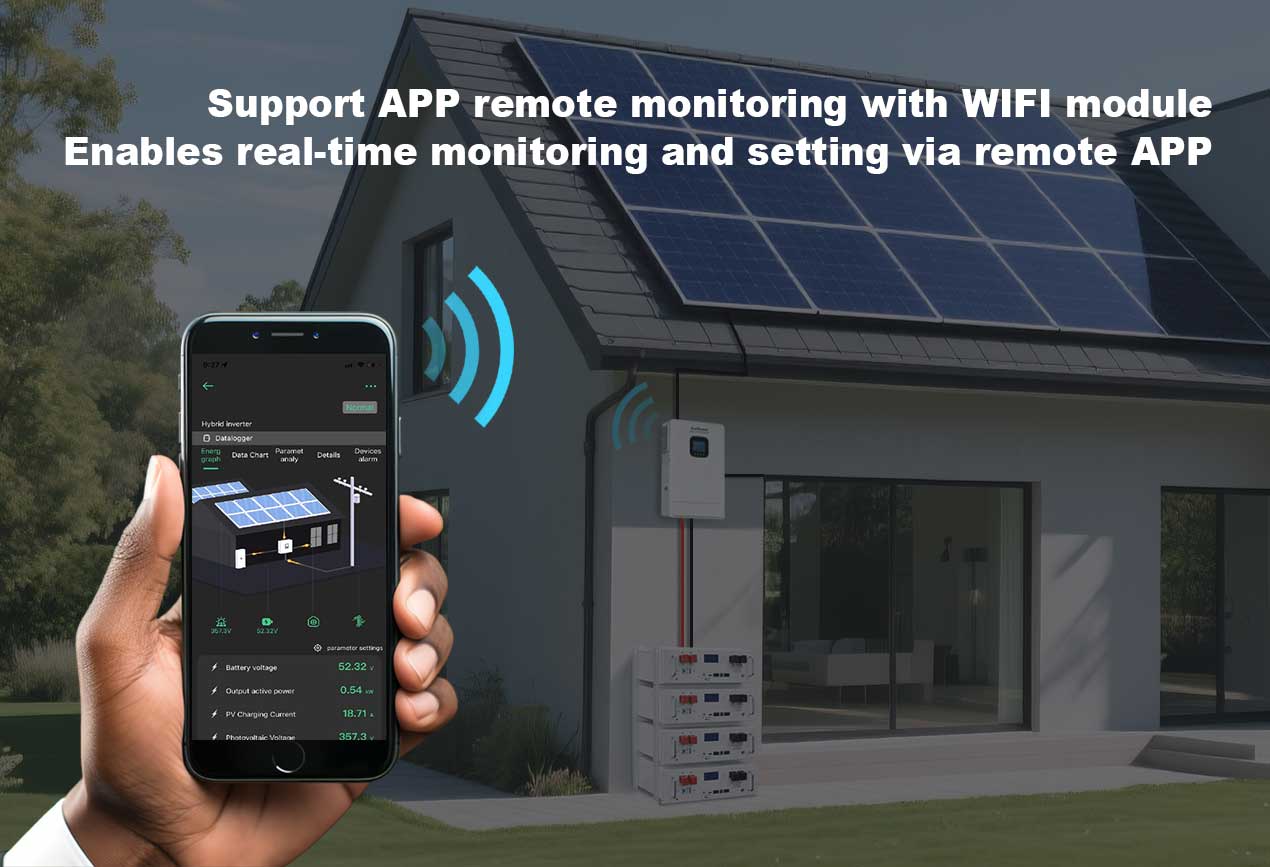

Supports remote monitoring and configuration via APP with built-in WiFi, enabling real-time system control and status tracking.
| Type | EHCS-7.2K-UP | EHCS-8K-UP | EHCS-10K-UP | EHCS-12K-UP |
| Parallel Mode (function Reserved) | ||||
| Allow Quantity | 1~6 | |||
| Mains Mode | ||||
| Nominal Input Voltage | 120(L1/N, L2/N)/240VAC(L1/L2) | |||
| Input Voltage Range | (85VAC~140VAC)±2% | |||
| Frequency | 50Hz/60Hz (Auto detect) | |||
| Frequency Range | 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz); | |||
| Max. Efficiency | >95% | |||
| Conversion Time (bypass And Inverter) | 10ms (typical) | |||
| Max. Bypass Overload Current | 2P, 40A/40A(L1/L2) | 2P, 63A/63A(L1/L2) | ||
| Inverter Mode | ||||
| Output Voltage Waveform | Pure sine wave | |||
| Nominal Output Power(VA) /(W) | Split phase:6000VA/6000W Single phase: 7200VA/7200W (limited by the wiring terminals) | Split phase: 8000VA/8000W Single phase:7200VA/7200W (limited by the wiring terminals) | Split phase: 10000VA/10000W Single phase:7200VA/7200W (limited by the wiring terminals) | Split phase:12000VA/12000W Single phase: 7200VA/7200W (limited by the wiring terminals) |
| Power Factor | 1 | |||
| Nominal Output Voltage (VAC) | 120VAC (L1/N, L2/N)/240VDC(L1/L2) | |||
| Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |||
| Max. Efficiency | >91% | |||
| Overload Protection | (102% < load <110%) ±5%: report error and turn off the output after 5 minutes;(110% < load < 125%) ± 5%: report error and turn off the output after 10 seconds;Load >125% ±5%: report error and turn off the output after 5 seconds; | |||
| Peak Power | Split phase: 10800VA Single phase: 10800VA | Split phase: 15000VA Single phase: 15000VA | Split phase: 18000VA Single phase: 18000VA | |
| Load Motor Capability | 4HP | 5HP | 6HP | |
| Nominal Battery Input Voltage | 51.2V (Minimum starting voltage 44V) | |||
| Battery Voltage Range | 40.0VDC~58.6VDC±0.6VDC (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen) | |||
| Save Power Mode | Load≤25W enter power-saving mode | |||
| Mains Charge | ||||
| Battery Type | Lead-acid or lithium batteries | |||
| Ma.x Charge Current (configurable) | 120A | 160A | ||
| Charge Voltage Range | 40-58.6VDC | |||
| Solar Charge | ||||
| Ma.x PV Open Circuit Voltage | 500VDC | |||
| PV Operate Voltage Range | 90-500VDC | |||
| MPPT Voltage Range | 90-450VDC | |||
| Battery Voltage Range | 40-58.6VDC | |||
| Max. PV Input Power/current | 4500W×2/16A×2 | 6000W×2/22A×2 | ||
| Charge Current Range (configurable) | 150A | 200A | ||
| Max.hybrid Charge Current(PV+AC) | ||||
| Max. Hybrid Charge Current (configurable) | 0-150A | 0-220A | ||
| Certification | ||||
| Safety Certification | UL STD.1741 | |||
| EMC Certification Level | FCC part15, CLASS B | |||
| Operate Temperature Range | -10°C to 55°C(>45°C derating) | |||
| Storage Temperature Range | -25°C ~ 60°C | |||
| Humidity Range | 5% to 95%（Conformal coating protection） | |||
| Noise | ≤60dB | |||
| Cooling | Forced air cooling, variable speed of fan | |||
| Communicate | USB/RS485(/WiFi/GPRS)/ Dry node control | |||
| Dimensions (L*W*D) | 580*359*127mm | 620*450*132mm | ||
| Weight (kg) | 15 | 23.8 | ||
