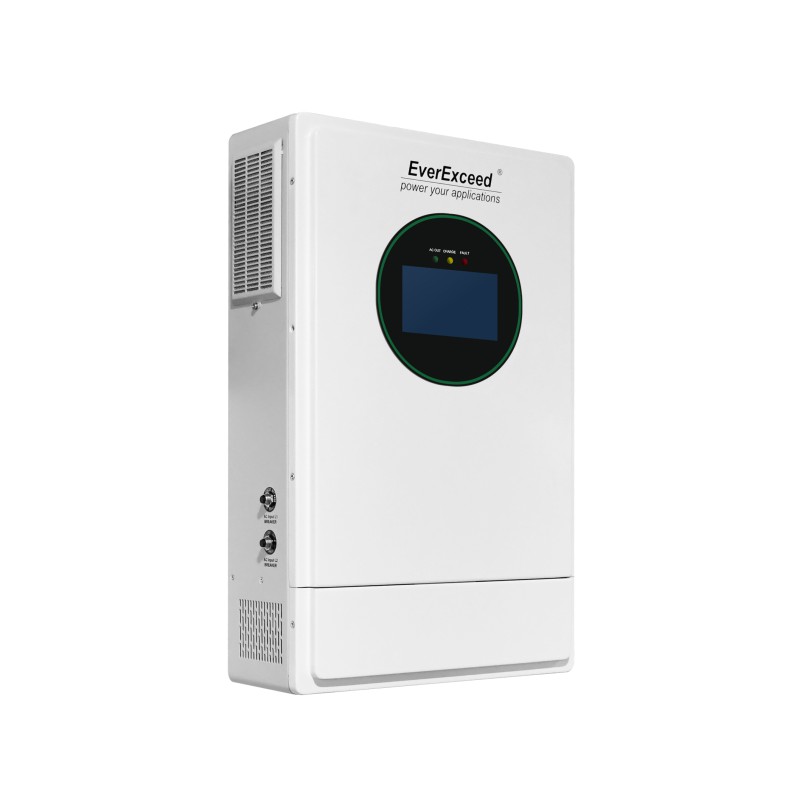

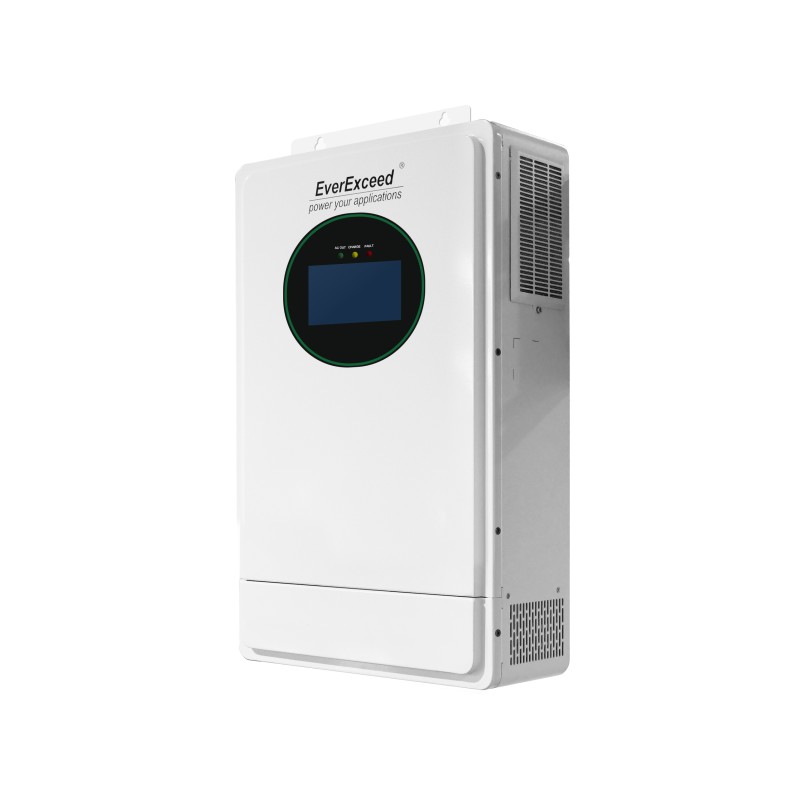

The EHCS series solar hybrid inverter provides reliable and efficient power for homes and small businesses. lt intelligently combines solar energy, battery storage, and the grid to ensure an uninterrupted electricity supply, helping you save money and become less dependent on utility companies.
brand:
EverExceedDC Input voltage:
40~60VRated power:
3600W/ 6500WAC Output Voltage:
120VFrequency:
50/ 60Hz
Flexible single/three-phase connection and parallel support for up to 6 units, meeting diverse application needs.
Features built-in lithium battery activation and smart BMS communication for seamless compatibility with Lithium, AGM, and GEL batteries.
Integrates multi-source energy management to deliver seamless power conversion and enhanced system performance.
| Type | EHCS-3.6K-LV | EHCS-6.5K-LV |
| Parallel Mode (function Reserved) | ||
| Allow Quantity | 1~6 | 1~6 |
| Mains Mode | ||
| Nominal Input Voltage | 120VAC±5% | |
| Input Voltage Range | (90VAC~140VAC)±2% | |
| Frequency | 50Hz/60Hz (Auto detect) | |
| Frequency Range | 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz); | |
| Max. Efficiency | >95% | |
| Conversion Time (bypass And Inverter) | 10ms(Typical value) | |
| Max. Bypass Overload Current | 40A | 60A |
| Inverter Mode | ||
| Output Voltage Waveform | Pure sine wave | |
| Nominal Output Power(VA) /(W) | 3600VA/3600W | 6500VA/6500W |
| Power Factor | 1 | |
| Nominal Output Voltage (VAC) | 120VAC | |
| Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |
| Max. Efficiency | >91% | |
| Overload Protection | (102%<load<125%)±10%: report error, turn off the output after 5 minutes; (125%<load<150%)±10%: report error, turn off the output after 10 seconds；load>150%±10%: report error,turn off the output after 5 seconds； | |
| Peak Power | 7200VA | 12000VA |
| Load Motor Capability | 2HP | 5HP |
| Nominal Battery Input Voltage | 48V ( Min. start voltage 44V) | |
| Battery Voltage Range | 40.0Vdc~60Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... LCD screen can be set) | |
| Save Power Mode | Load≤25W | |
| Mains Charge | ||
| Battery Type | Lead-acid or lithium batteries | |
| Ma.x Charge Current (configurable) | 40A | 120A |
| Charge Voltage Range | 40-60VDC | |
| Solar Charge | ||
| Ma.x PV Open Circuit Voltage | 300VDC | |
| PV Operate Voltage Range | 80-300VDC | |
| MPPT Voltage Range | 90-260VDC | |
| Battery Voltage Range | 40-60VDC | |
| Max. PV Input Power/current | 4000W/22A | 4500W×2 / 22A×2 |
| Charge Current Range (configurable) | 0-80A | 0-150A |
| Max.hybrid Charge Current(PV+AC) | ||
| Max. Hybrid Charge Current (configurable) | 0-80A | 0-150A |
| Certification | ||
| Safety Certification | CE(IEC62109-1,2) | |
| EMC Certification Level | EN61000, C2 | |
| Operate Temperature Range | -15°C to 55°C | |
| Storage Temperature Range | -25°C ~ 60°C | |
| Humidity Range | 5% to 95%（Three anti-paint protection） | |
| Noise | ≤60dB | |
| Cooling | Forced air cooling, adjustable wind speed | |
| Communicate | USB/RS485(/WiFi/GPRS)/Dry node control | |
| Dimensions (L*W*D) | 415mm*300mm*120mm | 540mm*350mm*130mm |
| Weight (kg) | 7.8 | 15 |
