Deep Cycle Max Range VRLA Battery

EverExceed top terminal Deep Cycle MAX Range provides high performance and reliability in long duration cycling applications. Our development team combines the market demand with design optimization, precision component selection and state of the art manufacturing process to produce the most cost effective battery solution for today applications.
  • brand:

    EverExceed
  • Features
  • Technical datas

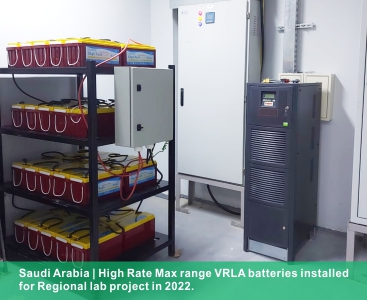

  • Successful case
  • Download



1) Plates: High Tin Pb alloy, optimized for high corrosion resistance and deep cycle use.

2) Separator: Highly porous glass micro-fiber separator, optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation.

3) Standard housing: Reinforced special high temperature resistant  ABS container and cover adopted.

4) Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.

5) Valves: Release gas in case of excess pressure and protects the cell against atmosphere.





Technical Features:


•   Thick optimized positive plate design for maximum service float life - 12 years design life @ 20°C(68°F);
•   Nano-Carbon enhanced for improved durability;
•   Valve regulated lead acid battery (VRLA);
•   Extreme temperature High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency;
•   Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell to cell performance, higher density & capacity and uniform grid protection;
•   Advanced deep cycle high tin lead alloy, reduces grid corrosion and promotes long battery life;
•   Over-sized, through the partition inter-cell welds provide low resistance connections, with minimal power loss;
•   Flame arresting, low pressure safety release venting system for individual cells;
•   Reinforced special high temperature resistant ABS container and cover adopted;
•   One-way relief valve, Explosion Resistant;

•   Double floating life more than traditional VRLA battery @35°C;

•   Wide operating temperature range: -40°C to +80°C;

•   Better performance for high / low outdoor applications, extended service life for non-temperature controlled outdoor enclosures;



Applications:




Solar / photovoltaic
Wind generation
Power wheelchair
Microwave
Broadband

Water pumping
Communications
Cathodic Protection
Signaling
Golf cart





Battery Model Nom. Voltage (V) Capacity C/20 1.75VPC @ 20°C Capacity C/100 1.75VPC @ 20°C Short Circuit Amps Internal Resistance Milli-ohms Terminal Type Battery Weight (kg/lb) Outline Dimensions (mm/inch)
Length Width Height
DM-1220 12 20 22 680 15 F-M5 6.2 13.6 181 7.13 76 2.99 167 6.57
DM-1228 12 28 31 890 13.5 F-M5 8.4 18.5 165 6.54 175 6.89 126 4.96
DM-1235 12 35 38 1270 11 F-M6 10.5 23.1 195 7.68 130 5.12 180 7.07
DM-1245 12 45 50 1700 9 F-M6 14.5 32 197 7.76 165 6.5 172 6.78
DM-1260 12 60 66 1900 7.4 F-M6 18.5 40.7 228 9 137 5.4 215 8.41
DM-1270 12 70 76 2000 6.5 F-M6 21.5 47.3 350 13.8 167 6.56 180 7.03
DM-1275 12 75 83 2400 6.5 F-M6 22.5 49.5 259 10.2 168 6.62 215 8.46
DM-1290 12 90 100 2600 5.2 F-M6 24 52.8 259 10.2 168 6.62 215 8.46
DM-12100 12 100 110 2800 5 F-M6 28 61.6 305 12 168 6.62 210 8.27
DM-12110 12 110 120 3000 4.8 F-M8 31 68.2 332 13.1 174 6.86 215 8.5
DM-12120 12 120 132 3400 4.6 F-M8 32.5 71.5 332 13.1 174 6.86 215 8.5
DM-12135 12 135 148 3700 4 F-M8 36.5 80.3 408 16.1 175 6.9 238 9.38
DM-12150 12 150 165 4100 3.5 F-M8 42 92.4 340 13.4 173 6.81 288 11.3
DM-12165 12 165 180 4300 3.4 F-M8 45 99 483 19 170 6.7 240 9.45
DM-12200 12 200 220 4400 3 F-M8 56.5 124 520 20.5 238 9.37 220 8.67
DM-12220 12 220 250 4600 2.8 F-M8 62 136 520 20.5 238 9.37 220 8.67
DM-12250 12 250 280 5200 2.6 F-M8 65 143 520 20.5 269 10.6 210 8.27
DM-12280 12 280 300 5700 2.5 F-M8 75 165 520 20.5 269 10.6 225 8.86


If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed Deep Cycle MAX Range VRLA 18-280Ah V1.2.pdf
