Lead Acid Battery

Deep Cycle AGM Range VRLA Battery

The extremely powerful, compact AGM VRLA.The batteries of EverExceed Deep Cycle AGM Range are an ideal energy Source for durability in Photovoltaic, Wind, and Telecom applications, the EverExceed top terminal Deep Cycle AGM Range provides high performance and reliability in long-duration cycling applications. Our development team combines the market demand with design optimization, precision component selection, and state-of-the-art manufacturing processes to produce the most cost-effective battery solution for today's applications.

  • brand:

    EverExceed
  • Model:

    DP series
  • Rated voltage(V):

    6V/12V
  • Rated capacity(Ah):

    18Ah-400Ah
  • OEM/ODM Service:

    Yes, customized
  • Certificates:

    UL1989; IEC61427;IEC60896; CE
  • Usage:

    Solar / Photovoltaic;Wind Generation;Broadband ;Microwave;UPS/EPS;Water Pumping;Telecommunications;Cathodic Protection;Signaling;
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download



Technical features:











Superior cycle performance

Unique performance

Low self-discharge rate
Valve requlated lead acid battery(VRLA), deep cycle design. Provides high performance and reliability in long duration cycling applications.
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.

Less than  3% per month.Over-sized, through the partition inter-cell welds provide low resistance connection, with minimal power loss.










Wide operating temperature range
High safety
Long service life
-40°C to +70°C
Storage time from a fully charged condition: 12 months at 20°C ~25°C ; for each 9°C  rise, reduce the storage time by half.

More than 250 quality control checks. Reinforcing fiberglass mat & critical pressure control valve
Reinforced ABS(UL94HB) container and cover compliant with UL94 V-0 with an Oxygen limiting Index of greater than 28%;
Flame arresting, low pressure safety release veniting system for individual cells, recognized per UL924.

Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F).
Advanced lead tin calcium alloy, reduces grid  corrosion and promotes long battery life;










Assured quality

Easy installation & maintenece

VRLA recombinant technology
These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427

Multicell design for ease of installation and maintenance;
Horizontal or vertical operation

High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.






Construction:




① Plates: Pb-Ca-Sn-Al lead alloy, optimized for high corrosion resistance;


② Separator:Highly porous glass micro-fibre separator, optimized for low internal resistance;


③ Standard housing: reinforced ABS(UL94HB) container and cover;

     Optional housing: flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 20%;


④ Terminals:Silver plated copper female insert for easy and safe assembly & maintenance free connection with excellent conductivity;


⑤ Valve:Release gas in case of excess pressure & protects the cell against atmosphere.



Applications:


•  Solar / Photovoltaic;   •  Wind Generation;  •  Broadband ;  •  Microwave;   •  UPS/EPS;  •  Water Pumping;  •  Telecommunications;  •  Cathodic Protection;   •  Signaling;

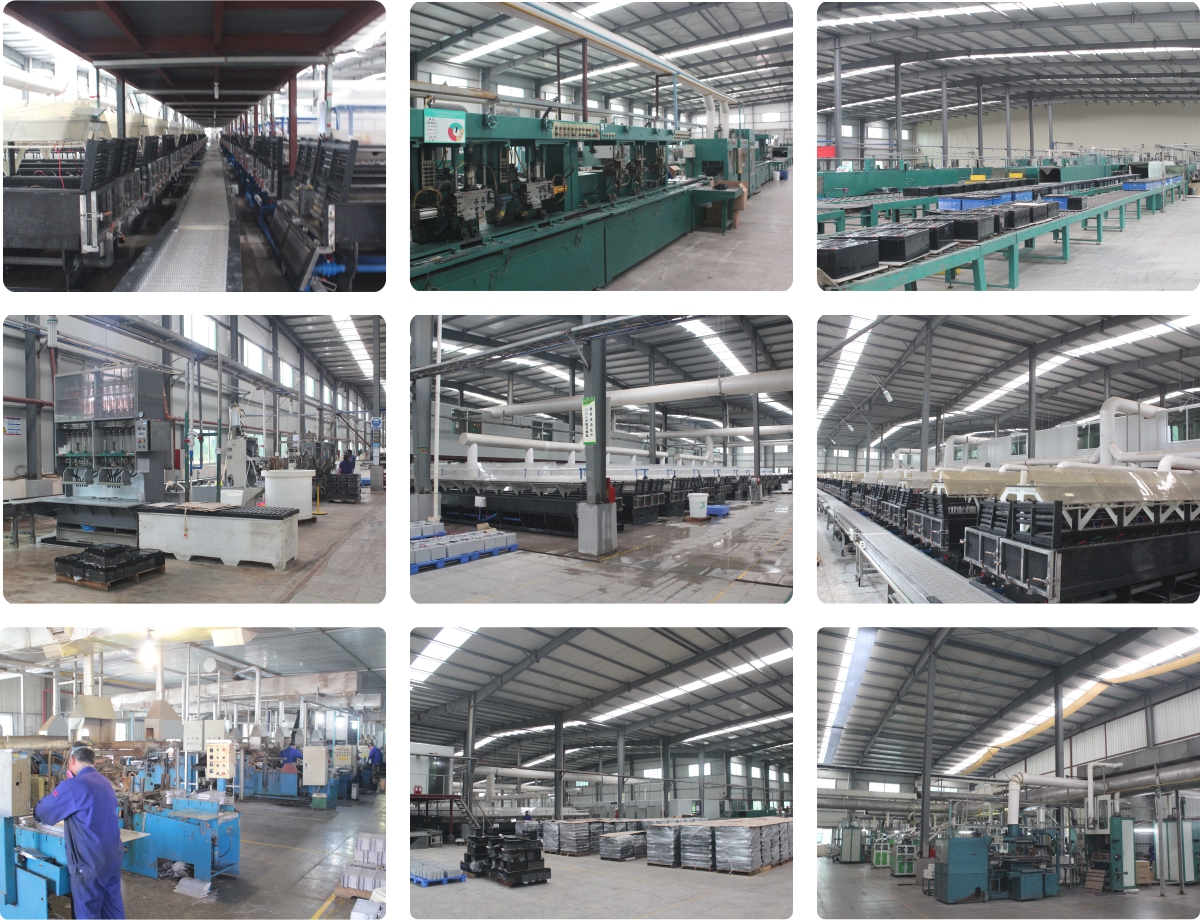

Factory:




Battery Model Nom.
Voltage
(V)
Capacity
C/20
1.75VPC
@ 20°C
Capacity C/100
1.75VPC
@ 20°C
Short
Circuit
Amps
Internal
Resistance
Milli-ohms
Terminal
Type
Battery Weight
(kg/lb)
Outline Dimensions (mm/inch)
Length Width Height
DP-1260 12 60 66 1900 6.6 F-M6 20 44 350 13.8 167 6.58 178 7.01
DP-1270 12 70 77 2000 6 F-M6 21.5 47.3 350 13.8 167 6.58 178 7.01
DP-1280 12 80 88 2100 5.6 F-M6 23 50.6 259 10.2 168 6.62 215 8.5
DP-12100 12 100 110 2650 4.3 F-M6 28.5 62.7 332 13.1 174 6.86 220 8.67
DP-12120 12 120 132 3000 3.5 F-M8 31.5 69.3 332 13.1 174 6.86 220 8.67
DP-12135 12 135 148 3300 3.1 F-M8 36 79.2 408 16.1 175 6.9 235 9.25
DP-12150 12 150 165 3750 2.8 F-M8 39.5 86.9 340 13.4 173 6.81 285 11.2
DP-12180 12 180 198 4700 2.6 F-M8 51.5 113 530 20.9 210 8.27 220 8.67
DP-12200 12 200 220 5400 2.6 F-M8 54 119 530 20.9 210 8.27 220 8.67
DP-12230 12 230 253 5400 2.5 F-M8 63.5 140 520 20.5 238 9.37 220 8.67
DP-12250 12 250 275 5900 2.3 F-M8 68 150 520 20.5 269 10.6 225 8.86
DP-12280 12 280 308 6100 2.2 F-M8 72.5 160 520 20.5 269 10.6 225 8.86
DP-12300 12 300 330 6300 2 F-M8 76.5 168 520 20.5 269 10.6 225 8.86







If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed Deep Cycle AGM Range VRLA _V4.0_2023.05.16.pdf
