1~10kVA PowerOutdoor Series Customized Outdoor UPS

1-10kVA Power Outdoor Series UPS (Can be customized to 200kVA)

220/230/240VAC, 1:1 (Customizable: 110/120/127VAC)

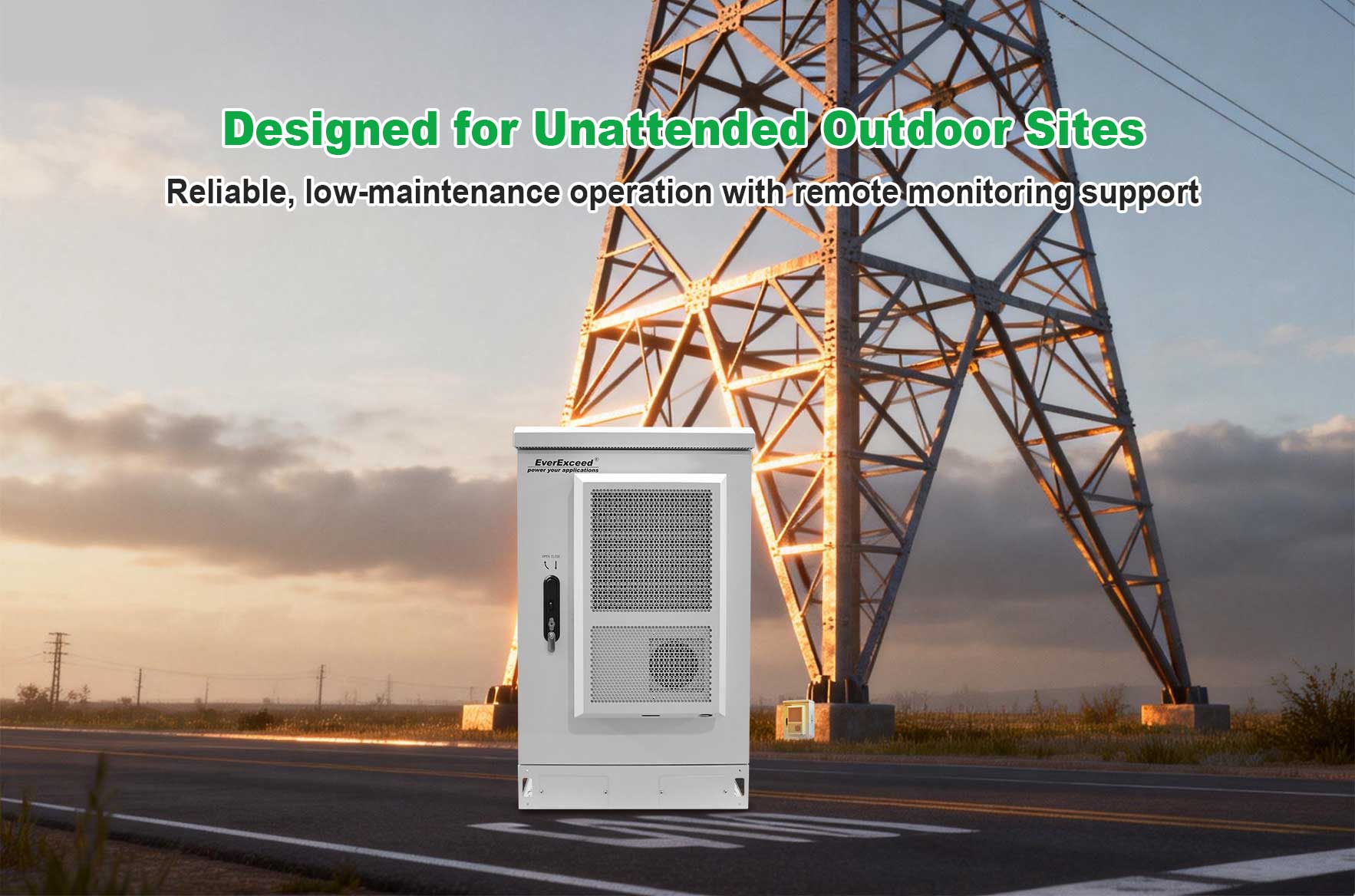

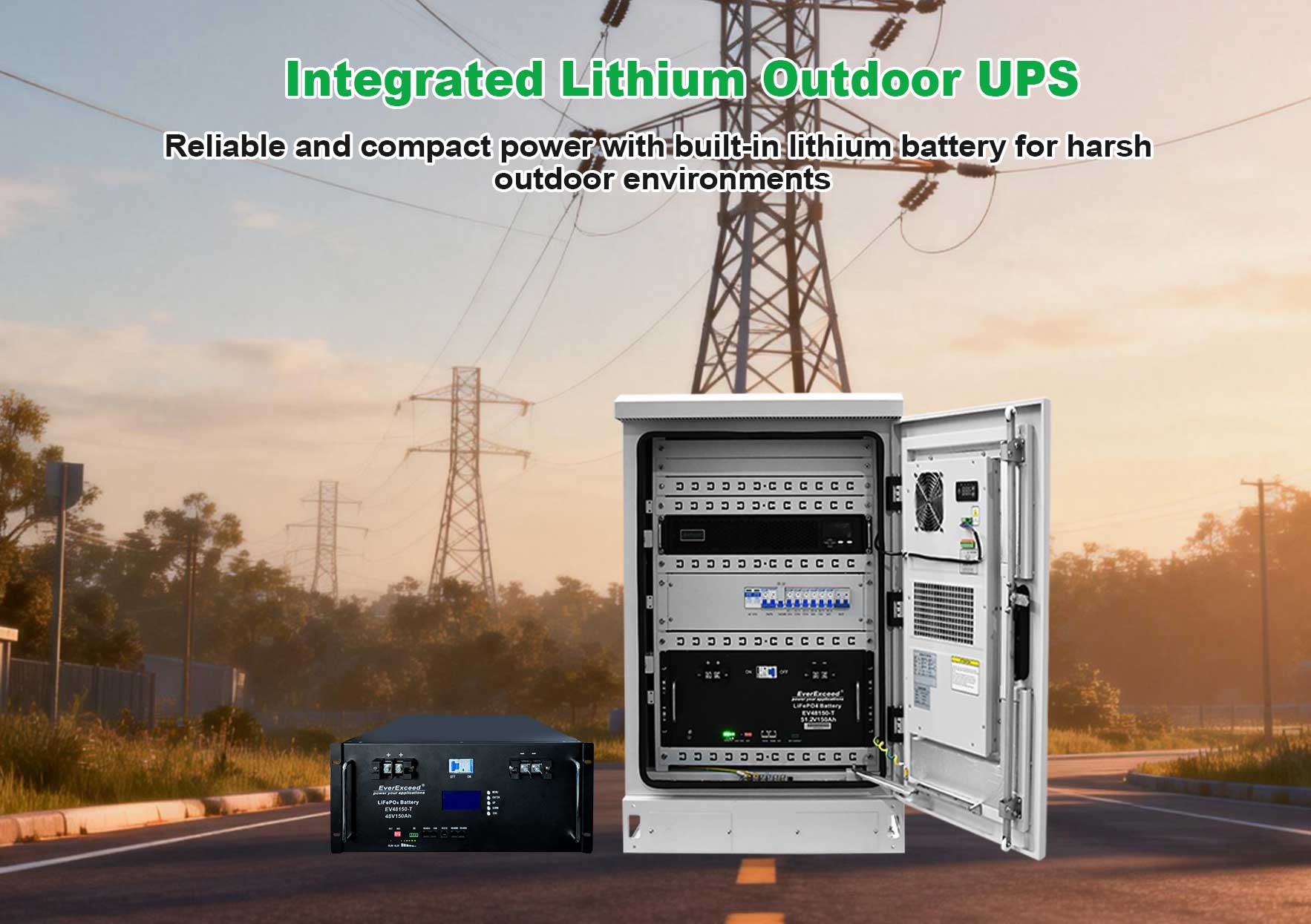

PowerOutdoor series UPS is specially designed for outdoor communication & networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area. High temperature resistance, frost resistance, corrosion resistant, dust prevention, and water resistance are based. With advanced functions like wide range of input voltage and frequency, high reliability, energy saving, environmental protection, anti-thunder, remote control, remote detection, our UPS can guarantee stable power supplying to communication, networking, traffic control and other device. It is a type of ideal helpmate for running these important outdoor devices.

brand:
EverExceed
Model:
PowerRT 1-10kVA(Customized)
Type:
True online double conversion
:
1-10kVA
Rated voltage:
220/230/240VAC (Customized)
Rated frequency:
50Hz/60Hz
Applications:
Outdoor communication equipments
Certificate:
ISO/ CE
Rated capacity:
Fan/Air conditioning (optional)

inquiry now

Technical advantages


Wide input voltage	High reliability	Strong adaptability
It has the widest input voltage range and input frequency window (-45% to + 35% of rated voltage and ±10 % rated frequency) and has passed the harsh power grid test in remote areas of many countries;	The input terminal is equipped with dual isolation and voltage stabilization function; Internal battery warehouse;	Strong environmental adaptability; The input and output voltage can be 1:1, 3:1, 3:3; Wide adaptability to the power grid;


Flexible customization	High safety	Smart & energy saving
Cabinet space can be designed according to battery capacity; The charging part can be customized; The UPS host part can be designed according to the technical requirement of high frequency and industrial frequency;	The protection level can reach IP55; Powerful and comprehensive protection function; Energy saving and environmental protection;	Unattended and intelligent monitoring (optional); Air conditioner and fan for heat dissipation (optional); Energy saving;

Applications:

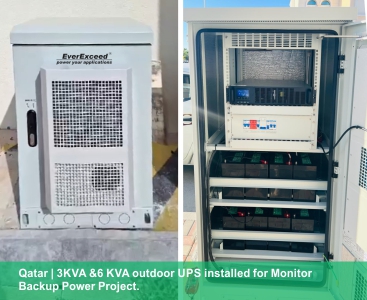

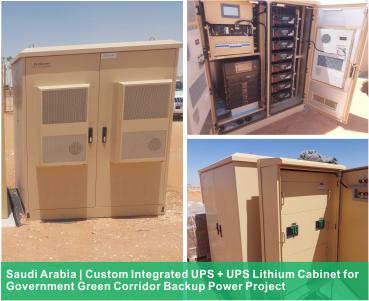

Specially designed for outdoor communication& networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area.

Technical data

MODEL	PR1K	PR2K	PR3K	PR6K	PR10K
Capacity	1KVA/0.8KW	2KVA/1.6KW	3KVA/2.4KW	6KVA/4.8KW	10KVA/8KW
INPUT
Voltage Range	115～295VAC			176-297VAC
Frequency Range	50HZ(46～54Hz)/60HZ (56-64HZ)
Soft Start	0～100%, 5 sec
Power Factor	0.98
OUTPUT
Voltage	220/230/240VAC (customizable: 110/120/127VAC)
Voltage Precision	±2%
Frequency Precision	50/60Hz±0.05Hz
Power Factor	0.8
Wave Distortion	Linear load＜3% ; Non-linear load＜6%
Overload Capability	110%～150%,for 30 seconds later, transfer to bypass; ＞150%, for 200ms later, transfer to bypass; When load is normal, it can automatically transfer to normal mode;


Crest Factor	3:01
Transfer Time	0ms (line to inverter)
BATTERY
DC Voltage	48VDC	48VDC	48VDC	192VDC	192VDC
Charge Current	4A/8A (optional)
Battery Capacity	Optional (battery type and capacity choose by customer)
SYSTEM
Display	LCD+LED
Interface	RS232, SNMP card (optional), Dry contact (optional)
IP class	IP55
Noise(1m away)	50dB (away)1m
Temperature	-25℃～55℃(operation,heater optional)
Humidity	0～95% (Non-condensing)
Altitude	<1500m. Within 1500m to 2000m, power derate 1% for every 100m rise
Weight (KG)	85	125	125	125	155
Dimension(WDH) (mm)	613640954	6507531227		9409401770

If you need to download files, you need to register as our member first ! log in / registered

EverExceed PowerRT Series UPS (1-10KVA) 20240325.pdf

Datasheet
