Round-the-Clock Power: High-Efficiency Solar Storage System for Continuous Energy Backup

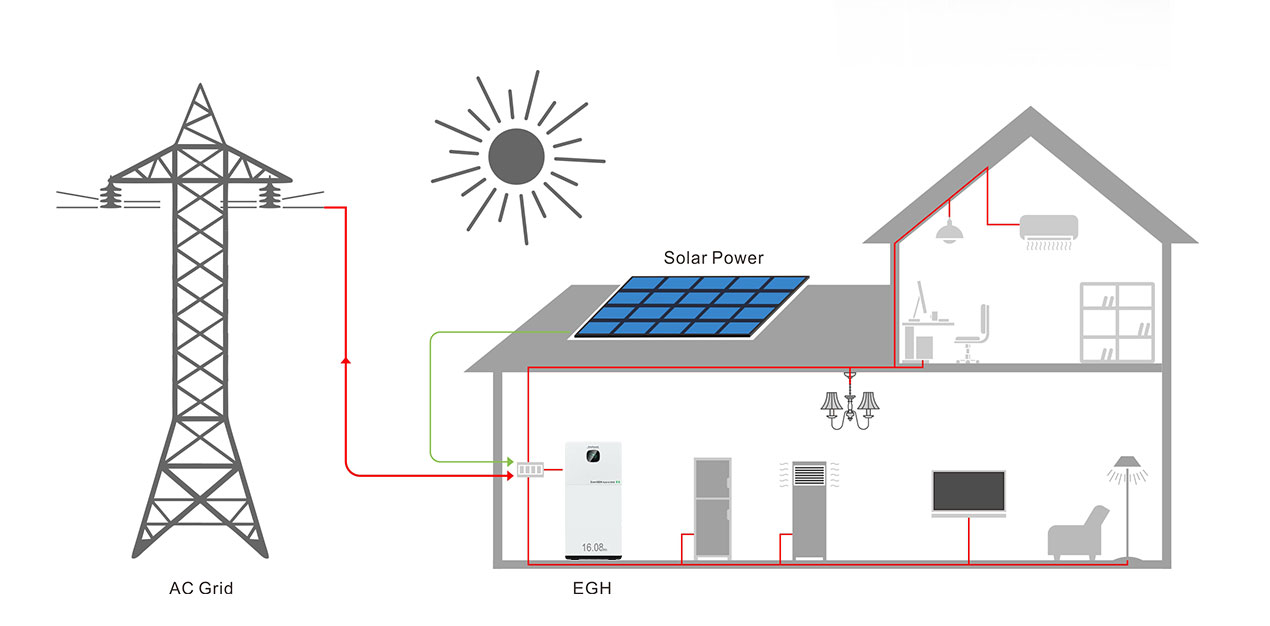

Single line diagram:
The system comprises a solar panel, an all-in-one solar energy storage unit, and related accessories. During the day, sunlight enables the solar panel to convert solar energy into electrical energy, which is stored in the battery. The battery then supplies power to the load during nighttime, rainy days, or cloudy conditions, ensuring reliable, long-term power backup.
brand:
EverExceedModel:
PV5K-EGH8K-16EMaterial:
Half-cut Mono cellMaximum Power:
575W
Round-the-Clock Power: High-Efficiency Solar Storage System for Continuous Energy Backup
Single line diagram:
| PV5K-EGH8K-16E | ||||
| Iterm | Model | Specifications | QTY | Unit |
| Main part | ||||
| Solar Panel | ESM-575NYD | Half-cut Mono cell 575W | 8 | pcs |
| All-in-one Energy Storage System | EHG8K-16E Pro | 8KW 16KWH 230VAC 50/60HZ Single Phase LiFePO4 battery ESS | 1 | pcs |
| Mounting Bracket | ER-8-ESM575NTD-1R8C | Q235 hot-dip galvanized steel/Aluminum alloy Mounting bracket | 1 | set |
| Accessories | ||||
| Solar Cable | PV Cable 4mm2 | 4mm²/1500V PV cable | 1 | kit |
| Connector | MC4 | MC4 connector | 5 | kit |
| AC Cable | BVR 6mm² | 6mm²/500V AC cable | 1 | kit |
| Terminal | VE6012 | 6mm² cable terminal | 1 | kit |
| PV MCB | NB1-63DC | 32A 2P 6kA | 1 | kit |
| PV SPD | LFM40/PV600 | 600VDC 40kA 2P | 1 | kit |
| AC Input MCB | NXB-63 | 63A 3P 6kA | 2 | kit |
| AC Input SPD | LF M40/2 | 220VAC 40kA 3P | 1 | kit |
| AC Output MCB | NXB-63 | 63A 2P 6kA | 1 | kit |
| Distribution box | PZ30 | 20 circuit distribution box | 1 | kit |
 |
|
 |
 |
