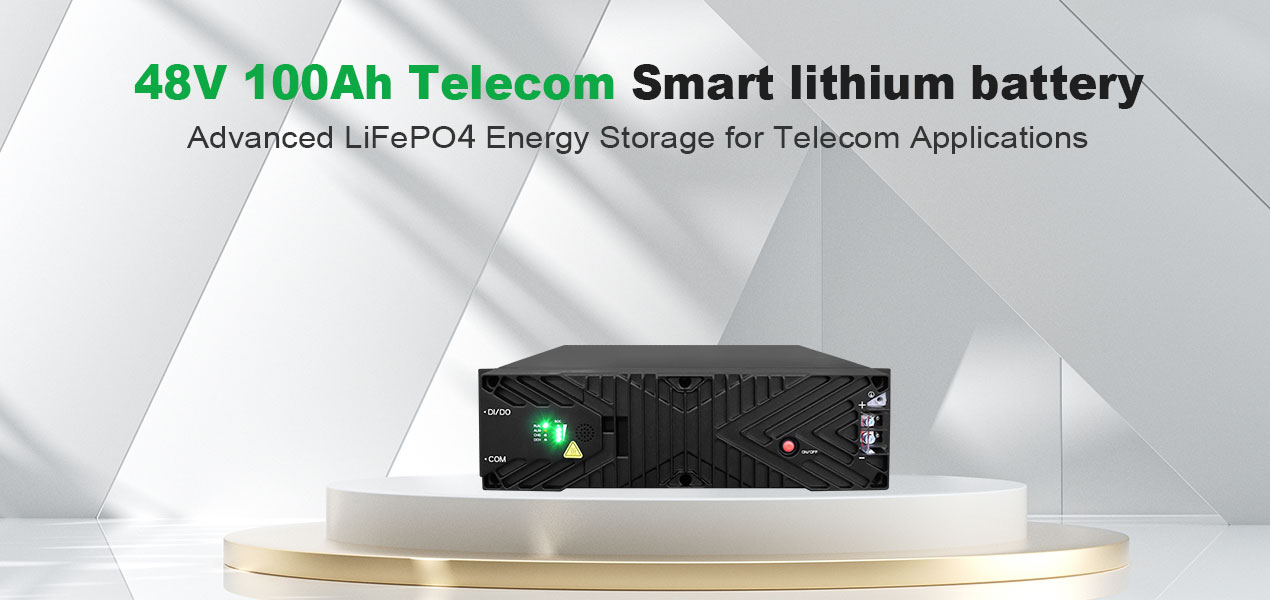

Stay ahead with EverExceed's intelligent lithium battery solution, purpose-built for modern telecom infrastructure. Now upgraded for enhanced compatibility, it supports seamless integration with both new and old lithium batteries, as well as lead-acid batteries. Designed for reliability and long service life, this battery system is your trusted backup for 24/7 uptime.
brand:
EverExceedModel:
EV48100-TRated voltage(V):
48VRated capacity(Ah):
100AhCertificates:
UN 38.3, CE, IEC62619,RoHsOEM/ODM Service:
Yes, customizedUsage:
Energy storage system;Solar application;Telecom application;Emergency lighting;Medical equipmentLong Life & Safe
4500+ cycles, 20+ years lifespan, Grade A LiFePO4 with full BMS protection.
Flexible Battery Integration

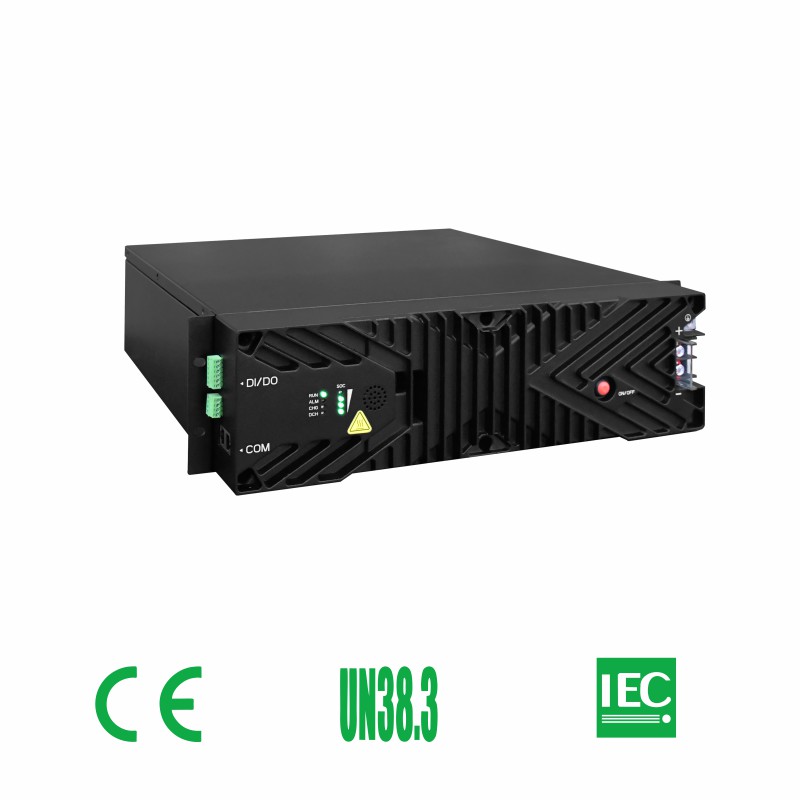

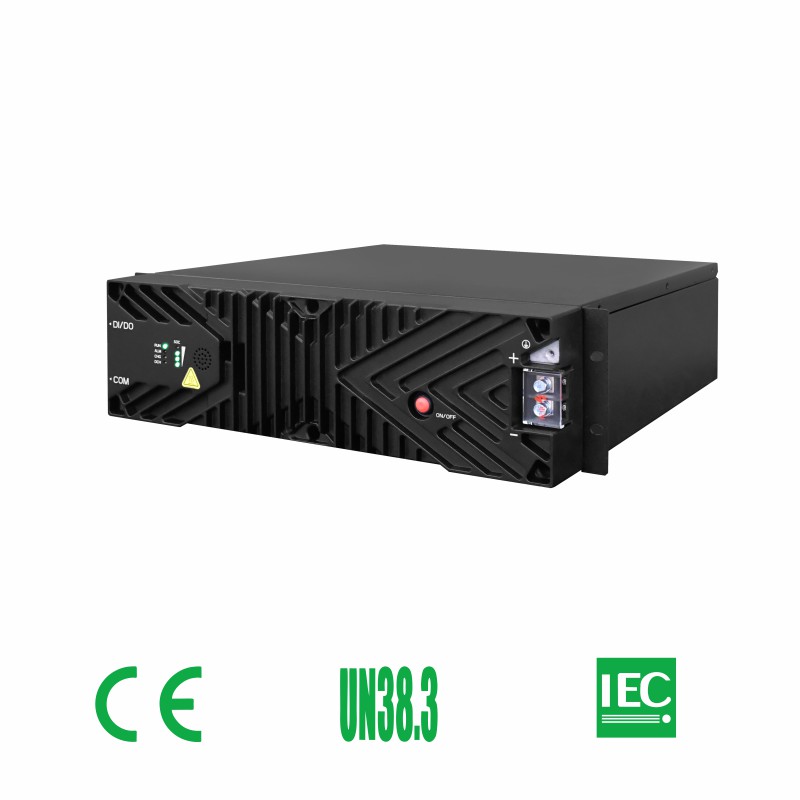

19" rack-mounted design, expandable up to 31 units, supporting mixed operation of new and existing lithium as well as lead-acid batteries, with seamless integration with Huawei rectifiers and inverters for stable and reliable system deployment.
Smart & Compatible
Works with HUAWEI/DPC, adjustable voltage, RS485/CAN communication.
| Nominal Characteristics | |
| Battery Model | EV48100-T |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 4800Wh |
| Electrical Characteristics | |
| Recommended Boost Charging Voltage | 54V±0.5V |
| Out Voltage | 54V(adjustable） |
| Recommended Charging Current | 30A |
| Maximum Charging Current | 100A |
| Maximum Discharging Current | 100A |
| Operating Conditions | |
| Cycle Life | ≥4500 Cycles@80% DOD@25℃ |
| Roundtrip Efficiency | ≥98% |
| Operating Charge Temperature | 0℃ to +60℃ |
| Operating Discharge Temperature | -20℃ to +60℃ |
| Storage Temperature | -20℃ to +60℃ |
| Mechanical Characteristics | |
| Length x Width x Height | 483（440） x 420 x 130 mm |
| Weight | 41 Kg |
| Terminal | M6 |
| IP Rating | IP20 |
 |
 |
 |
 |
 |
 |
 |
 |
If you need to download files, you need to register as our member first ! log in / registered
Q: Can EverExceed lithium batteries be used with my existing UPS batteries?
A: Yes. Our smart lithium batteries work seamlessly with lead-acid and mixed new/old batteries, making upgrades easy and cost-effective.
Q: What makes EverExceed lithium batteries compatible with different battery types?
A: The advanced BMS balances voltage and current automatically, ensuring safe, efficient performance in any battery mix.
Q: Will mixing batteries affect UPS performance?
A: No. Intelligent control delivers stable power and keeps your UPS backup time at its best.
Q: How long do EverExceed lithium UPS batteries last?
A: Up to 4500 cycles for ultra-long service life—significantly reducing replacement and maintenance costs.
Q: How fast can they switch during power outages?
A: Instant response with millisecond-level switchover, ensuring uninterrupted protection for critical systems.
