CRITICAL POWER

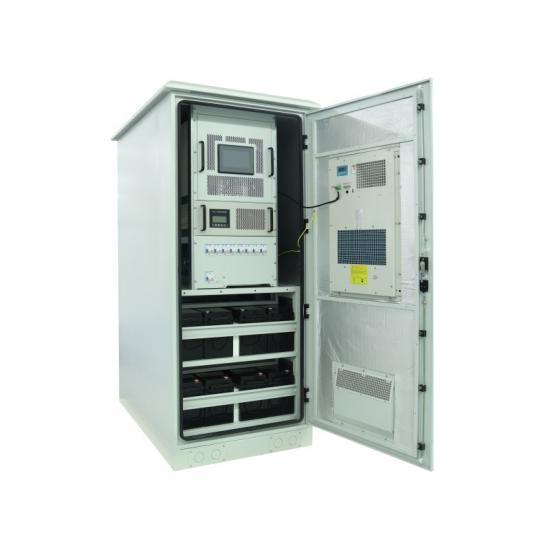

1-10kVA Power Outdoor Series UPS

1-10kVA Power Outdoor Series UPS(Can be customized to 200kVA)

220/230/240VAC, 1:1 (Customizable: 110/120/127VAC)

PowerOutdoor series UPS is specially designed for outdoor communication & networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area. High temperature resistance, frost resistance, corrosion resistant, dust prevention, and water resistance are based. With advanced functions like wide range of input voltage and frequency, high reliability, energy saving, environmental protection, anti-thunder, remote control, remote detection, our UPS can guarantee stable power supplying to communication, networking, traffic control and other device.  It is a type of ideal helpmate for running these important outdoor devices.


  • brand:

    EverExceed
  • Model:

    PowerRT 5kVA(Customized)
  • Type:

    True online double conversion
  • Rated capacity:

    5kVA
  • Rated power:

    4kW
  • Rated voltage:

    400VAC 3 Phase+Neutral+Ground
  • Rated frequency:

    50Hz/60Hz
  • Applications:

    Outdoor communication equipments
  • Certificate:

    ISO/ TLC/ Energy Conservation certificate /CE
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download


Technical advantages







Wide input voltage

High reliability

Strong adaptability
It has the widest input voltage range and input frequency window (-45% to + 35% of rated voltage and ±10 % rated frequency) and has passed the harsh power grid test in remote areas of many countries;

The input terminal is equipped with dual isolation and voltage stabilization function;

Internal battery warehouse;


Strong environmental adaptability;

The input and output voltage can be 1:1,3:1, 3:3;

Wide adaptability to the power grid;











Flexible customization

High safety

Smart & energy saving

Cabinet space can be designed according to battery capacity;

The charging part can be customized;

The UPS host part can be designed according to the technical requirement of high frequency and industrial frequency;


The protection level can reach IP55;

Powerful and comprehensive protection function;

Energy saving and environmental protection;


Unattended and intelligent monitoring(optional);

Air conditioner and fan for heat dissipation(optional);

Energy saving;



Structure design



Applications:


Specially designed for outdoor communication& networking equipment, traffic control system and other applications of city corner, countryside, or mountainous area.




MODEL PR-1K PR-2K PR-3K PR-6K PR-10K
Capacity 1KVA/0.7KW 2KVA/1.4KW 3KVA/2.1KW 6KVA/4.2KW 10KVA/7KW
INPUT
Voltage Range 115~295VAC 176~297VAC
Frequency Range 50HZ(46~54Hz)/60HZ (56-64HZ)
Soft Start 0~100%, 5sec
Power Factor 0.98
OUTPUT
Voltage  220/230/240VAC (Customizable: 110/120/127VAC)
Voltage Precision ±2%
Frequency Precision 50/60Hz±0.05Hz
Power Factor 0.7/0.8(Optional),standard 0.7
Wave Distortion Linear load<3% ;Non-linear load<6%
Overload Capability 110%~150%,for 30 seconds later, transfer to bypass
>150%, for 200ms later, transfer to bypass;
When load is normal, it can automatically transfer to normal mode.
Crest Factor 3:1
Transfer Time 0ms (line to inverter)
BATTERY
DC Voltage 36VDC 96VDC 96VDC 240VDC 240VDC
Charge Current 4A/8A (optional) 4A/8A (optional) 4A/8A (optional) 4.2A 4.2A
Battery Capacity  Optional (Battery type and capacity choose by customer)
SYSTEM
Display LCD+LED
Interface RS232, SNMP card (optional), Dry contact (optional)
IP class IP55
Noise 50dB(1m away)
Temperature -25℃~55℃(operation,heater optional)
Humidity 0~95% (Non-condensing)
Altitude 1500m
Weight (KG) 85 125 125 125 155
Dimension (W*D*H) (mm) 613*640*954 650*753*1227  940*940*1770






If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed PowerRT Series UPS (1-10KVA)(2022-05-13).pdf
