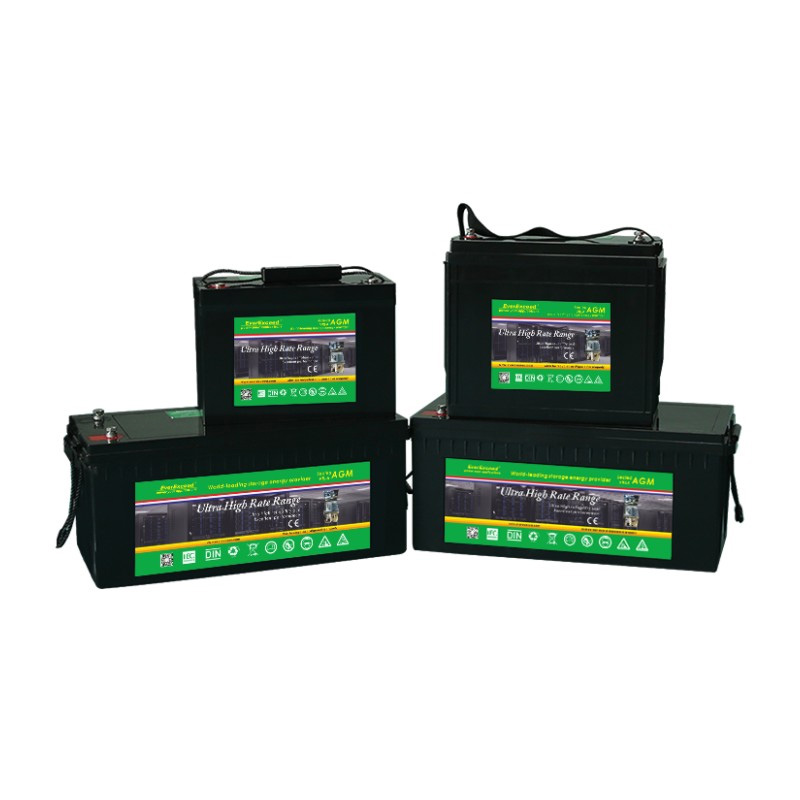

Lead Acid Battery

Ultra High Rate VRLA/AGM Battery for UPS Use

The extremely powerful, compact AGM batteries of EverExceed Ultra High Rate Range are an ideal power solution for Uninterruptible Power Supply (UPS), emergency lighting, switchgear, telecom and other high rate emergency battery backup required applications. The EverExceed Ultra High Rate Range VRLA batteries provides high performance and reliability in fast discharge applications. Our development team combines the market's demand with design optimization, precision component selection and stateof-the-art manufacturing process to produce the most cost effective battery solution for today's applications.


  • brand:

    EverExceed
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download

Ultra High Rate VRLA/AGM Battery for UPS Use

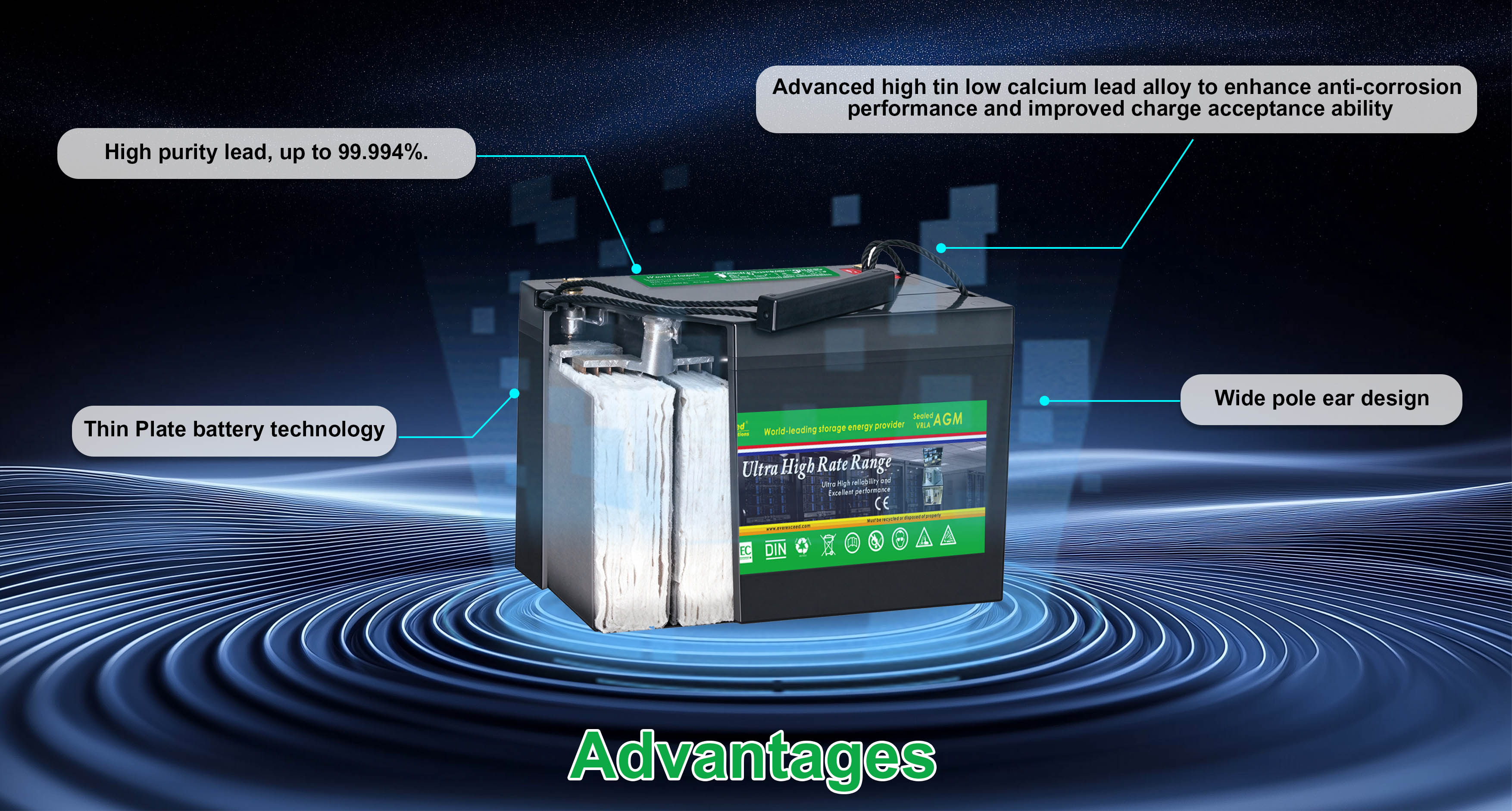

Technical features:











Long design life

High density designed
Easy installation





12 years design life @ 25˚C(77˚F);Slow self discharge rate: <3%/month;
Ultra high energy density designed, specially for high current and high power discharge UPS system;

Heavy duty threaded copper alloy terminals for ease of assembly, reduced maintenance and increased safety.










High reliability
Proprietary fixed pasting technology
High Protection





Advanced high tin low calcium lead alloy, minimizing plate grid corrosion and promotes long battery life.

Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance and higher capacity;

Fire-proof and explosion-proof, used for a single battery fire-resistance, low-voltage safety release ventilation system, in line with U.L. 94V0.






Constrution:



① Plates: Low calcium / high tin lead alloy, optimized for high corrosion resistance.;


② Separator: Highly porous glass micro-fibre separator, optimized for low internal resistance;


③ Standard Housing: Reinforced ABS (UL 94HB) container and cover;

    Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%;


④ Terminals:Silver plated copper female insert for easy and safe assembly and maintenance free connection with Excellent conductivity;


⑤ Valve: Release gas in case of excess pressure & protects the cell against atmosphere.



Applications

●Uninterruptible Power Supply (UPS);      ●Switchgear;Emergency lighting;     ●Overhead cranes;      ●Telecom;Alarm and security;      ●Industrial DC power



Factory



Model Nom. Voltage (V) 15 min. WPC to 1.67VPC Short Circuit Amps Internal Resistance (mΩ) Terminal Type Battery Weight (kg/lbs) Outline Dimensions (mm/inch)
Length Width Height
UHR 12-21W 12 21 250 45 Faston Tab No. 187 1.60 3.52 90/3.55 70/2.76 102/4.02
UHR 12-24W 12 24 260 28 Faston Tab No. 187 1.80 3.96 90/3.55 70/2.76 102/4.02
UHR 12-24W-1 12 24 260 28 Faston Tab No. 250 2.10 4.62 151/5.95 65/2.56 94/3.70
UHR 12-34W 12 34 350 20 Faston Tab No. 250 2.55 5.61 151/5.95 65/2.56 94/3.70
UHR 12-36W 12 36 355 18 Faston Tab No. 250 2.47 4.53 151/5.95 65/2.56 94/3.70
UHR 12-55W 12 55 480 13.4 Faston Tab No. 250 3.90 8.58 151/5.95 98/3.86 94/3.70
UHR 12-88W 12 88 830 10 F-M5 6.00 13.2 181/7.13 76/2.99 167/6.58
UHR 12-90W 12 90 1315 9.8 F-M5 8.40 18.5 165/6.49 125.5/4.94 175/6.88
UHR 12-98W 12 98 1550 9.5 F-M5 8.50 18.7 176/6.90 166/6.54 126/4.96
UHR 12-140W 12 140 2140 7.6 F-M6 10.8 23.8 195/7.68 130/5.12 154/6.06
UHR 12-200W 12 200 2410 7.2 F-M6 16.5 36.3 230/9.05 137/5.39 210/8.27
UHR 12-290W 12 290 3300 5.5 F-M6 24.0 52.8 259/10.2 168/6.62 215/8.5
UHR 12-350W 12 350 3550 5.0 F-M6 25.0 55.0 259/10.2 168/6.62 215/8.5
UHR 12-420W 12 420 4200 4.3 F-M8 31.5 69.3 332/13.1 174/6.86 225/8.8
UHR 12-460W 12 460 4550 3.5 F-M8 33.0 72.6 332/13.1 174/6.86 225/8.8
UHR 12-480W 12 480 4600 3.4 F-M8 35.5 78.1 408/16.0 175/6.89 230/9.06
UHR 12-520W 12 520 4800 3.3 F-M8 38.0 83.6 408/16.0 175/6.89 230/9.06
UHR 12-540W 12 540 5000 3.2 F-M8 40.0 88.0 340/13.4 173/6.81 288/11.3
UHR 12-580W 12 580 5400 3.1 F-M8 43.5 95.7 480/18.9 170/6.69 240/9.45
UHR 12-635W 12 635 5500 3.0 F-M8 51.5 113 530/20.8 210/8.26 220/8.66
UHR 12-700W 12 700 6000 2.8 F-M8 54.5 120 530/20.8 210/8.26 220/8.66
UHR 12-760W 12 760 6150 3 F-M8 65.0 143.0 520/20.5 238/9.37 220/8.66
UHR 12-820W 12 820 6300 3 F-M8 68.0 150 520/20.5 238/9.37 220/8.66
UHR 12-880W 12 880 6600 3 F-M8 70.0 154 520/20.5 238/9.37 220/8.66

If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed UHR Ultra High Rate Range Battery V1.1.pdf
Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related products
r
EverExceed, as a world-class enterprise,established in 1985, operations on six continents.

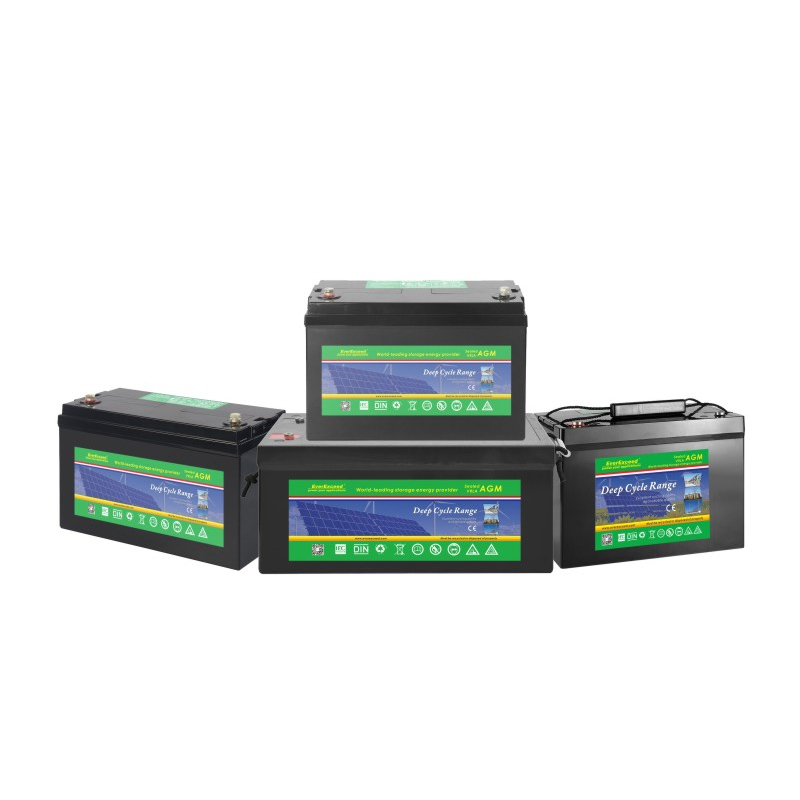

Deep Cycle Solar Battery

Deep Cycle AGM Range VRLA Battery

EverExceed top terminal Deep Cycle AGM Range provides high performance and reliability in long duration cycling applications. Our development team combines the market demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost effective Deep Cycle battery solution for today's applications.

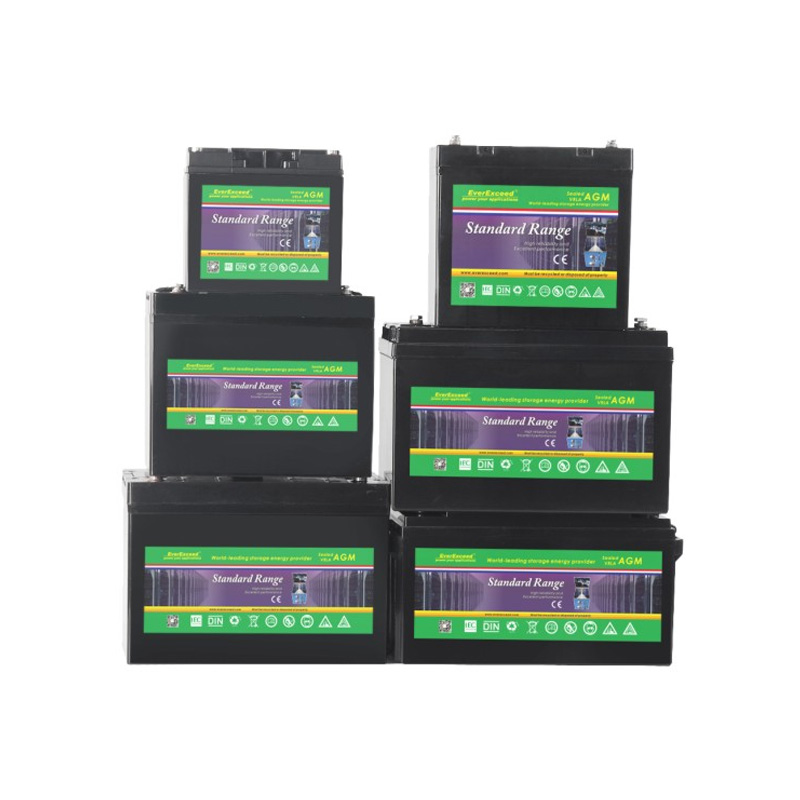

UPS battery

Standard Range VRLA Battery

EverExceed top terminal Standard Range provides high performance and reliability in long duration discharge applications. Our development team combines the market's demand with design optimization, precision component selection and state-of-the-art manufacturing process to produce the most cost effective battery solution for today's applications.

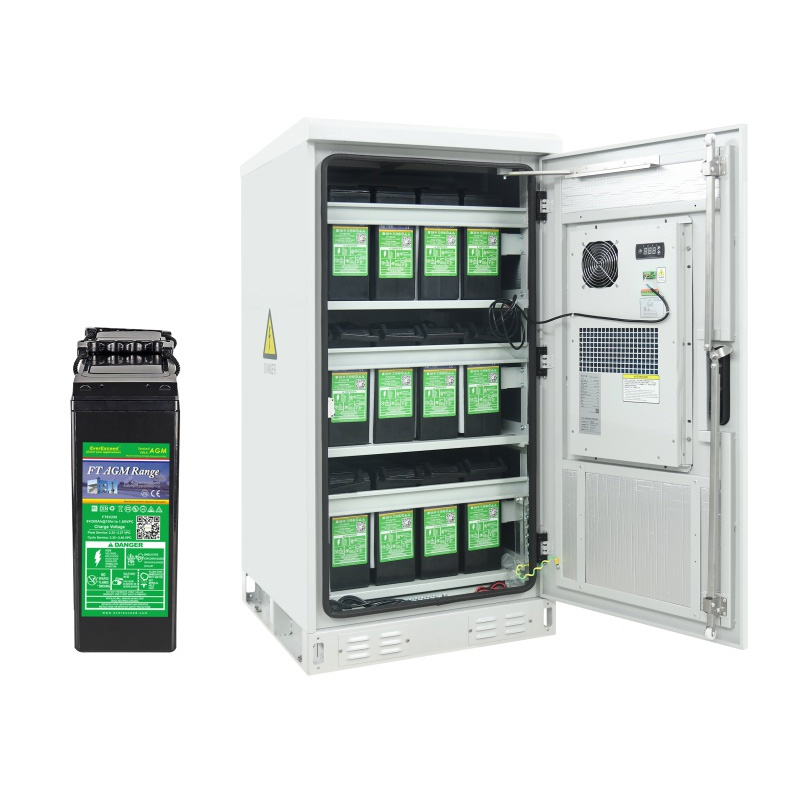

48V UPS and telecom battery
