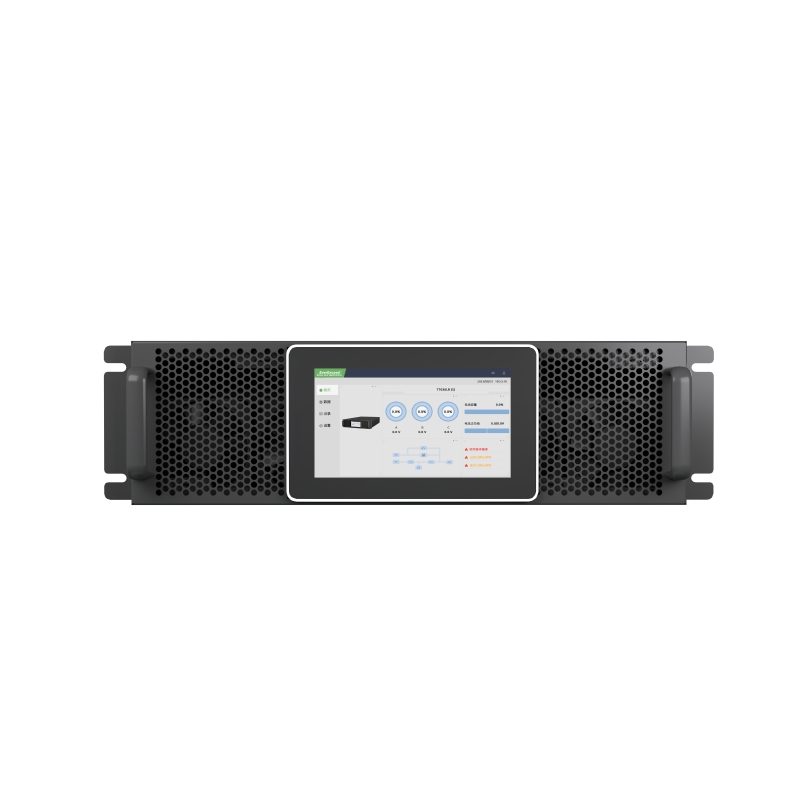

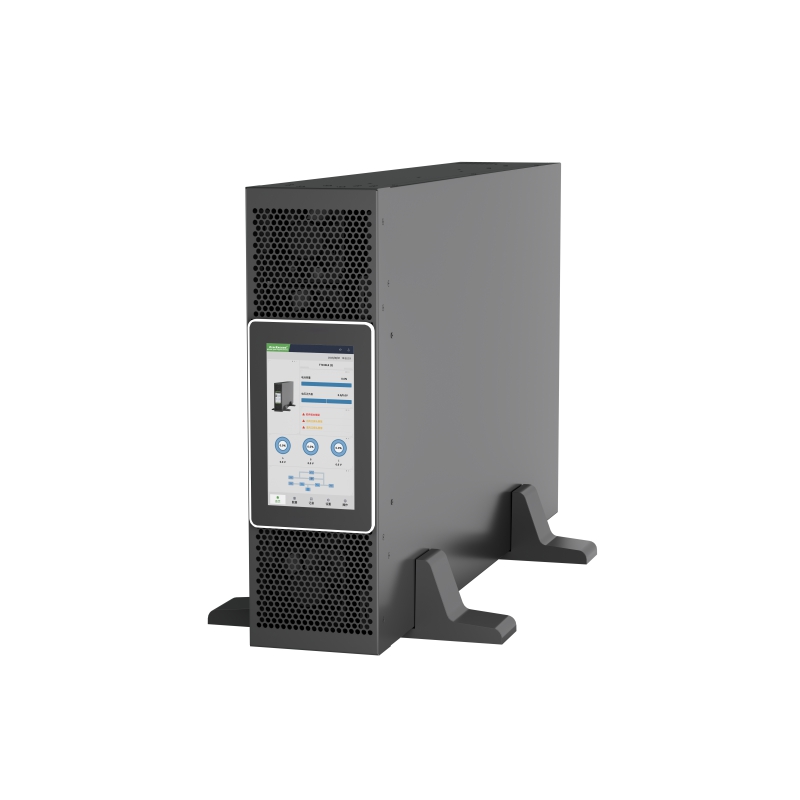

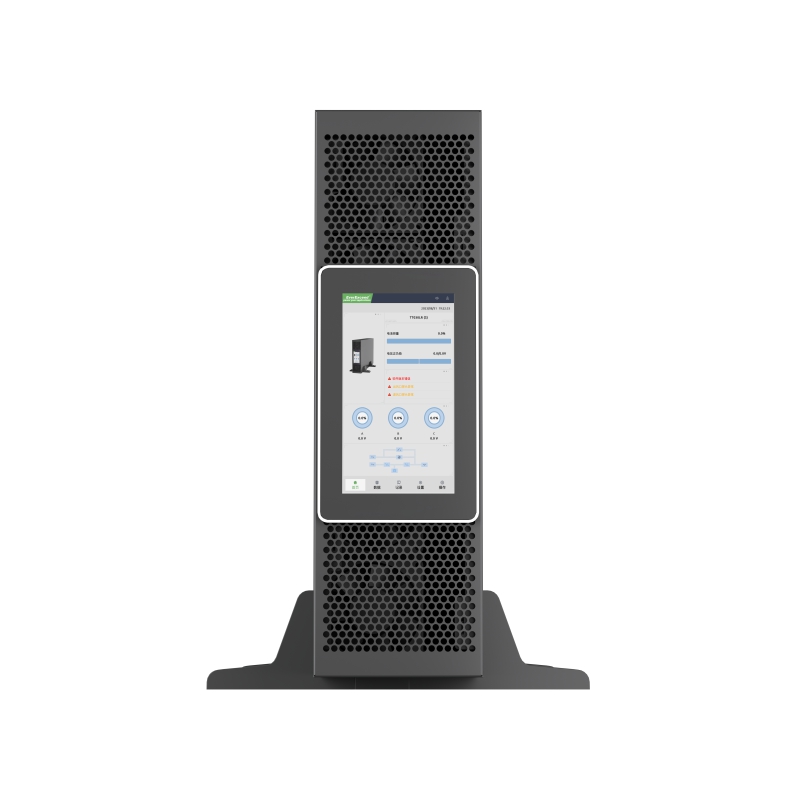

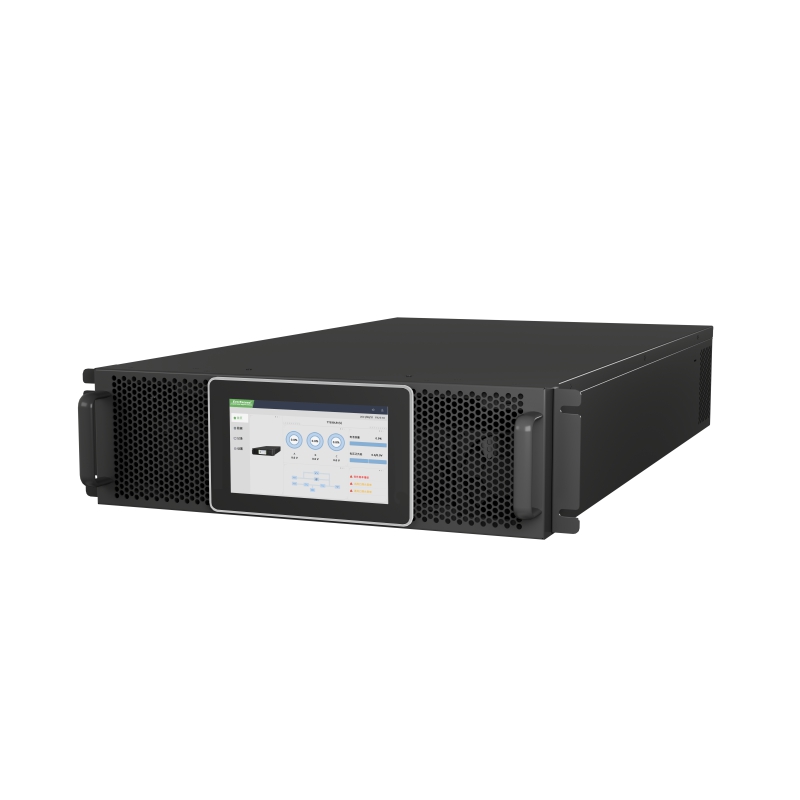

The EverExceed PL33 RM Series UPS (10–40kVA) provides efficient online double-conversion power protection with flexible rack/tower design.
It ensures high reliability, up to 96% efficiency, and stable power for data centers and critical applications.
brand:
EverExceedModel:
PL33 RM10L / RM15L / RM20L / RM30L / RM40LType:
Online double conversionRated power:
10–40kVARated voltage:
380/400/415VACRated frequency:
50/60HzEfficiency:
>96%Certificate:
IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge)
EverExceed| A global leading manufacturer of customized AC/DC power solutions；
Ultimate reliable power protection solution for government, finance, IT, education, transportation, broadcasting, medical, energy and other critical sectors, ensuring continuous and stable operation.
| Model | PL33 RM10L | PL33 RM15L | PL33 RM20L | PL33 RM30L | PL33 RM40L | |||||||||
| Rate Power | 10kVA | 15kVA | 20kVA | 30kVA | 40kVA | |||||||||
| Main input | Input | 3P5W (3P+N+PE) | ||||||||||||
| Rate Voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | |||||||||||||
| Rate Freq. | 50/60Hz | |||||||||||||
| Input PF | >0.99 | |||||||||||||
| Current distortion | THDi<3% (100% Linear load) | |||||||||||||
| Voltage range | 304 478VAC(L-L)full load 304 228VAC (L-L) power derate from 100% to 75% | |||||||||||||
| Freq. range | 40-70Hz | |||||||||||||
| Battery | Rate voltage | ±240VDC | ||||||||||||
| Charging capacity | 20%*Pout | |||||||||||||
| Charging accuracy | ±1% | |||||||||||||
| Bypass | Rate voltage | 380/400/415VAC(L-L)220/230/240VAC(L-N) | ||||||||||||
| Voltage range | Range: -40%- +25% , Settable, default -20% +15% | |||||||||||||
| Frequency range | 50/60Hz Settable ±1Hz ±3Hz ±5Hz | |||||||||||||
| Inverter | Rate voltage | 380/400/415VAC(L-L) 220/230/240VAC(L-N) | ||||||||||||
| Rate Freq. | 50/60Hz | |||||||||||||
| Output PF | 1 | |||||||||||||
| Voltage accuracy | ±1.0% | |||||||||||||
| Load response | <5% (20% - 80% -20% step load) | |||||||||||||
| Recovery time | < 20ms (0% - 100% -0% step load) | |||||||||||||
| Output THDu | <1% linear load ,<5% (non-linear load according to IEC 62040-3) | |||||||||||||
| Overload | 110%,1 hour 125%,10 mins 150%,1 min >150%,200ms | |||||||||||||
| Frequency accuracy | 0.1% | |||||||||||||
| Synchronize window | Settable ±0.5Hz-±5Hz default ±3Hz | |||||||||||||
| Slew rate | Settable 0.5Hz/S-3Hz/S default 0.5Hz/S | |||||||||||||
| Crest factor | 3:1 | |||||||||||||
| Phase Accuracy | 120°±0.5° | |||||||||||||
| System | Efficiency | Normal Mode up to 96%; Battery Mode up to 96% | ||||||||||||
| Display | LED + 7 inch touch LCD | |||||||||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | |||||||||||||
| Certification- EMS | IEC62040-2 IEC61000-4-2(ESD) IEC61000-4-3(RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) | |||||||||||||
| IP degree | IP20 | |||||||||||||
| Configuration | USB, RS232, RS485, Dry contact | |||||||||||||
| Option | SNMP card, AS400 card, Parallel kit, LBS, Air filter, Cold start | |||||||||||||
| Environment | 0-40℃(operation);-25℃~70℃(storage);0-95% (Humidity, non-condensing ) | |||||||||||||
| Dimension (W*D*H) mm | 440*774*130 (3U) | 440*788*174 (4U) | ||||||||||||
| Weight(kg) | 27 | 28 | 29 | 38 | ||||||||||
