Solar Energy Storage

High Safety 51.2V 16kWh LiFePO4 Floor-Standing Battery with BMS and Wheels for Home Backup Power

EverExceed’s EP Series 16kWh lithium battery adopts a floor-standing design with premium LiFePO4 cells and flame-retardant materials to ensure long-lasting reliability.

To further enhance safety, the system is equipped with independent physical aerosol fire extinguishers, delivering active fire protection beyond conventional passive methods.

The optimized internal heat dissipation structure and sleek cabinet design make it ideal for residential backup applications—combining performance, safety, and aesthetics.



  • brand:

    EverExceed
  • Model:

    EP-48280W / EP-48314W
  • Rated voltage(V):

    48V / 51.2V
  • Rated capacity(Ah):

    280Ah / 314Ah
  • Installation:

    Floor mounted
  • Certificates:

    IEC62619; UN 38.3; RoHS; CE
  • OEM/ODM Service:

    Yes, customized
  • Max. Discharging Current:

    100A
  • Features
  • TECHNICAL DATA

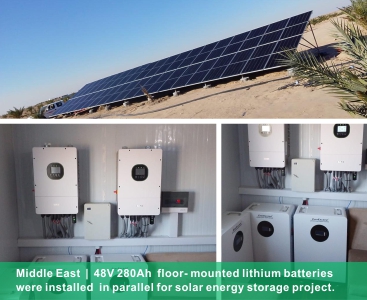

  • SUCCESSFUL CASES
  • Download

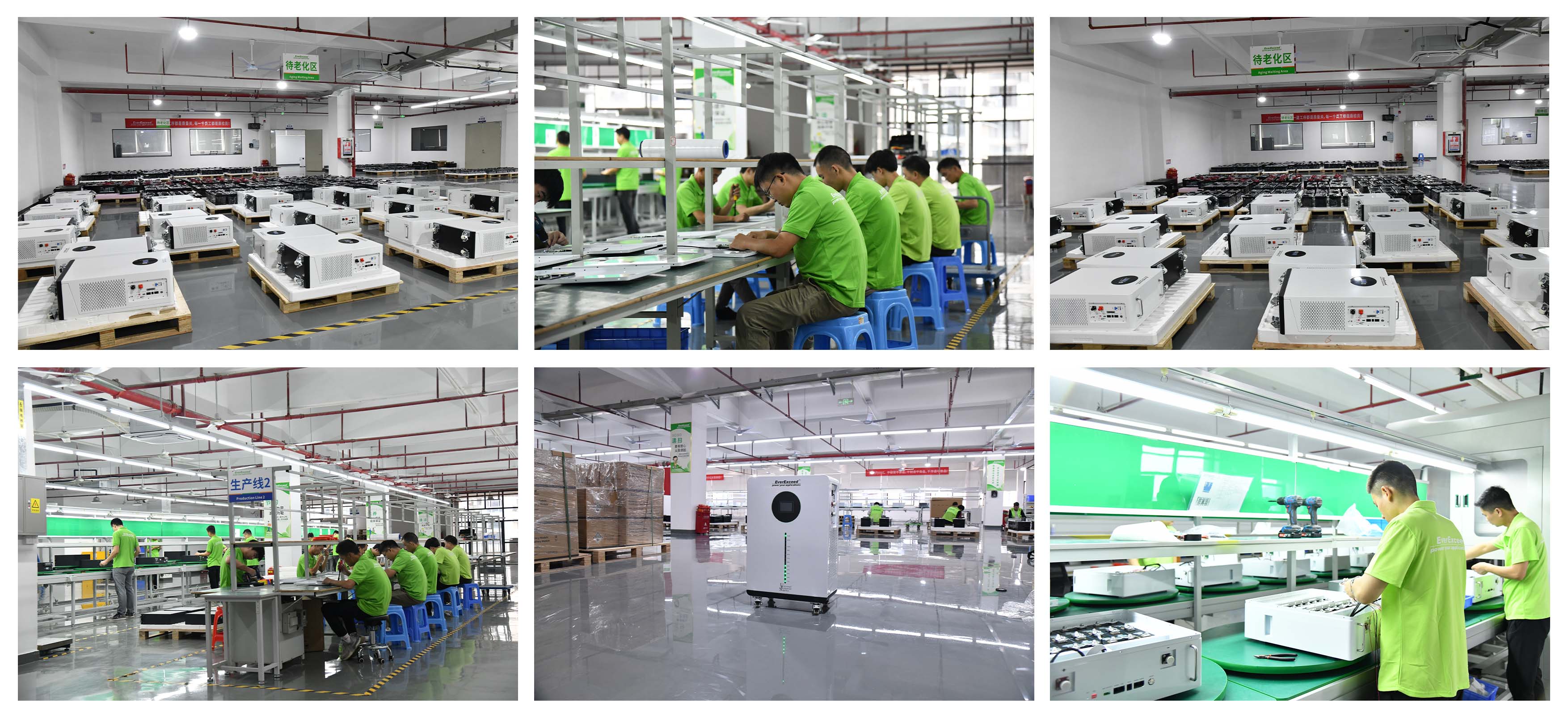

  • Factory
  • Video
  • FAQ

High Safety 51.2V 16kWh LiFePO4 Floor-Standing Battery with BMS and Wheels for Home Backup Power

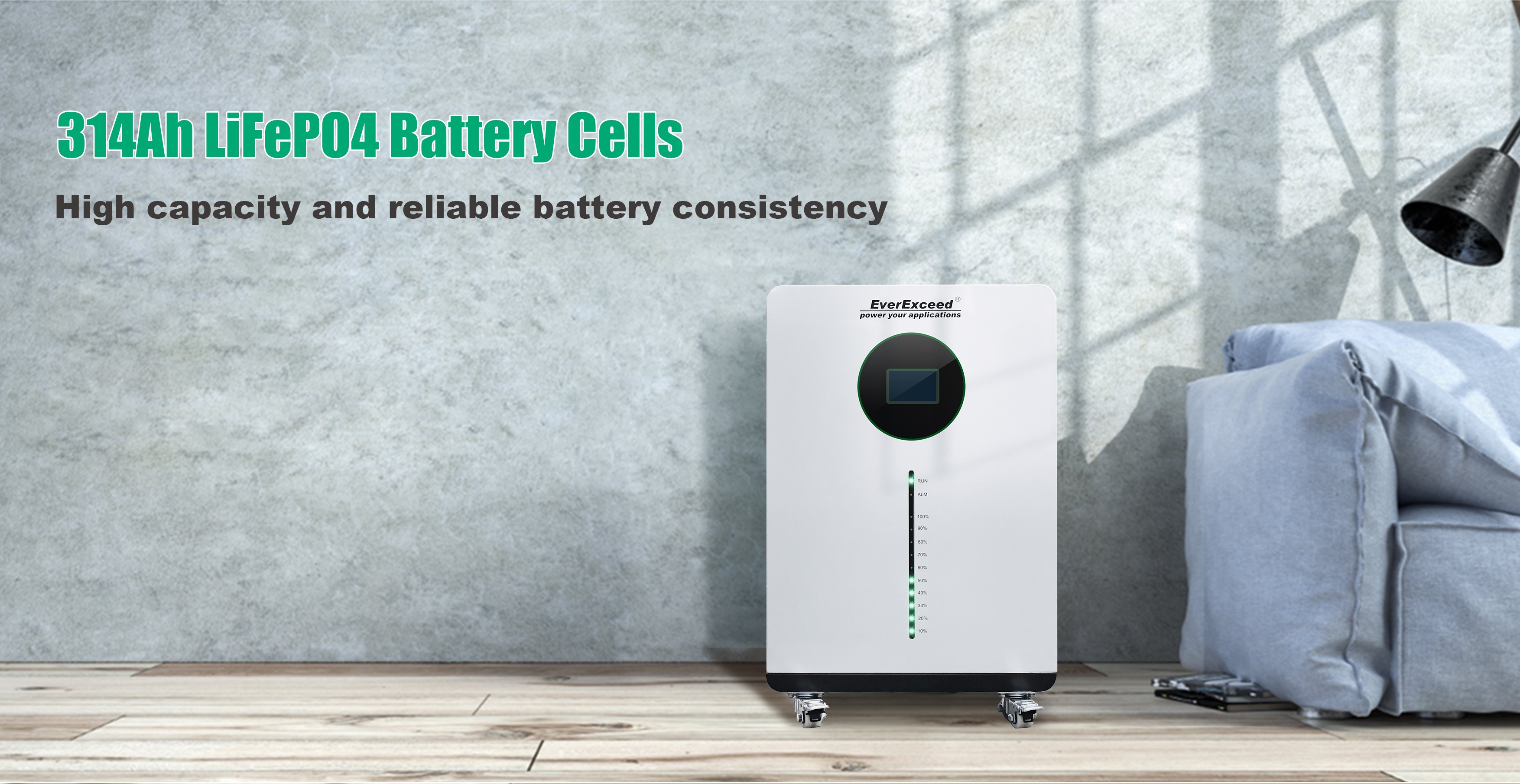

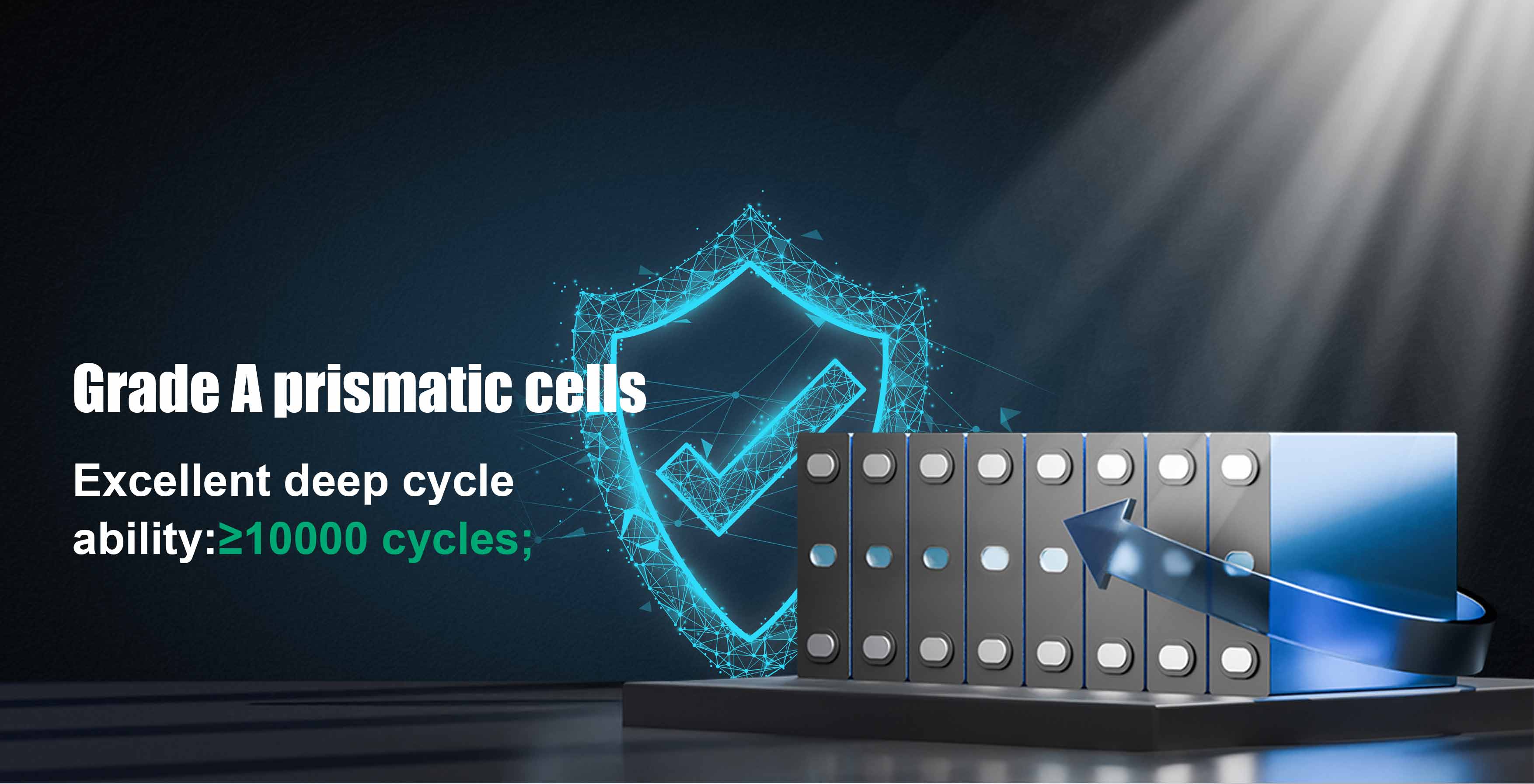

The 280Ah/314Ah LiFePO4 battery cells offer large capacity, ensuring consistent performance while helping to save on material costs.

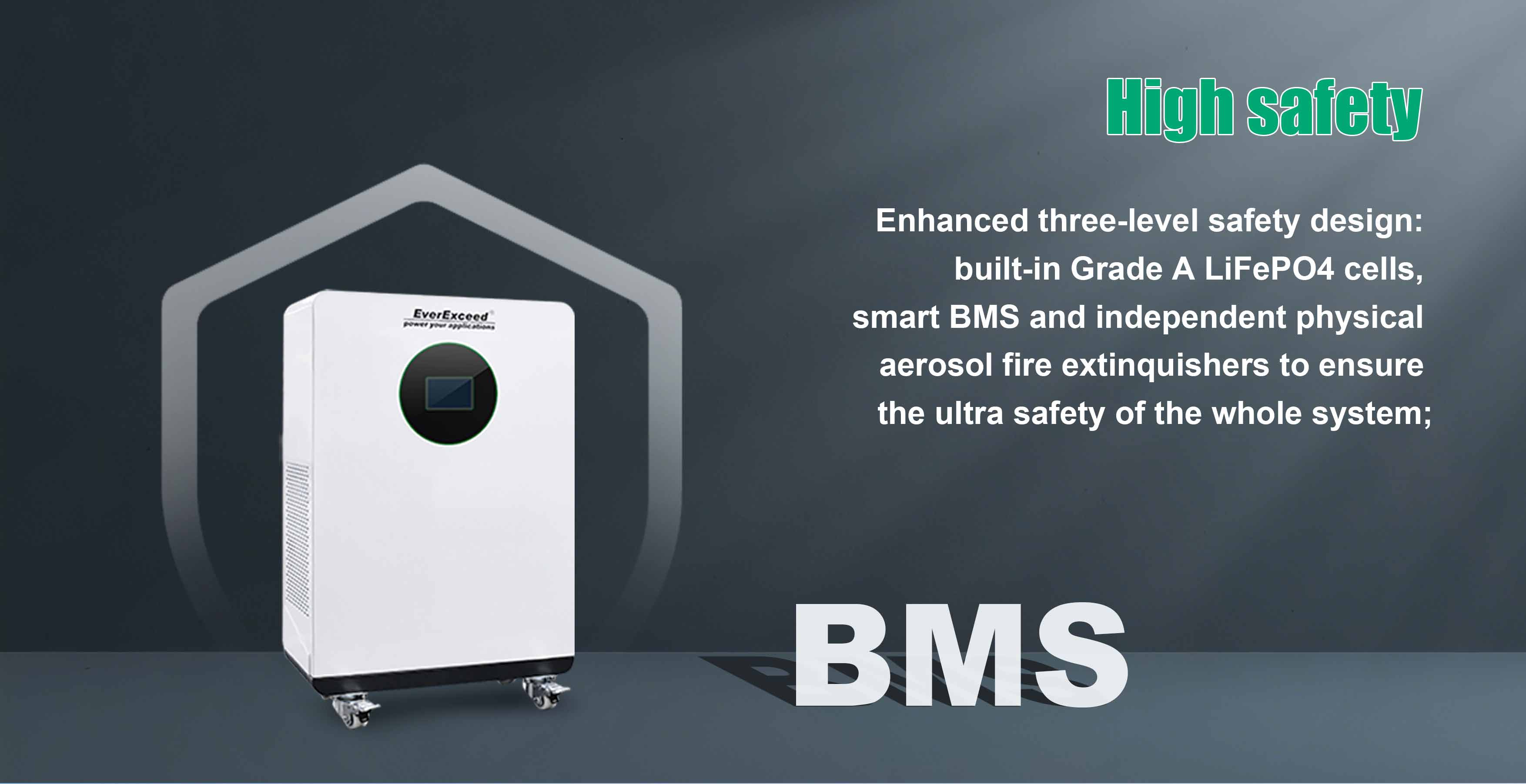

High-safety LiFePO₄ battery with smart BMS and built-in aerosol fire suppression – designed for reliable home energy storage.




Designed for convenience, the system offers a touchscreen, mobile-friendly wheels, quick installation, and true plug-and-play functionality.





How to work

1. Smart Energy Usage with Solar PV
During the day, PV powers the load and charges the battery with excess energy. At night, stored energy supplies the load—helping to reduce grid reliance and save on electricity bills.

2. Ensure uninterrupted power supply
In case of grid failure and no solar input, the lithium battery automatically powers the load—ensuring continuous power supply for critical systems.
3. Peak-to-valley spread arbitrage
Storing capacity on batteries when tariffs low using battery capacity when tariffs peak. Save on peak rate costsStore power in batteries when electricity prices are low, and use battery power during peak hours to save on energy costs.


Battery Type
LiFePO4
(lithium iron phosphate battery)
Battery Model EP-48280W EP-48314W
No. Of Cells In Series 15 / 16 15 / 16
Norminal Voltage 48V /51.2V 48V /51.2V
Norminal Capacity 280Ah 314Ah
Norminal Energy 13.44KWh /14.33kWh 15.07KWh /16.07kWh
Recommended Charging Voltage 54V / 57.6V 54V / 57.6V
Recommended Charging Current 60A
Max. Charging Current 100A
Max. Discharging Current 100A
Working Temperature

Charge: 0℃ to 50 ℃

Discharge: -20℃ ℃to 60℃

Storage: -20℃ to 60℃
Cycle Life ≥10000 Cycles @80% DOD, 25℃, 0.2C
Dimension(H×W×D) 740*520*260mm
IP Rating IP20
Weight 113kg±5kg / 118kg±5kg 115kg±5kg / 120kg±5kg




If you need to download files, you need to register as our member first ! log in / registered

  • EP-48314W V2.0 20250526-100A.pdf

1.  What is the main application of this lithium battery?
This battery is primarily used for home backup power, off-grid solar energy storage, RVs, outdoor activities, and small commercial applications.


2.  Is it compatible with solar panels?

Yes.  The unit supports solar charging and is compatible with most solar charge controllers and inverters.  MPPT compatibility is recommended for optimal efficiency.

3.  Is it safe for indoor use?
Absolutely. LiFePO₄ batteries are among the safest lithium battery chemistries. The system includes a built-in Battery Management System (BMS) for protection against overcharge, over-discharge, overheating, and short circuits. Additionally, it features an independent physical aerosol fire extinguisher for enhanced fire safety.

4.  How long is the battery lifespan?
The battery is rated for over 10000 cycles at 100% depth of discharge (DoD), which can provide 10+ years of service under normal usage.

5.  How long does it take to fully charge the battery?
This depends on the charging power. The battery supports a maximum of 150A charging and can be fully charged in 2-3 hours at full power.

6.  Is it easy to move?
Yes.  The battery comes in a vertical cabinet with industrial-grade wheels and a handle, allowing for easy transportation and positioning.

7. Can the battery be monitored remotely?
Yes, the battery supports Bluetooth monitoring via a dedicated mobile application. Users can check real-time battery status, including SOC (State of Charge), voltage, current, temperature, and fault alarms directly from their smartphone. This enables convenient and efficient system management.

8. Is the battery compatible with inverters?

Yes, the battery is compatible with most mainstream inverters on the market (such as deye, Voltronic, SMA, VE, etc.).


9.What’s the payback period for solar + lithium storage?
In many regions, especially where electricity costs are high, the ROI for hybrid solar + storage systems can be achieved within 2 years.
