ESG Series Stacked Solar Telecom Base Station Power Supply

EverExceed’s ESG Series is a next-generation DC power solution that integrates solar PV energy with existing telecom power systems. By superimposing solar electricity onto conventional DC power, it helps operators reduce energy costs, cut carbon emissions, and ensure stable, uninterrupted power — the ideal green energy retrofit for modern base stations.

brand:
EverExceed
Solar MPPT:
96%
Efficiency:
98%
Cooling:
Air-cooled
Monitor System:
Yes

inquiry now

Design highlight:


High efficiency: System efficiency >96%, MPPT efficiency >99.7%	Hot-swappable modules: Replace faulty modules without shutting down	Comprehensive monitoring: Real-time MPPT, voltage, and current tracking

Remote management: Supports Modbus, SNMP, and more	Flexible installation: Wall-mounted, pole-mounted, or floor-mounted options	Low-carbon design: Maximizes solar energy utilization for sustainable telecom networks

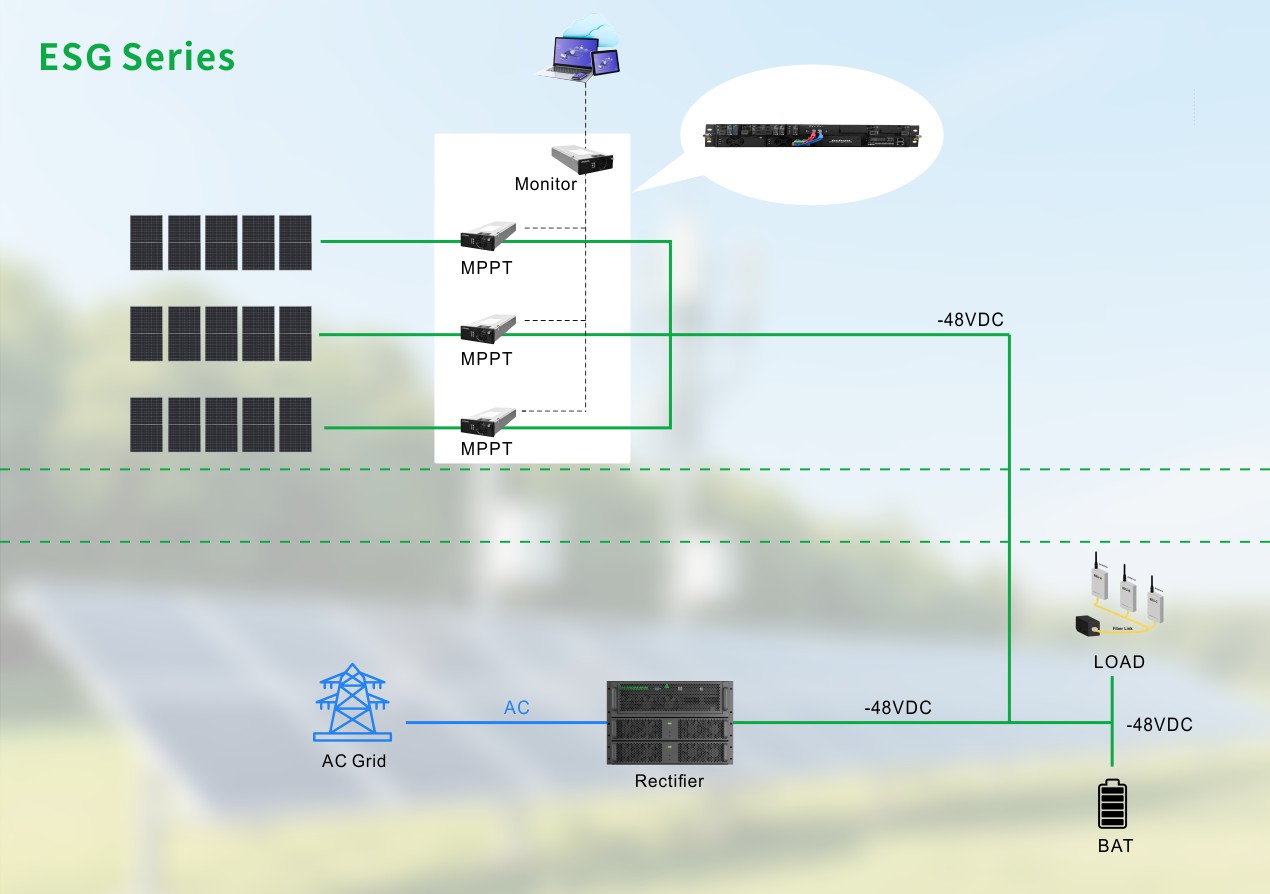

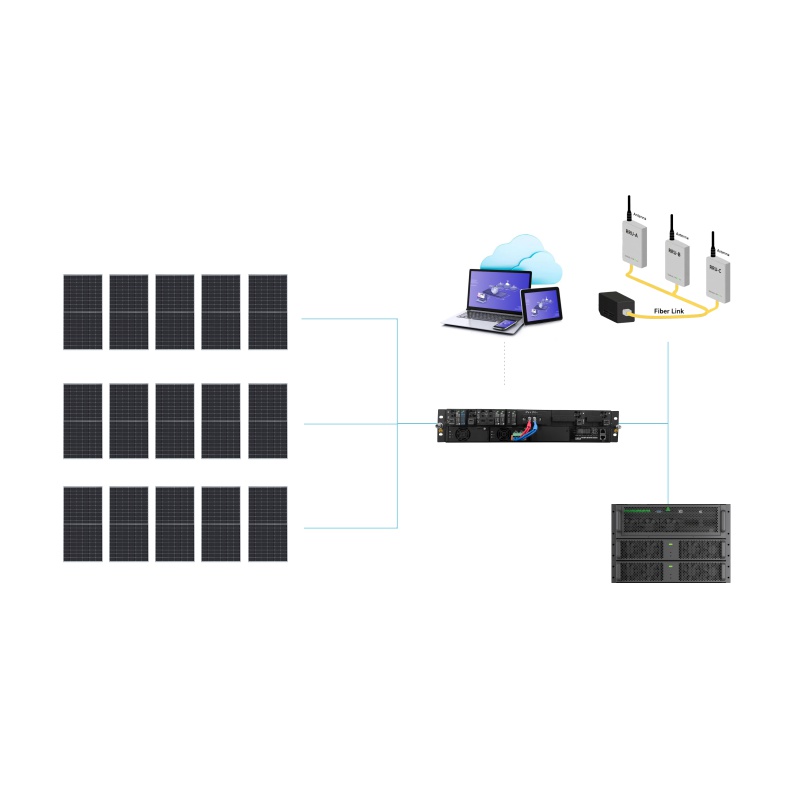

Work mode:

Sunny conditions: The MPPT output voltage is set slightly higher than the bus voltage (+0.5–2.0V), prioritizing solar power.

Low light: The system seamlessly switches to grid or battery power without interruption.

Hybrid supply: Daily solar-first operation with grid backup, plus surplus solar charging the lithium battery to extend backup time.

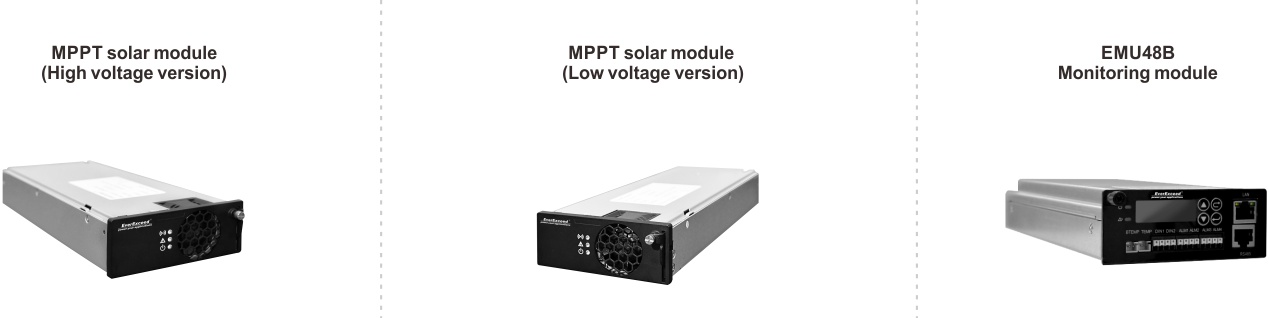

Key component

ESB Series	ESBP48-50	ESBP48-100	ESBP48-150
MPPT Efficiency	≥ 96%
Installation Method	Wall-mounted/pole-mounted/floor-standing
Heat Dissipation Method	Air-cooled
Input parameters
Input voltage range	high-pressure version：100~400Vdc (100~200Vdc de-rating)
	low-pressure version：58~150Vdc
Rated input power (W)	3000	6000	9000
Number of components connected	1	2	3
Inrush Current	≤150% of steady-state peak input current at rated input voltage
Output parameters
Output working voltage range	42/54.5/58 (Vdc)
(min/typ/max)
Output Over Voltage Protection	59V

Output Regulation	-0.5/0.5 (%)
Maximum Output Noise	<200 mV (bandwidth 20MHz)
Start-up Time	<10s
Monitoring and display
Communication method	Modbus RS485/SNMP
Display	Monitoring module LCD display
Environmental detection	Environmental temperature and humidity, battery temperature, door magnet, smoke, water immersion, and other environmental information detection
Protection features
Photovoltaic input protection	Input overvoltage and undervoltage protection, reverse connection protection, anti-reverse flow protection, surge and lightning protection, etc.
Output protection	Overvoltage and undervoltage protection, overcurrent protection
Conventional protection	Heat dissipation overtemperature protection and overtemperature derating operation, environmental overtemperature protection, etc.
Other parameters
Operating Temperature	75℃(full load from -40~ +55℃)
MTBF	300,000h
Audible Noise	< 55dBA
Humidity	5%~90%(Non Condensing)
Altitude	2000m(It is derated from above 2000m)

If you need to download files, you need to register as our member first ! log in / registered

Telecom Power System ESG Series V1.0 20250801.pdf

Datasheet

1.What is the Stacked Solar System?

An intelligent solar power solution for telecom base stations, designed to cut energy costs and reduce carbon emissions.

2.How does it help reduce costs?
By maximizing solar energy use and reducing dependency on the power grid

3.Does it integrate with existing power systems?

Yes, fully compatible with most telecom rectifiers and backup systems.

4. How much solar energy can it utilize?

The system intelligently coordinates with PV modules to maximize clean energy usage.

5. What safety features are included?

Overcharge, over-discharge, short-circuit, and thermal protections ensure reliable operation.
