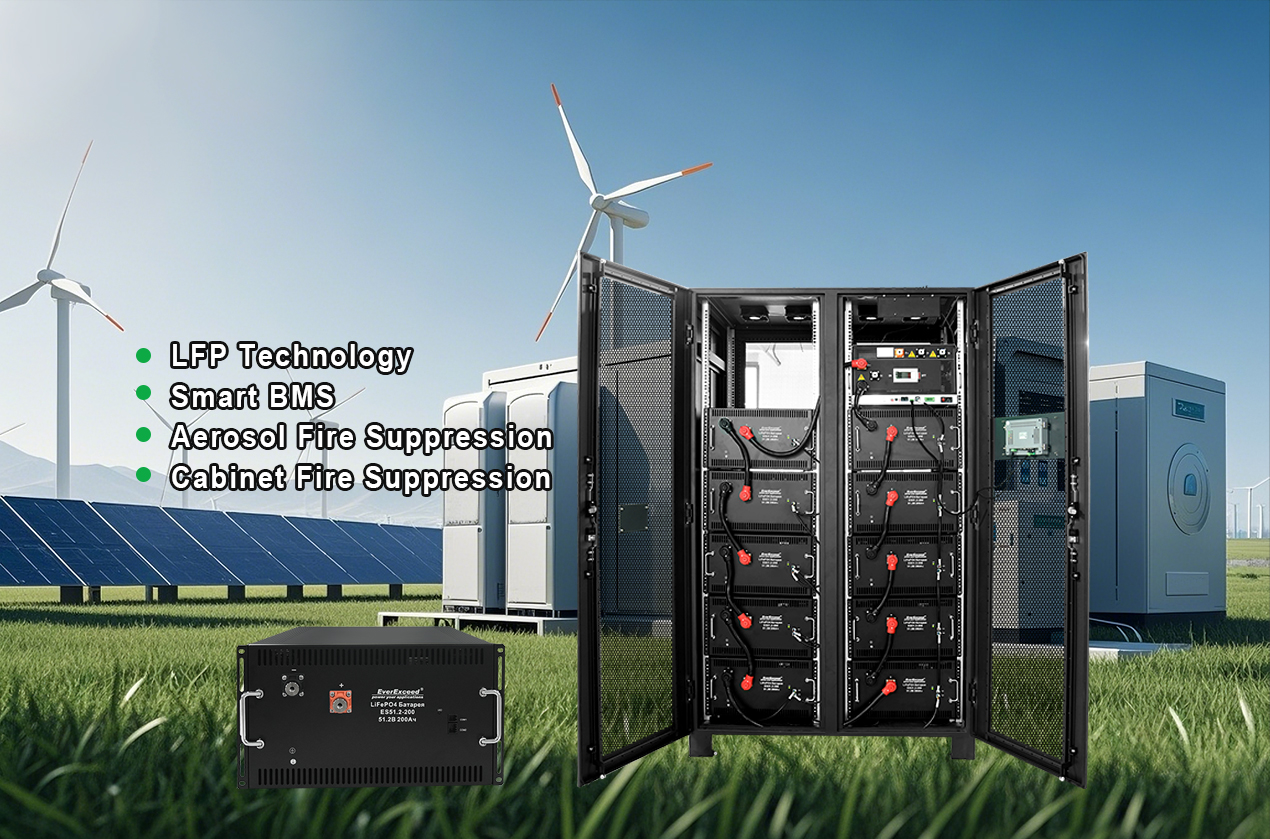

51.2-143.3KWh High Voltage Lithium Battery for Commercial & Industrial Energy Storage System

EverExceed's energy storage system adopts a first-class brand of lithium iron phosphate (LiFePO4) batteries, with high specific energy, long cycle life, fast charging and discharging, safe and non-polluting, etc., which are widely used in photovoltaic power generation, peak shaving and valley filling, inverter speed control, emergency back-up power supply and other energy storage fields. For customers to solve the problem of grid instability, difficult to use electricity at the same time, for many customers to bring considerable economic benefits, saving a huge amount of electricity expenditure every year. The energy storage battery adopts modular composition, the battery module consists of a single cell, multiple battery modules, plus the high-voltage main control box, is a high-voltage battery pack.

brand:
EverExceed
Model:
ES512-100/ ES512-200/ ES512-280
Rated voltage(V):
512V
Rated capacity(Ah):
100Ah/ 200Ah/ 280Ah
Certificates:
UN 38.3; CE
OEM/ODM Service:
Yes, customized service available
Usage:
Commercial & Industrial

inquiry now

51.2-143.3KWh high voltage lithium battery with LCD display

Seven-layer safety protection
Overcharge/over-discharge protection, short circuit protection, temperature monitoring, pressure relief valve design, flame-retardant housing, explosion-proof circuit, full life cycle traceability system

Fault warning mechanism
The LCD display shows the battery health status (SOH) and fault code in real time, and supports APP remote alarm and maintenance suggestions

Modular design and flexible expansion
Supports multiple battery packs in parallel, and the capacity can be expanded to 1MWh+, which is suitable for large-scale application needs such as industrial and commercial energy storage power stations and distributed energy systems

Basic Specification
Model	ES512-100	ES512-200	ES512-280
Nominal Voltage	512V	512V	512V
Nominal Capacity	100Ah	100Ah	280Ah
Energy	51.2KWh	102.4KWh	143.3KWh
Charging
Maximum Charging Voltage	576V
Maximum Charging Current	100A	200A	200A
Discharging
Voltage Range	448V~576V
Maximum Continuous Discharging Current	100A	200A	200A
Cut-off Voltage	448V~464V
Battery Module
Nominal Voltage	51.2V	51.2V	51.2V
Nominal Capacity	100Ah	200Ah	280Ah
Quantity	10
Others
Design Life	15 years
Cycle Life	6000Cycle
Cooling Mode	Fan + Air Conditioner
Fire Protection	Battery module-level and Cabinet-level
Protection	Over temperature, Over current, Short circuit, Over charge/discharge, etc.
Communication Interface	CAN, RS485, Dry contacts
Temperature	Charging: 0~45°C, Discharging: -20°C~60°C
Dimension (WDH)	6508002000mm	13008002000mm	13009502000mm
Weight	500±50KG	1000±50KG	1500±50KG

If you need to download files, you need to register as our member first ! log in / registered

ES512-314 Lithium Battery Energy Storage System V 1.1 20250804.pdf


Datasheet

What is the difference in charging time?
Faster charging times are beneficial if you need backup power to be restored quickly. EverExceed UPS lithium battery fully meets the needs of use.

How do the lifespan and cycle life compare?
These factors will impact the long-term maintenance and replacement costs.

What are the differences in physical size and weight?
Understand the dimensions and weight of each UPS system to ensure it can be accommodated in your available space. Consider if you need a compact and lightweight solution or if you have ample room for a larger unit.

What are the safety considerations?
Inquire about the safety mechanisms and protections incorporated into each UPS system to prevent issues such as overcharging, short circuits and thermal events. This is crucial for the reliable and secure operation of the UPS.

How do your equipment requirements align with each UPS?
Ensure that the UPS type is compatible with the power requirements, voltage compatibility, and interfaces of your existing equipment.

What type of support is needed for each battery technology?
Understand the level of technical support and maintenance services offered for each battery type and ensure that you can obtain reliable support throughout the lifespan of the UPS.
