Solar Energy Storage

25.6V 60ah Rechargeable Sealed Lithium Ion Battery for Solar Street Light Solar System

EverExceed LLS series batteries are the best choice for the durable, safe, environment-friendly energy solution and they can be customized according to your requirement, such as dimension, voltage, capacity of battery. EverExceed robust lithium iron phosphate battery is the ideal choice for energy storage system of solar street light. This battery became most popular product to our customers and proven extremely reliable, durable, safe, environment-friendly energy storage solution. We have successfully completed many projects of solar street light lithium battery and still have many ongoing projects around the world.



  • brand:

    EverExceed
  • Model:

    LLS 24-60
  • Rated voltage(V):

    25.6V
  • Rated capacity(Ah):

    60AH
  • Battery Cells:

    LiFePO4 cells
  • Certificates:

    UN 38.3; UL1642; IEC62133
  • OEM/ODM Service:

    Yes, customized service available
  • Usage:

    Solar street light systemt
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ

25.6V 60ah Rechargeable Sealed Lithium Ion Battery for Solar Street Light Solar System





Technical advantages








High cycle life and deep cycle ability

More usable capacity



Great deep cycle ability provides highly efficient cycling and float service with great energy density, increases overall efficiency.

LFP provides 100% of usable energy, so that you can discharge the battery entirely without causing downtime of your solar street light, ensures reliability of the operation.






Superior  temperature performance

Easy installation



Excellent high temperature performance makes these batteries easily superior than VRLA, can work in up to 60°C temperature. Whereas at 60°C VRLA batteries can hardly operate normally.

These batteries are designed to be drop-in replacement for sealed lead acid batteries without additional labor cost. Also can be installed inside the pole which saves costing for separate cabinet.









Anti theft

User friendly BMS



Small footprint, compact and light battery, can be stored inside the pole or on the top of the pole, not easy to steal like VRLA batteries;

User friendly BMS monitors and communicates regarding the SOC, SOH, protects the system from short-circuit, high and low discharging and charging, high temperature etc.The battery supports bluetooth monitoring
feature (optional) for worry free operation.




Applications

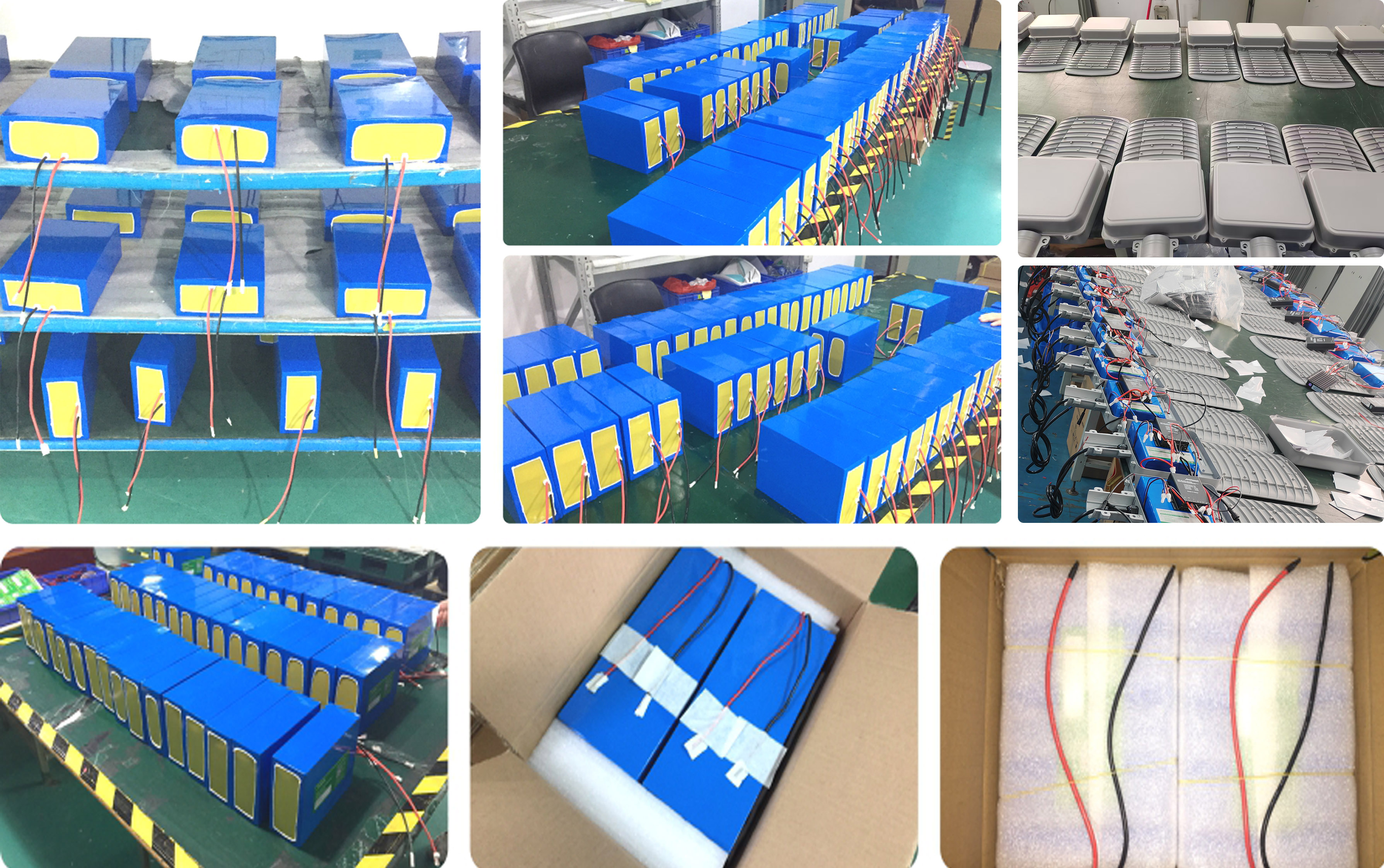

Our factory




ELECTRICAL SPECIFICATIONS
Nominal Voltage 25.6V
Nominal Capacity 60Ah
Capacity @ 0.5C 120 min
Energy 1536 Wh
Self Discharge <1.5% Per Month
Maximum Modules In Series 2
CHARGE SPECIFICATIONS
Maximum Charge Current 10 A (20A Optional)
Recommended Charge Voltage 28.4 V-29.2 V
BMS Charge Voltage Cut-Off 30.4 V (3.8 ±0.025 VPC) (1.1 ±0.4 s)
Reconnect Voltage 28.8 V (3.6 ±0.05 VPC)
Charging Method CC-CV
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 10 A (20A Optional)
Recommended Low Voltage Disconnect 22 V (2.75 VPC)
BMS Discharge Voltage Cut-Off 16 V (2.0 ±0.08 VPC) (20 ±6 ms)
Reconnect Voltage 20 V (2.5 ±0.05 VPC)
Short Circuit Protection 200-600 μs
TEMPERATURE SPECIFICATIONS
Discharge Temperature - 4 °F to 140 °F (-20°C to 60 °C)
Charge Temperature 32 °F to 140 °F (0 °C to 60 °C)
Recommend Storage Temperature 32°F to 104 °F (0°C to 40 °C)
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)
6.1 x 3.7 x 27.6 x 7.2"
(L x W x H)
155 x 95 x 700 x 182 mm
Weight 13.6Kg
Case Material PVC
Enclosure Protection IP 32






If you need to download files, you need to register as our member first ! log in / registered

  • LLS24-60C.pdf
