All-in-one Smart Commercial Energy Storage System

All-in-One Home Energy Storage System 5.12kWh / 16.08kWh with Built-in Inverter & 100Ah / 314Ah LiFePO₄ Battery

Reliable Power, Built for Everyday Homes
The 16.08kWh All-in-One Energy Storage System features a high-capacity 314Ah LiFePO4 battery and a built-in hybrid inverter — delivering safe, stable, and long-lasting power for residential applications.
Designed with affordability and efficiency in mind, this cost-effective solution supports solar integration and is ideal for households seeking backup power, energy independence, or off-grid living.
Its compact, plug-and-play design ensures fast installation and effortless expansion as your energy needs grow.

  • brand:

    EverExceed
  • Model:

    EGH5K-5E Pro/ EGH6.5K-16E Pro/ EGH8K-16E Pro/ EGH10K-16E Pro/ EGH12K-16E Pro
  • Inverter Power:

    5000W/ 6500W/ 8000W/ 10000W/ 12000W
  • Battery Energy:

    5.12kWh / 16.08kWh
  • Battery module capacity:

    100Ah/ 314Ah
  • Application:

    Home, apartment or villa; Shops and groceries for small business;, Small office or enterprise; Bank, ATM or financial institute; Clinic, health care or medical centers;School or baby care center
  • Certificates:

    UN 38.3; IEC62133; RoHS; CE
  • Features
  • TECHNICAL DATA
  • SUCCESSFUL CASES
  • Download
  • Factory
  • Video
  • FAQ



High Capacity & Long Service Life

314Ah LiFePO₄Battery: Delivers higher energy density with excellent cost-performance ratio.
12,000 Cycles @ 80% DoD: Ensures long-term reliability and reduced replacement costs.
High Power Density:16.08kW all-in-one system.


Integrated All-in-One Design
BMS + Hybrid Inverter: Highly integrated architecture for seamless system coordination.

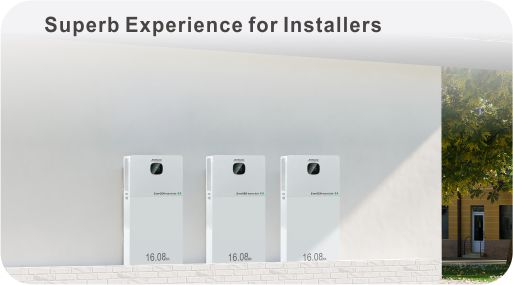

Ease of Installation & Scalability
Modular & Stackable Design: Simplifies setup and reduces installation time by up to 50%.
Flexible Expansion: Supports up to 8 battery modules and 6 systems in parallel to meet varying energy needs.

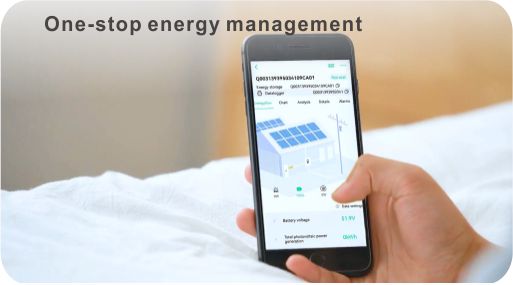

Smart Monitoring & Control
Visualized Energy Management: Intuitive interface for easier operation and status monitoring.
Remote Access: Monitor and manage your system anytime via mobile or PC.




Models EGH5K-5E Pro EGH6.5K-16E Pro EGH8K-16E Pro EGH10K-16E Pro EGH12K-16E Pro
System Specification
Rated AC Output Power 5000W 6500W 8000W 10000W 12000W
Energy Capacity Range 5.12kWh 16.08kWh 16.08kWh 16.08kWh 16.08kWh
Battery Type Lithium Ion Battery (LFP, Lithium Iron Phosphate Technology)
Max. AC Charging Current 80A 150A
Max. PV Charging Current 100A 150A
Max. Total Charging Current 100A 150A
Operating Temperature -20 to 50
Storage Temperature -30 to 70
Remote Monitoring WiFi & APP
Relative Humidity 0~95%(no condensation)
Operating Altitude 2000m
Ingress Protection(IP) Rating IP21
System Dimension Width 600mm
Deepth 260mm
Height 860mm 1182mm
Weight 71kg 152kg 155kg
Cooling Method Fans
PV String Input Specification
Max. PV Input Power 5500W 6000W 9000W*2
Max. PV Input Voltage 500VDC
Recommend PV Input Voltage 120 to 450 VDC
MPPT Voltage Range 90 to 450VDC
Max. PV Charging Current 100A 150A
Number of MPPT 1 2
Inverter Specification
Rated AC Output Power 5000W 6200W 8000W 10000W 12000W
AC Input Voltage 90VAC to 280VAC
AC Output Voltage 230VAC
Rated Frequency 50 / 60Hz
Max. AC Charging Current 80A 150A
Power Factor 1.0
Norminal Output Wave Form Pure Sine Wave
Transfer Time 15ms
Output THDi <3%
Max. PV to Load Efficiency 97%
Max. Battery to Load Efficiency 94%
Battery Specification
Norminal Capacity 100Ah 314Ah
Battery Voltage 51.2VDC
Battery Quantity 1
Energy Capacity 5.12kWh 16.08kWh
Cycle Life 6000 cycles@80% DOD 12000 cycles@80% DOD
Protection
Short Circuit Protection Yes
Overload Protection Yes
Over Temperature Protection Yes
Battery Voltage High/Low Protection Yes
AC Input Voltage High/Low Protection Yes






If you need to download files, you need to register as our member first ! log in / registered

  • EverExceed EverGEN Hybrid Energy Storage System V1.3 20250730.pdf
