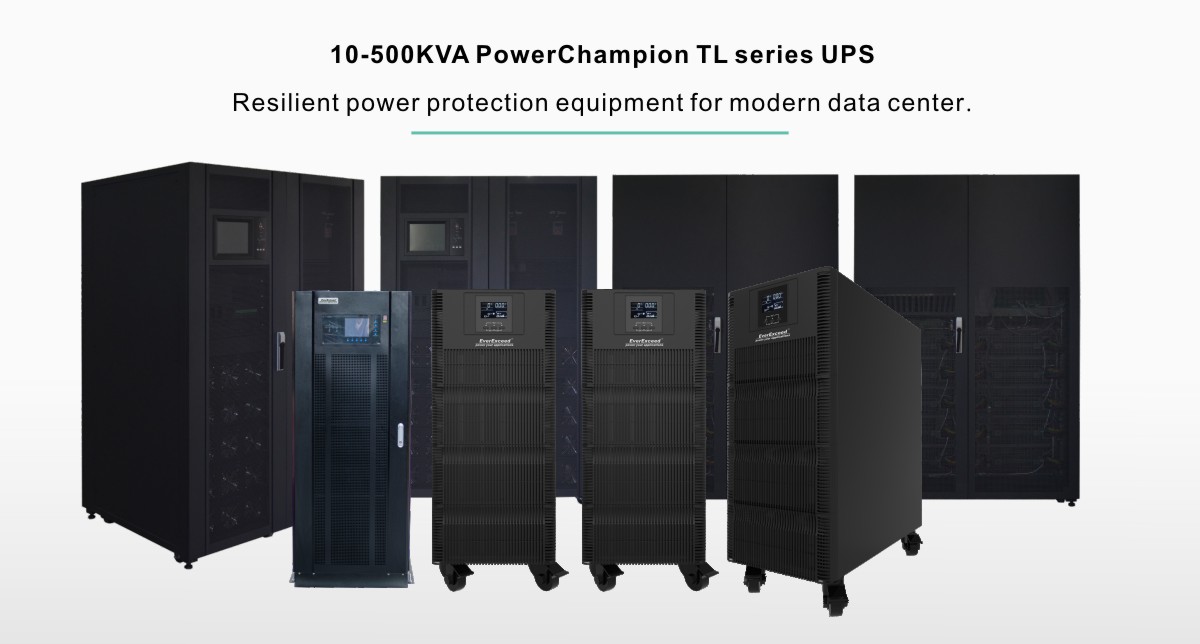

10-500kVA PowerChampion TL Series Online UPS

10-500kVA PowerChampion TL Series Online UPS

380/400/415VAC, 3:3

EverExceed PowerChampion TL three phase UPS offers advanced technology that increases performance and reliability: three high speed DSPs with complete digital control fully ensure high quality of power supply, high input power factor and low input current distortion. It also offers humanization design: full front access of serviceability, user friendly interface.

  • brand:

    EverExceed
  • Features
  • Technical datas
  • Successful case
  • Download
Technical features:

High efficiency:

•  Green power technology, high input power factor, low current THD, high efficiency

•   Modularized design of subsystem, convenient field maintenance

Reliable:

•   Parallel up to 1500KVA

•   Wide input voltage window, compatible with different utilities

•   Support all kinds of load, high overload capability

Intelligent:

•   Intelligent battery management, extending battery lifetime

•   Redundant design of power model fans

Advanced technology:

•   Fully digital control with three DSP

•   Full front maintenance

•   Large LCD display, friendly human machine interface


Safety:

•   Intelligent self-diagnose function, all kinds of fault protection, large capability of history record storage

•   All PCB with conformal coating



Applications:



  • ISP (Internet Service Provider
  • IDC (Internet Data Center)
  • Computer Room
  • Service Center
  • Precision Instruments
  • Intelligent Equipments




EverExceed PowerChampion TL Series UPS(HV:10-40KVA) / 3:3 Phase

Model PWL 10KS PWL 15KS PWL 20KS PWL 30KS
PWL 10KL PWL 15KL PWL 20KL PWL 30KL
Capacity 10KVA 15KVA 20KVA 30KVA
Input
Phase  3 Phase + Neutral + Ground, 380V/400V/415V (line-line)
Volatage range

304-478Vac (line-line), full load;                                                                                      228-304Vac (Line-line),   load decrease linearly according to min phase voltage

Frequency range   40-70Hz
THDI <5% (linear load) <4% (linear load)
Power factor >0.99
Output
Volatage  200V/208V/220V (line-line)
Voltage regulation 1.50%
THDu <1.5% (linear load), <6% (non-linear load)
Power factor 1 0.9
Frequency range 50/60Hz
frequency precision 0.10%
Overload capability 110% for 60mins; 125% for 1min;150% for 1min;>150% for 200ms
System
System efficiency Normal 95% 95% 96%
Battery 94.5% 96% 96%
Display LCD+LED+Keyboard
IP Class IP20
Interface Standard: RS232,RS485, Dual input kit; Option: Dry contacts, SNMP,Parallel kit, Battery cold start
Operation temperature 0-40⁰C
Relative humidity 0-95% (non-condensing)
Battery
Voltage ± 120VDC
Charge power 20% System Power
Voltage precision 1%
Noise 58dB @ 100% load, 52dB @ 45% load (1 meter away) 70dB @ 100% load, 62dB @ 45% load (1 meter away)
Physical
Weight(kg) 51.5 140 140
31 64 64
Dimension(W*D*H)(mm) 250*840*715 500*840*1400 500*840*1400
250*660*530 250*950*770 250*950*770

EverExceed PowerChampion TL Series UPS(HV:60-500KVA) / 3:3 Phase

Model PW60L PW80L PW90L PW100L PW120L PW150L PW200L PW250L PW300L PW400L PW500L
Sn 60KVA 80KVA 90KVA 100KVA 120KVA 150KVA 200KVA 250KVA 300KVA 400KVA 500KVA
Pn 60KW 80KW 90KW 100KW 120KW 150KW 200KW 250KW 300KW 400KW 500KW
Input/output Three phase in, Three phase out
INPUT
Rated voltage 380/400/415V
Voltage tolerance 304-478V
Rated frequency 40-70HZ
Power factor ≥0.99
THDi ≤3%(100% non-liner load)
OUTPUT
Rated voltage 380/400/415V
Voltage tolerance ±1.5%
Rated frequency 50/60HZ
Overload Capability ≤110% 10min ,≤125% 1min ,≤150% 5S ,≥150% 200ms
THDu ≤1% liner load,≤5.5% non-liner load
Crest factor 3:01
Connections Terminal
BATTERIES
Type Lead-acid maintenance-free batteries
Voltage ±240VDC(±192,±216,±240,±264 Setable)
Battery charger 20%*System Power
COMMUNICATION
Interfaces RS232,RS485,USB,Dry contact(programmable)
Ethernet adapter SNMP,AS400,Parallel Kit,Battery cold start(standard for 250KVA above),Lightning protection components,Dust filter,LBS
Local communication software Local View
EFFICIENCY
Online mode 96%
ENVIRONMENT
Ambient service temperature 0 °C to +40 °C (15 °C to 25 °C for maximum battery lifetime)
Relative humidity < 95 % non-condensing
Maximum altitude 1000 m without de-rating
UPS CABINET
Dimensions W×D×H(mm) 600*980*950 600*980*1150 600*980*1400 600*980*1150 600*980*1600 650*960*1600 650*960*2000 1300*1100*2000
Weight(Kg) 170 210 231 210 266 305 350 445 490 810 900
Degree of protection IP20
STANDARDS
Safety EN 62040-1
EMC EN 62040-2
Product certification CE


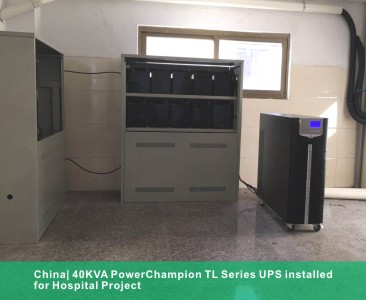

Project name:Manufacturing factory

Country: Ukraine

Year: 2014

In 2014, EverExceed supplied 250KVA Power champion TL series UPS system for a manufacturing factory in Ukraine.




Project name: PLN project

Country: Indonesia

Year: 2016

In 2016, EverExceed supplied Power champion TL series UPS system to the project of PLN to provide uninterrupted power supply in Indonesia.




Project name: Telecom project

Country: Saudi Arabia

Year: 2016

In 2016, EverExceed delivered 100KVA Power champion TL series UPS system for Telecom Company in Saudi Arabia.
