uXcel Series Thyristor Controlled Rectifier Battery Charger

The EverExceed uXcel range industrial battery charger is the flagship charger of EverExceed Industrial Power solutions. It integrates proven design topology with the latest advanced digital control technology to control the thyristor bridge rectifier and provides the most reliable and trouble-free performance in any electrical and industrial environments.




  • lead time:

    Normally 4~6 weeks
  • brand:

    EverExceed
  • Nominal DC voltage(Output):

    24/48/110/125/220/240/400V
  • Nominal DC current(output):

    10-1500A
  • Input AC voltage:

    Single phase 1×230V(220,240)/Three phase 3×400V(380,415)
  • Battery type:

    Lead acid batteries, nickle cadmium batteries, lithium batteries
  • Communication:

    RS232, Modbus RTU
  • OEM/ODM Service:

    Yes, customized service available
  • Certificates:

    CE, EN61000, IEC60146
  • Features
  • TECHNICAL DATA

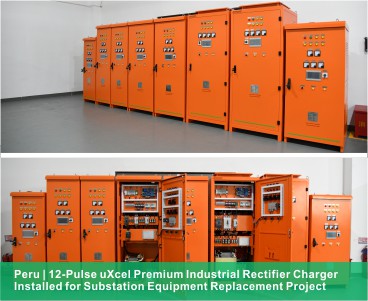

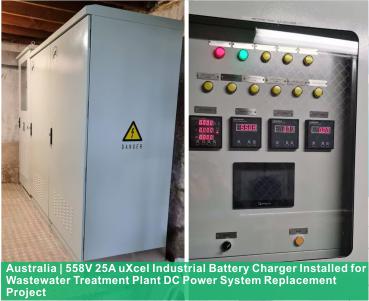

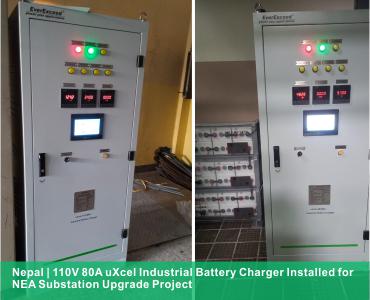

  • SUCCESSFUL CASES
  • Download





Large LCD display


User friendly operation with large LCD display, optional touch screen with the choices of 8 languages ensure easy maintenance and operation.Smart communication and Remote Monitoring





Leading Technology- 6 or 12 phase controlled Thyristor technology


The embedded micro-computer controller processes signals 10 times faster than standard analog methods.











Isolation transformer


Multilingual digital graphic display with embedded event log. Full compatibility with lead-acid and nickel- cadmium batteries, sealed or vented.





High Reliability and High MTBF


Precise adjustable temperature compensation, robust and unique design allows the charger to continuously operate at 40°C ambient temperature on full load. Natural ventilation and cooling are available on most of the cases.









>Flexible maintenance and Reduced MTTR-The design make it easy for front-access to all vital modules modules of the charger


>Versatile constant voltage and constant current charging modes


>Smart communication and Remote Monitoring through isolated RS232, RS485, Ethernet. Full data logging


>Long design life up to 20+years-system design life up to 20+ years in continuous operation under the condition of appropriate maintenance


>Enhanced Robustness - Mechanical design to withstand vertical and horizontal acceleration stress up to 0.5g as standard













Flexibly customized

Ruggedized solutions

Complete power protection solutions
power solutions to perfectly meet the
specific requirements of customer’s industrial applications.


to withstand harsh environments,
extreme temperatures, humidity, dust and vibrations etc. Up to
IP55 protection.

including switchgear,
DC distribution, monitoring suite.



Applications for DC Power Solution:


The EverExceed uXcel Rectifier-Charger range suits all DC applications requiring a large battery back-up:

  • Power transmission and distribution;
  • Continuous process industries;
  • Oil and Gas and petrochemical industries;
  • Transportation (Rail, metro,tramway).



Nominal Voltage 12V 24V 48V 110V 220V 400V
Nominal Current 25-1500A 25-1500A 25-1500A 16-1500A 16-1500A 16-1000A
Input Supply                             Single phase  120V/220V/230V/240V, three phase  208V/380V/400V/415V/480V
Input Voltage/Frequency Tolerance                                                                             ± 10% , 50/60Hz ± 5%
Output Voltage                       1.8-18V            3.6-36V           7.2-72V         16.5-165V        33-330V          60-600V
Voltage Ripple                                                <2% specified full load and without battery connected.
Static Voltage Regulation      ± 1% for 0-100% load variation, ± 10% AC input voltage variation and     5% AC input frequency variation
Dynamic Voltage                                           5% for load variation of 10% to 100% or 100% to 10%
Current  Regulation                                                        ± 1%
Protection Input Circuit Breaker, Charger Output Fuse/Circuit Breaker*, Charger Current
Limit, Dual Battery Current Limit, AC Surge Suppression*, Short Circuit Protection, Reverse Battery Polarity Protection, Phase lost protection*
Alarms Charger Fail, DC High, Under/Over Voltage Trip, Earth Fault*, Low Electrolyte,Battery Disconnected*, Battery Over Temperature*, Blown Fuse*, Common Alarm Relay, Common Alarm Buzzer( All  alarms are user programmable )
Metering Charger Voltage, Charger Current, Load Voltage, Load Current, Battery Charge/Discharge Current, Battery Temperature*, Battery Capacity Ratio( Meter accuracy 1% )
Options                                        DC Voltage Regulator, TCP/IP adaptor, Triphase control and shot , Cabinet lamp, Temperature and humidity controller, DC distribution board
Physical Wall mount or free standing powder coated metal cabinet ( Dimensions depend on charger output rating and associated battery requirements  )
Environmental                                                                -10 to 50℃, up to 95% humidity
Operating Altitude (m)                                                 3000 (with out derating)
Communication Interface                                 RS232/RS485 Modbus, TCP/IP Ethernet (optional)
DC Meter Display (Optional)           For display the voltage and current of charger on the panel
MTBF / MTTR                                              100,000 Hours / 4 Hours
Efficiency      80 to 93% depending on nominal voltage and power rating
Temperature Compensation* Programmable 3 - 6 mV / Cell / °C
Audible Noise                                                                                    <60 Db
Limp Home Feature                    Continuous operation in the event of control failure
Revert to Factory Settings                                         Reinstates all original factory settings
System                                          SCR full-bridge, Intelligence charging management, Fast acting fuse
