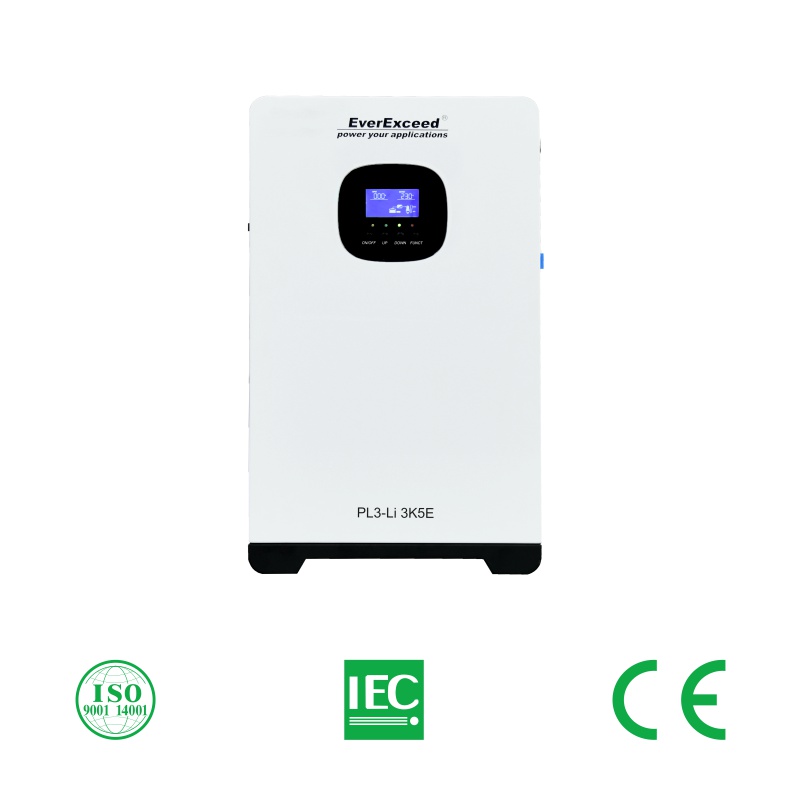

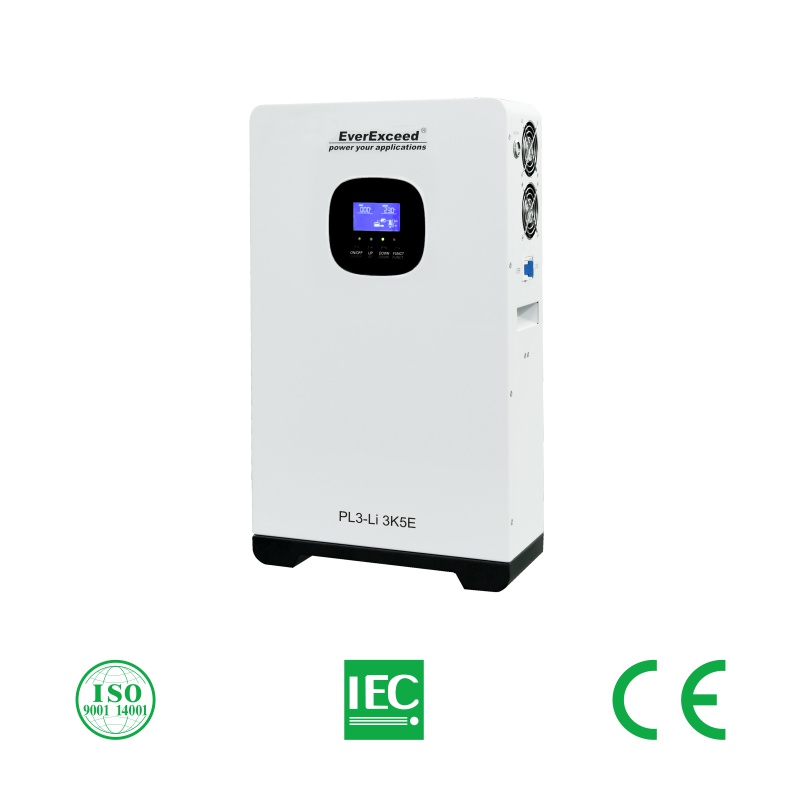

PL3-Li 3000VA Tower Lithium-Ion UPS with 51.2V 100Ah LiFePO4 Batteries

High-efficiency wall-mounted Lithium-Ion UPS with reliable double conversion power topology, zero transfer time, and advanced lithium battery integration. Designed for critical loads, it ensures wide input range adaptability and seamless BMS communication. The compact, space-saving unit combines high reliability with a long lifespan, while offering full customization for smart power systems and remote monitoring—delivering intelligent, uninterrupted power protection for demanding applications.

brand:
EverExceed
Model:
PL3-Li 3K5E
Type:
Wall-mounted
Rated voltage:
90~300VAC±5VAC
Rated frequency:
50/60Hz
Applications:
Home & Office electronics,network and server
Rated capacity:
3000VA

inquiry now

3000VA Wall-mounted Tower Online Lithium-Ion UPS with Lithium-ion Battery

Wall-mounted lithium-ion UPS with long backup time and compact design for reliable critical power protection.

Protects Against

High Performance

Zero Transfer Time

Seamless power transfer ensures zero downtime.

1000VA- 3000VA

Wide range of capacities allow you to select the power and runtime that best meet your need.

Li-ion Battery Powered

Integrated Battery Management System (BMS) ensure safe and reliable operation.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Genset Compatible

Integrates seamlessly into site power infrastructure.

DSP Digital Control Based

Advanced DSP-based digital control brings high performance.

High Input Power Factor

0.9 to unity power factor provides more actual power to the load increasing power density.

Open to Customization

Flexible configuration options for automation and smart energy systems.

Pure Sinewave Output

Pure sinewave output while on battery simulates utility power and is compatible with active power factor corrected power supplie.

Online Double Conversion Topology

It protects connected equipment from power disturbances while ensuring superior voltage and frequency regulation with built-in surge protection.

Superior Lithium battery technology

Safe and reliable: Adopts Grade A LiFePO4 batteries and built-in smart BMS;

Fast recharge: Twice as fast as traditional VRLA batteries getting you back to 90% in as little as 5 hours;

More discharge cycles: Deliver up to 10 times more charge / discharge cycles than VRLA batteries

Fewer battery replacement: Last on average up to 3 times as long as traditional VRLA batteries reducing maintenance cost.

Model	PL3-Li 3K5E
Rated Power	3000VA/2400W
AC Input	Input System	Single Phase Input (L/N+PE)
	Nominal Voltage	208/220/230/240VAC
	Frequency	50/60Hz
	Voltage Range	90~300VAC±5VAC
	Frequency Range	(40~70)±0.5Hz
	Input Power Factor	>0.99
	Bypass Voltage Range	115~285VAC*(1±3%)
Battery	Nominaol Voltage	51.2V
	Energy	5.12kWh
	Type	LiFePO4 battery
	Charge Time	Charge to 90% battery capacity in 5 hours(standard)
	Discharge Time	120min@Full load
	Max.Charging Current	16A
AC Output	Output Wiring System	Single phase(L/N+PE)
	Inver Mode Output Voltage	208/220/230/240VAC±2%
	Waveform	Sine Wave
	Harmonic Distortion	THD<2% (linear load) THD<7%(nonlinear load)
	Output Frequency	50/60±4Hz(Sync mode)50/60Hz±1%(Fix Freq. mode)
	Overload Capability	105~125%≥60s,126~150%≥30s the recover point is 70%
	Transfer Time	Battery<->Line Mode :0ms
Efficiency	Line Mode	93%
	Battery Mode	87%
Communications		RS232(Standard),Dry contact(optional),SNMP(Option)
Alarm Function		AC/DC input under abnormal, overload condition and inverter problems
Protection Function		AC input or output above or below the range of voltage, overload,over temperature and short circuit protection(Over or under temperature、 Over or under voltage、 Short circuit、Communication failure、 Charge over current、 Discharge over current )
Noise		<50dB
Item		Normal range
Ambient Temperature		-10℃~+40℃
Environment Humidity		0-97%,no condensing
Altitude		No derating for lower than 1000M: Over 1000m :1% derating for every 100M rise
Storage Temperature		-15℃~+45℃
Size and Dimension	WHD(mm)	490820150mm
	Weight(kg)	48.5kg

If you need to download files, you need to register as our member first ! log in / registered

PL3-Li 3K5E Tower-type Online UPS with Li-ion Battery V1.0 20250813.pdf

Datasheet

What is the main advantage of this UPS?

It offers zero transfer time, ensuring uninterrupted power to critical loads, combined with advanced lithium battery technology for long lifespan and high reliability.

Can it be wall-mounted?
Yes, it is designed for wall-mounted installation, saving space and making it ideal for compact setups.

Is it compatible with existing power systems?

Absolutely. It supports a wide input range and seamless BMS communication, and can be fully customized for smart power systems.

How reliable is the battery?
The lithium-ion battery provides a long lifespan and consistent performance, reducing maintenance costs while ensuring dependable power protection.

Can I monitor the UPS remotely?
Yes, it supports remote monitoring, allowing you to track battery status and UPS performance in real time.

What applications is it suitable for?

Ideal for critical applications such as IT, finance, telecommunications, industrial systems, and other demanding environments requiring uninterrupted power.
