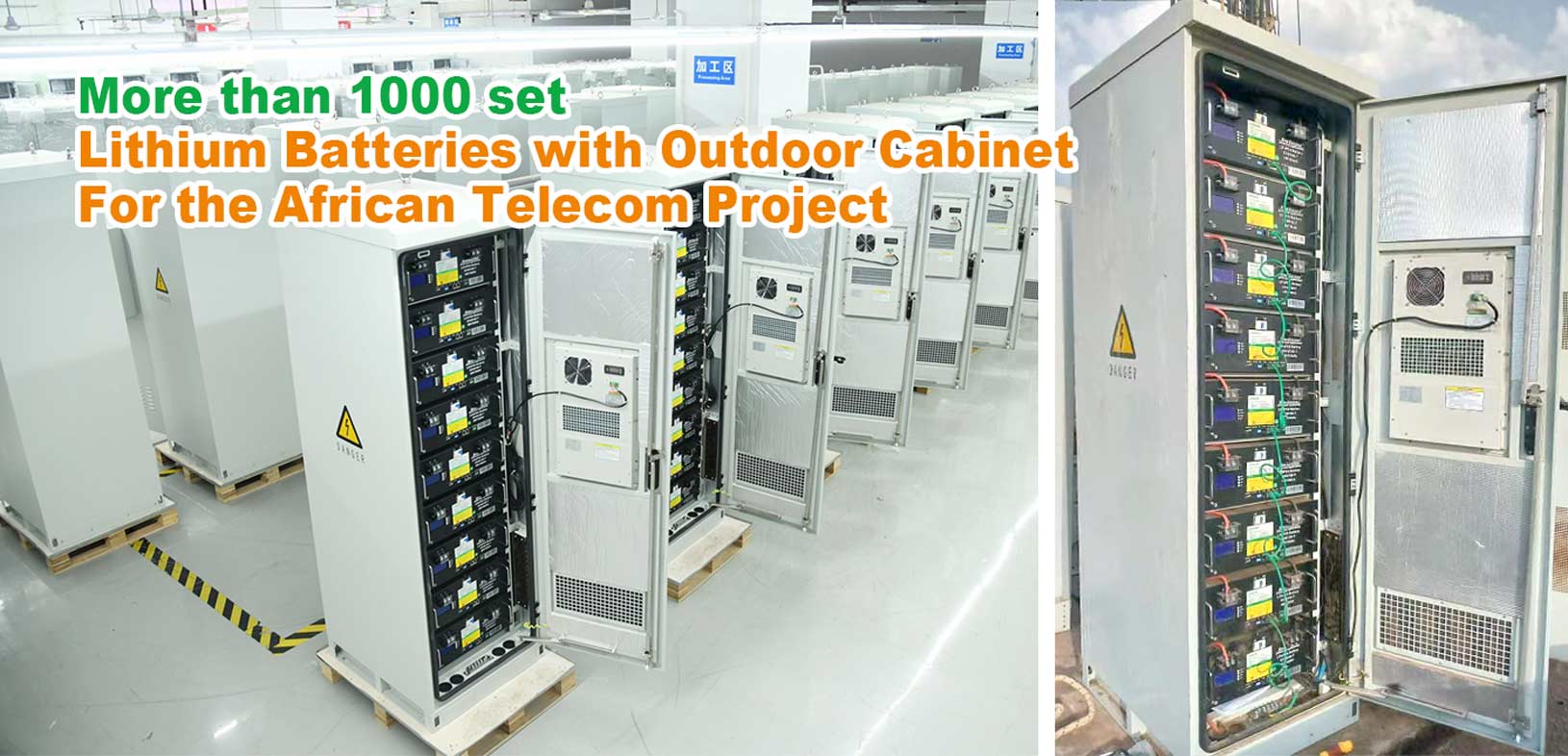

Here we are going to introduce our 48V 900Ah LiFePO4 batteries with customized outdoor cabinet for the African Telecom Project. These telecom solar systems were integrated with 600W DC Air-Conditioner 48V100AH Lithium batteries, which were much "Safer, Smarter, Simpler" and can help you to solve the power problems in your base transceiver station (BTS), internet data center, outdoor integrated power cabinet, network telecommunications facilities etc.

Safer:

Adopt high quality Grade A LiFePO4 batteries: ≥6000 cycles;

Certified with CE, IEC62619, UL, UN38.3, etc;

Customized IP55 cabinet: water proof, dust proof, anti-theft three-point lock system ergonomic handle; stainless steel flap for additional redundant locks, vandal-resistant (hidden) hinges;

Multiple alarm system: smoke alarm, access control alarm, temperature and humidity sensor, dynamic environment monitoring, etc.

Smarter:

Built-in smart BMS system, Intelligent automatic protection for overcharge, over discharge and temperature conditions, etc;

With LCD display, can check the operating status of the battery at any time;

Support RS485/CAN communication, integrated with telecom base station systems;

Support SNMP/GPRS remote monitoring;

flexible system capacity extension: telecom’s 19''/ 23'' standard cabinet;

Modular battery design supports parallel connection.

Simpler:

Easy installation: prefigured and quick deployment for shorter project execution time;

Super-fast charging: 90% within 1~1.5 hours;

Saving shipping cost: cabinet comes with preinstalled batteries, no need separate container for batteries during shipping.

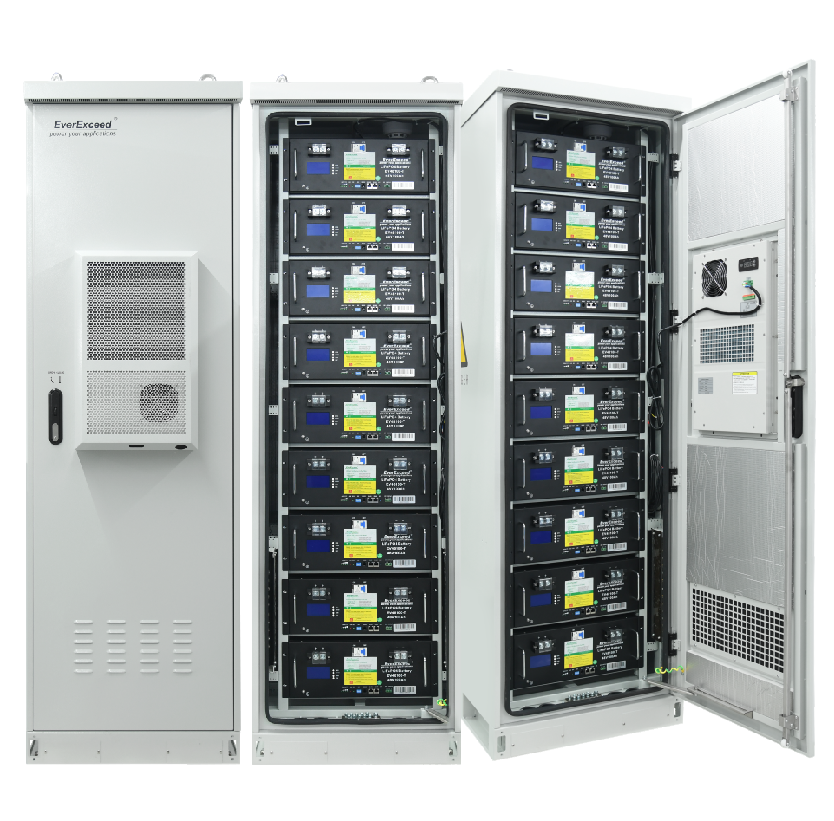

Model：	EV48900-T
Nominal voltage：	48V
Capacity：	900Ah
Energy：	43.2kWh
Battery module：	9*EV48100-T
Recommend charging voltage：	54-54.7V
Floating charging voltage：	51.7-52.5V
Recommend charging current：	360A
Maximum discharging current：	720A
Discharging cut-off voltage：	40.5V
Air conditioning：	DC48V/600W
Fan：	2*DC48V
Charging temperature range：	0-50℃
Discharge temperature range：	-20-60℃
Dimensions：	2100*650*750mm
Weight：	550kg
IP grade：	IP55
