Telecommunications base stations are facilities used for wireless communications, such as mobile phone towers, and they are responsible for transmitting and receiving wireless signals that allow people to make phone calls, send text messages, and use mobile data. Therefore, in order to maintain the normal operation of a communication base station in the situation of main power supply failure or power outage, the backup battery plays an important role.

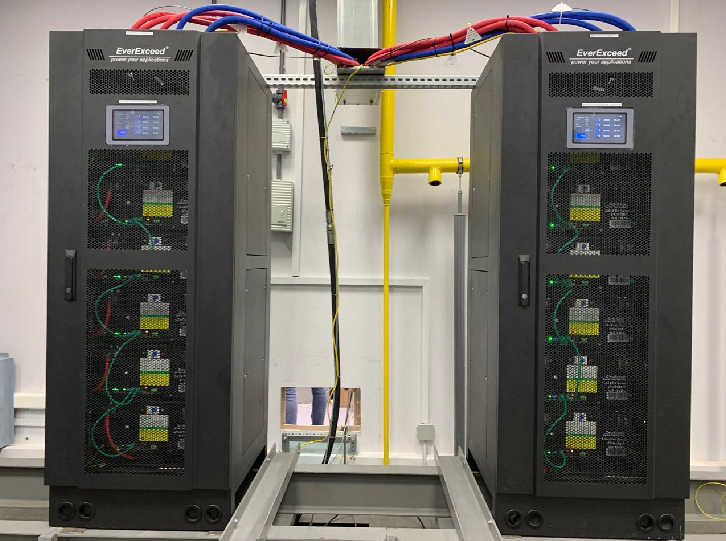

In this project, we provided 6 pcs 48V600Ah lithium battery modules(EV48600-T) connected in parallel which can provide a backup power supply for 60 minutes for a 25KW system, ensuring that the communication system can be maintained without shutting down when the main power supply fails, avoiding a large amount of economic losses and gaining time for power repair.

Model	EV48600-T
Nominal voltage	48V
Capacity	600Ah
Energy	28.8KWh
Battery module	6*EV48100-T
Recommend charging voltage	54V±0.5V
Floating charging voltage	54V±0.5V
Recommend charging current	180 A
Maximum discharging current	600A
Discharging cut-off voltage	40.5 V
Fan	2* DC48V
Charging temperature range	0-50 ℃
Discharge temperature range	-20-60 ℃
Dimensions	600*600*1600 mm
Weight	320 kg
