EverPower Outdoor Solar Energy Storage System

EverExceed's Outdoor Solar Energy Storage solutions have been designed in a way to comply with requirements of Outdoor applications like oil and gasisland, off-grid remote area etc. It is a solution for off-grid applications which includes power backup, peak shaving, load shifting, PV self-consumption, PV smoothing and etc. It comes with an intelligent ventilation system and it has the option to add an integrated air conditioner.



  • brand:

    EverExceed
  • Model:

    OD5K-5E, OD5K-10E, OD5K-15E, OD5K-20E
  • Inverter Power:

    5KW
  • Battery Energy:

    5.12KWH-20.48KWH
  • Battery module capacity:

    5KW per battery module,up to 6 modules
  • Application:

    outdoor
  • Certificates:

    ISO 9001 &14001, OHSAS 18001, CE
  • Features
  • TECHNICAL DATA

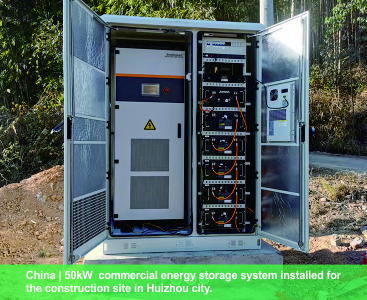

  • SUCCESSFUL CASES
  • Download
  • Related documents
  • Video
  • FAQ


Features & Advantages








Easy installation, transportation and low cost due to compact size

More reliable electric supply of 24/7, Minimizes OPEX and CO2 footprint

Maximum usage of solar energy with leading algorithm design



Operational diagram


Application


  • Off grid or poor grid and remote area
  • Sunshine duration fluctuates greatly areas
  • Systems requiring high reliability requirement
  • Modernization of legacy DG powered sites with limited footprint
  • Require environment protection area.




Model EPO5K-5E EPO5K-10E EPO5K-15E EPO5K-20E
System Specification
Rated AC Output Power 5000VA/5000W
Surge AC Output Power 10000VA
Energy Capacity Range 5.12kWh 10.24kWh 15.36kWh 20.48kWh
Battery Type Lithium iron phosphate battery
Max. AC Charging Current 60A
Max. PV Charging Current 80A
Max. Total Charging Current 80A
Operating Temperature Charge:0 to 50 / Discharge: -20 to 60
Storage Temperature -30 to 70
Remote Monitoring WiFi & APP (Optional)
Display 7"  TFT LCD( (Optional)
Relative Humidity 0~95%(no condensation)
Operating Altitude  2000m
Protection Degree IP55
System Dimension W 600mm 600mm 600mm 600mm
D 600mm 600mm 600mm 600mm
H 1300mm 1300mm 1700mm 1700mm
Weight 117kg 165kg 238kg 286kg
Certification and Standards
Certificates: CE, RoHS, UN38.3
Standards: IEC62619, EN 61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3
PV String Input Specification
Max. DC Input Power 5500W
Max. DC Input Voltage 500VDC
PV Operating Voltage Range 120 to 500VDC
MPPT Voltage Range 120 to 450VDC
Max. PV Charging Current 80A
Max. PV Input Current 22A
Inverter Specification
Rated AC Output Power 5000W
Surge AC Output Power 10000VA
Battery Recommended Voltage 48VDC
AC Input Voltage 90Vac to 280Vac
AC Output Voltage 230Vac(120Vac optional)
Rated Frequency 50 / 60Hz
Max. AC Charging Current 60A
Power Factor 1.0
AC Output Wave Form Pure Sine Wave
Transfer Time 10ms
Output THDi <3%
Max. Conversion Efficiency ≥94%
Battery Specification
Battery Module Model EP-48100
Battery Module Voltage 51.2V
Battery Module Capacity 100Ah
Module Quantity 1 2 3 4
Total Energy Capacity 5.12kWh 10.24kWh 15.36kWh 20.48kWh
Cycle Life >6000 cycles@80% DOD




If you need to download files, you need to register as our member first ! log in / registered

  • EverPower Outdoor Series ESS V1.3.pdf
